ICRON USB 3-2-1 RAVEN

允许用户通过点对点连接扩展所有USB 3.1 Gen 1(5 Gbit / s)设备以及USB 2.0和1.1设备

支持所有USB 3.1、2.0、1.1设备

支持所有USB 3.1、2.0、1.1设备

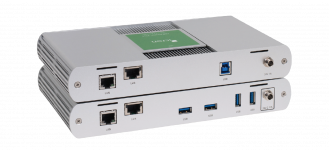

ICRON USB 3-2-1 Raven (417系列)

Icron USB 3-2-1 Raven™是世界上第一个也是唯一的USB 3.1扩展器,允许用户跨点对点扩展所有USB 3.1 Gen 1(5 Gbit / s)设备以及USB 2.0和1.1设备。单根Cat 6a / 7线缆的最大点对点连接长度为100 m。对于使用USB 3.1会议摄像机的会议室,这是理想的USB 3.1扩展器解决方案。

Raven已成功通过了大多数主要的USB 3.1会议摄像机及主要的网络会议应用程序的测试。

这款4端口USB 3.1扩展器支持高达5 Gbit / s的数据速率,并且可即插即用,无需软件驱动程序,适用于所有主要操作系统:Windows®,macOS™,Linux®和Chrome OS™。此外,基于ExtremeUSB-C™的USB 3.1扩展器系统已通过FCC / CE Class B认证,并且向后兼容,除USB 3.1会议摄像机外,它还适用于所有USB外设,包括:闪存驱动器、硬盘驱动器、键盘、鼠标、交互式白板、触摸屏、扩展底座、USB到视频转换器、音频设备以及任何其他USB 3、2和1设备。

产品特色

产品特色

ICRON USB 3-2-1 Raven (417系列)
  • USB 3.1 Gen 1数据速率高达5 Gbit/s
  • 支持所有USB 3.1、2.0、1.1设备
  • 每个USB端口最大1.2 A(6W)
  • 100/1000 Mbps以太网通道; 局域网直通
  • 点对点连接

规格

ICRON USB 3-2-1 Raven (417系列)
USB速度
USB 3.1:最高5 Gbit / s
USB 2.0:最高480 Mbit / s
USB 1.1:最高12 Mbit / s
最大传输距离
Cat X可达100 m
多模光纤可达200​​ m
外壳材质
银色阳极氧化铝
尺寸
137.3 x 232.1 x 33.0 mm

零件号

零件号

ICRON USB 3-2-1 Raven (417系列)

All Variations

ImageModell:Description

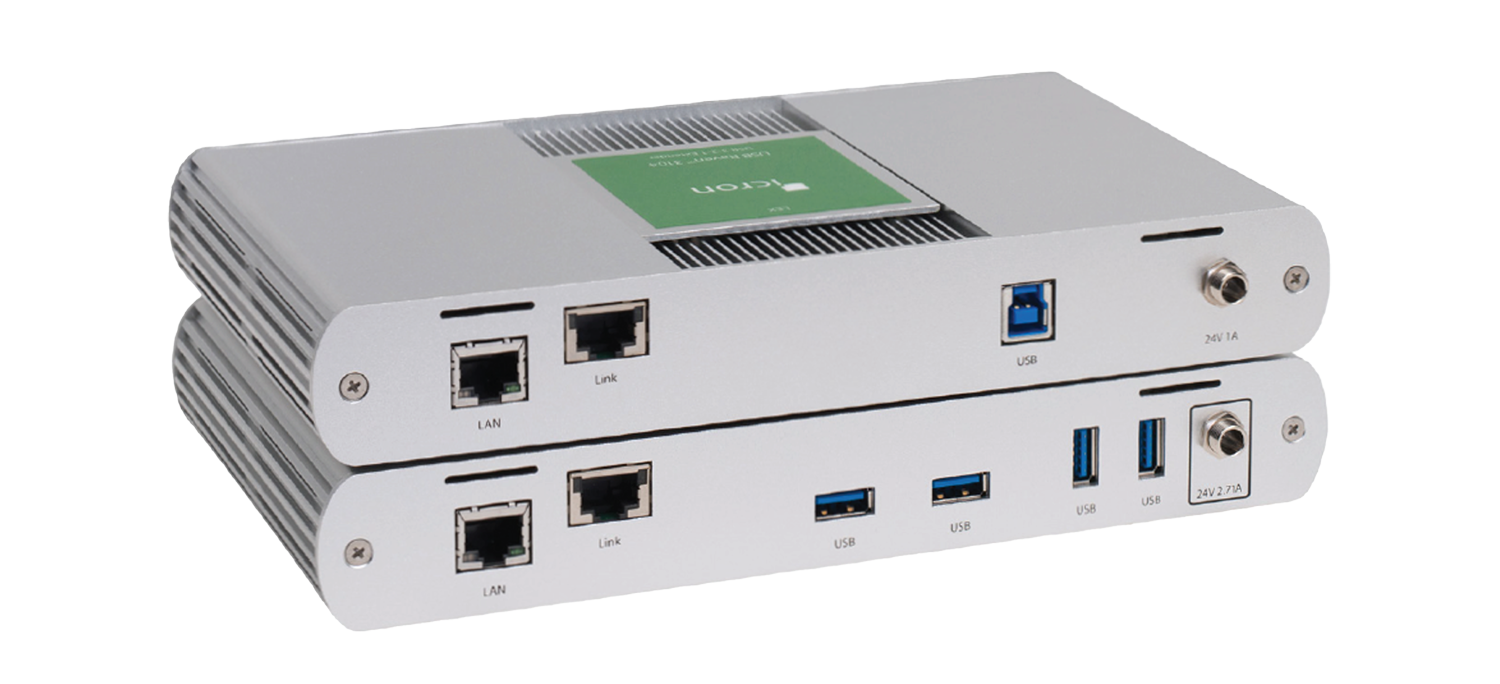

K417-7CICRON USB 3-2-1 Raven 3104 USB 3.1扩展器,Cat X

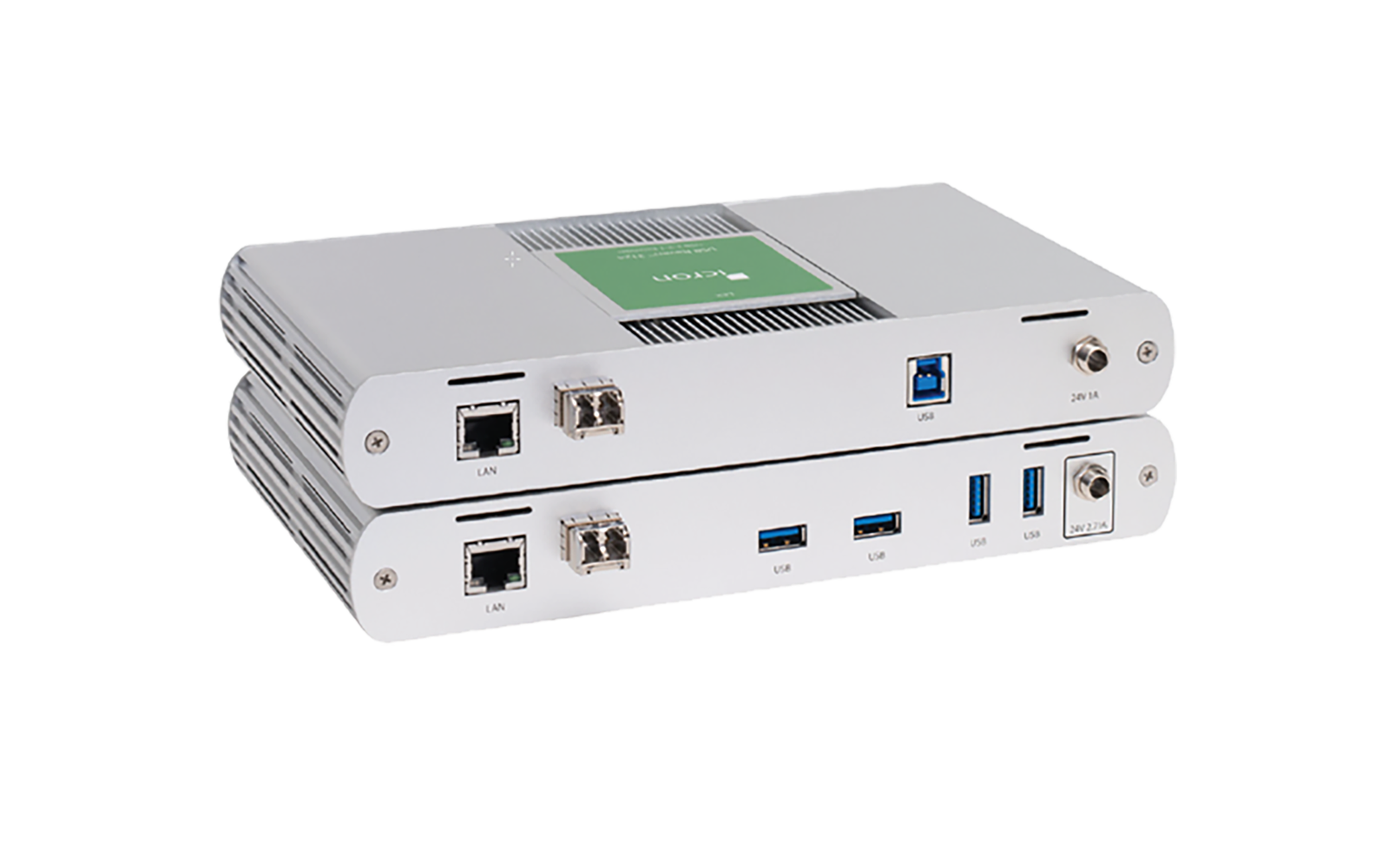

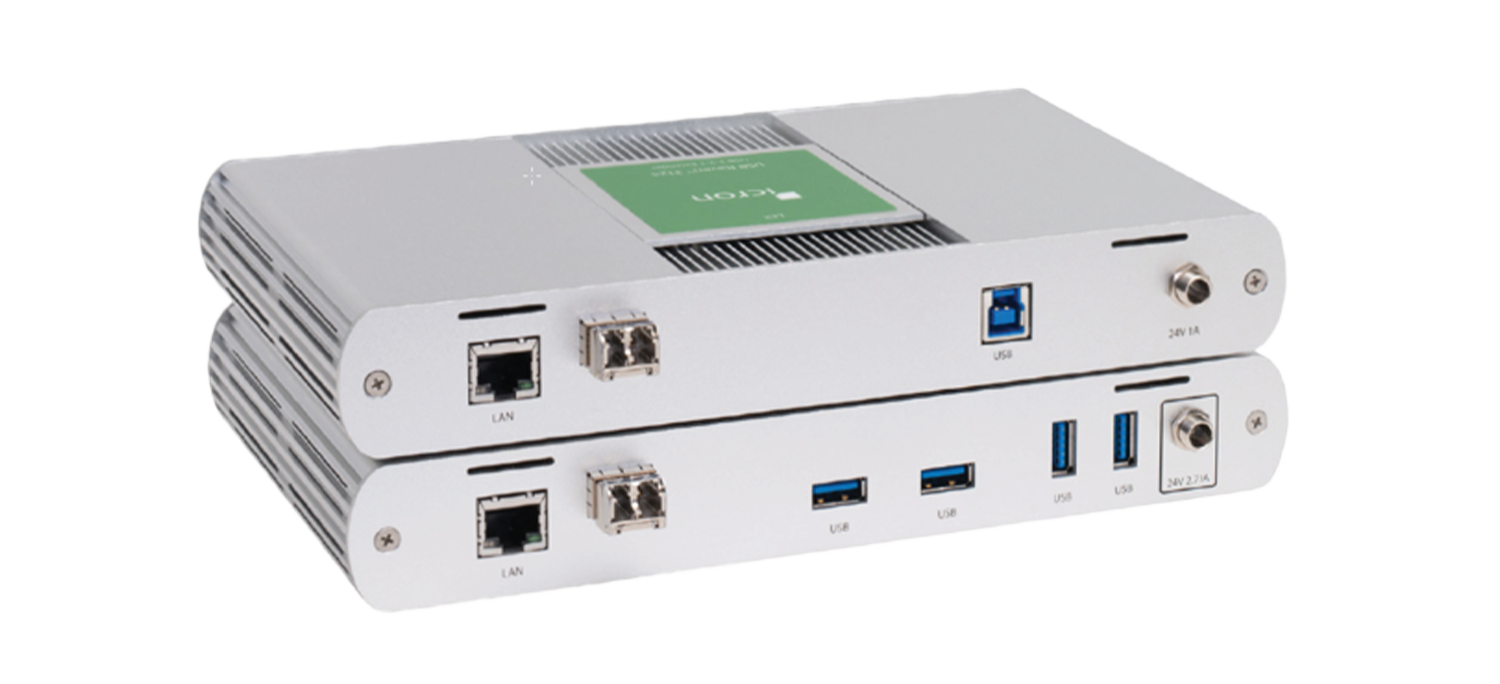

K417-7MICRON USB 3-2-1 Raven 3124 USB 3.1扩展器,多模光纤

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

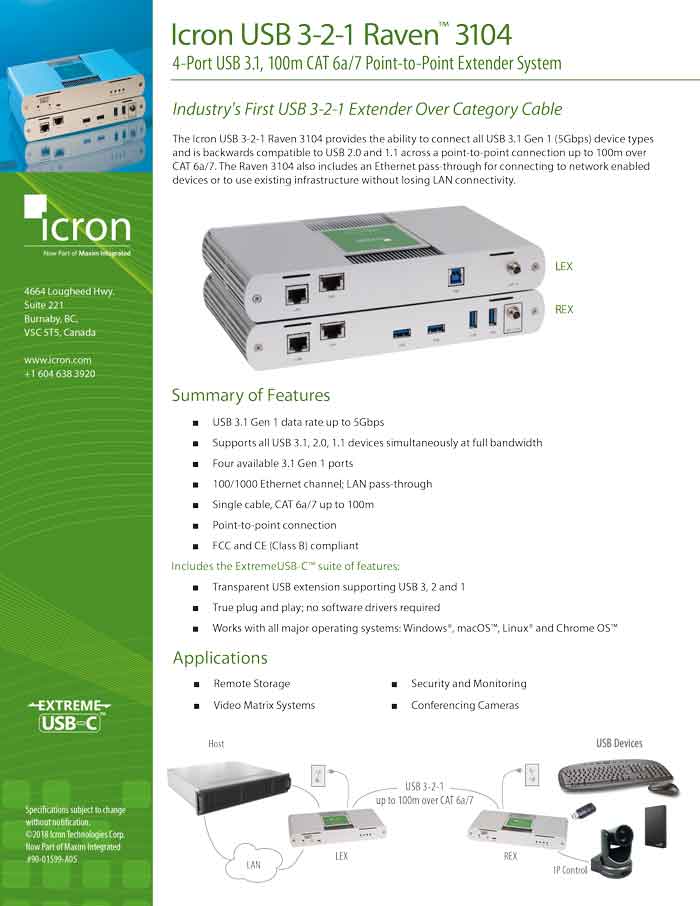

资料下载

ICRON USB 3-2-1 Raven (417系列)

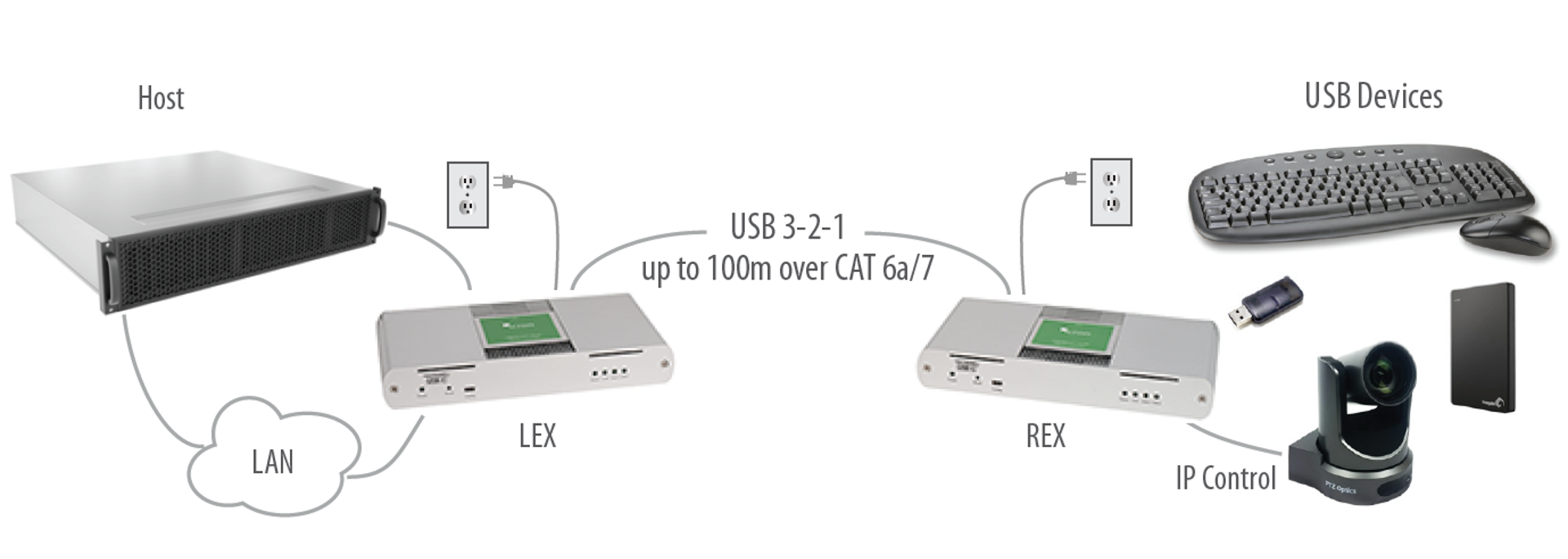

系统图

系统图

ICRON USB 3-2-1 Raven (417系列)
