DVI-VGA转换器

将DVI-D转换为VGA信号

简易安装

简易安装

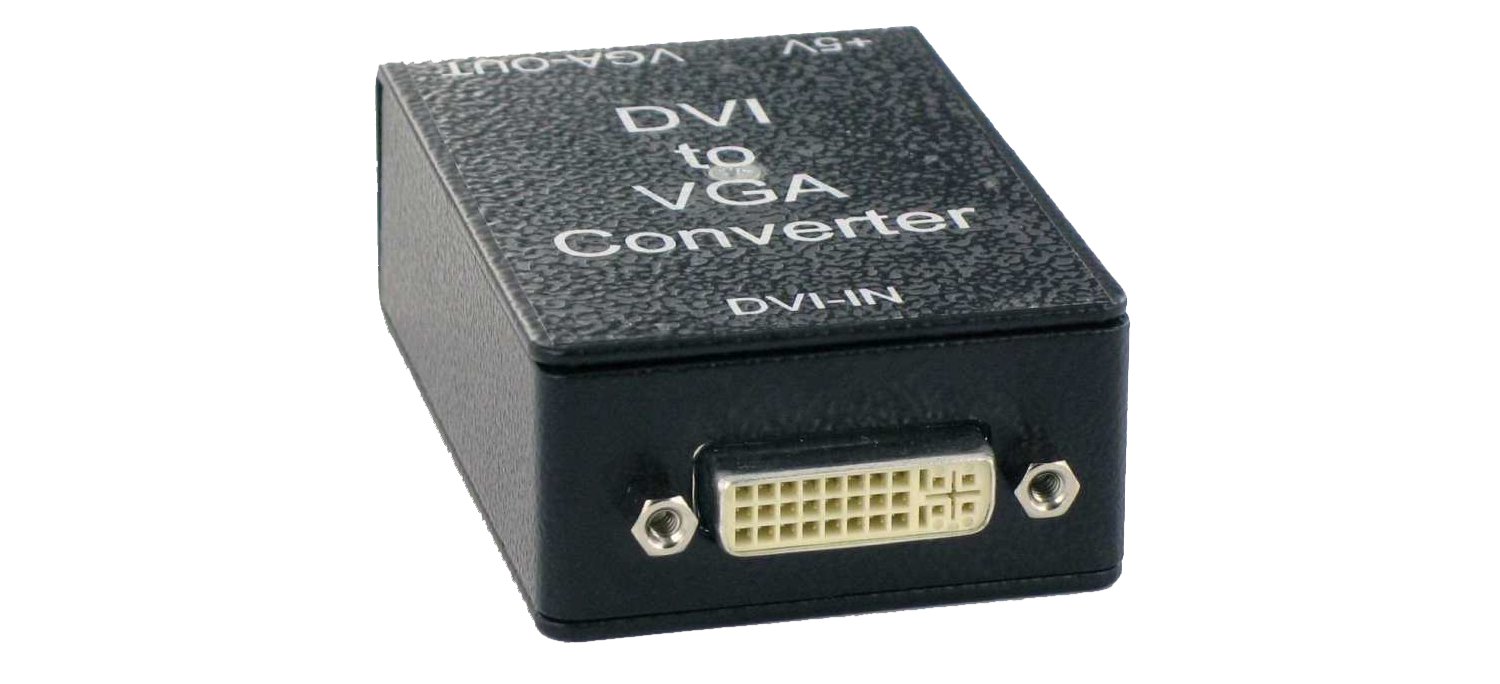

DVI to VGA Converter (469系列)

此设备将 DVI 信号转换为 VGA 格式。 DVI / VGA 转换器可与 VGA / KVM 切换器一起使用或为高质量 VGA 设备(如投影仪)转换 DVI 信号源。 接收到的 DVI 信号被 1:1 转换,无需修改分辨率或信号频率。 接收设备必须能够显示生成的信号,例如 60 Hz 或“减少消隐”,最高分辨率可达 1920 x 1200。

产品详情

产品详情

DVI to VGA Converter (469系列)
  • 支持的输入信号:
    DVI-D最高1920 x 1200 @ 60 Hz
  • 供货包括:
    – DVI至VGA转换器
    –连接到CPU的DVI电缆
    –国际PSU
  • 作为外部电源装置的电源

规格

DVI to VGA Converter (469系列)
电源(外部)
90-240VAC / 0.5 A / 47-63 Hz, 5VDC
数据速率(输入)
水平22-95 kHz
垂直48-90 Hz
视频范围:170 MHz
最大分辨率(输出)
VGA输入分辨率/频率
尺寸
51 x 74 x 26 mm

零件号

零件号

DVI to VGA Converter (469系列)

All Variations

ImageModell:Description
K469-DVDVI至VGA转换器
