DRACO VARIO ULTRA HDMI 2.0

Draco vario ultra HDMI 2.0扩展器使用户可以从远程工作站实时访问HDMI计算机,包括显示器,键盘,鼠标,扬声器和其他外围设备。集成的Fraunhofer IIS Lici®编解码器可实现4096 x 2160 @ 60 Hz的HDMI视频的完美质量传输

内置Fraunhofer IIS的Lici®编解码器

内置Fraunhofer IIS的Lici®编解码器

Draco vario ultra HDMI 2.0 (495系列)

Draco vario ultra HDMI 2.0扩展器可通过双工LC光纤连接从远程工作站(包括HDMI显示器、键盘和鼠标设备)操作CPU。该设备以真正的 60 Hz 帧刷新率和 24 位色深、4:4:4 采样或 30 位 4:2:2 传输分辨率高达 4096 x 2160 和 3840 x 2160 的全数字视频信号。

KVM扩展器还支持通过HDMI接口传输音频。还可以集成可选的Draco vario附加模块,用于数字音频输入和输出以及数据信号,例如USB 2.0和RS232。为了在服务器机房中直接访问视频,CPU单元提供一个本地环出接口用来连接控制显示器。同时,CON单元上有一个本地输入接口,可用来切换本地连接的信号源。

产品特色

产品特色

Draco vario ultra HDMI 2.0 (495系列)
  • 从带有 HDMI 2.0 显示器和 USB HID 设备的远程工作站操作源设备
  • 传输高达4K DCI(4096 x 2160)和UHD(3840 x 2160)的全数字视频信号
  • 新的无损视频编解码器(视觉),无丢帧,30位(色深)4:2:2
  • PCM音频格式可以通过HDMI接口传输(最高96 kHz)
  • CPU单元(Micro HDMI)上的本地环出
  • CON单元上的本地输入(Micro HDMI)
  • 可选:冗余数据链接,可实现24/7的可用性
  • 与以下所有设备兼容:
    –主要操作系统
    – Draco vario系列的机箱
    –具有XV接口的IHSE Draco tera KVM矩阵切换器
    – Draco vario ultra扩展器的其他主要模块(49x系列)
    –用于音频和数据的Draco vario附加模块USB 2.0,平衡音频或RS232等信号

* Draco vario ultra扩展器(49x系列)的视频传输与Draco vario Classic(47x / 48x系列)和Draco compact扩展器(477系列)的主要模块不兼容。

规格

Draco vario ultra HDMI 2.0 (495系列)
电源供应
国际供电单元(90-240V输入)
输入
HDMI 2.0
输出
HDMI 2.0
最高解析度
4096 x 2160 @ 60 Hz
色彩深度
24位,4:4:4
30位,4:2:2
音频
标准:立体声线性脉冲编码调制(LPCM)
位深度:16 – 24位
采样率:32 – 192 kHz
视频和 USB-HID 信号的最大传输范围(端到端连接)
Cat X XV (3G):100 m (328 ft)
单模光纤 9μm XV:5,000 m (16,404 ft))
可选接口
嵌入式USB 2.0,带RS232或RS422的模拟音频,数字音频,PS / 2,平衡音频
键盘/鼠标
USB-HID

零件号

零件号

Draco vario ultra HDMI 2.0 (495系列)

All Variations

ImageModell:Description

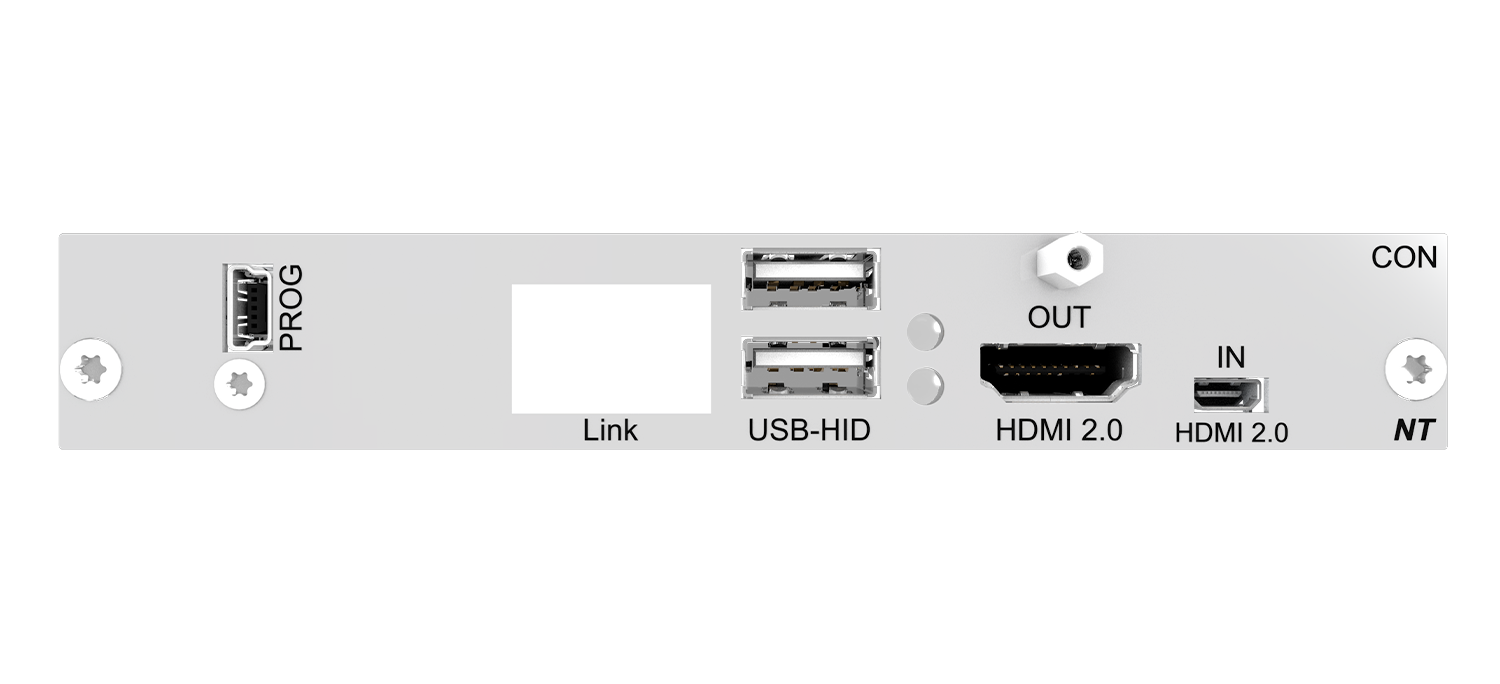

R495-BHHCXLCON模块,1×Cat X(XV),1个HMDI 2.0接口,4K60,本地输入

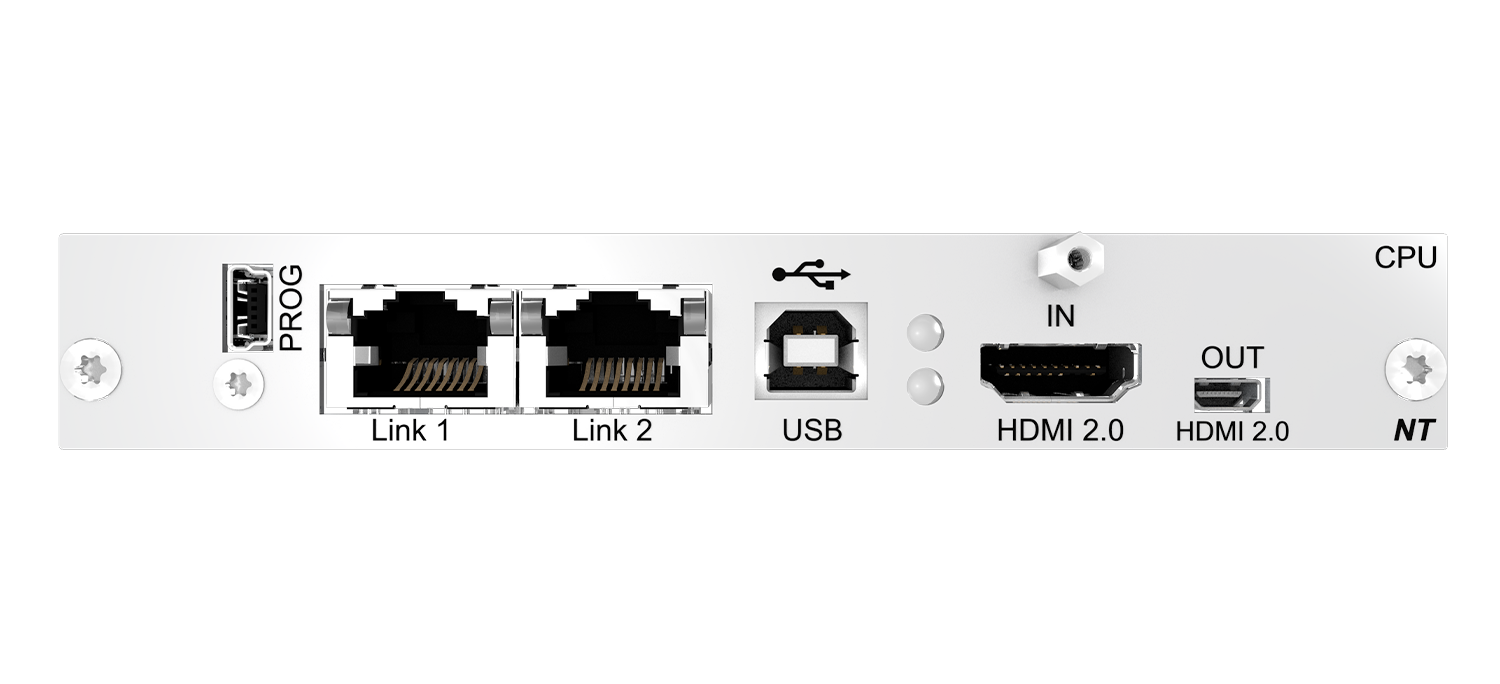

R495-BHHCXLRCON模块,2×Cat X(XV)(冗余),1个HMDI 2.0接口,4K60,本地输入

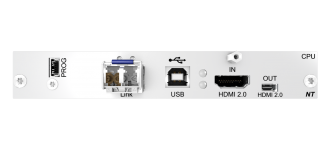

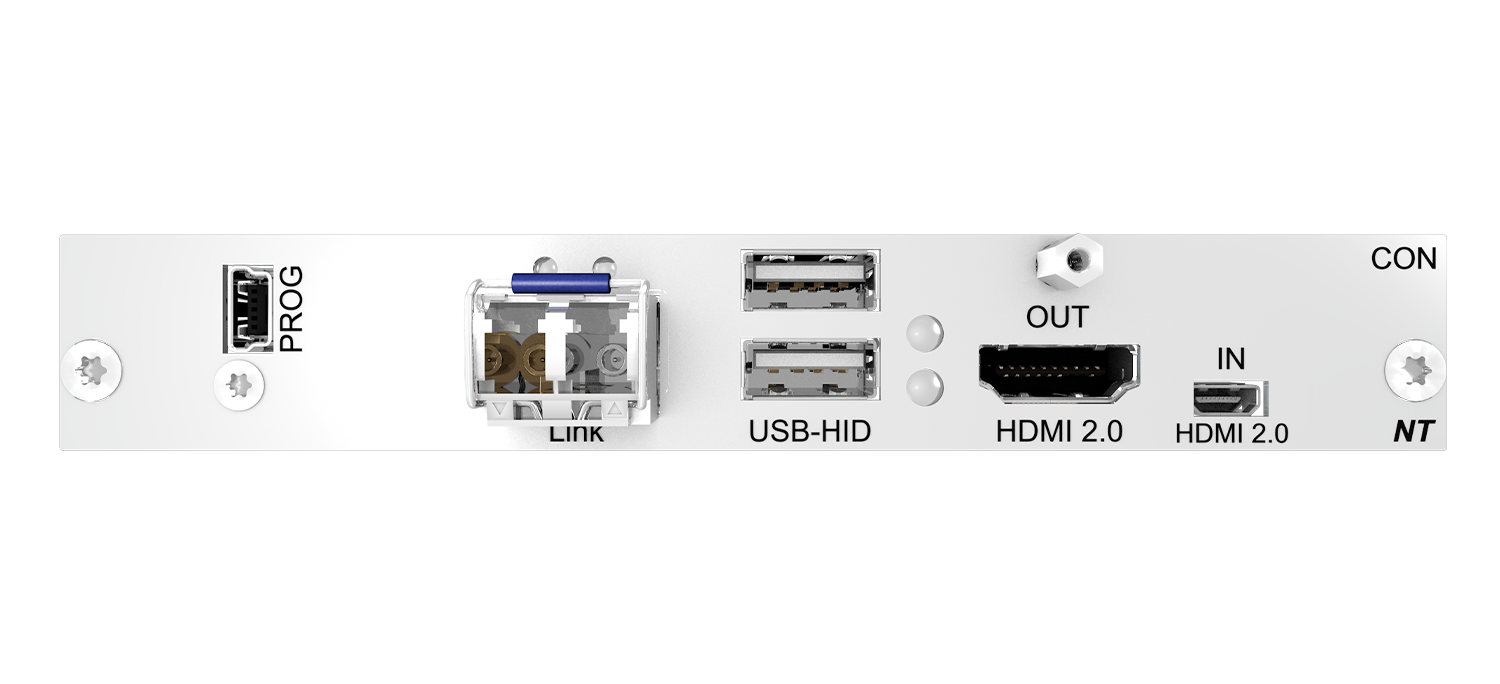

R495-BHHXLCON模块,1×光纤XV,1个HMDI 2.0接口,4K60,本地输入

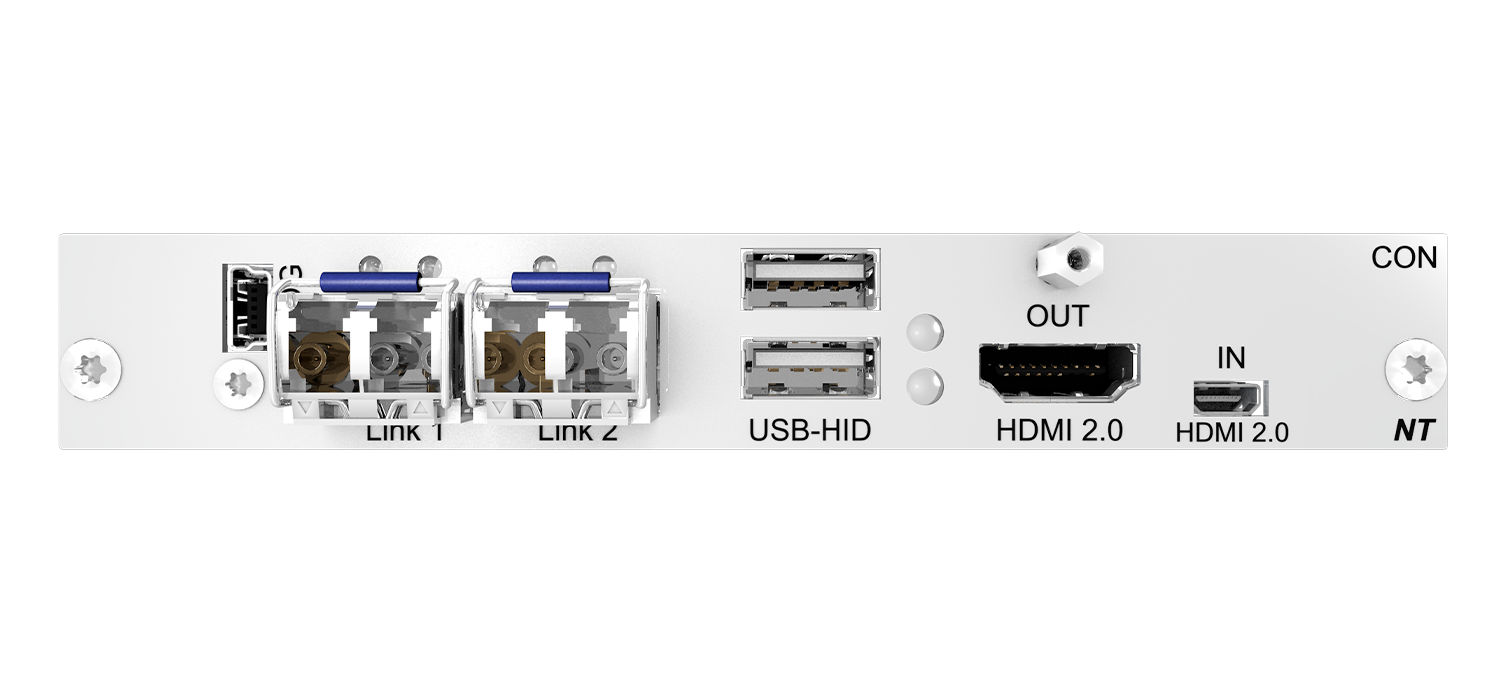

R495-BHHXLRCON模块,2×光纤XV(冗余),1个HMDI 2.0接口,4K60,本地输入

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

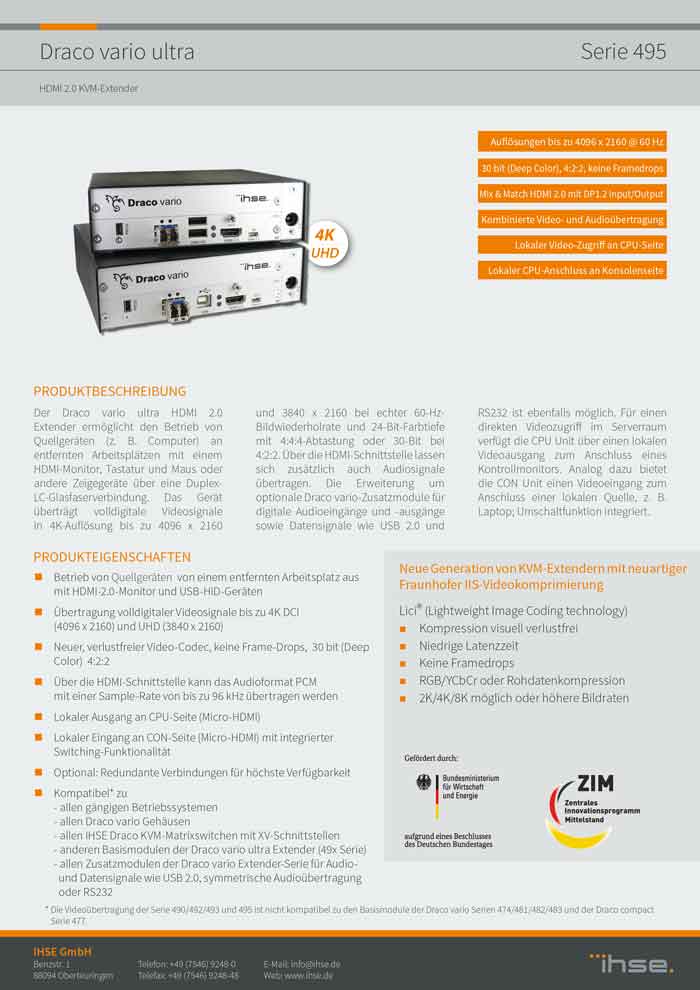

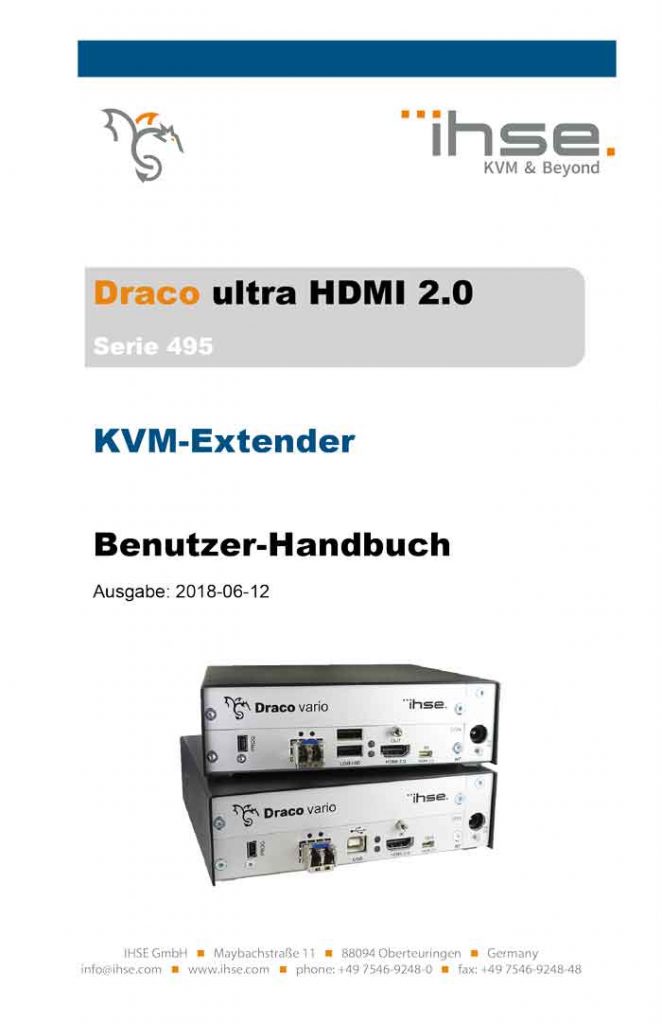

资料下载

Draco vario ultra HDMI 2.0 (495系列)

系统图

系统图

Draco vario ultra HDMI 2.0 (495系列)
