DRACO VARIO ULTRA DUAL-HEAD / DUAL LINK

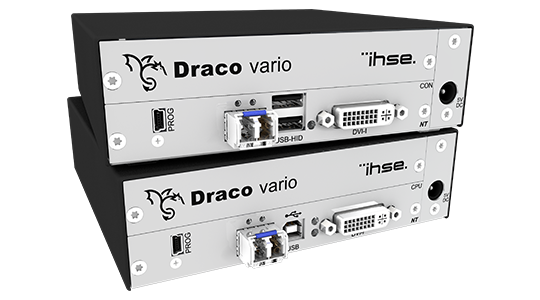

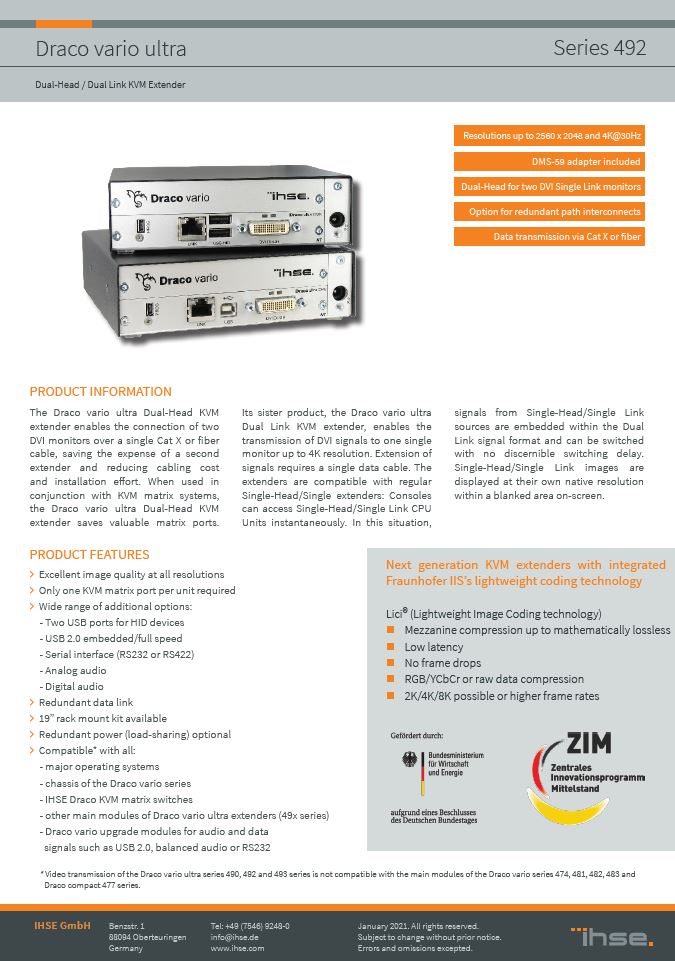

Draco vario ultra Dual-Head / Dual Link KVM扩展器有两种变体,可扩展DVI Dual Link视频信号或通过一根数据线将两个DVI信号传输到两台显示器。

内置Fraunhofer IIS的Lici®编解码器

内置Fraunhofer IIS的Lici®编解码器

Draco vario ultra DH / DL (L492系列)

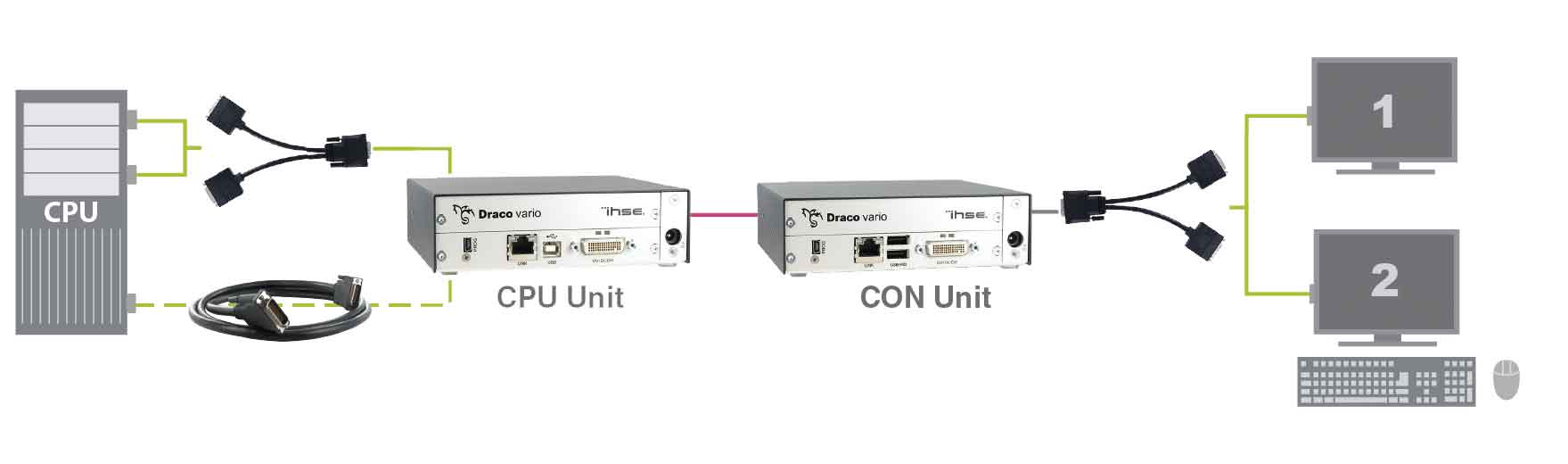

Draco vario超双头KVM扩展器可通过一条Cat X或光纤连接两个DVI显示器,从而节省了第二个扩展器的费用,并降低了布线成本和安装工作量。与KVM矩阵系统结合使用时,Draco vario ultra Dual-Head KVM扩展器可以节省宝贵的矩阵端口。

其姊妹产品Draco vario ultra Dual Link KVM扩展器可以将DVI信号传输到一台分辨率高达4K的显示器。信号扩展需要一根数据线。扩展器与常规的单头/单头扩展器兼容:控制台可以立即访问单头/单链路CPU单元。在这种情况下,来自单头/单链路源的信号将嵌入到双链路信号格式中,并且可以在无明显切换延迟的情况下进行切换。

单头/单链接图像以其自身的原始分辨率显示在屏幕上的空白区域中。

产品特色

产品特色

Draco vario ultra DH / DL (L492系列)
  • 在所有分辨率下均具有出色的图像质量
  • 每个单元仅需要一个KVM矩阵端口
  • 广泛的附加选项:
    –用于HID设备的两个USB端口
    –嵌入式USB 2.0
    –串行接口(RS232或RS422)
    –模拟音频
    –数字音频
  • 冗余数据链接
  • 提供19英寸机架安装套件
  • 冗余电源(负载分担)可选
  • 与以下所有设备兼容:
    –主要操作系统
    – Draco vario系列机箱
    – IHSE Draco KVM矩阵切换器
    – Draco vario ultra扩展器(49x系列)的其他主要模块
    –用于音频和数据信号(例如USB )的Draco vario附加模块2.0,平衡音频或RS232

* Draco vario ultra扩展器(49x系列)的视频传输与Draco vario Classic(47x / 48x系列)和Draco compact扩展器(477系列)的主要模块不兼容。

规格

Draco vario ultra DH / DL (L492系列)
输入
DMS-59(DVI-D双头/单链路适配器)
DMS-59(DVI-D双头适配器)
输出
DMS-59(DVI-D双头/单链路适配器)
DMS-59(DVI-D双头适配器)
数据速率(最大)
2 x 165 MPixel / s(双头)
330 MPixel / s(双链路)
最高分辨率
Draco vario ultra Dual Head:
2 x 1920 x 1200 @ 60 Hz
Draco vario ultra Dual Link:
2560 x 2048 @ 60 Hz
4096 x 2160 @ 30 Hz
颜色深度
8位/真彩色
视频和 USB-HID 信号的最大传输范围(端到端连接)
Cat X:140 m(459 ft)
单模光纤 9μm:10,000 m(32,808 ft)
单模光纤 9μm XV:5,000 m (16,404 ft)
多模光纤 50μm (OM3):1,000 m (3,280 ft)
多模光纤 50μm:400 m(1,312 ft)
可选接口
USB 2.0,带RS232,RS422的模拟音频,数字音频,PS / 2等
键盘/鼠标
2 x USB-HID

零件号

零件号

Draco vario ultra DH / DL (L492系列)

All Variations

ImageModell:Description

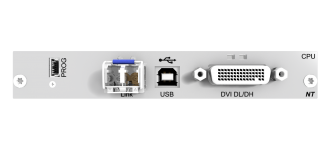

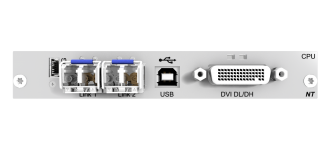

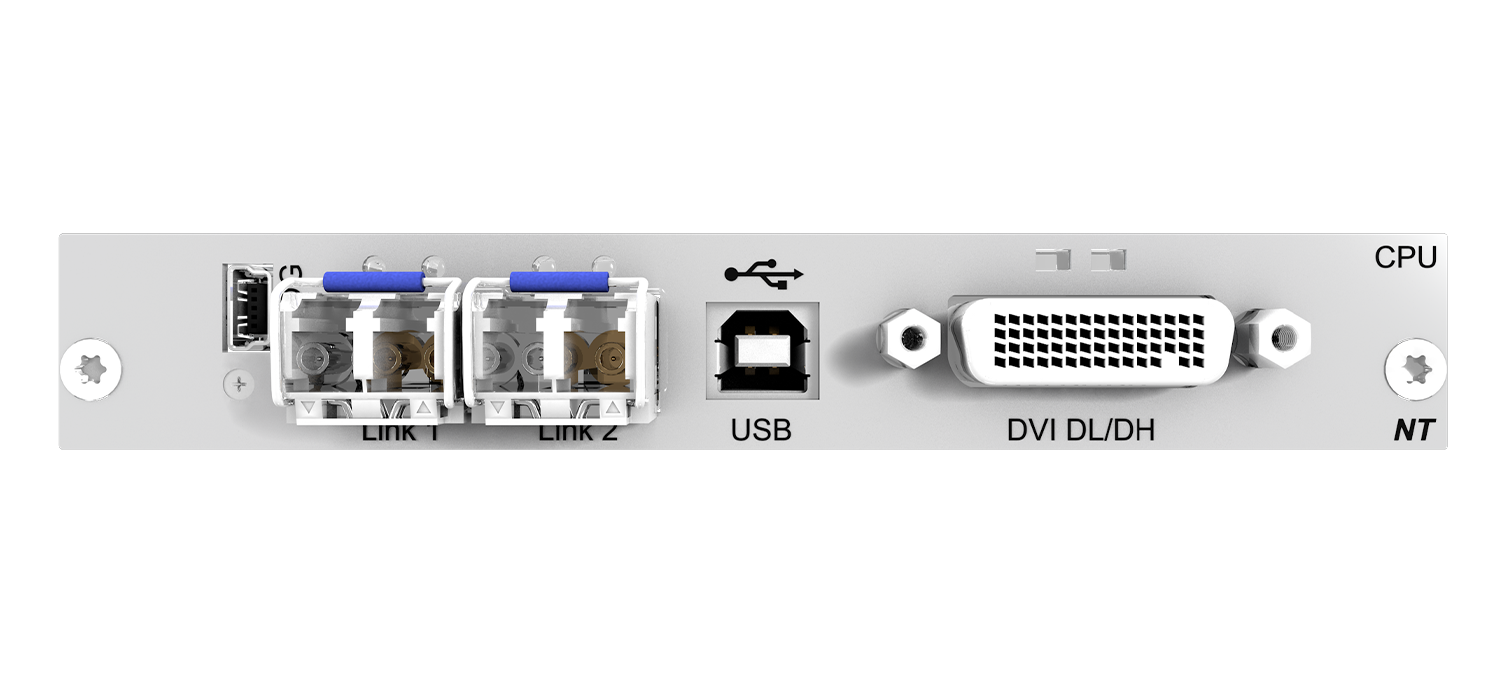

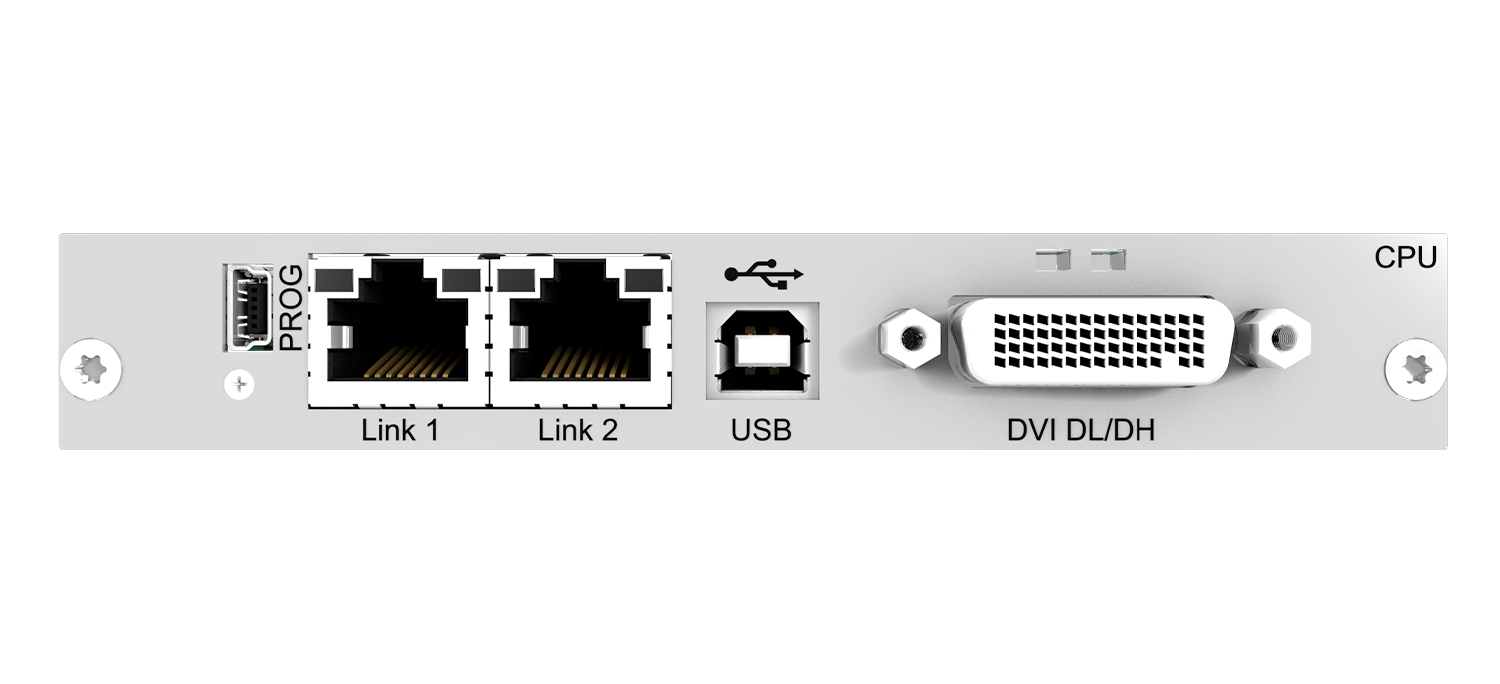

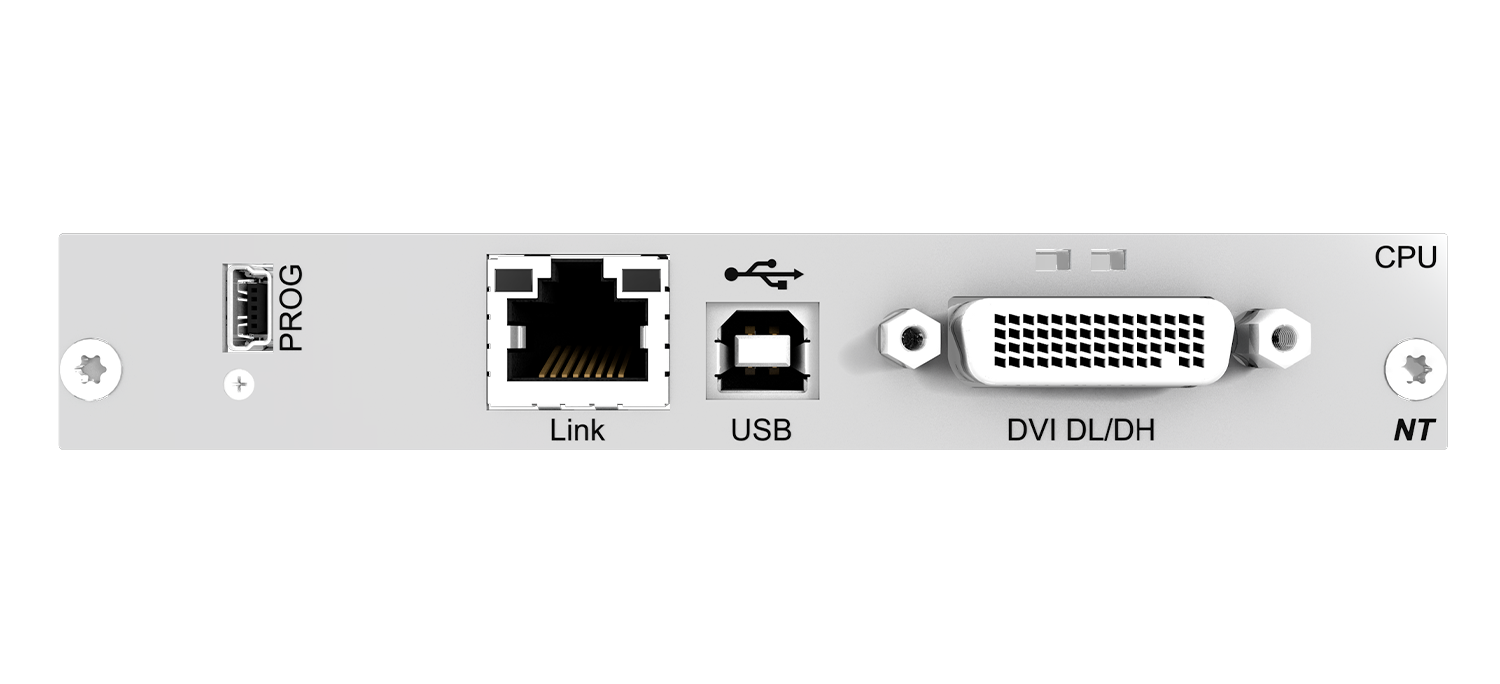

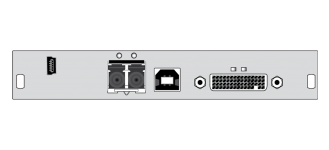

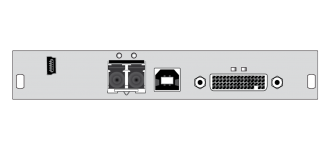

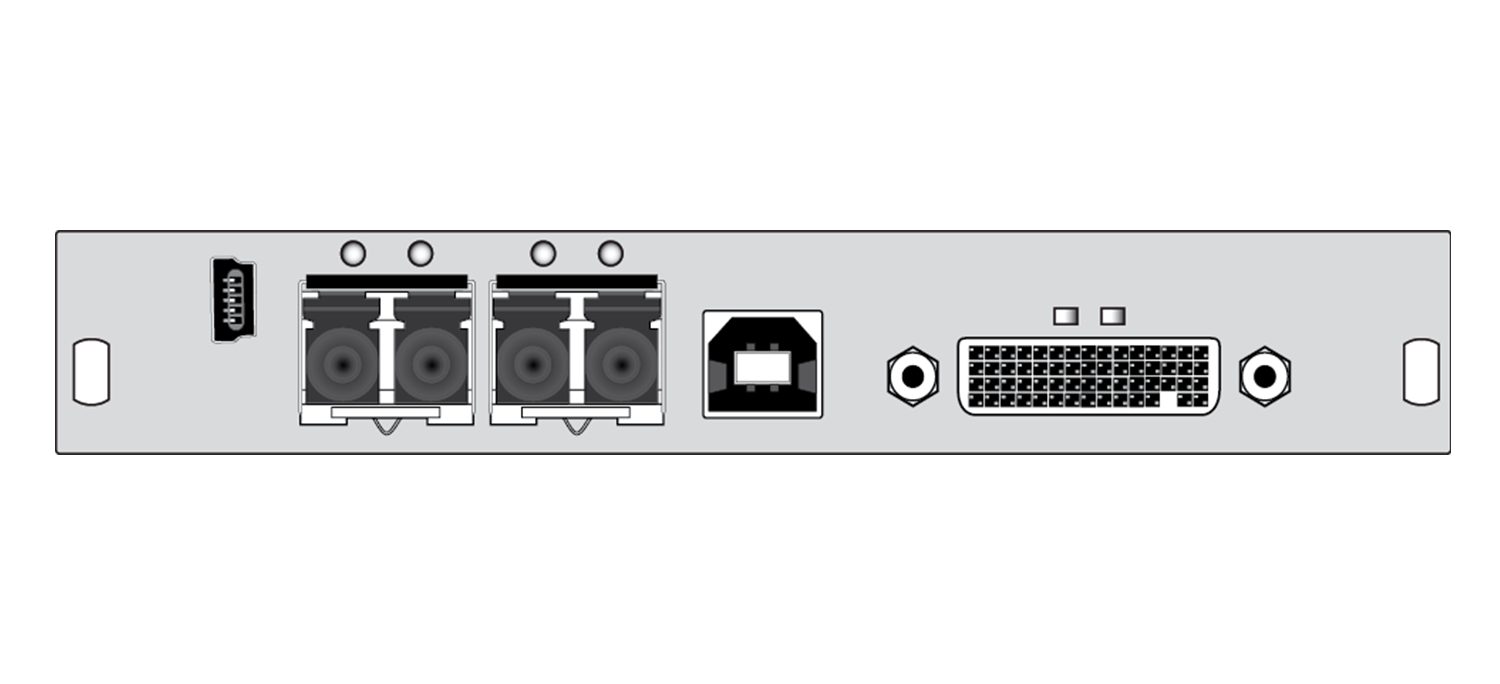

L492-B2HCCPU模块,1×Cat X,2个DVI-D接口,单链路,2个USB-HID
L492-B2HCRCPU模块,2×Cat X(冗余),2个DVI-D接口,单链路,2个USB-HID
L492-B2HSRCPU模块,2×光纤(冗余),2个DVI-D接口,单链路,2个USB-HID

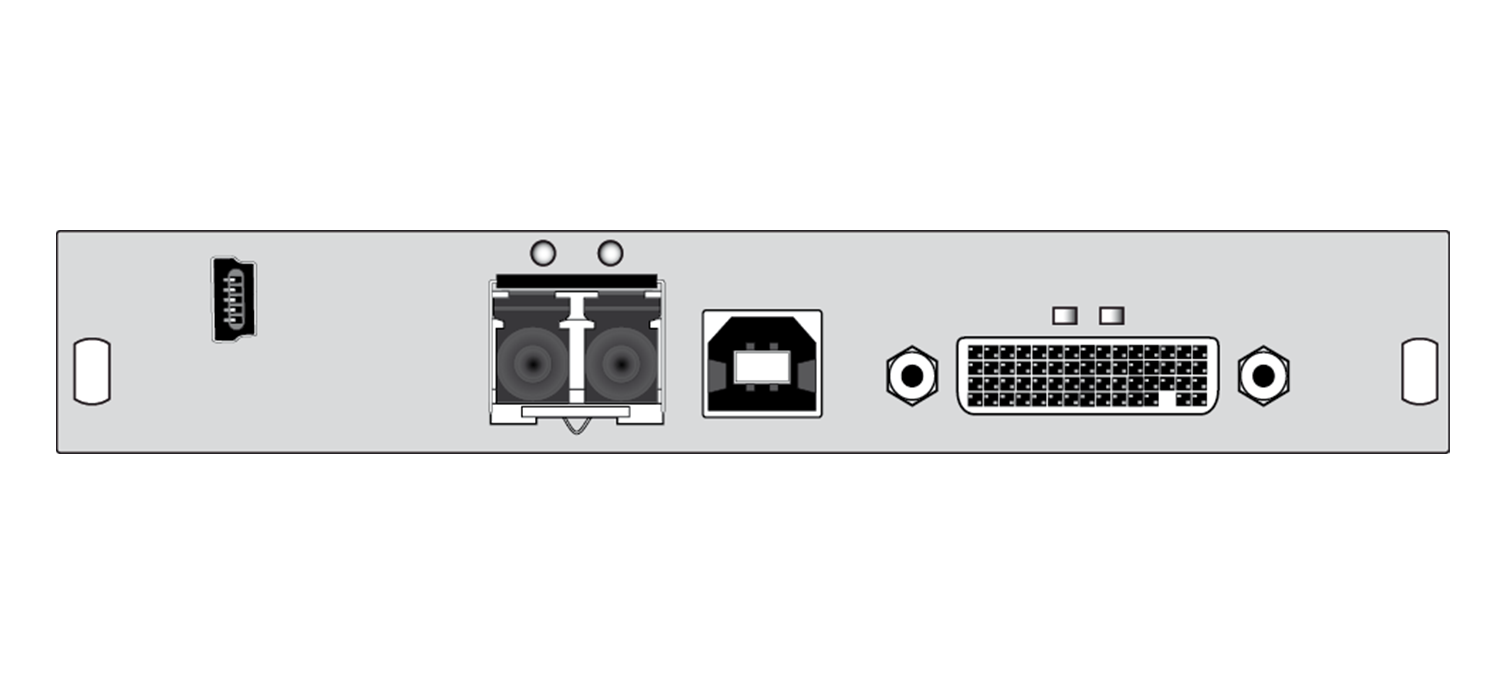

L492-B2HXCPU模块,1×光纤XV,2个DVI-D接口,单链路,2个USB-HID
L492-B2HXRCPU模块,2×光纤XV(冗余),2个DVI-D接口,单链路,2个USB-HID

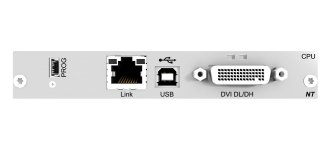

L492-BDHCCPU模块,1×Cat X,1个DVI-D接口,双链路或4K30,2个USB-HID
L492-BDHCRCPU模块,2×Cat X(冗余),1个DVI-D接口,双链路或4K30,2个USB-HID

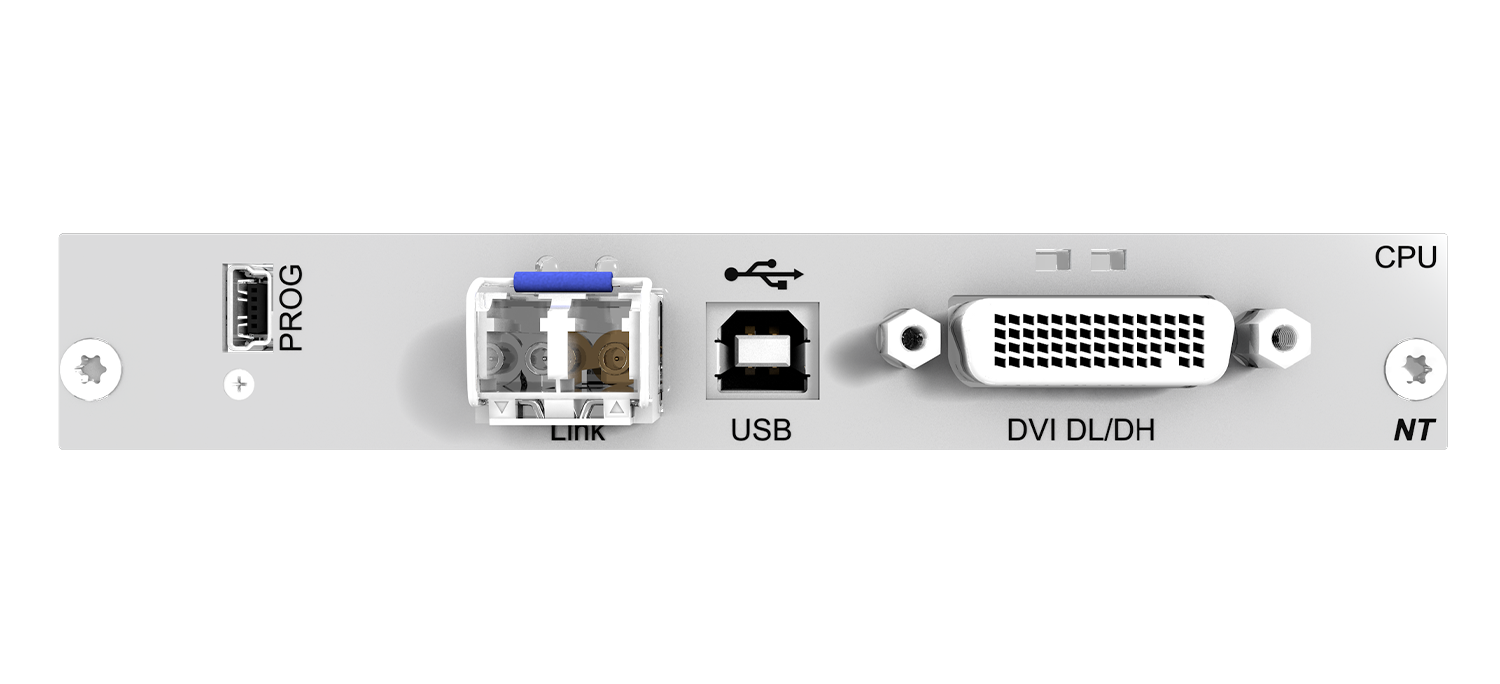

L492-BDHSCPU模块,1×光纤,1个DVI-D接口,双链路或4K30,2个USB-HID
L492-BDHSRCPU模块,2×光纤(冗余),1个DVI-D接口,双链路或4K30,2个USB-HID
L492-BDHXCPU模块,1×光纤XV,1个DVI-D接口,双链路或4K30,2个USB-HID
L492-BDHXRCPU模块,2×光纤XV(冗余),1个DVI-D接口,双链路或4K30,2个USB-HID
