DRACO VARIO HDMI 1.3

Draco vario HDMI扩展器使用户可以从远程工作站实时访问HDMI计算机,包括监视器,键盘,鼠标,扬声器和其他外围设备

长距离HDMI扩展

长距离HDMI扩展

Draco vario HDMI 1.3 (481系列)

Draco vario HDMI是高品质高分辨率HDMI视频信号(包括3D格式和数字音频)的完美扩展器。使用可选模块可以实现多头应用。

Draco vario HDMI扩展器是广播应用以及专业音视频编辑的理想选择。使用Draco vario HDMI扩展器将您的音视频数据以最高分辨率传输,包括全高清和2K。

产品特色

产品特色

Draco vario HDMI 1.3 (481系列)
  • 带锁扣的HDMI端口
  • 高分辨率视频可通过HDMI接口传输
  • 该接口与3D技术兼容,可传输并排和上下格式
  • 标准版本允许带有HDMI / DVI-D显示器和两个USB-HID设备(例如键盘和鼠标)的远程工作站的操作
  • 与所有主要操作系统兼容
  • 兼容所有IHSE Draco KVM切换器、Draco vario和compact扩展器及Draco vario机箱和模块
  • HDMI嵌入式音频与数字音频附加模块互相兼容
  • 冗余数据链接
  • 可装入一个19英寸/ 1U机架

规格

Draco vario HDMI 1.3 (481系列)
输入
带嵌入式音频的HDMI
输出
带嵌入式音频的HDMI
串行RS232 / RS422
最高115,200波特
模拟音频
双向立体声音频连接,24位,38.4 kHz
数字音频
兼容AES / EBU,S / PDIF,杜比数字,DTS,PCM,32-96 kHz
USB数据
USB-HID(用于键盘和鼠标)
嵌入式USB 2.0最高50 Mbit / s
高速USB 2.0最高480 Mbit / s
最高分辨率
1920 x 1200 @ 60 Hz
颜色深度
8位/真彩色
视频和 USB-HID 信号的最大传输范围(端到端连接)
Cat X:140 m(459 ft)
单模光纤 9μm:10,000 m(32,808 ft)
单模光纤 9μm XV:5,000 m (16,404 ft)
多模光纤 50μm (OM3):1,000 m (3,280 ft)
多模光纤 50μm:400 m(1,312 ft)

零件号

零件号

Draco vario HDMI 1.3 (481系列)

All Variations

ImageModell:Description

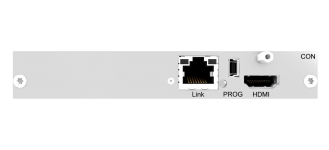

R481-BHXCCON模块,1×Cat X,1个HDMI接口,单链路

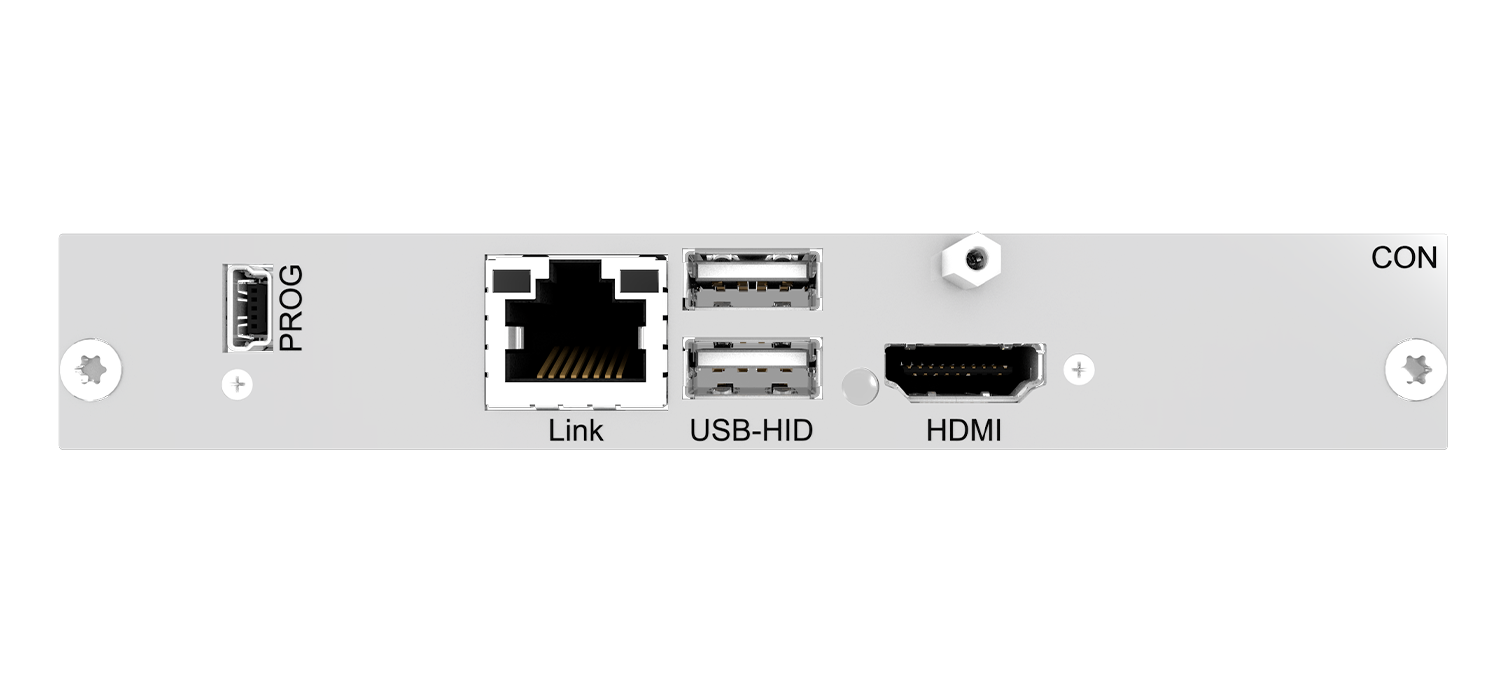

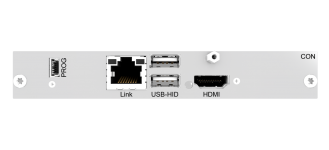

R481-BHHCCON模块,1×Cat X,1个HDMI接口,单链路,2个USB-HID

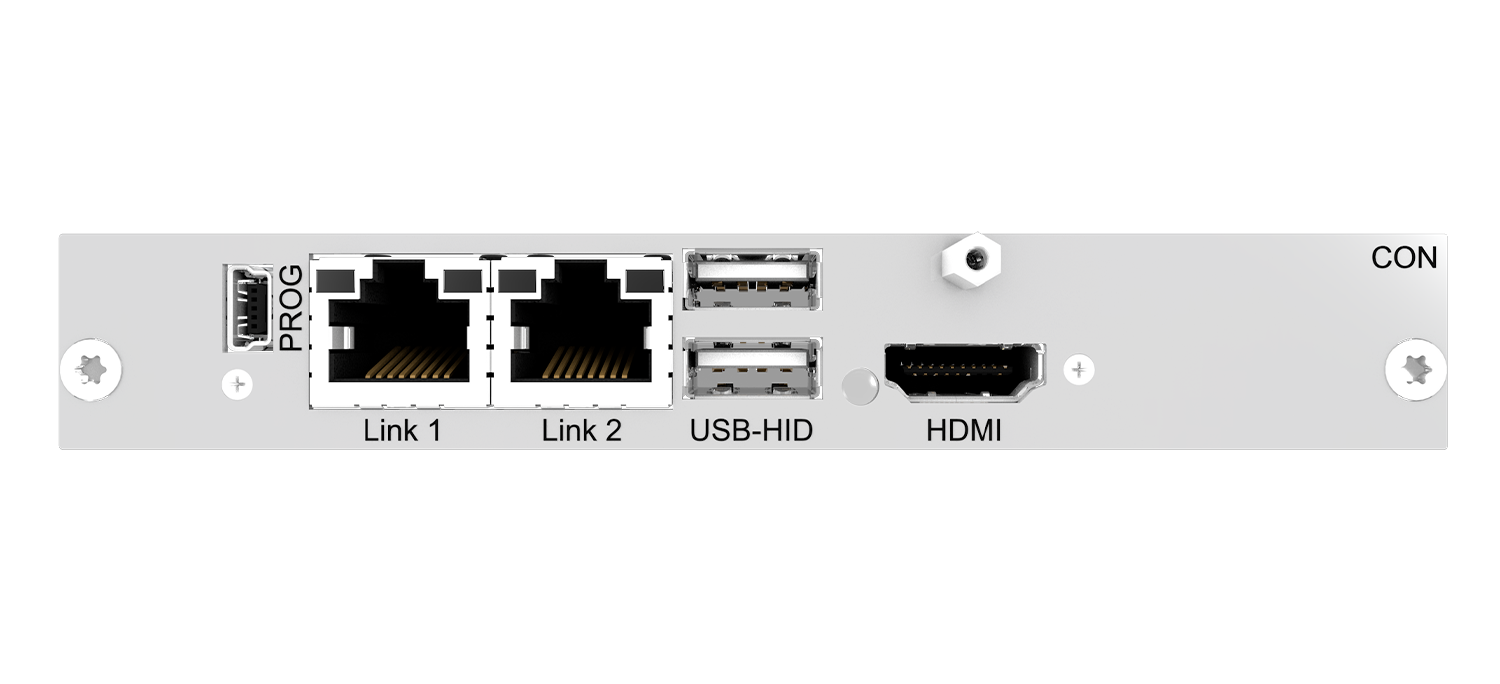

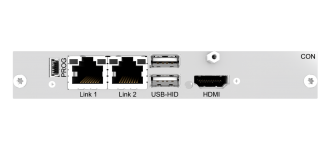

R481-BHHCRCON模块,2×Cat X(冗余),1个HDMI接口,单链路,2个USB-HID

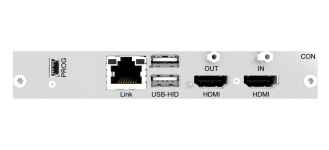

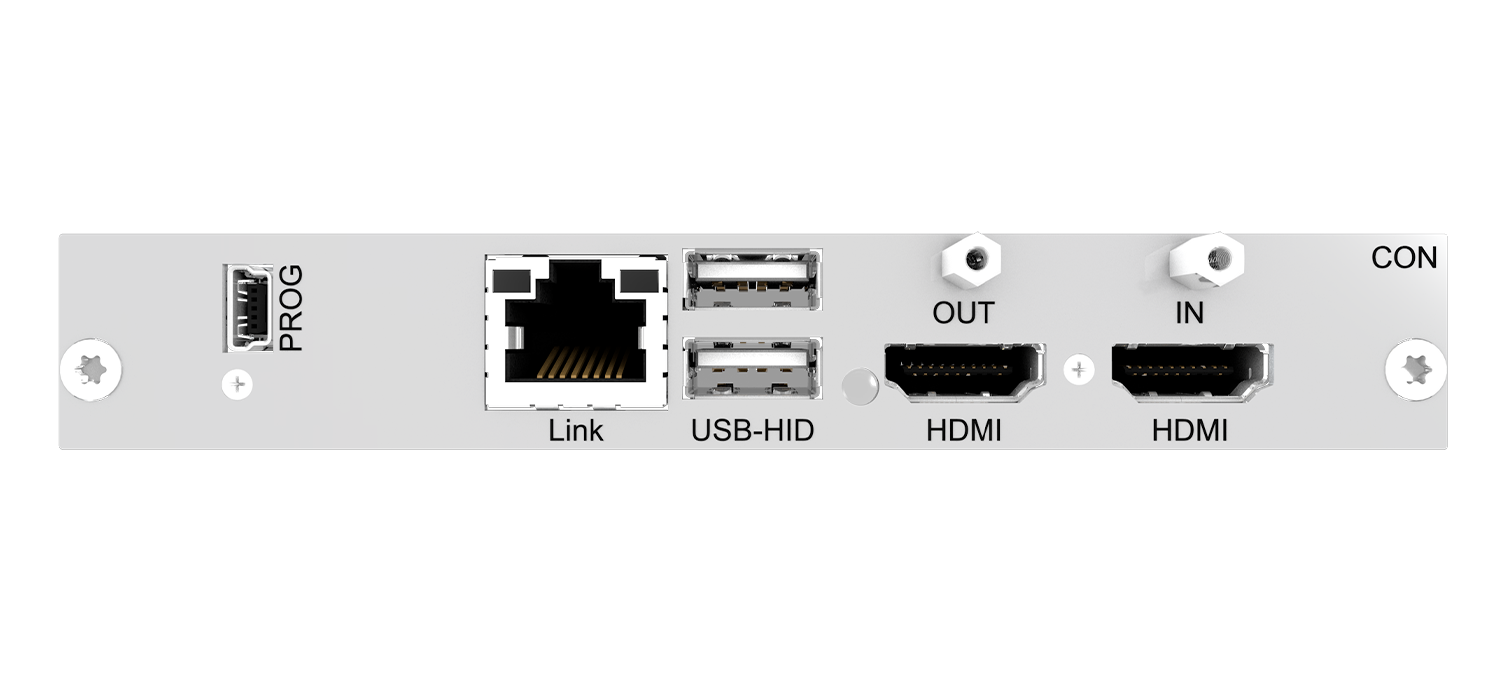

R481-BHHCWCON模块,1×Cat X,1个HDMI接口,单链路,2个USB-HID,本地KVM切换

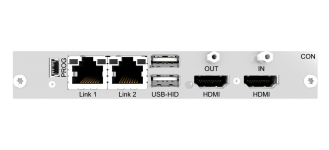

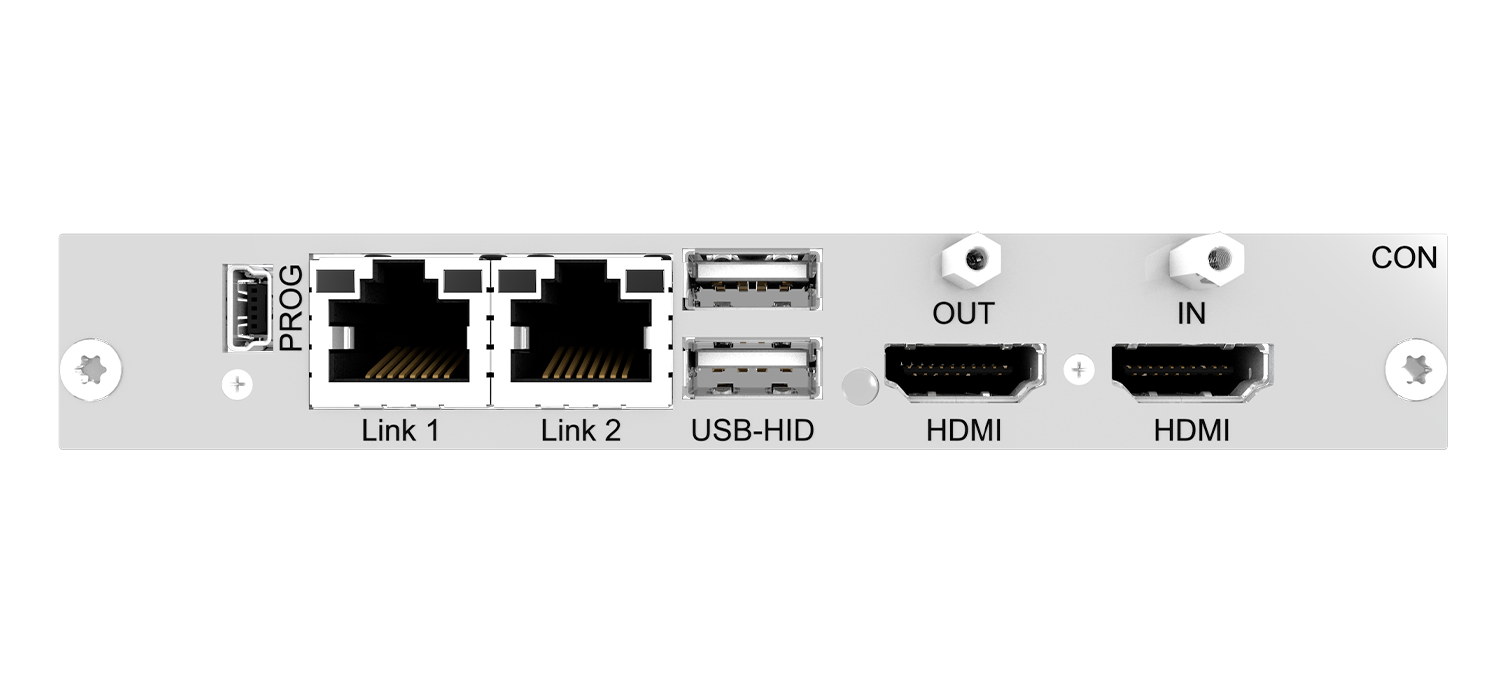

R481-BHHCWRCON模块,2×Cat X(冗余),1个HDMI接口,单链路,2个USB-HID,本地KVM切换

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

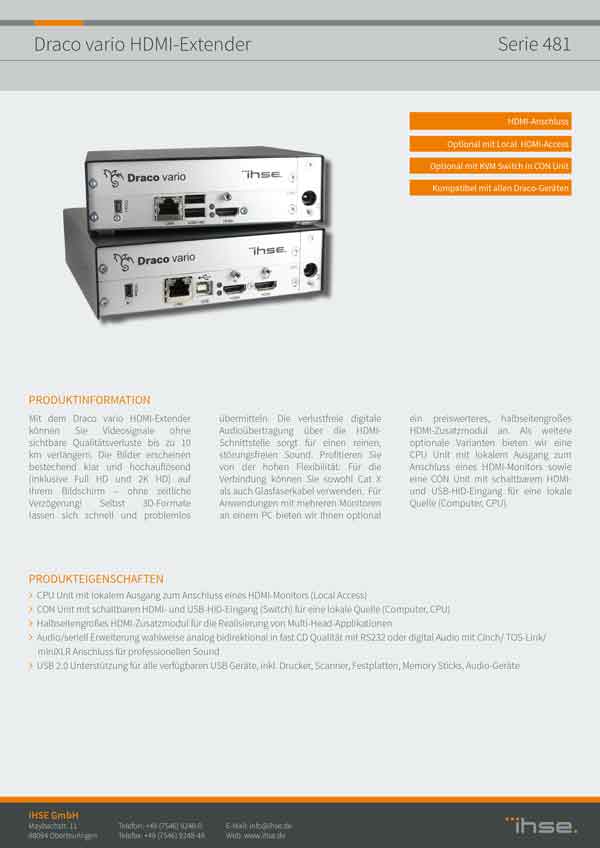

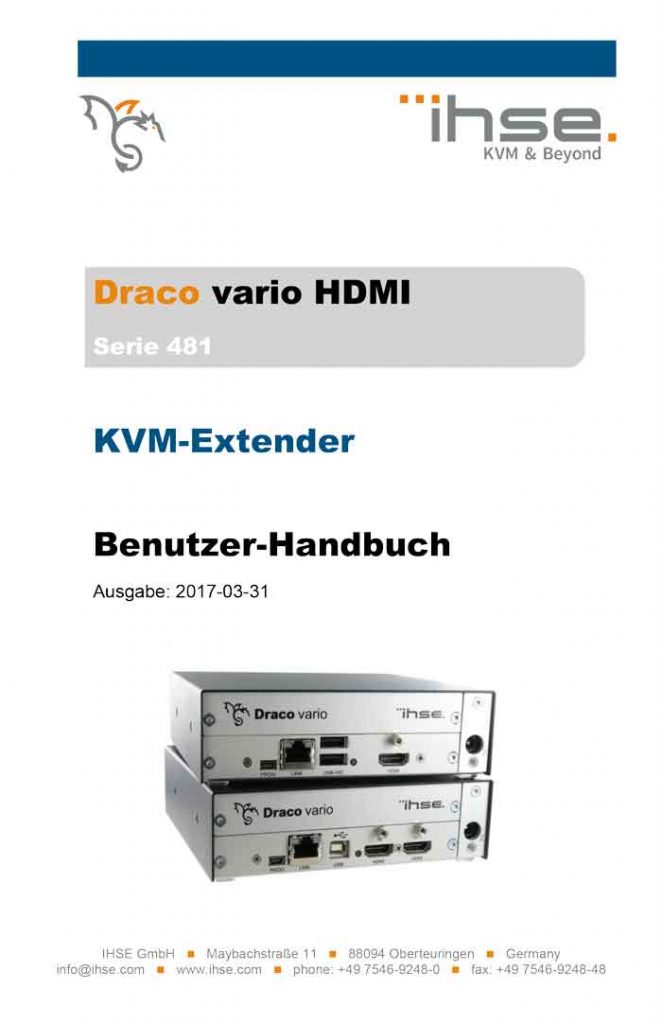

资料下载

Draco vario HDMI 1.3 (481系列)

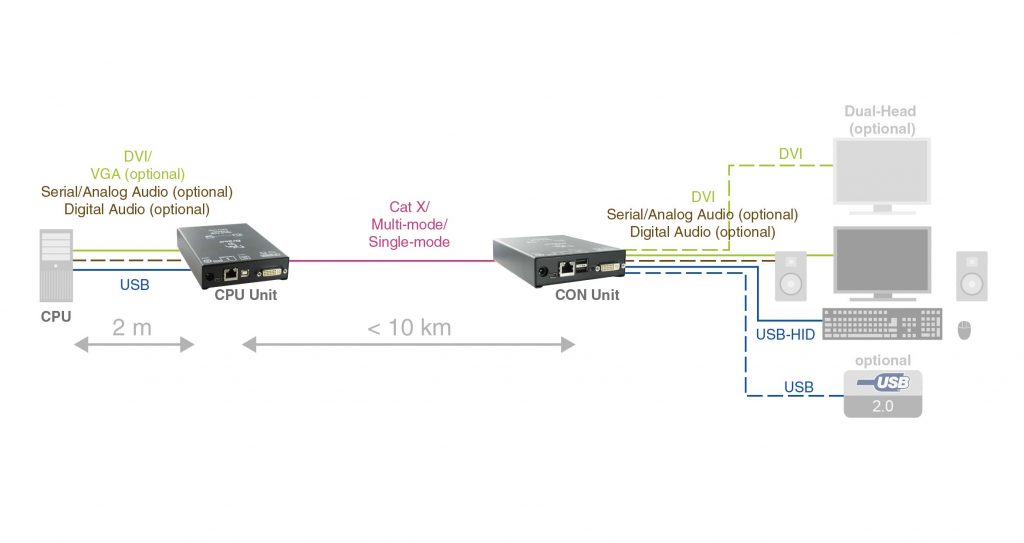

系统图

系统图

Draco vario HDMI 1.3 (481系列)
