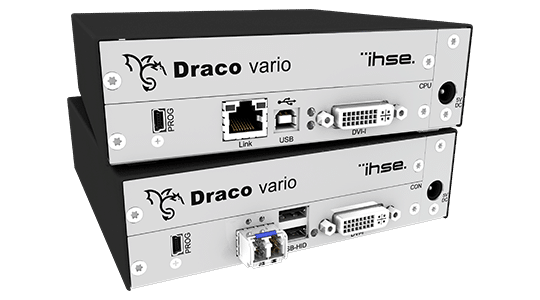

DRACO VARIO DUAL-HEAD / DUAL-LINK

Draco vario Dual-Head / Dual Link KVM扩展器有两种变体,可以扩展DVI Dual Link视频信号或通过一根数据线将两个DVI信号传输到两台显示器

DVI双头和双链路扩展

DVI双头和双链路扩展

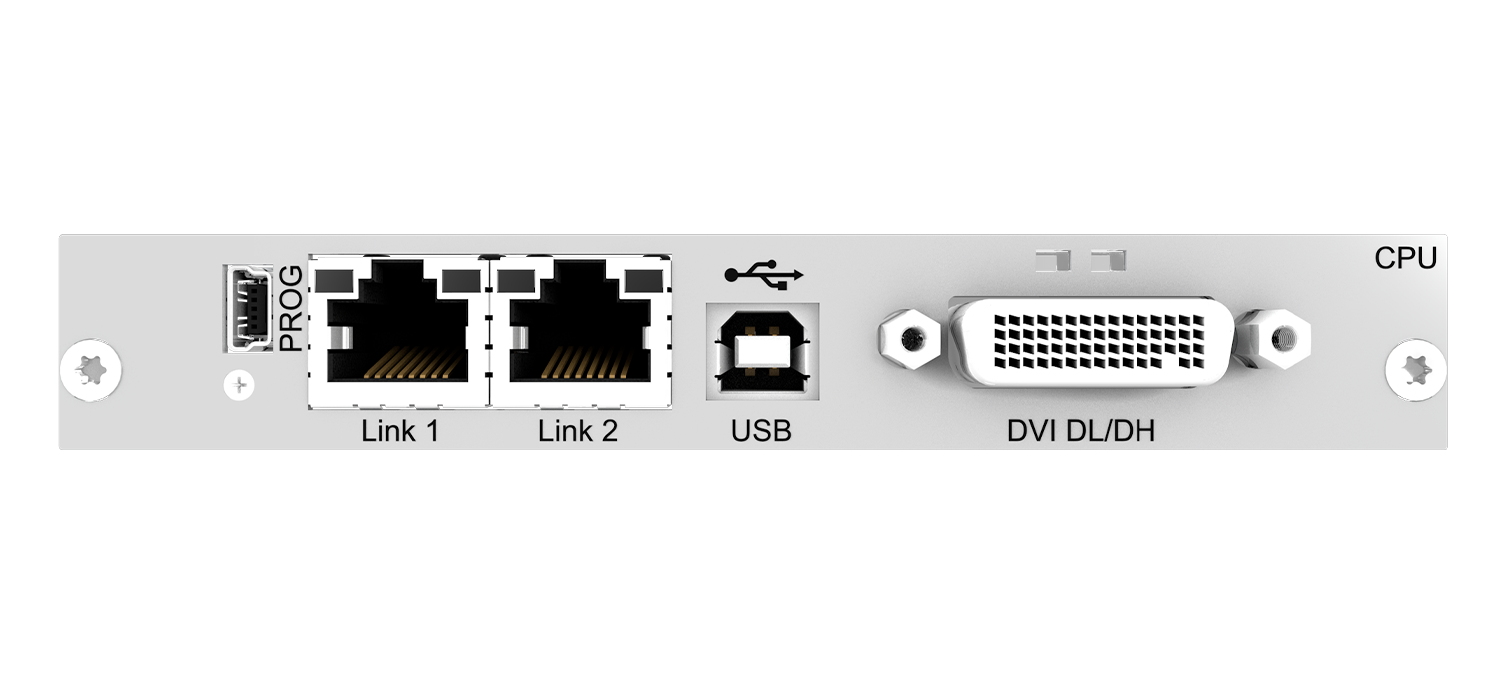

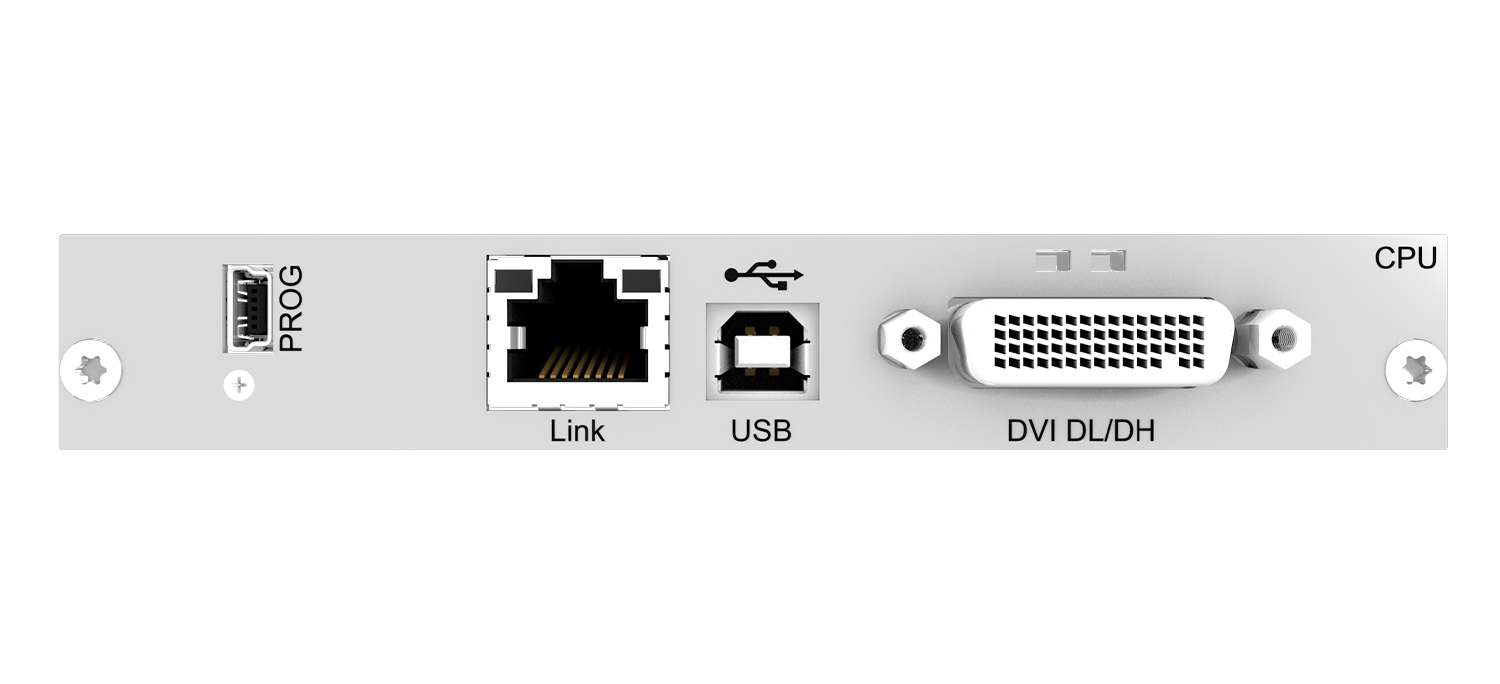

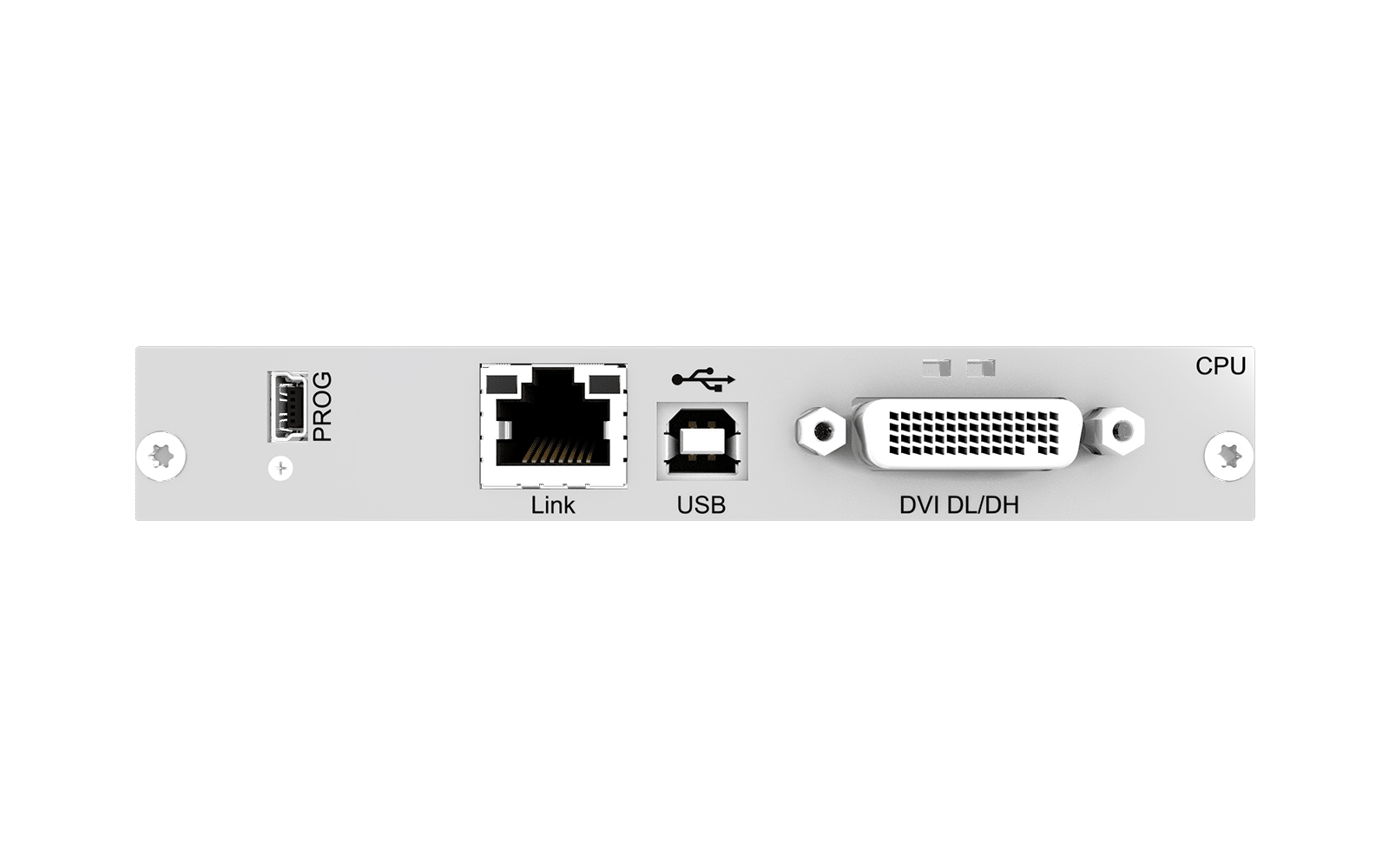

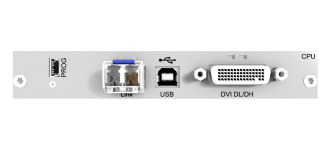

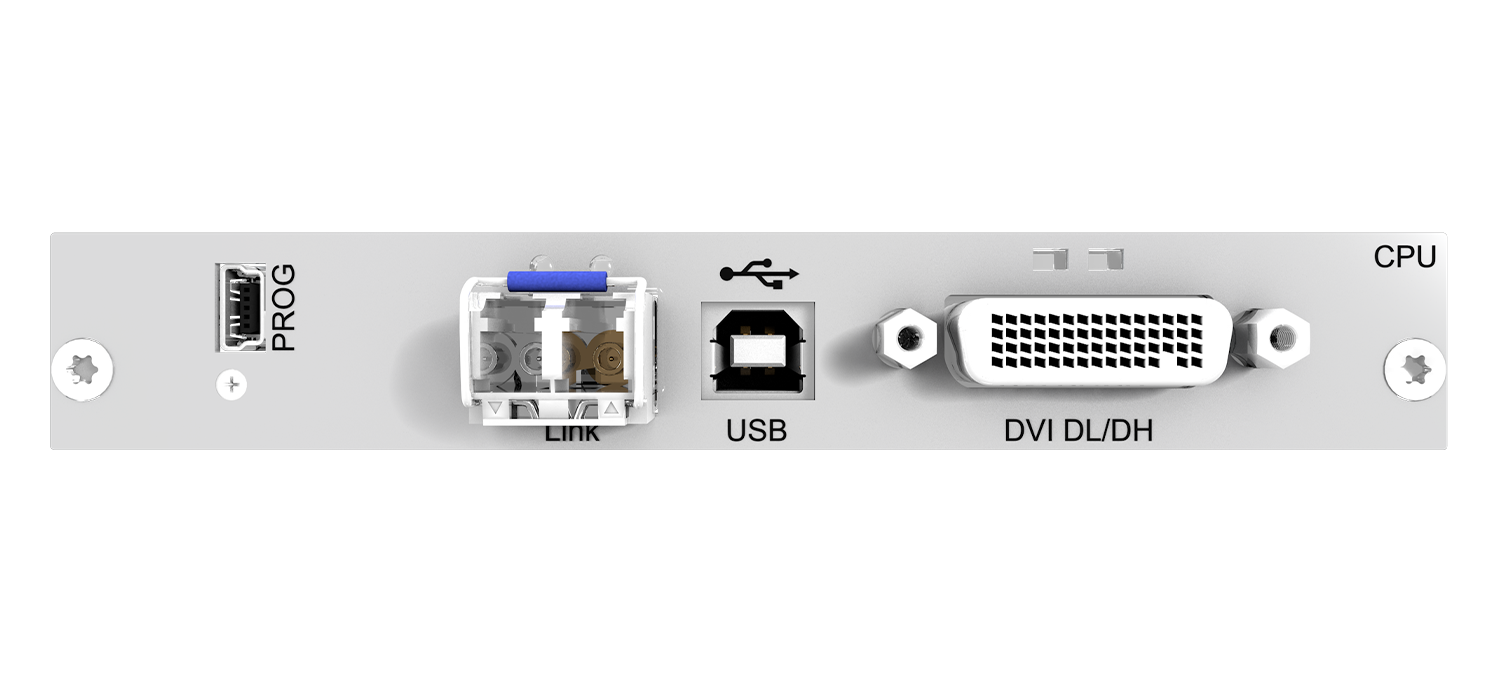

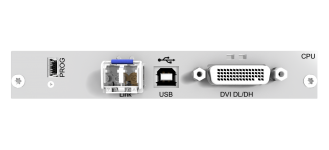

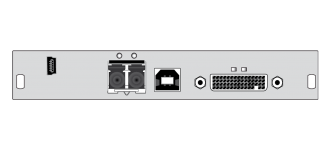

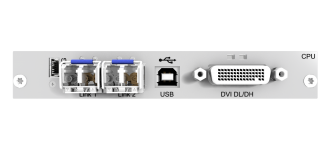

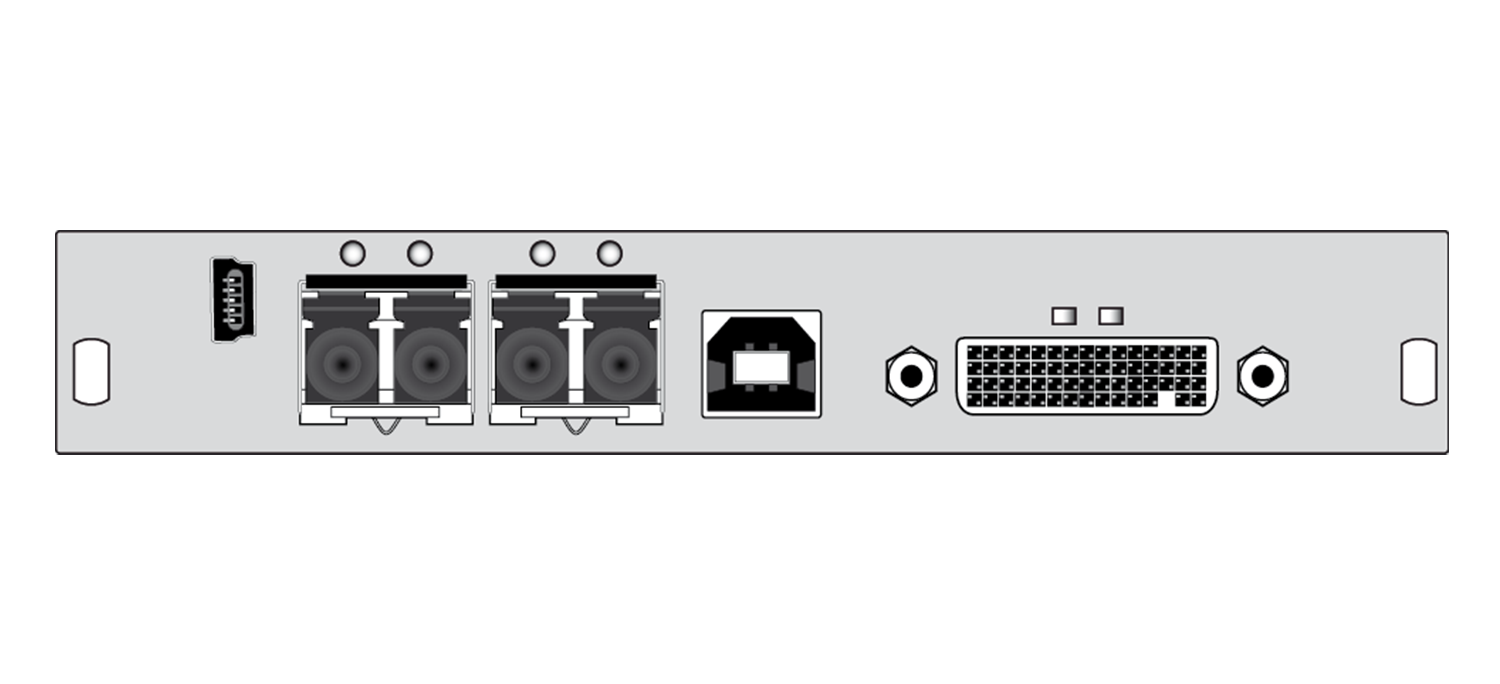

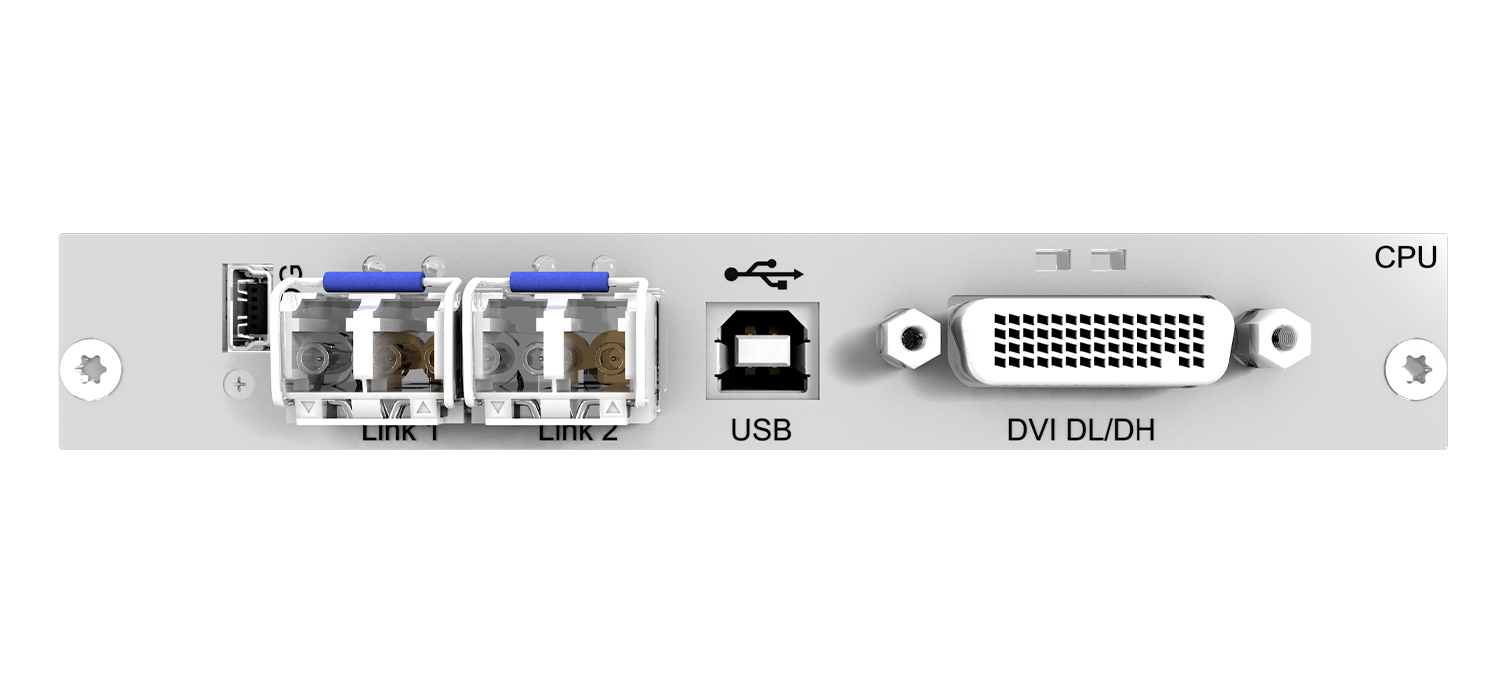

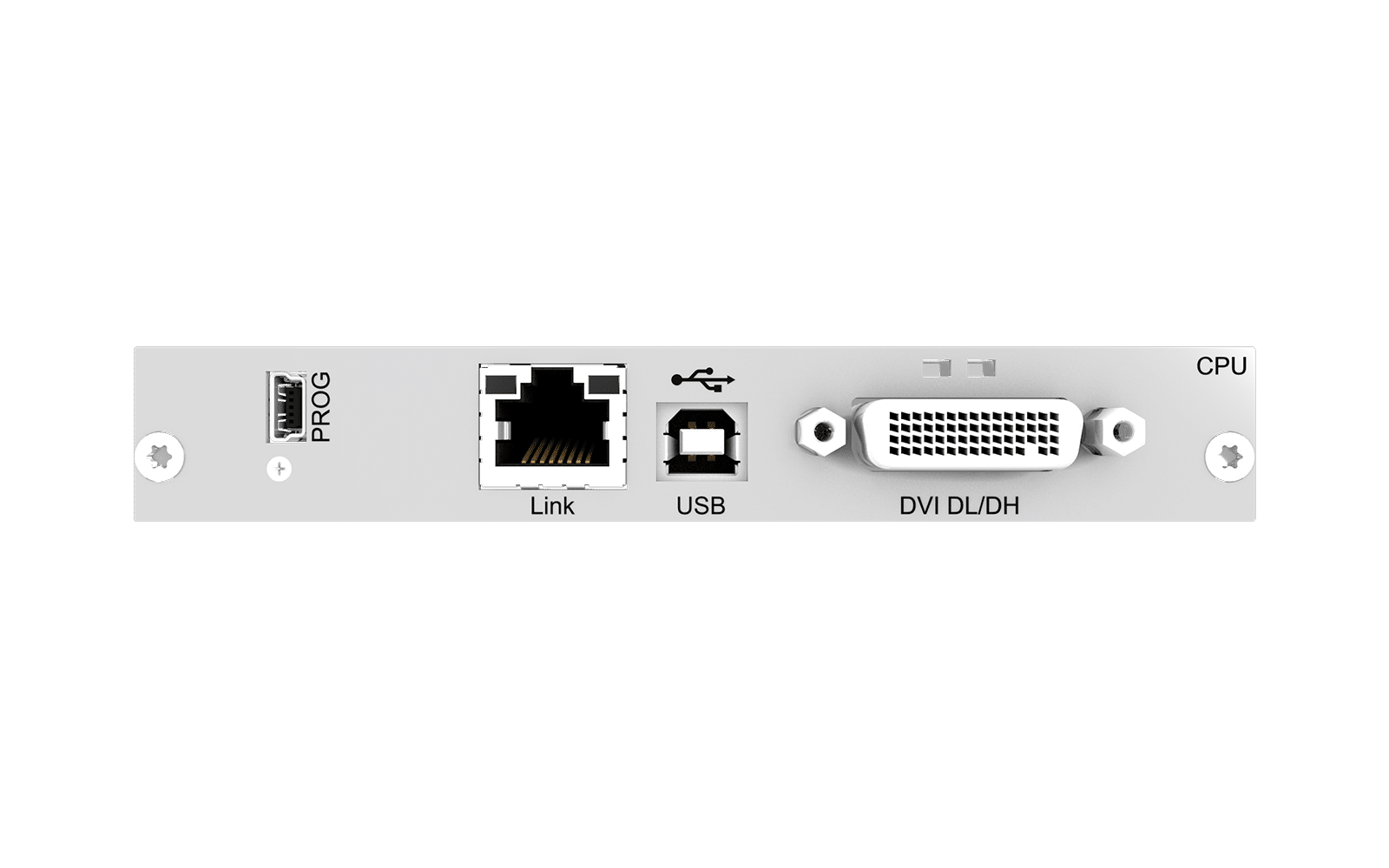

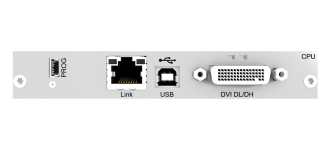

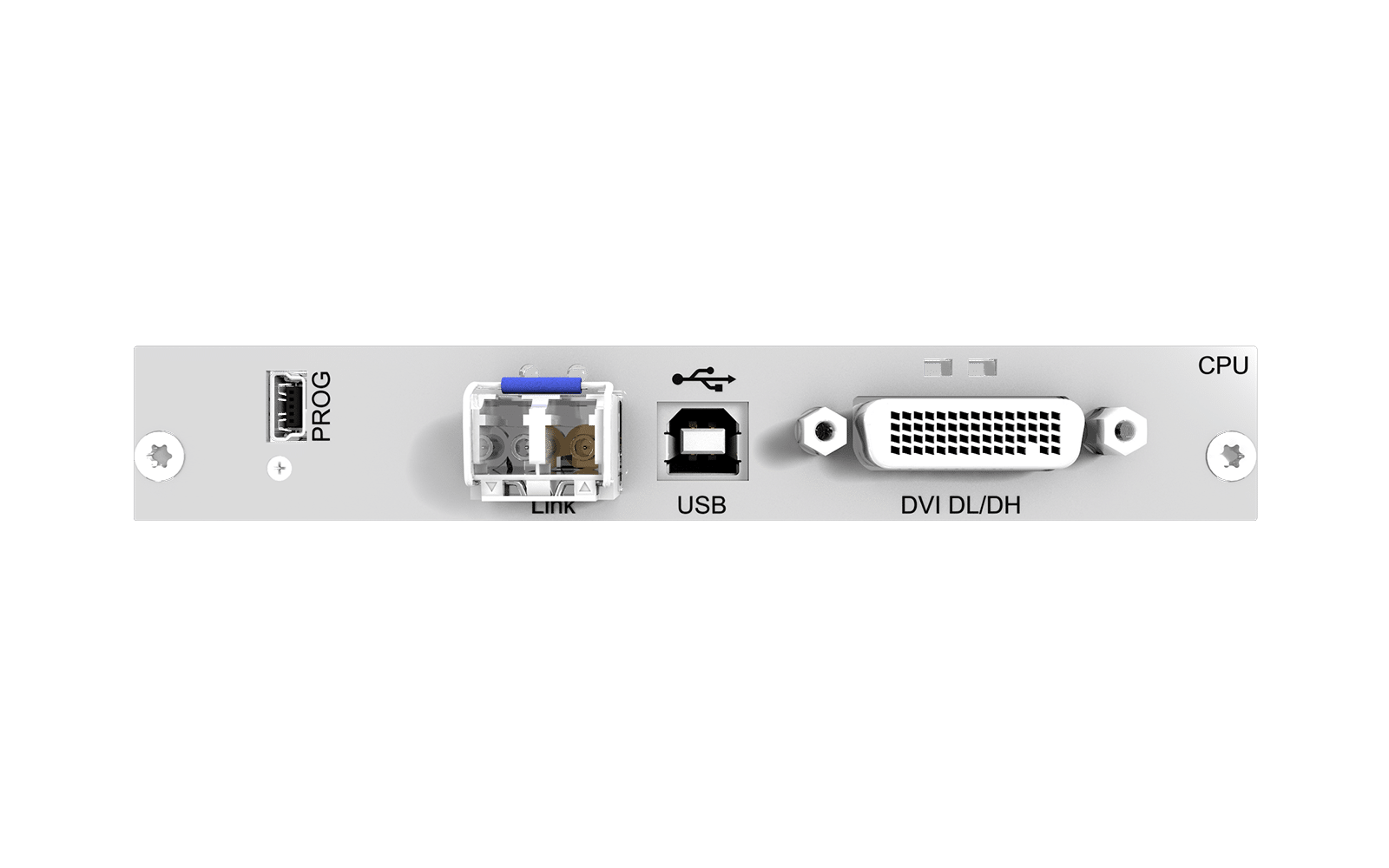

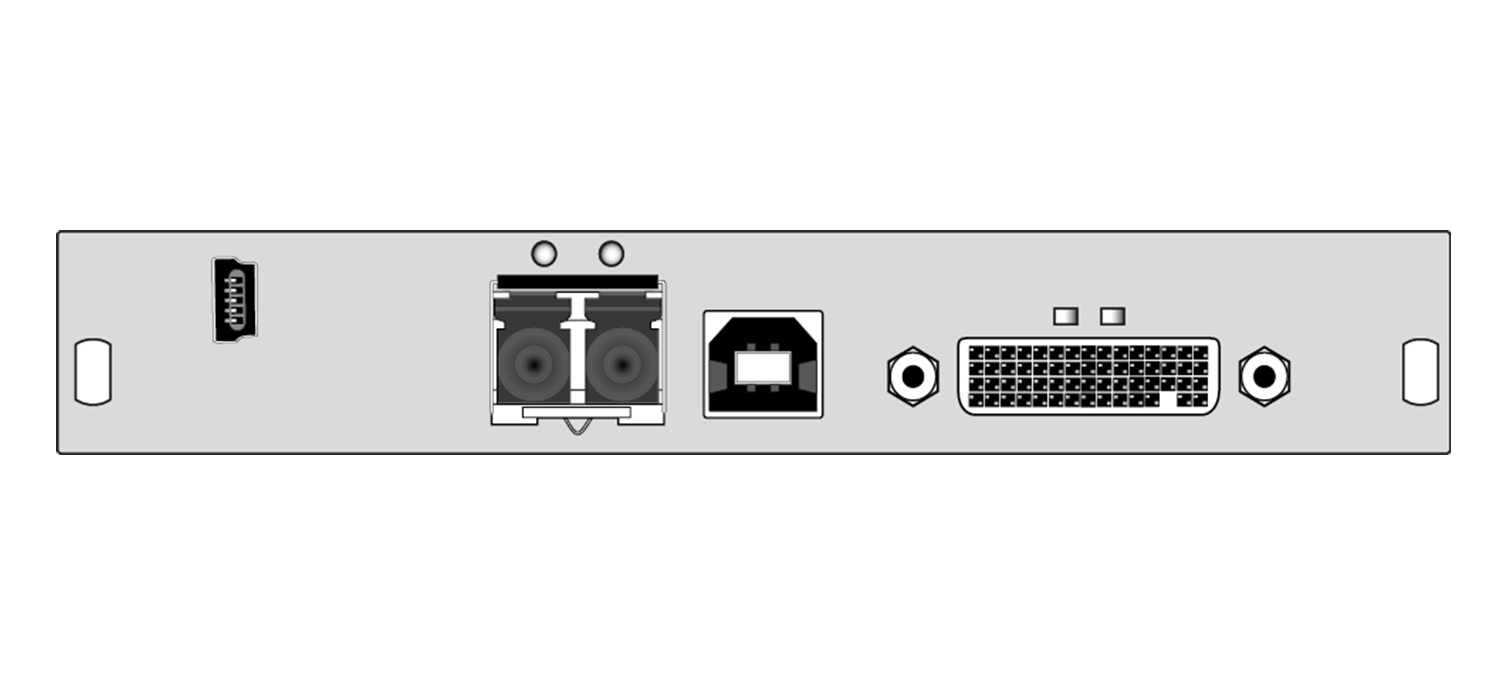

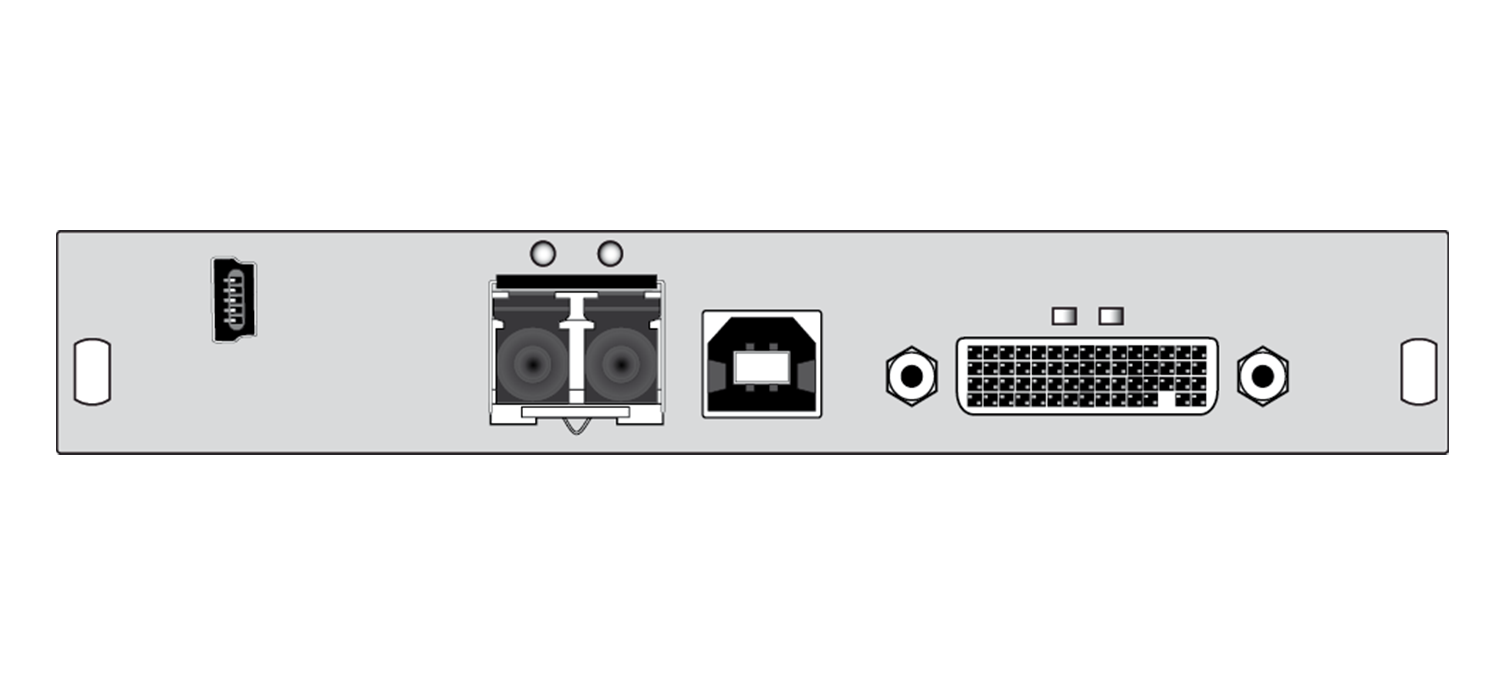

Draco vario DH / DL (L482系列)

Draco vario双头KVM扩展器可以通过一条Cat X或光纤连接两个DVI显示器,从而节省了第二个扩展器的费用,并减少了布线成本和安装工作量。与KVM矩阵系统结合使用时,Draco vario双头KVM扩展器可以节省宝贵的矩阵端口。

它是其姊妹产品,Draco vario Dual Link KVM扩展器,可将DVI信号传输至一台分辨率高达4K @ 30Hz的显示器。信号扩展需要一根数据线。

扩展器与常规的单头/单头扩展器兼容:控制台可以即时访问单头/单链路CPU单元。在这种情况下,来自单头/单链路源的信号将嵌入到双链路信号格式中,并且可以在无明显延迟的情况下进行切换。单头/单链路图像在屏幕空白区域内以其自身的分辨率显示。

产品特色

产品特色

Draco vario DH / DL (L482系列)
  • 在所有分辨率下均具有出色的图像质量
  • 与所有主要操作系统兼容
  • 与所有IHSE Draco KVM切换器兼容
  • 每个单元仅需要一个KVM矩阵端口
  • 广泛的附加选项:
    –用于HID设备的两个USB端口
    –嵌入式USB 2.0
    –串行接口(RS232或RS422)
    –模拟音频
    –数字音频
    – DVI-D
  • 冗余互连链路
  • 提供19英寸机架安装套件
  • 所有设备都具有可用的冗余电源(负载共享)

规格

Draco vario DH / DL (L482系列)
输入
DMS-59(DVI-D双头/单链路适配器)
DMS-59(DVI-D双头适配器)
输出
DMS-59(DVI-D双头/单链路适配器)
DMS-59(DVI-D双头适配器)
数据速率(最大值)
2 x 165 MPixel / s(双头)
330 MPixel / s(双链路)
最大分辨率
Draco vario Dual-Head
2 x 1920 x 1200 @ 60Hz
Draco vario Dual Link
2560 x 2048 @ 60 Hz
4096 x 2160 @ 30 Hz
颜色深度
8位/真彩色
视频和 USB-HID 信号的最大传输范围(端到端连接)
Cat X:140 m(459 ft)
单模光纤 9μm:10,000 m(32,808 ft)
单模光纤 9μm XV:5,000 m (16,404 ft)
多模光纤 50μm (OM3):1,000 m (3,280 ft)
多模光纤 50μm:400 m(1,312 ft)
可选接口
USB 2.0,带RS232的模拟音频,数字音频,PS / 2等
键盘/鼠标
USB-HID

零件号

零件号

Draco vario DH / DL (L482系列)

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

资料下载

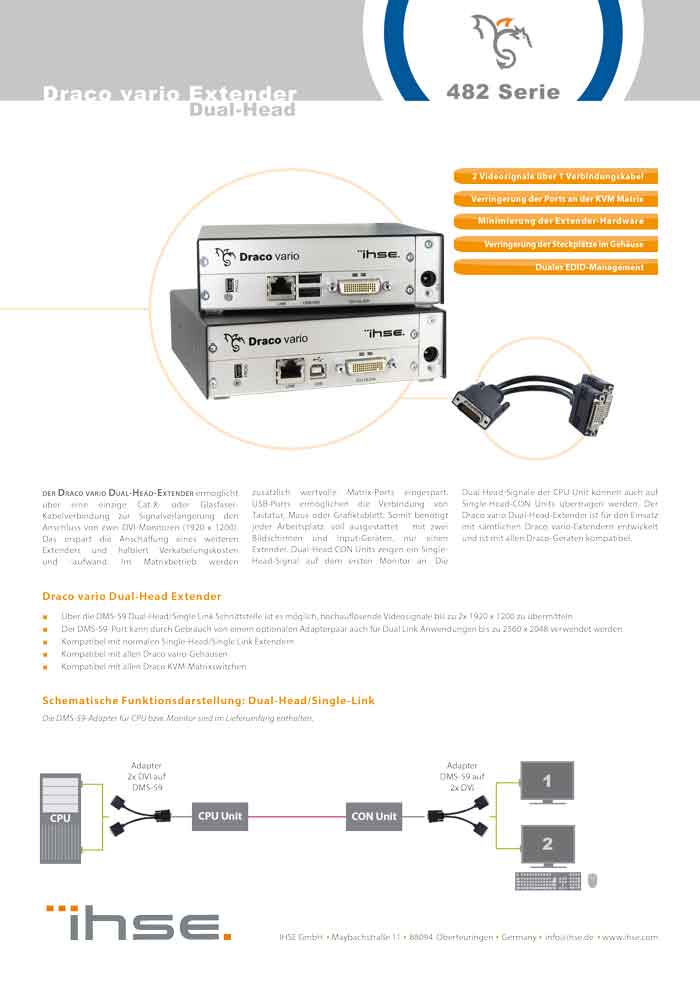

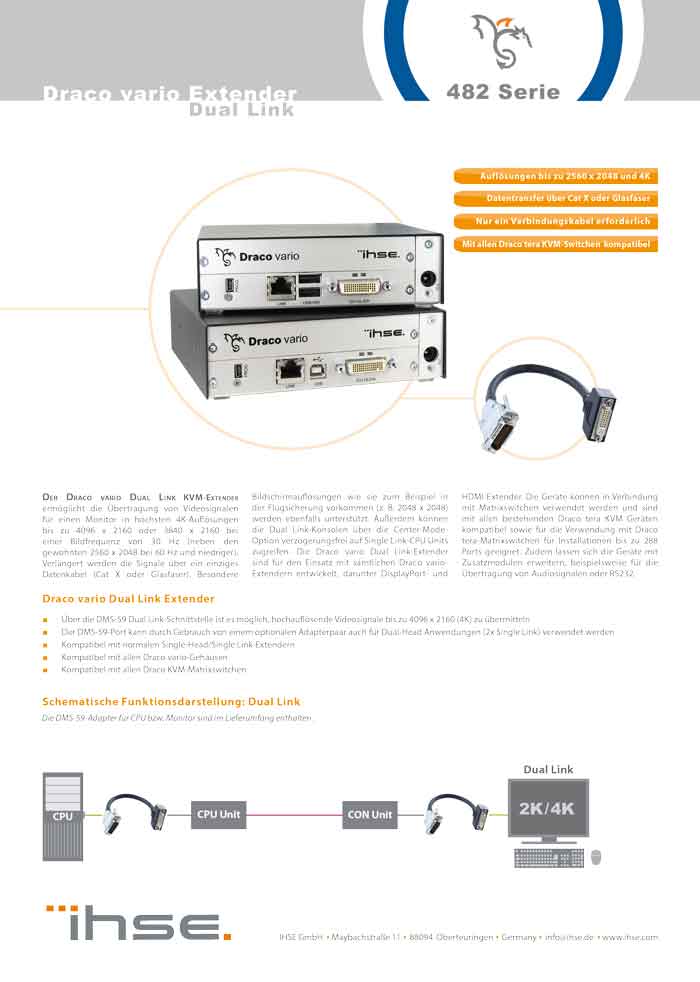

Draco vario DH / DL (L482系列)
Draco vario Dual-Head
Draco vario Duallink

系统图

系统图

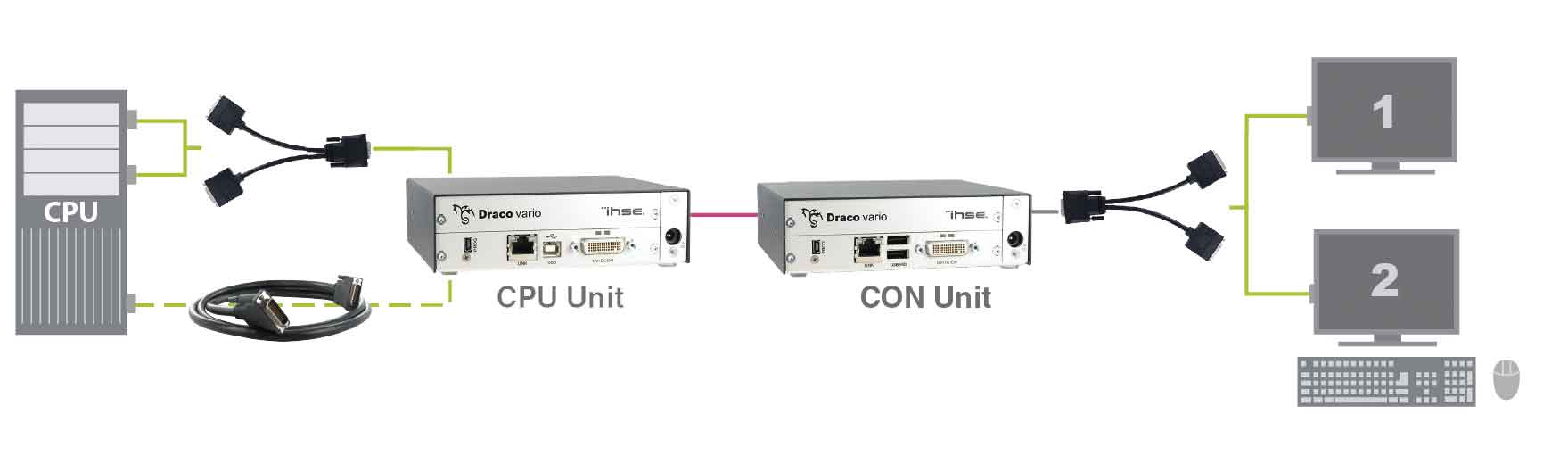

Draco vario DH / DL (L482系列)
