DRACO VARIO DISPLAYPORT 1.1

Draco vario DisplayPort 1.1使用户可以从分辨率高达4K30的远程工作站实时访问DisplayPort计算机

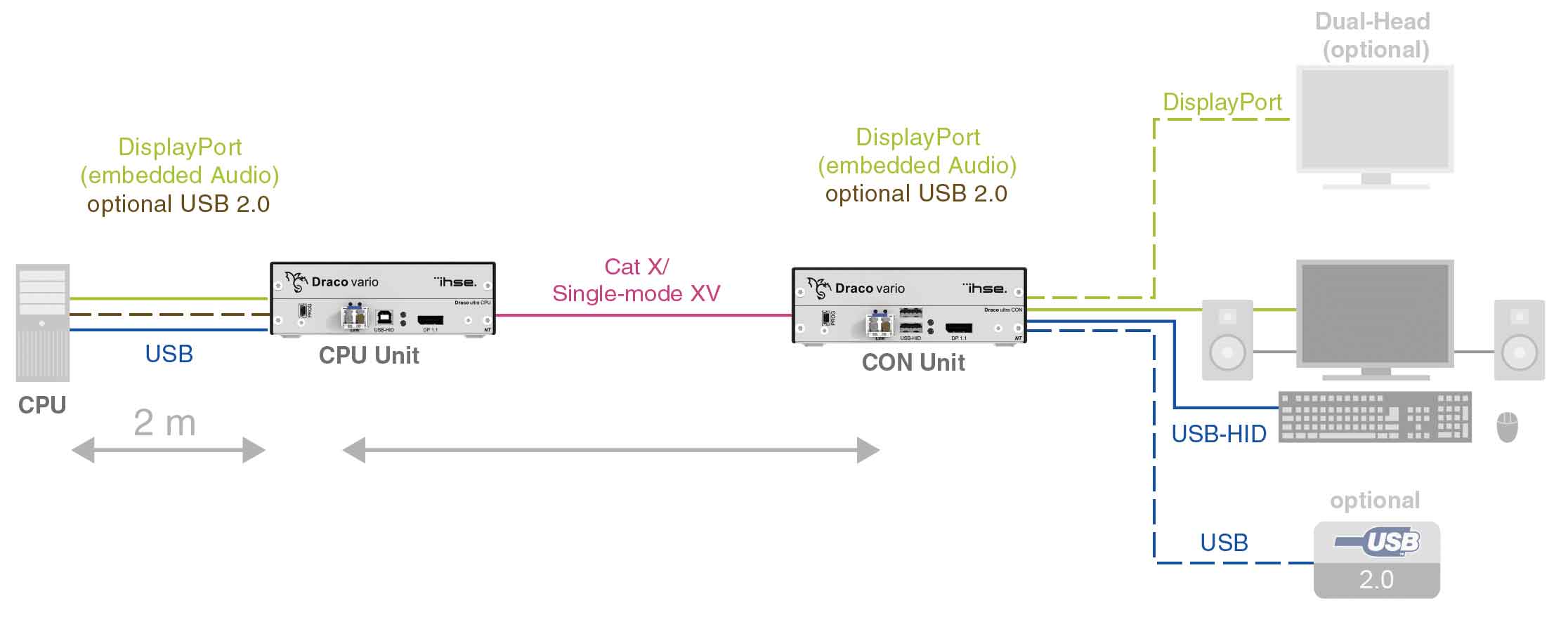

长距离DisplayPort扩展

长途DisplayPort扩展

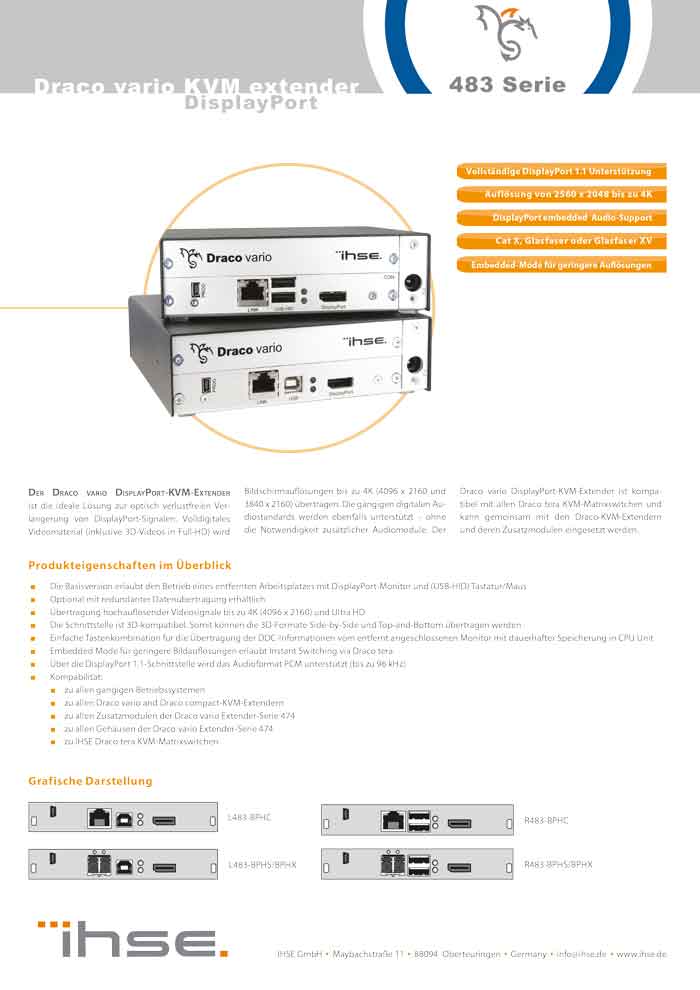

Draco vario DisplayPort 1.1 (483系列)

Draco vario DisplayPort可以通过尖端的DisplayPort接口传输高清视频和音频数据。它们与Draco tera KVM矩阵切换器兼容,并能与用于视频和USB-HID扩展的DVI和HDMI扩展器系列一起使用。全数字视频信号(包括全高清3D视频)的传输支持4K分辨率,最高可达4096 x 2160和3840 x 2160。DisplayPort 扩展器支持所有通用数字音频标准,这样不需要附加音频模块,就可以通过带有集成扬声器的显示器播放音频信号。也可以集成数字音频输入和输出的可选附加模块。DisplayPort扩展器有单链路和冗余链路的版本。

产品特色

产品特色

Draco vario DisplayPort 1.1 (483系列)
  • 与Draco vario扩展器的所有机箱和模块兼容
  • 传输高达4K(4096 x 2160)的全数字视频信号
  • 音频格式PCM可以通过DisplayPort接口以高达96 kHz的采样率进行传输
  • 其他音频格式可通过固件更新获得支持
  • 标准版本允许使用 DisplayPort 显示器和 USB-HID 设备(如键盘和鼠标)操作远程工作站
  • 与所有主要操作系统兼容
  • 与所有IHSE Draco KVM切换器、Draco vario模块与机箱以及Draco compact扩展器兼容
  • 冗余数据链接(可选)
  • 1U(19″)机架套件(可选)

规格

Draco vario DisplayPort 1.1 (483系列)
输入
DisplayPort 1.1
输出
DisplayPort 1.1
最高分辨率
2560 x 2048 @ 60 Hz
4096 x 2160 @ 30 Hz
色彩深度
8位/真彩色
视频和 USB-HID 信号的最大传输范围(端到端连接)
Cat X:140 m(459 ft)
单模光纤 9μm:10,000 m(32,808 ft)
单模光纤 9μm XV:5,000 m (16,404 ft)
多模光纤 50μm (OM3):1,000 m (3,280 ft)
多模光纤 50μm:400 m(1,312 ft)
可选接口
USB 2.0,带RS232的模拟音频,数字音频,PS / 2等
键盘/鼠标
USB-HID

零件号

零件号

Draco vario DisplayPort 1.1 (483系列)

All Variations

ImageModell:Description

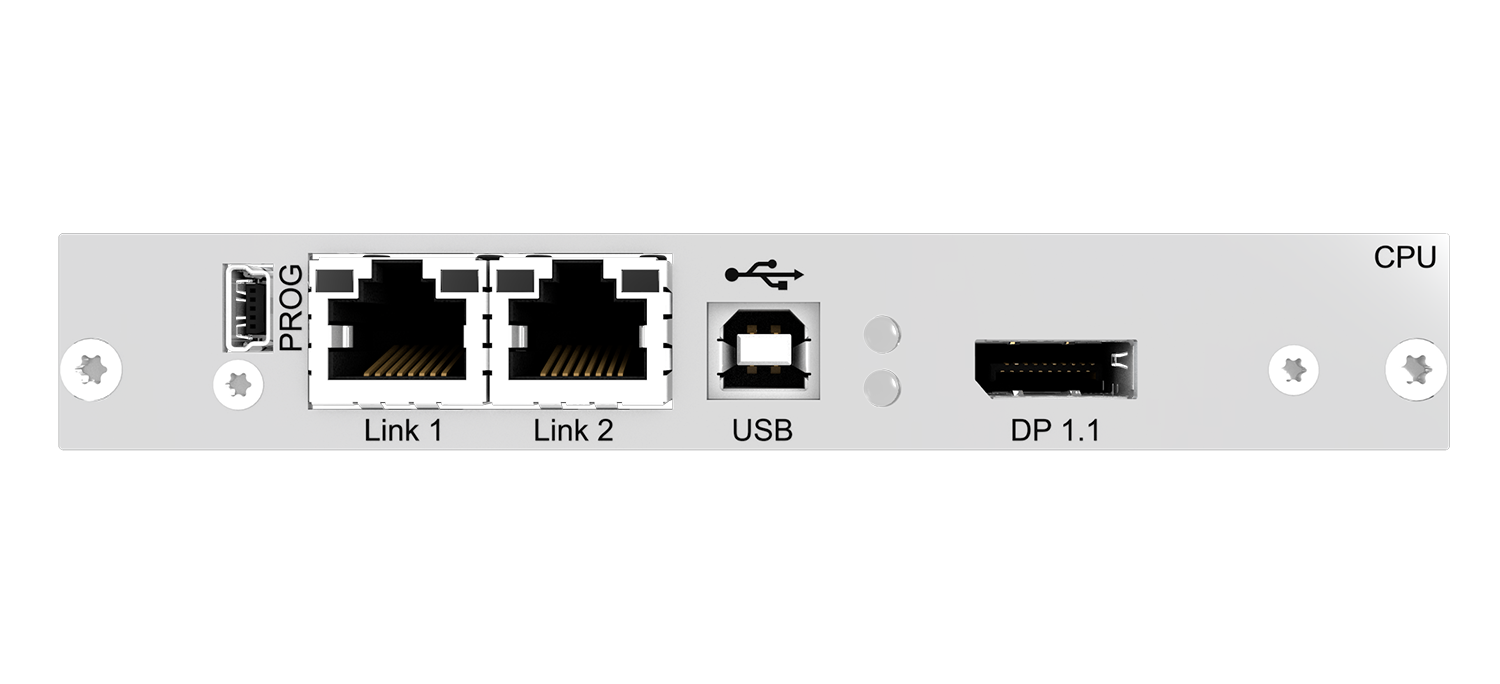

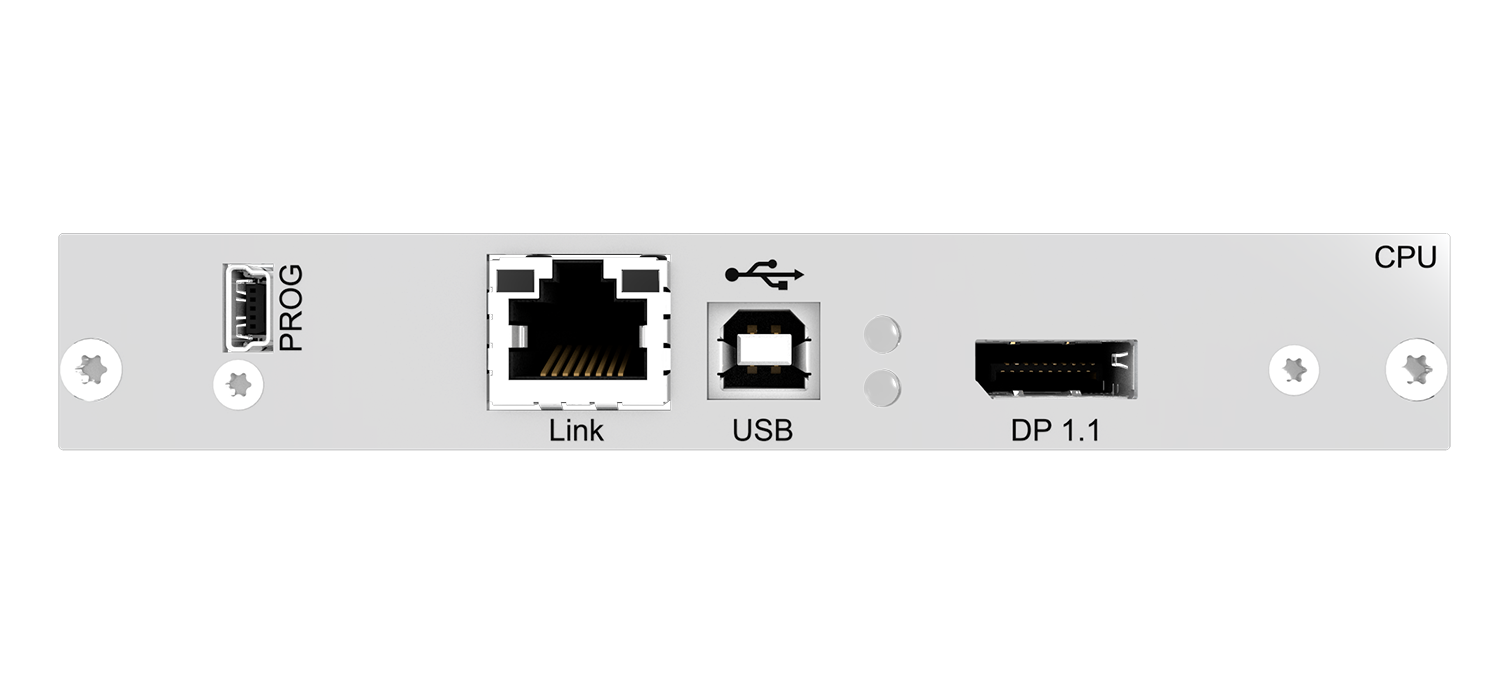

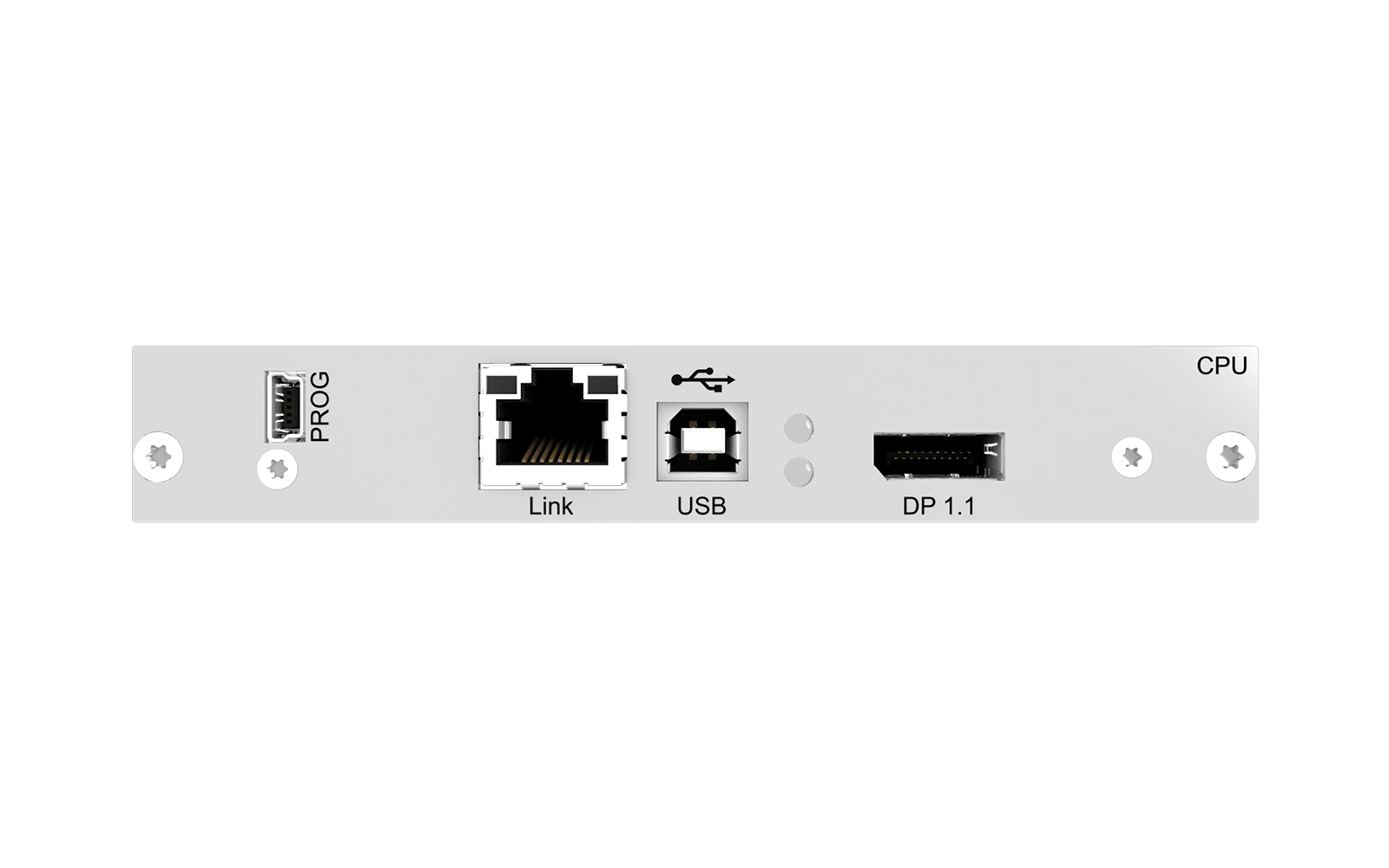

L483-BPHCCPU模块,1×Cat X,1个DisplayPort接口,双链路或4K30、2个USB-HID
L483-BPHCRCPU模块,2×Cat X(冗余),1个DisplayPort接口,双链路或4K30、2个USB-HID

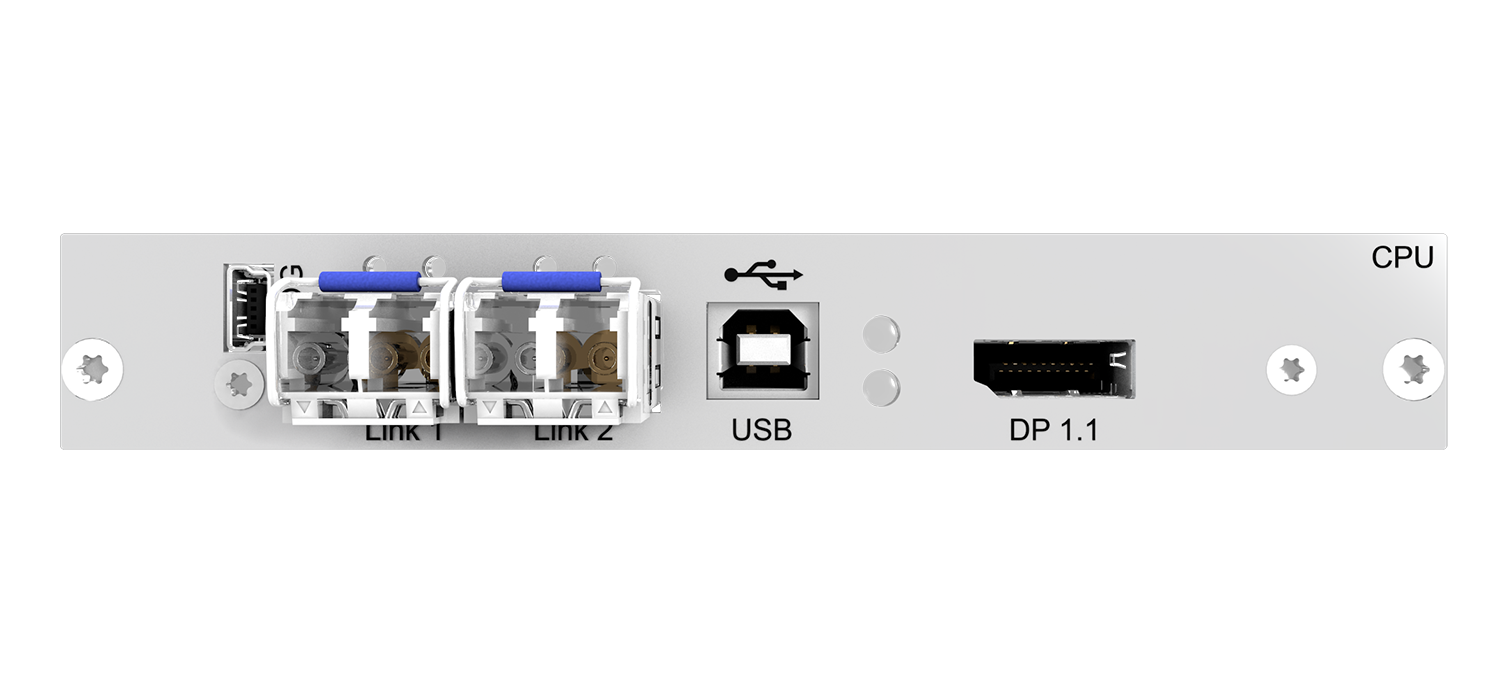

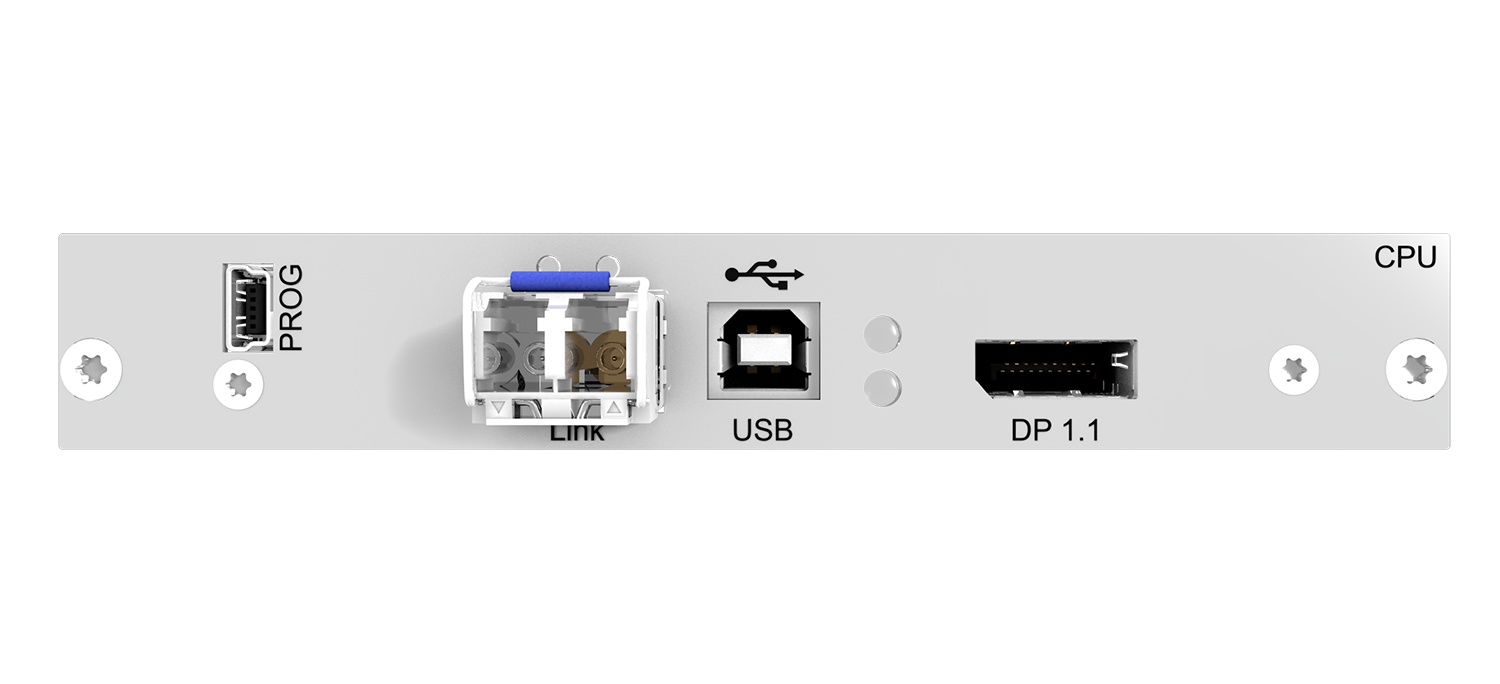

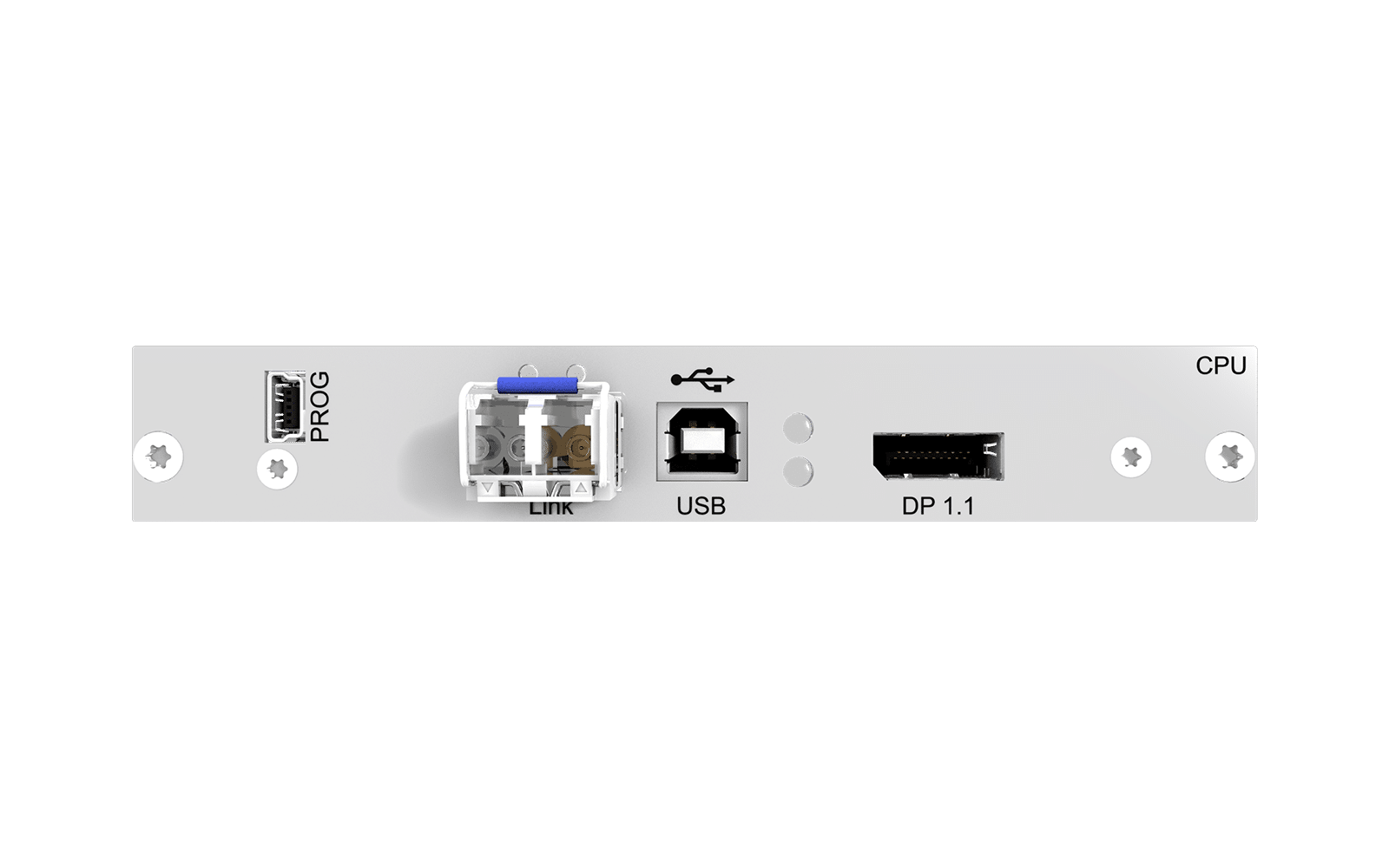

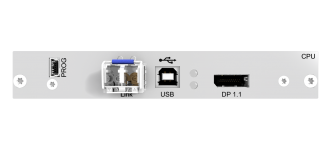

L483-BPHSCPU模块,1×光纤,1个DisplayPort接口,双链路或4K30、2个USB-HID

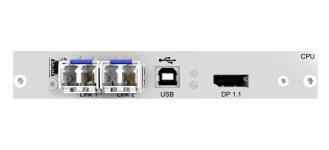

L483-BPHSRCPU模块,2×光纤(冗余),1个DisplayPort接口,双链路或4K30、2个USB-HID

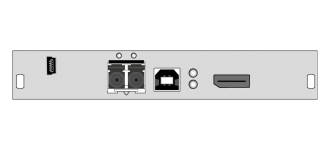

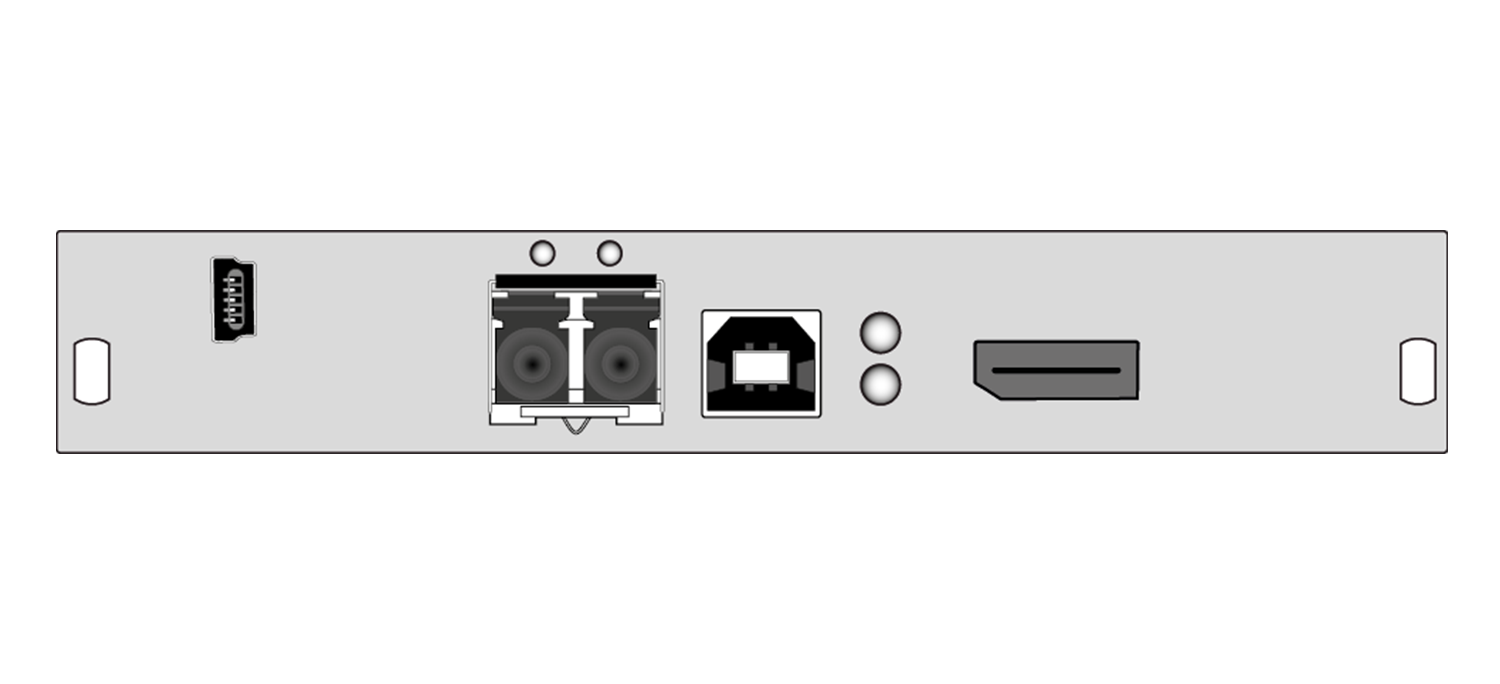

L483-BPHXCPU模块,1×光纤XV,1个DisplayPort接口,双链路或4K30、2个USB-HID

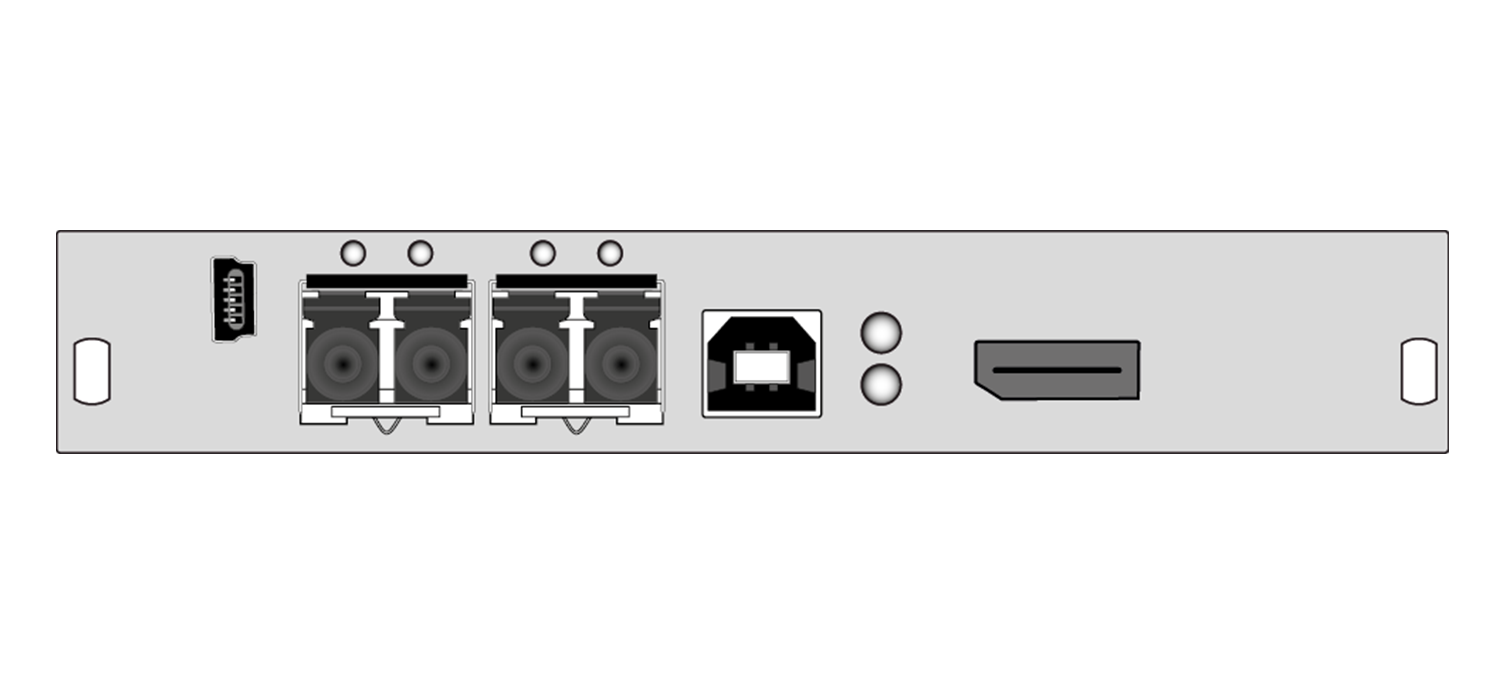

L483-BPHXRCPU模块,2×光纤XV(冗余),1个DisplayPort接口,双链路或4K30、2个USB-HID

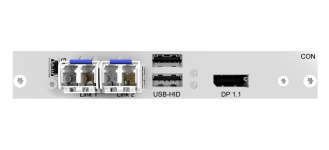

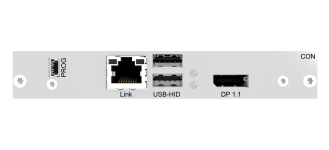

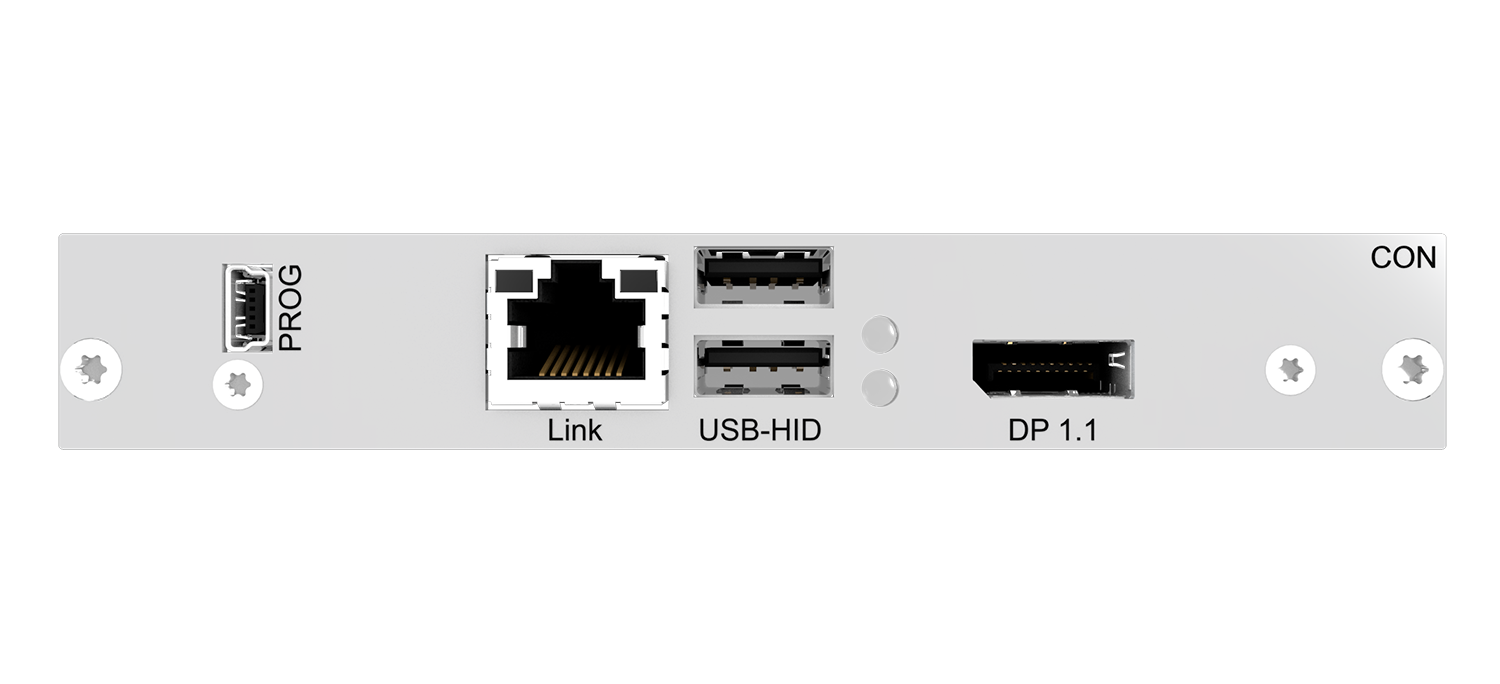

R483-BPHCCON模块,1×Cat X,1个DisplayPort接口,双链路或4K30、2个USB-HID

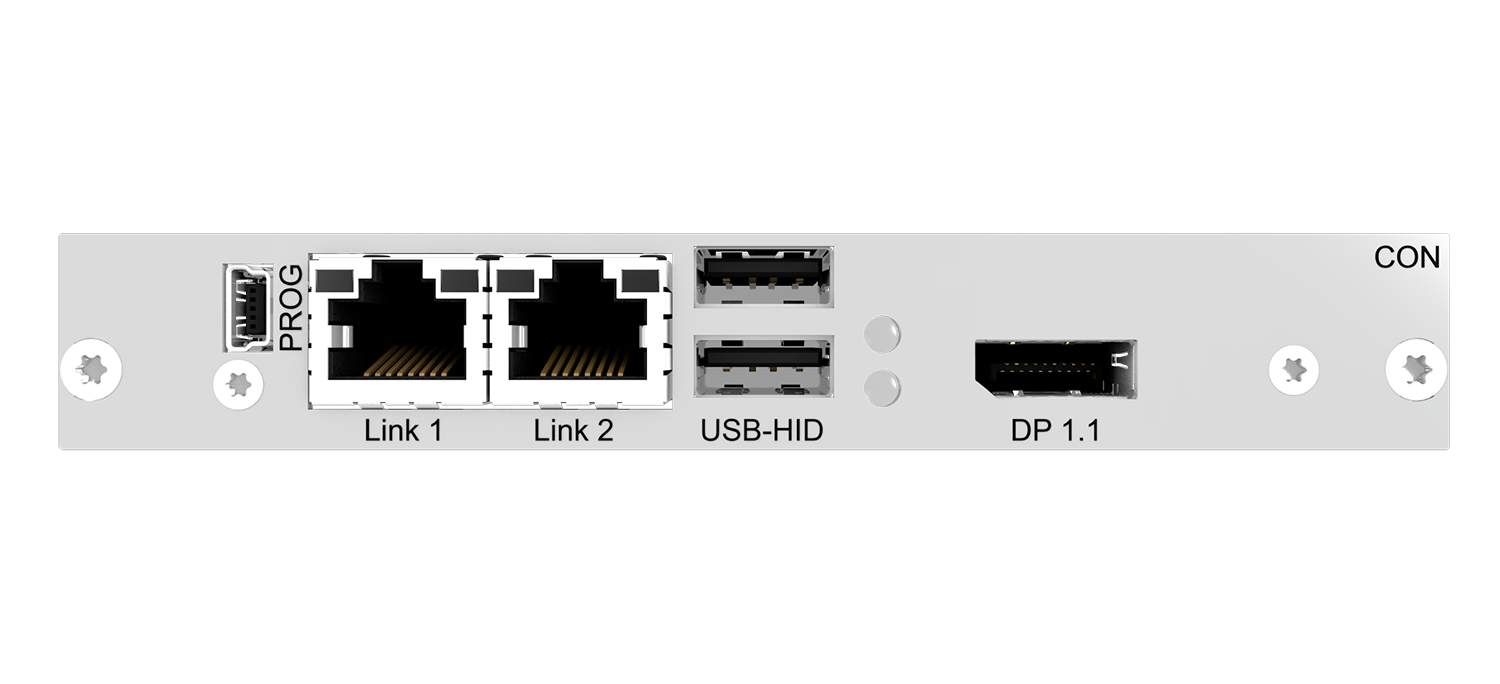

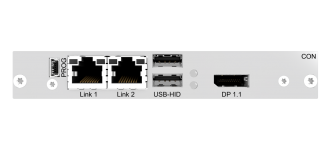

R483-BPHCRCON模块,2×Cat X(冗余),1个DisplayPort接口,双链路或4K30、2个USB-HID

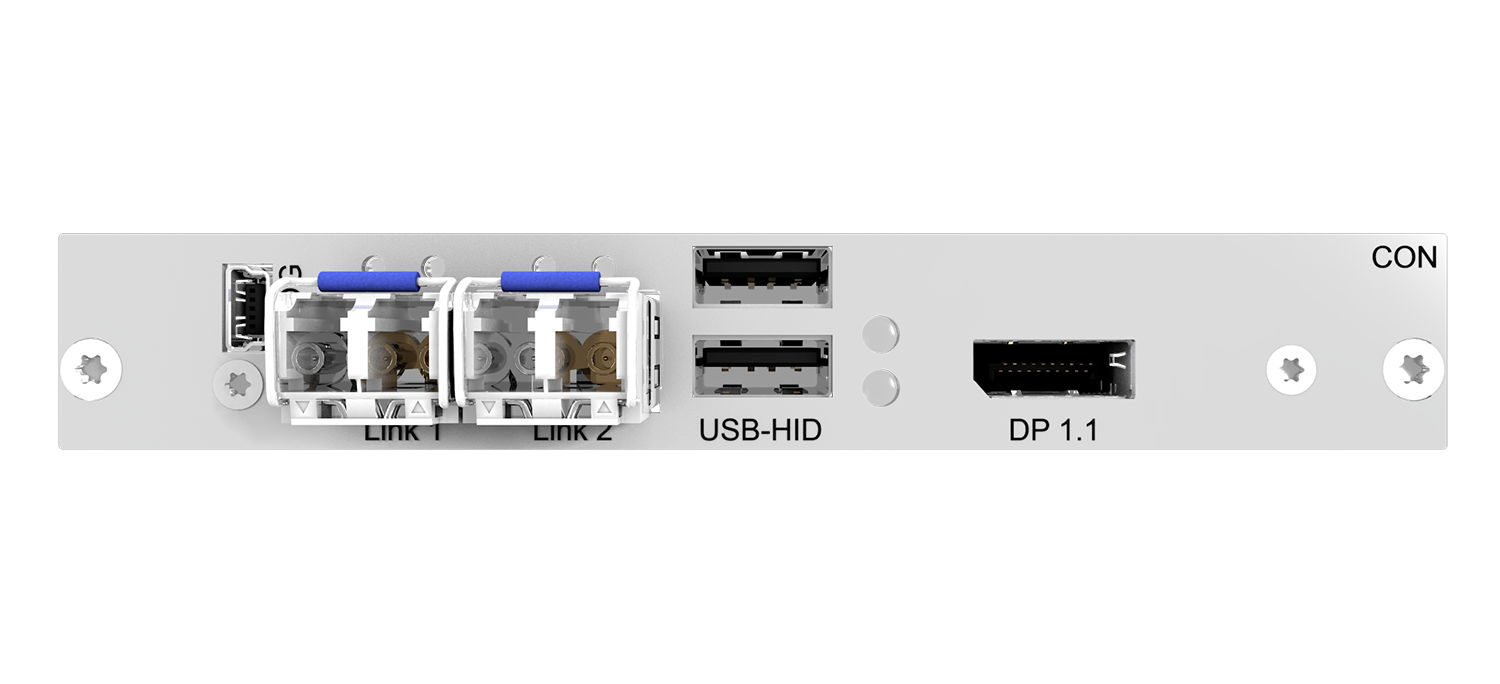

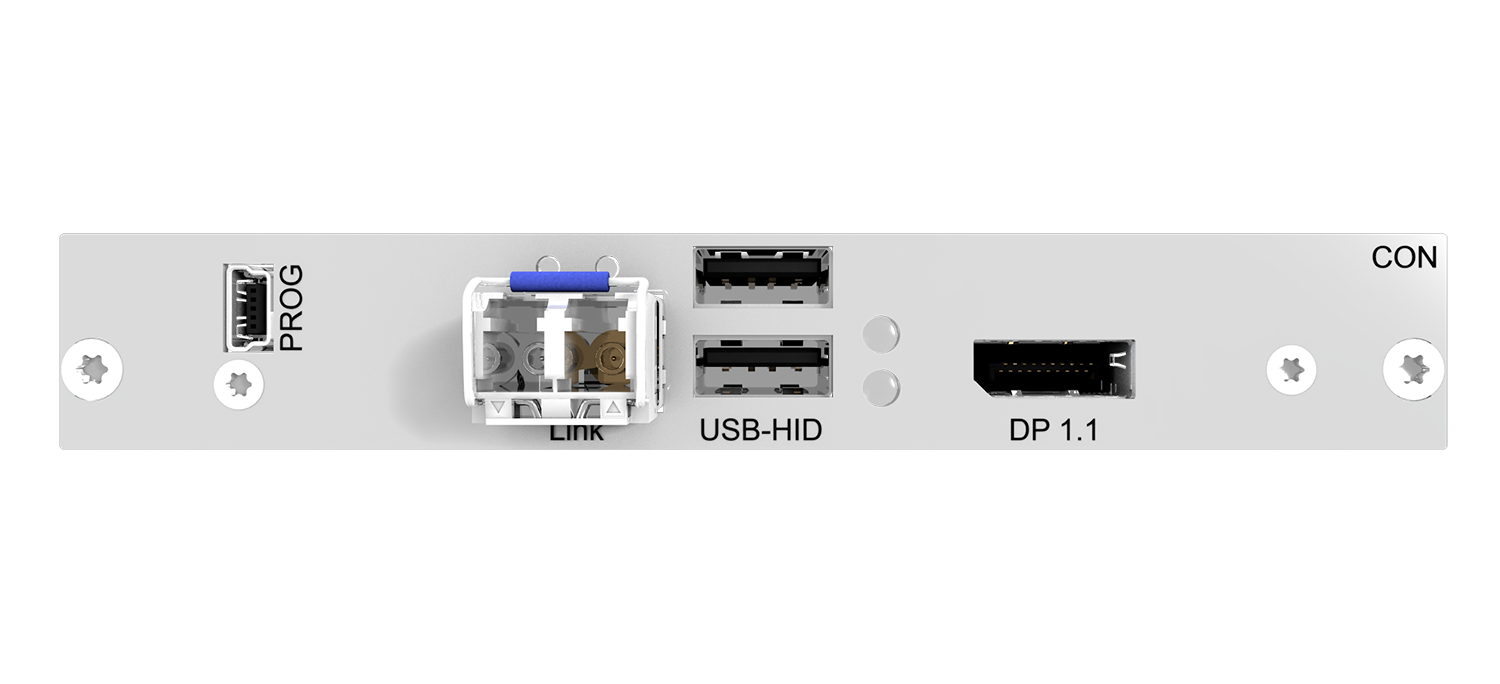

R483-BPHSCON模块,1×光纤,1个DisplayPort接口,双链路或4K30、2个USB-HID
R483-BPHSRCON模块,2×光纤(冗余),1个DisplayPort接口,双链路或4K30、2个USB-HID

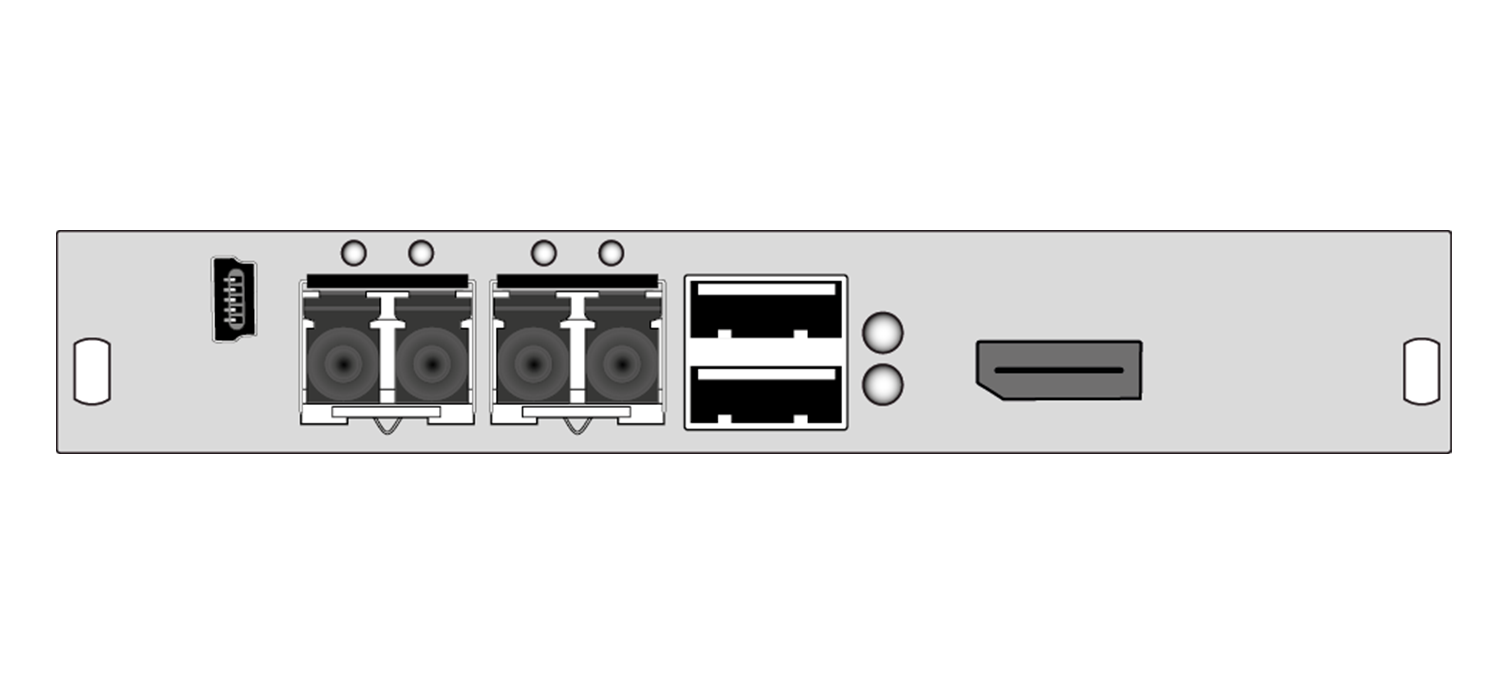

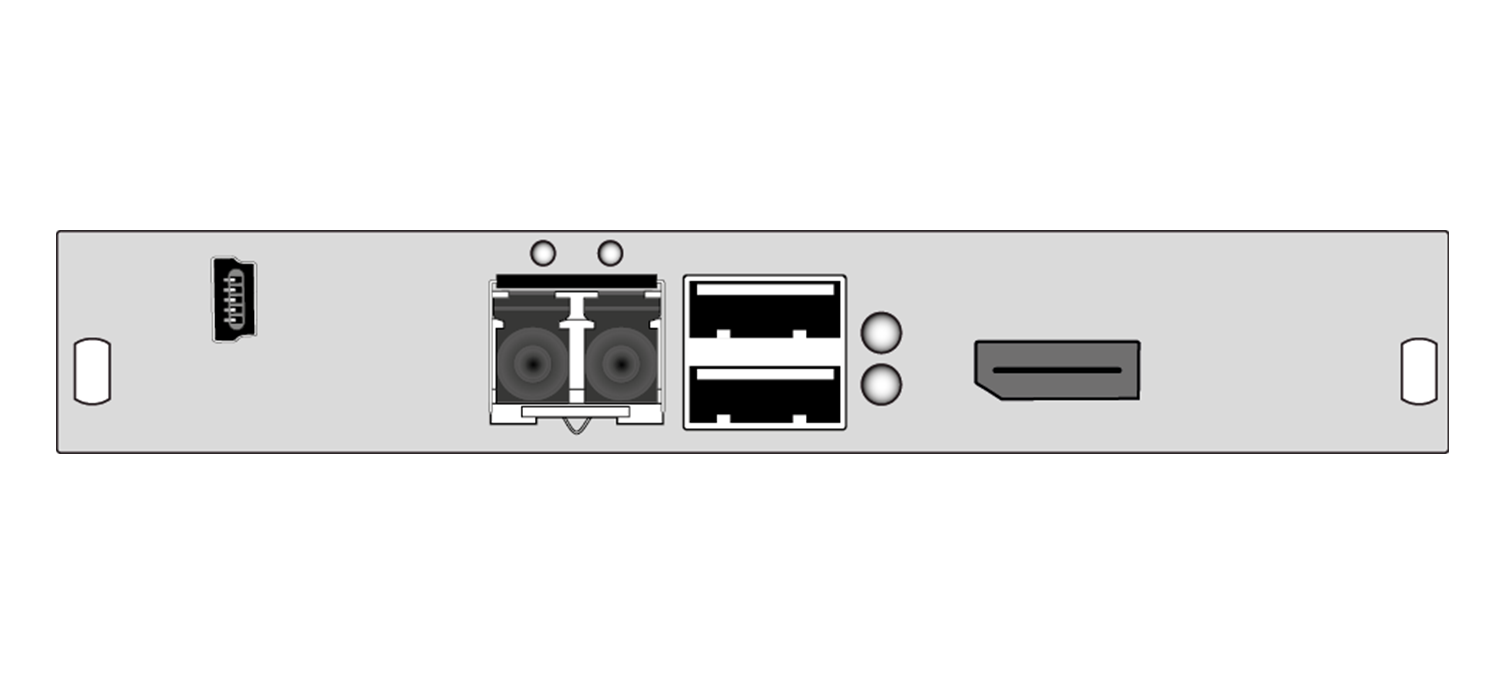

R483-BPHXCON模块,1×光纤XV,1个DisplayPort接口,双链路或4K30、2个USB-HID
R483-BPHXRCON模块,2×光纤XV(冗余),1个DisplayPort接口,双链路或4K30、2个USB-HID
