DRACO SIRA
Stand-Alone

可以使用HTML5.0浏览器、客户端软件或SIRA用户工作站通过IP网络远程访问和操作单个计算机。

独立连接的备用模块

独立连接的备用模块

Draco SIRA Stand-Alone (488系列)

SIRA –安全的IP远程访问
对于不需要完全矩阵切换功能的安装,IHSE提供了用于直接计算机连接的IP模块。由于独立的SIRA仅连接到外部接口,并且不需要安装任何驱动程序,因此可以使用 HTML5 浏览器、客户端软件或 SIRA 用户工作站通过 IP 网络远程访问和操作单个计算机,直至 BIOS 级别。额外的本地输出(信号环出)允许用户同时访问本地计算机。 包含USB虚拟介质支持,用来远程传输文件。

模块化设计允许多种安装选项,包括冗余电源。1RU中最多可容纳三个SIRA Stand-Alone编码器。与用于4K60网络的Draco tera矩阵系统结合使用时,SIRA Stand-Alone编码器是与HDMI 2.0 CON模块(R495)结合使用的理想远程服务网关,不会牺牲本地4K60的性能。

产品特色

产品特色

Draco SIRA Stand-Alone (488系列)
  • Stand-Alone版本直接连接到PC或第三方KVM
  • HDMI输入高达4K30
  • USB HID输入
  • 本地控制接口
  • HDMI嵌入式音频
  • 虚拟媒体支持(文件传输到目标PC)

规格

Draco SIRA Stand-Alone (488系列)
输入
HDMI最高4K30,USB 2.0(Type B)
输出
HDMI 4K30、2个USB Type A,1个RJ-45
音频(嵌入式)
2声道立体声
最大分辨率
高达4K30或1920 x 1200 @ 60 Hz
键盘/鼠标
USB-HID
支持的协议
TCP/IP
网络安全协议
具有128位或256位加密的SSL;SNMPv3,LDAPS
电源供应
通过使用过的Draco vario机箱供电
耗能
每个扩展模块最大1,600 mA(通过旧的Draco vario机箱输入电源)
尺寸
40 x 129 x 145 mm
重量
大约120 g

零件号

零件号

Draco SIRA Stand-Alone (488系列)

All Variations

ImageModell:Description

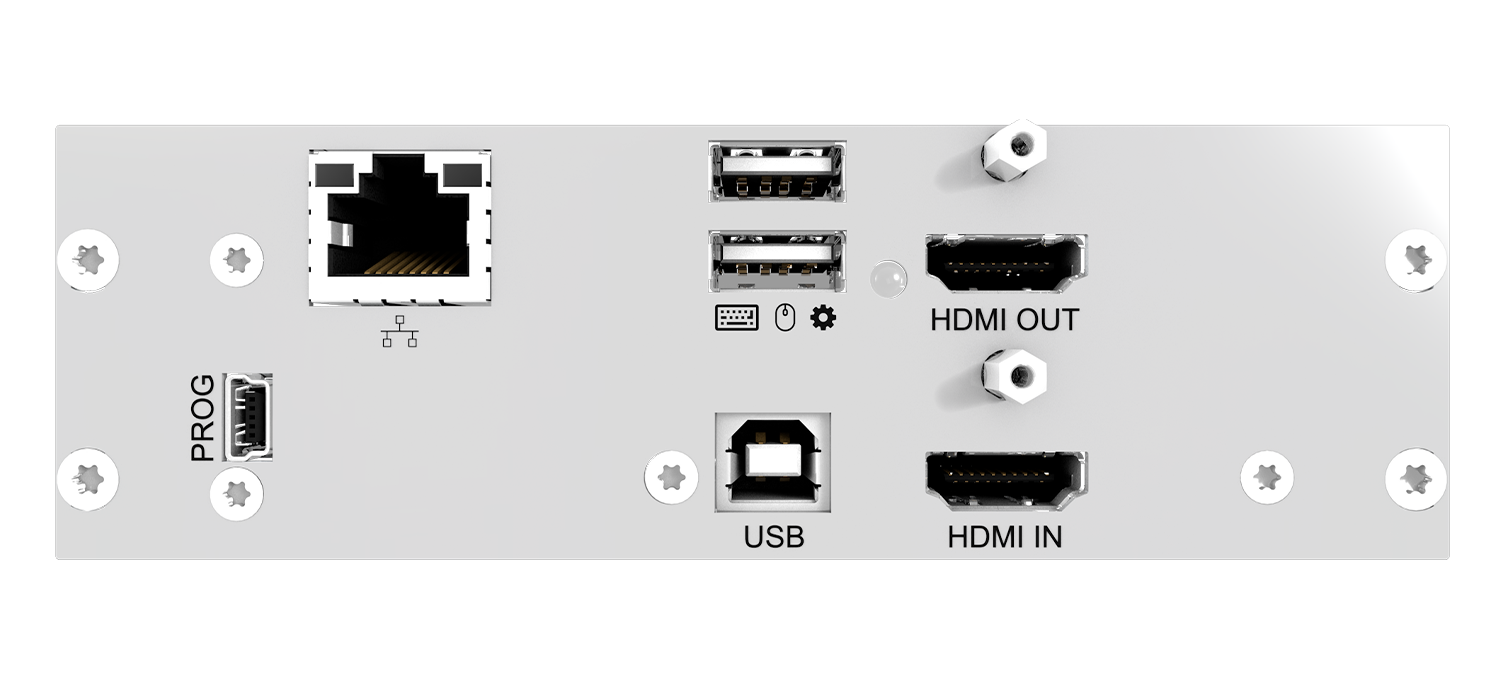

R488-BIPHHL具有本地HDMI和USB接口的Draco SIRA Stand-Alone模块

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

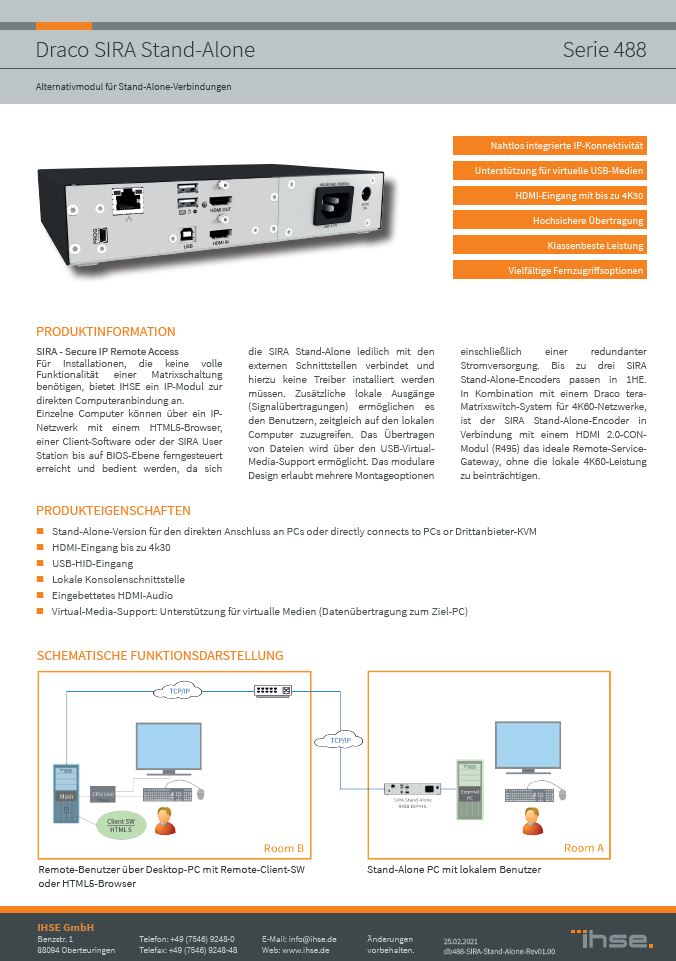

资料下载

Draco SIRA Stand-Alone (488系列)

系统图

系统图

Draco SIRA Stand-Alone (488系列)

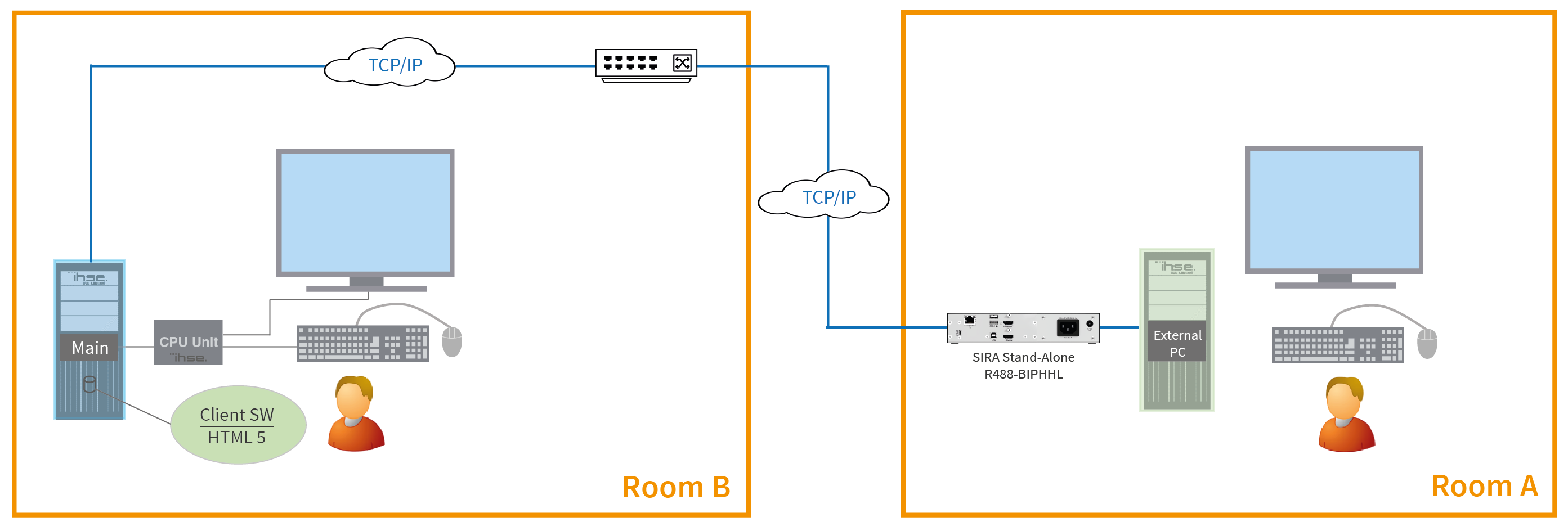

会议室B:远程用户通过台式机运行远程客户端软件或 HTML5 浏览器访问
会议室A:本地用户的单机电脑

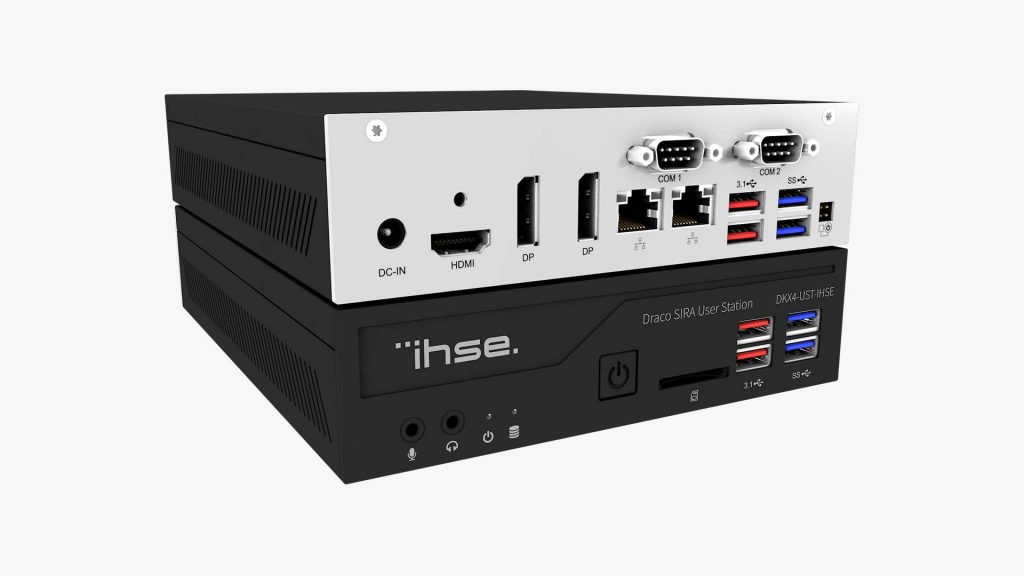

会议室B:远程用户通过专用 SIRA 用户站 (K488-UST)访问
会议室A:本地用户的单机电脑
