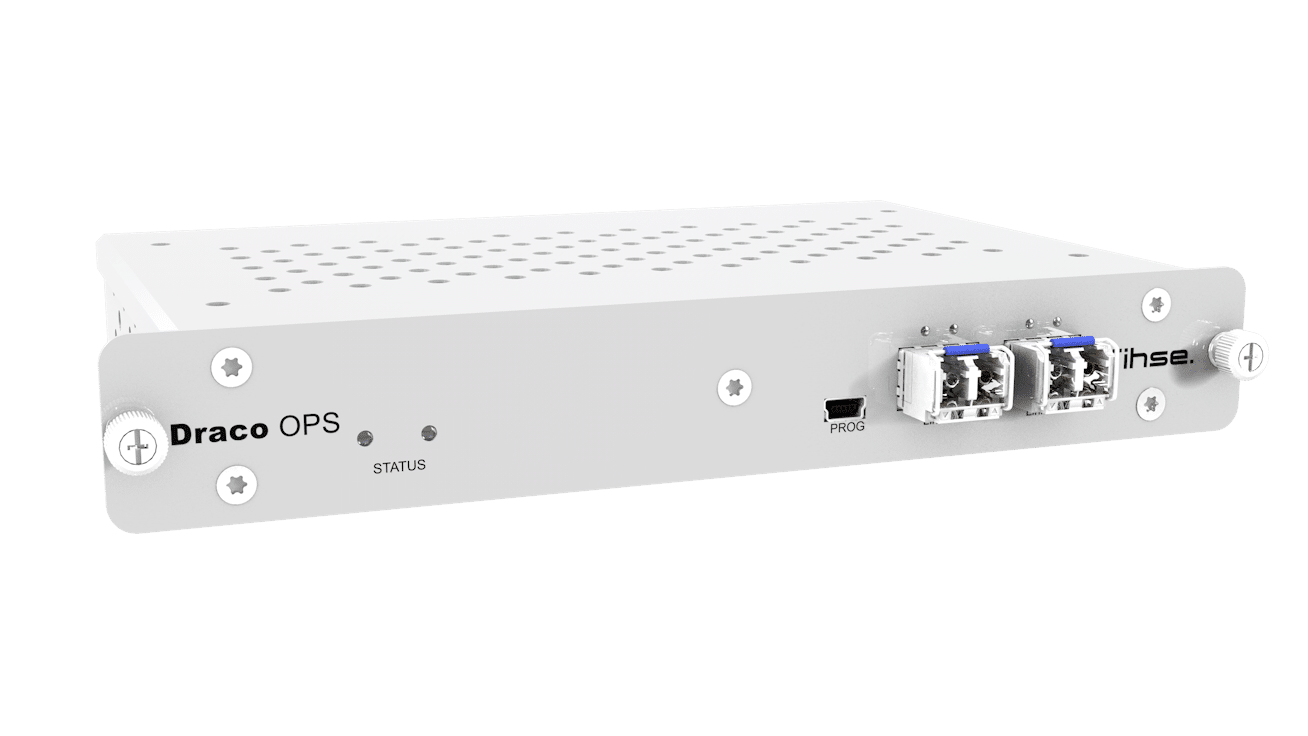

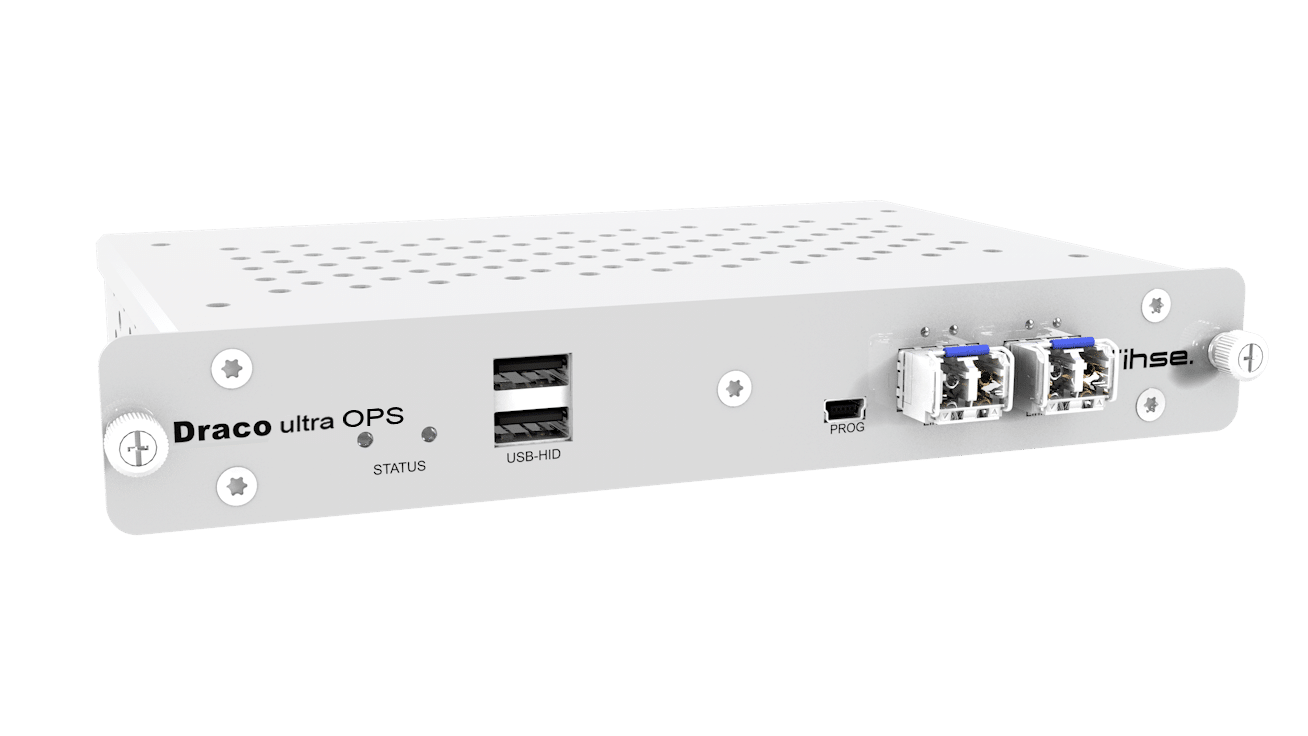

DRACO OPS (2K60) DRACO ULTRA OPS (4K60)

Draco OPS 2K60和Draco ultra OPS 4K60为任何配备OPS的显示器提供了单线KVM扩展。这样可以在远程显示器(无风扇)上实现GPU工作站的性能。

专业显示屏安装的便利性和成本节约

方便安装和节省成本的专业展示安装

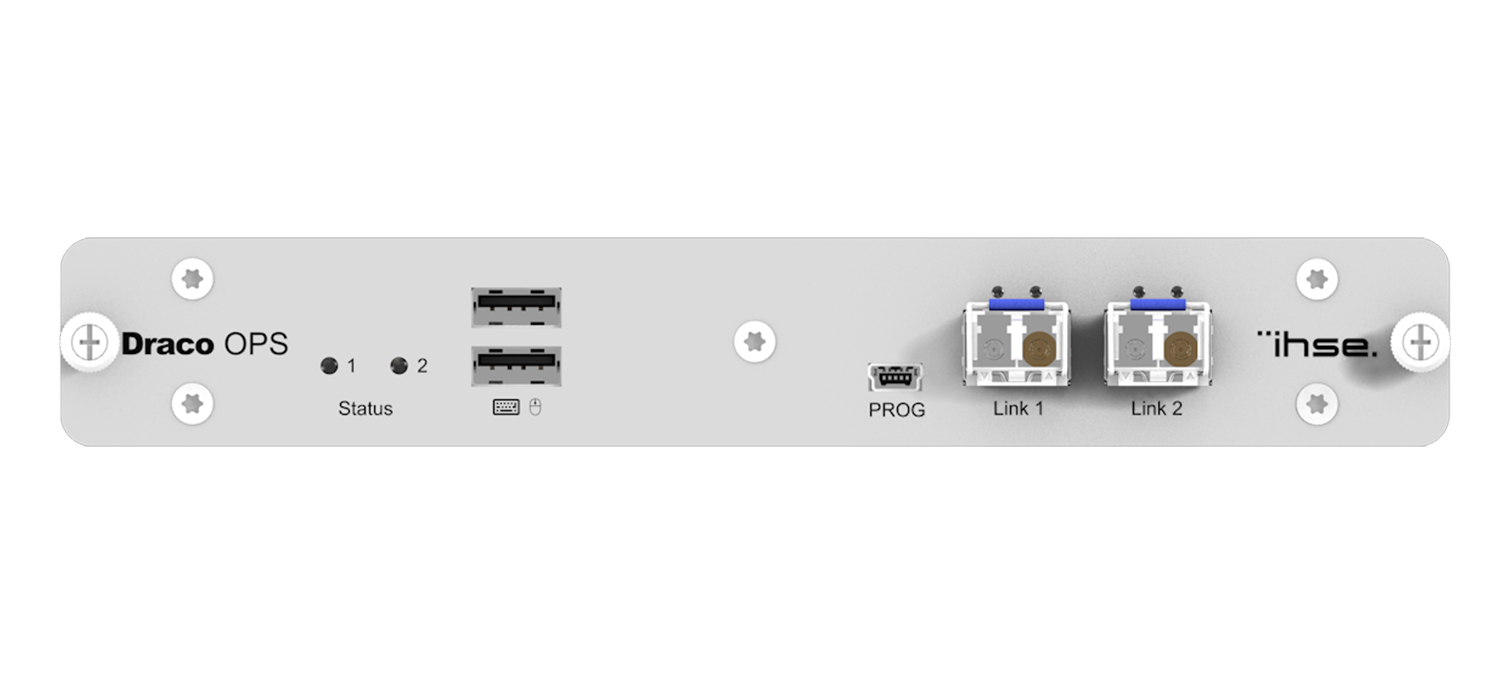

Draco OPS (2K60) ( 482系列) & Draco ultra OPS (4K60) (490系列)

Draco OPS 2K60和Draco ultra OPS 4K60 KVM扩展器简化了例如零售标牌、机场、火车站、医疗、工业、教育和其他应用中远程显示屏的安装,操作和管理。

插入标准OPS插座的单个模块可提供全高清视频或4K60视频和模拟音频连接,并具有完全的交互性。单线(Cat X 或光纤)可以远程连接到距媒体源最远 140 m/10 km 的显示屏。完全支持USB-HID,鼠标和键盘连接到HID端口。嵌入式USB 2.0支持可确保使用显示屏的触摸功能(如果显示器支持)。

对于要求高安全性和更好的系统管理需求来说,Draco OPS KVM扩展器提供了理想的解决方案。该设备与Draco vario系列扩展器完全兼容,并且可以通过Draco tera矩阵分配信号。

产品特色

产品特色

Draco OPS (2K60) ( 482系列) & Draco ultra OPS (4K60) (490系列)
  • 支持英特尔®OPS标准
  • 与任何具有OPS插槽的显示屏兼容
  • 允许将显示屏放置在任何地方,只需一根线缆即可连接,而无需额外的电源或网络电缆
  • 信号源切换:由于完全兼容Draco tera KVM矩阵,可将任何信号源切换到任何显示屏
  • 通过矩阵进行信号分配,可在多个显示屏之间共享单个信号源
  • 通过冗余链接实现可靠性和连续运行
  • 以标准化的小尺寸(OPS)提供工作站视频电源,且无噪音(无风扇)

规格

Draco OPS (2K60) ( 482系列) & Draco ultra OPS (4K60) (490系列)
电源
+12-19V@max 8A(通过JAE 80 Pin)
KVM接口
2x RJ45或2x LC双工(单模)
输出接口(插座)
JAE 80 – Pin(TX25插头装订器)
最高分辨率
Draco OPS(482系列): 1920 x 1200 @ 60 Hz
Draco ultra OPS(490系列): 4096 x 2160 @ 60 Hz
色彩深度
Draco OPS(482系列): 8位/真彩色
Draco ultra OPS(490系列): 10位/深色
服务端口
Mini USB
音频
模拟音频集成
- 线路电平接口
- 并行双向立体声音频
- 数字化虚拟 CD 质量(16 位,38.4 kHz)
- 输入阻抗:47K 欧姆
- 输出阻抗:270 欧姆
键盘/鼠标
完全支持的USB-HID,鼠标和键盘连接到扩展器/ HID端口
USB 2.0
嵌入式USB 2.0(基于R474-BXE2),带宽为50 Mbit / s
最大电缆距离
Cat X(1G / 3G)可达140 m
单模XV(9 µ)可达5 km

零件号

零件号

Draco OPS (2K60) ( 482系列) & Draco ultra OPS (4K60) (490系列)

All Variations

ImageModell:Description

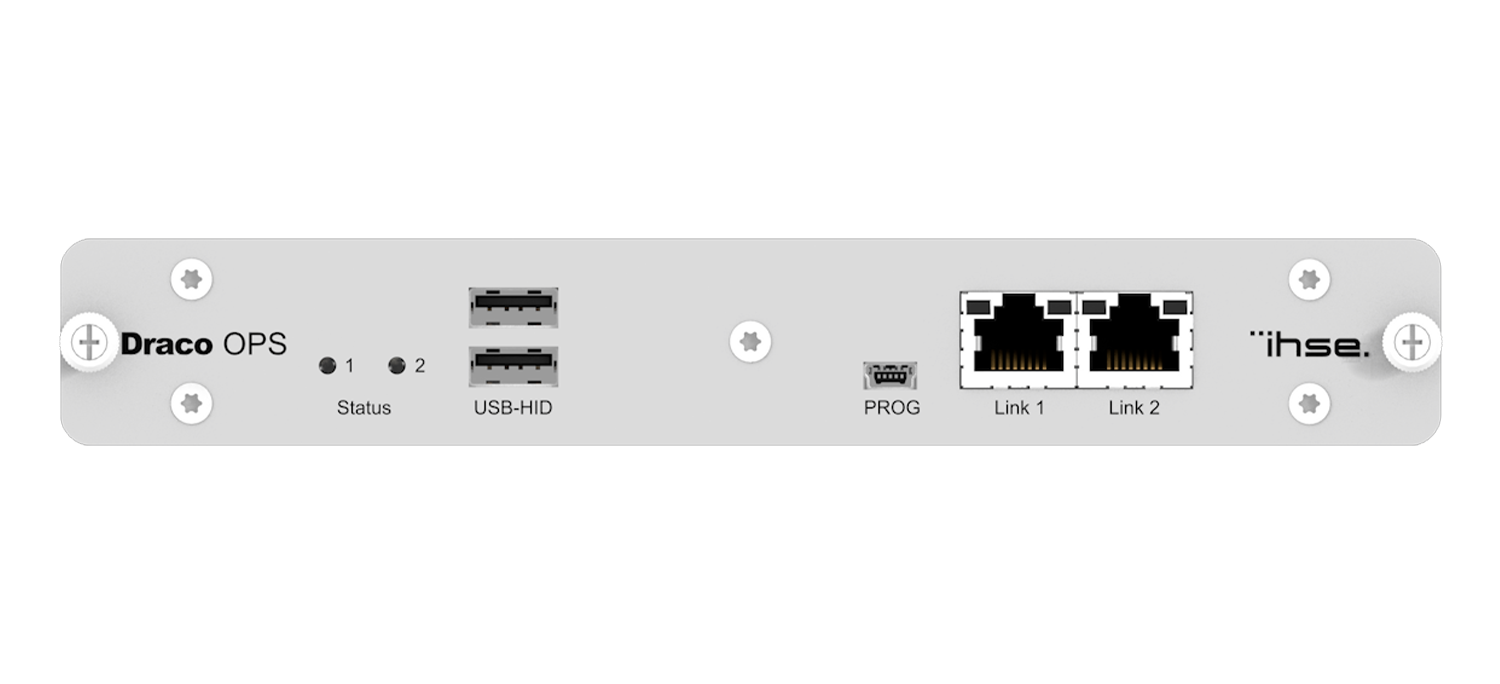

R482-OPHCRDraco OPS (2K60), Cat X

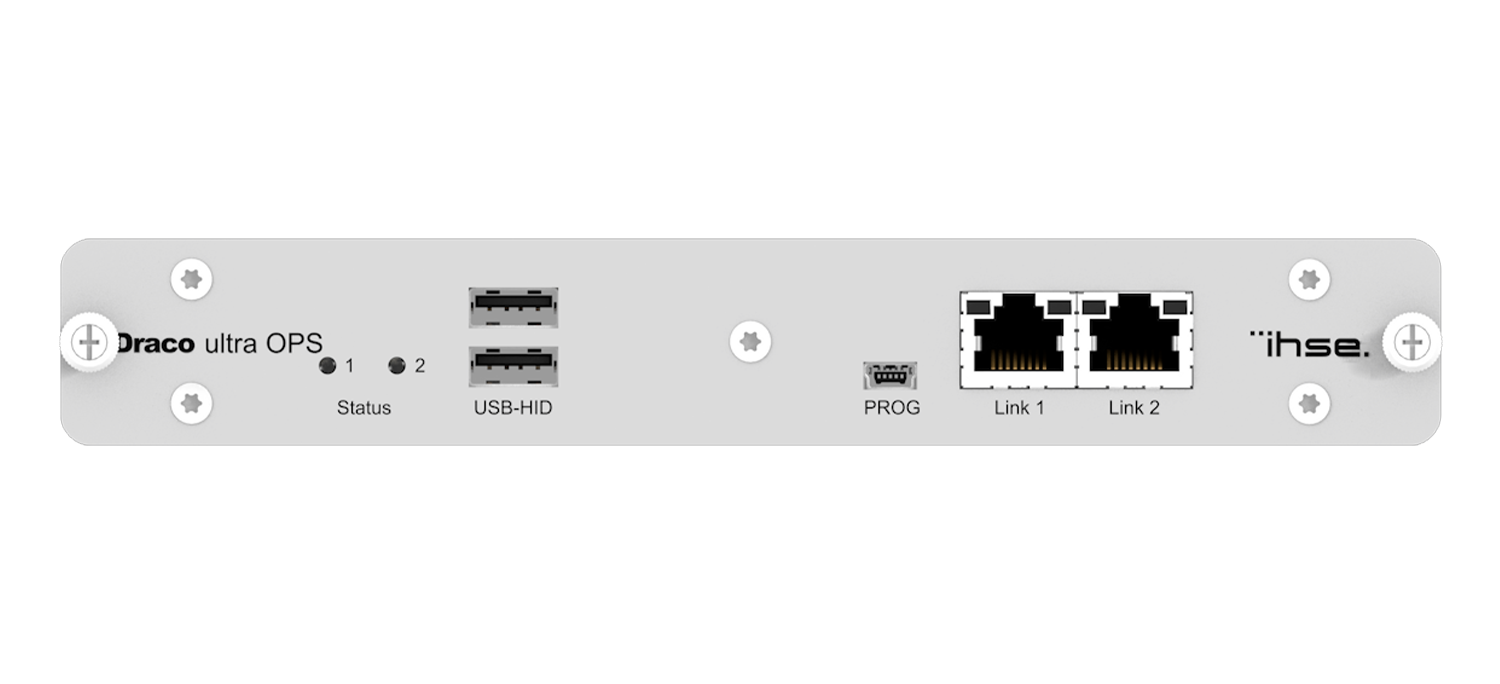

R490-OPECXRDraco ultra OPS (4K60), Cat X

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

资料下载

Draco OPS (2K60) ( 482系列) & Draco ultra OPS (4K60) (490系列)

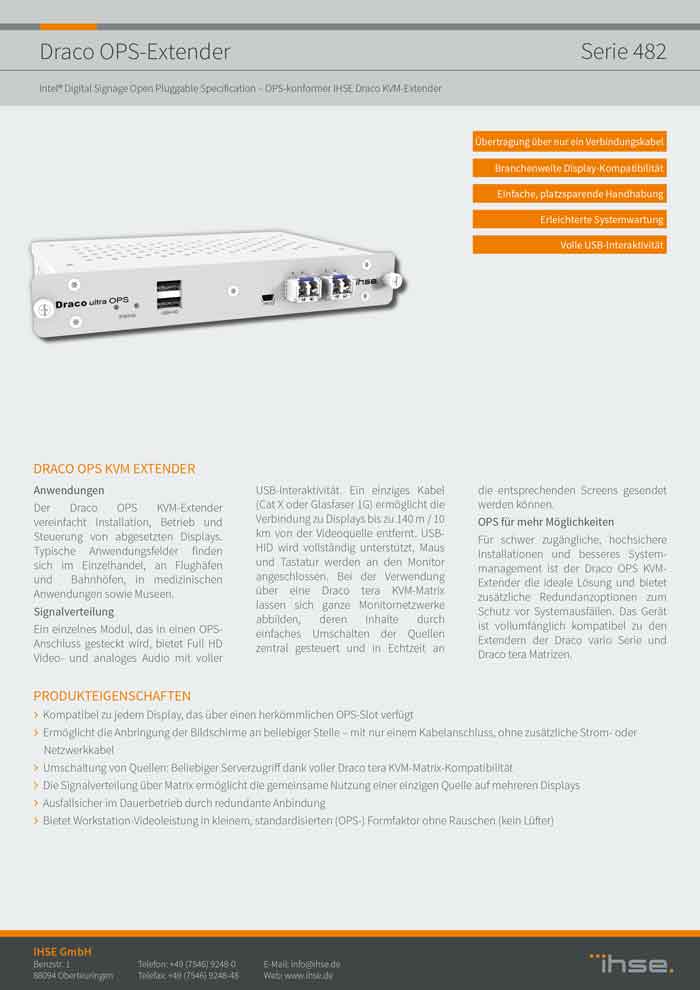

Draco OPS Extender

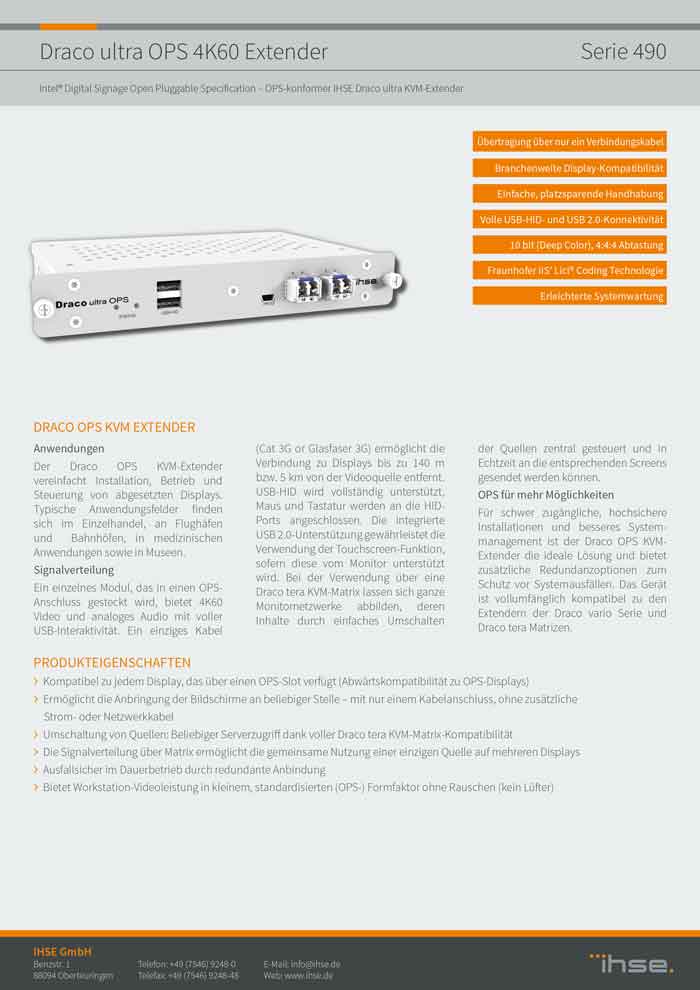

Draco ultra OPS 4K60

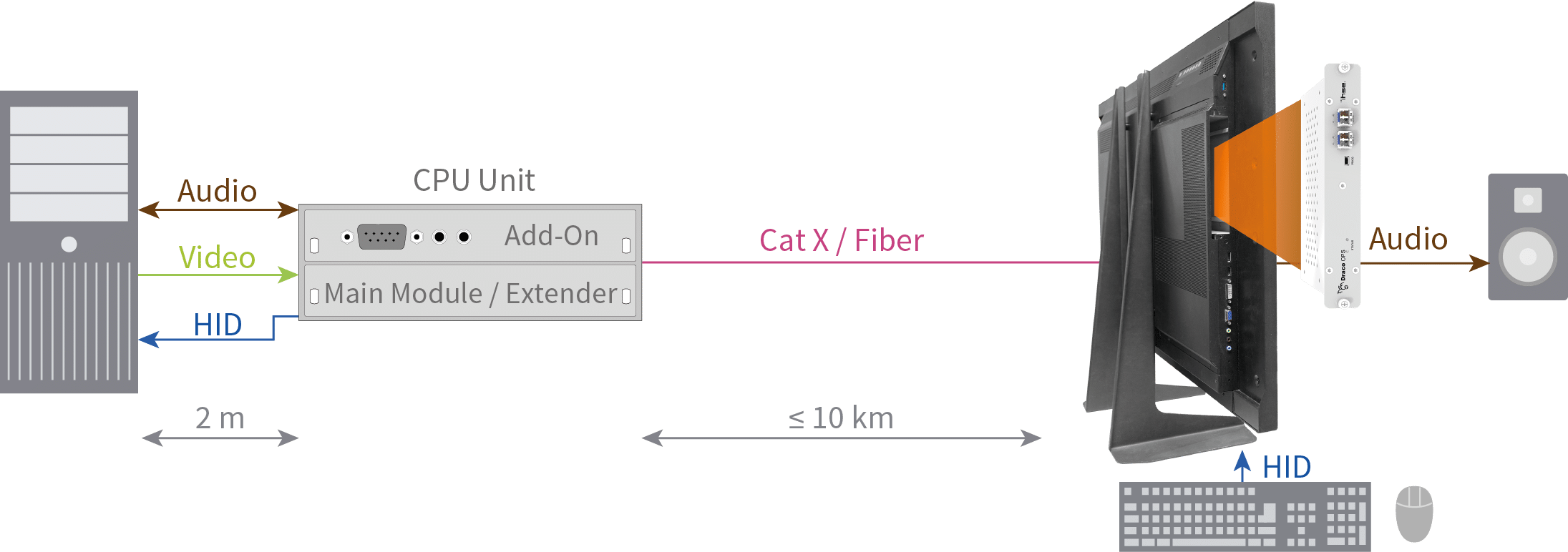

系统图

系统图

Draco OPS (2K60) ( 482系列) & Draco ultra OPS (4K60) (490系列)
