DRACO CWDM

在单个CWDM光纤通道上复用4、8或18个扩展器信号

最大限度地减少布线成本

最大限度地减少布线成本

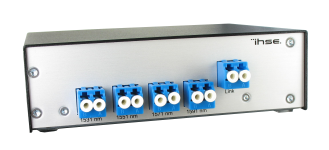

Draco CWDM (470系列)

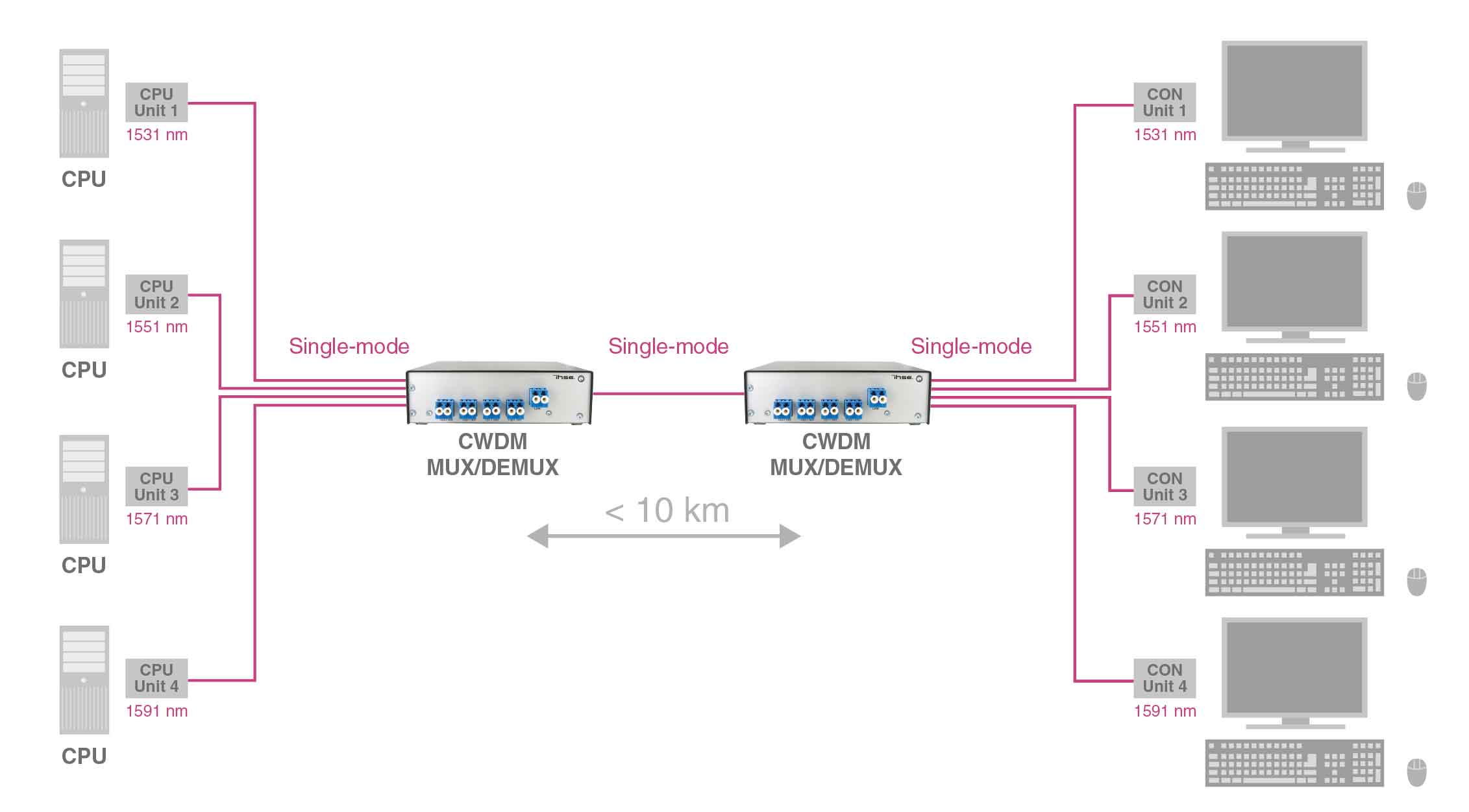

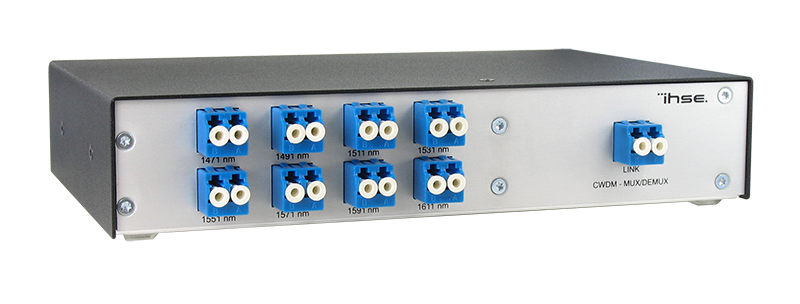

Draco CWDM多路复用器最大程度地减少了长互连电缆的总数和布线工作量。CWDM(粗波分复用)是一种通过使用不同的波长将许多光纤信号复用到一条光纤上的技术。使用特定的SFP模块(小型可插拔),双向多路复用器和多路解复用器的无源光学允许在单个光学单模光纤通道中通过多达4、8或18个不同的波长。

Draco CWDM多路复用器/多路解复用器套件可以安装在多种类型的Draco vario机箱中,并且可以与Draco vario扩展器和Draco tera矩阵切换器无缝集成。Draco CWDM 与传输的信号类型完全无关,允许来自 4、8 或 18 个不同来源的 DVI、HDMI、DisplayPort、USB、音频和 RS232 信号通过单个收发器连接传输长达 10 公里。

产品特色

产品特色

Draco CWDM (470系列)
  • 与Draco扩展器和Draco切换器兼容
  • 在单个CWDM光纤通道上复用4、8或18个扩展器信号
  • 支持各种类型的信号,例如DVI、HDMI、DisplayPort、USB、音频和RS232 / RS422
  • 无源Draco CWDM光学设计
  • 最大限度地减少布线成本
  • 完全无源,无需电源
  • 供货范围:不带SFP的Draco CWDM(发送器和接收器)

规格

Draco CWDM (470系列)
最大距离
最长10 ​​km(基于所使用的SFP类型)
4数据流
1531, 1551, 1571, 1591 nm
8数据流
1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611 nm
18数据流
1270, 1290, 1310, 1330, 1350, 1370, 1390,
1410, 1430, 1450, 1470, 1490, 1510, 1530,
1550,1570, 1590, 1610 nm
尺寸– 4/8 CH
145 x 147 x 41 mm
尺寸– 18 CH
482.6 x 266.1 x 44.0 mm

零件号

零件号

Draco CWDM (470系列)

All Variations

ImageModell:Description

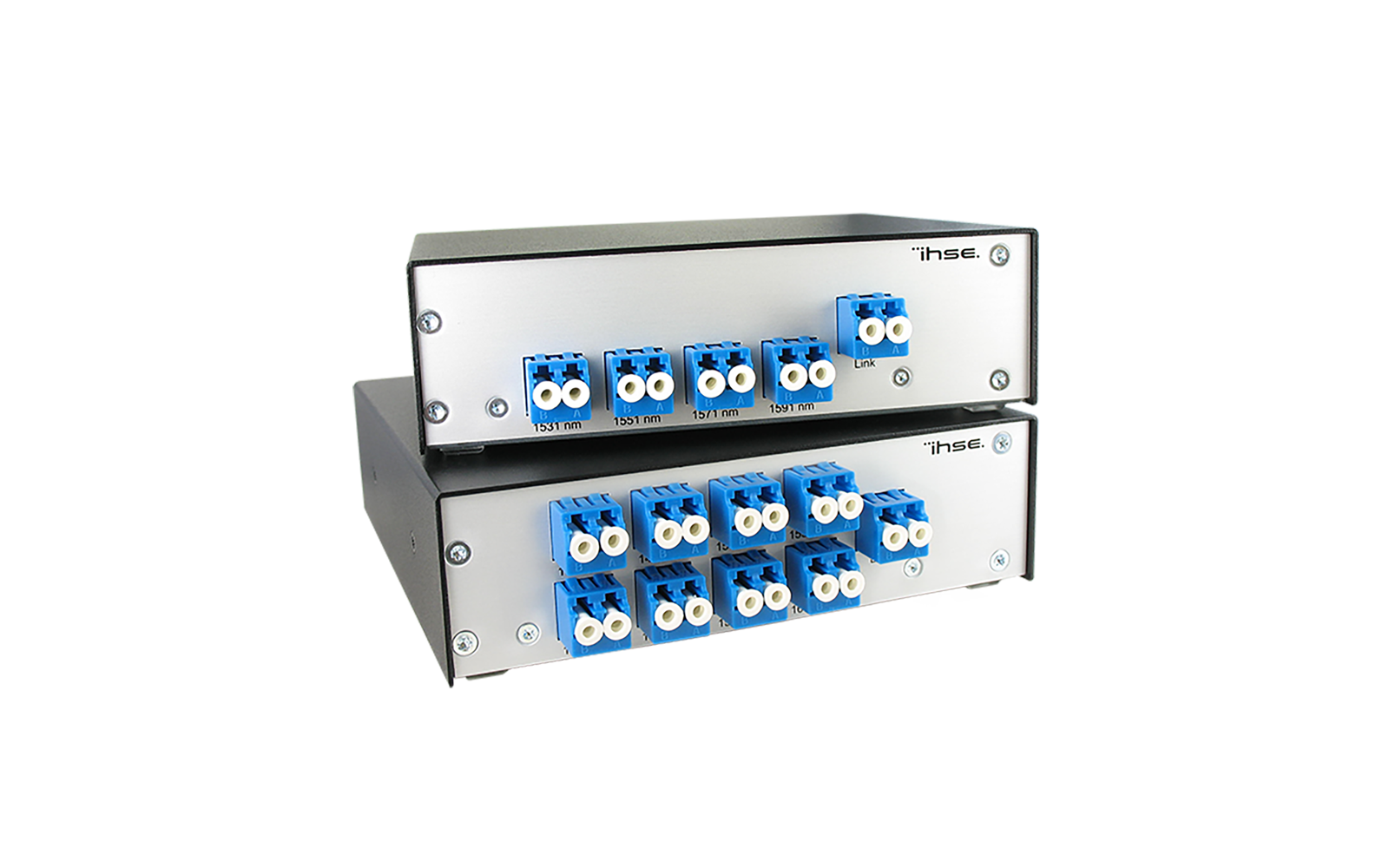

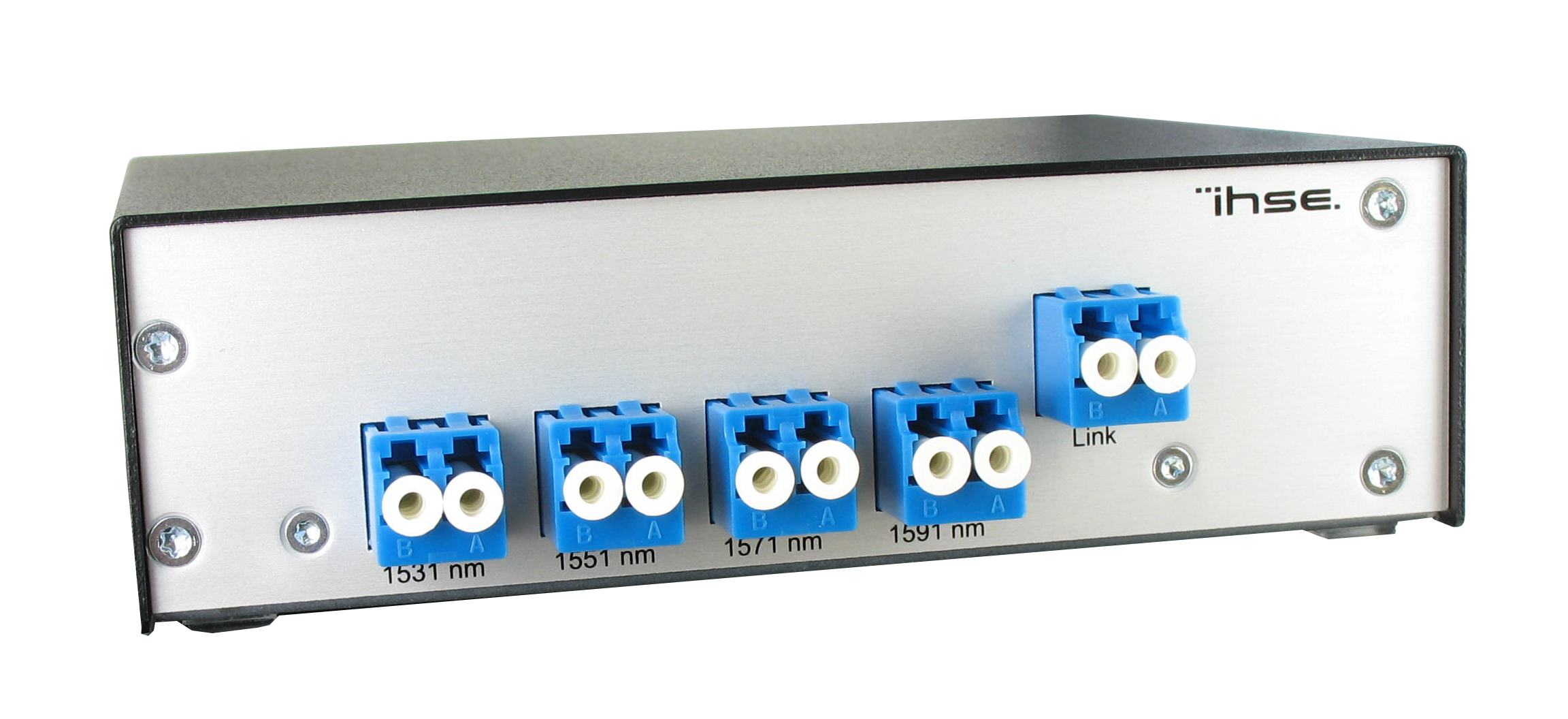

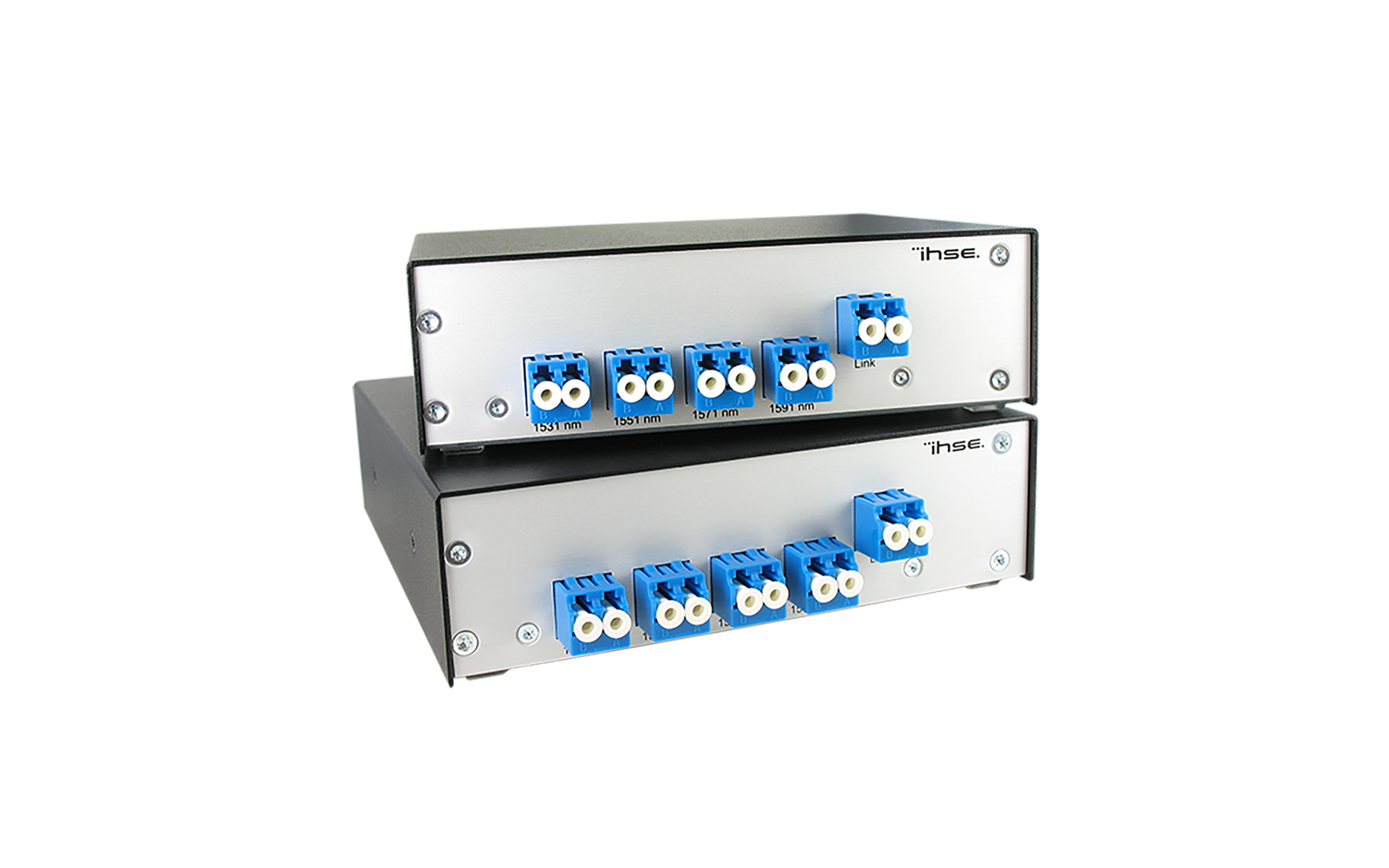

K470-4CW-xx4通道 Draco CWDM多路复用器/多路解复用器套件
K470-8CW-xx8通道 Draco CWDM多路复用器/多路解复用器套件
K470-18CW-xx18通道 Draco CWDM多路复用器/多路解复用器套件

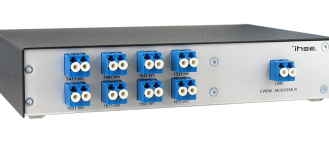

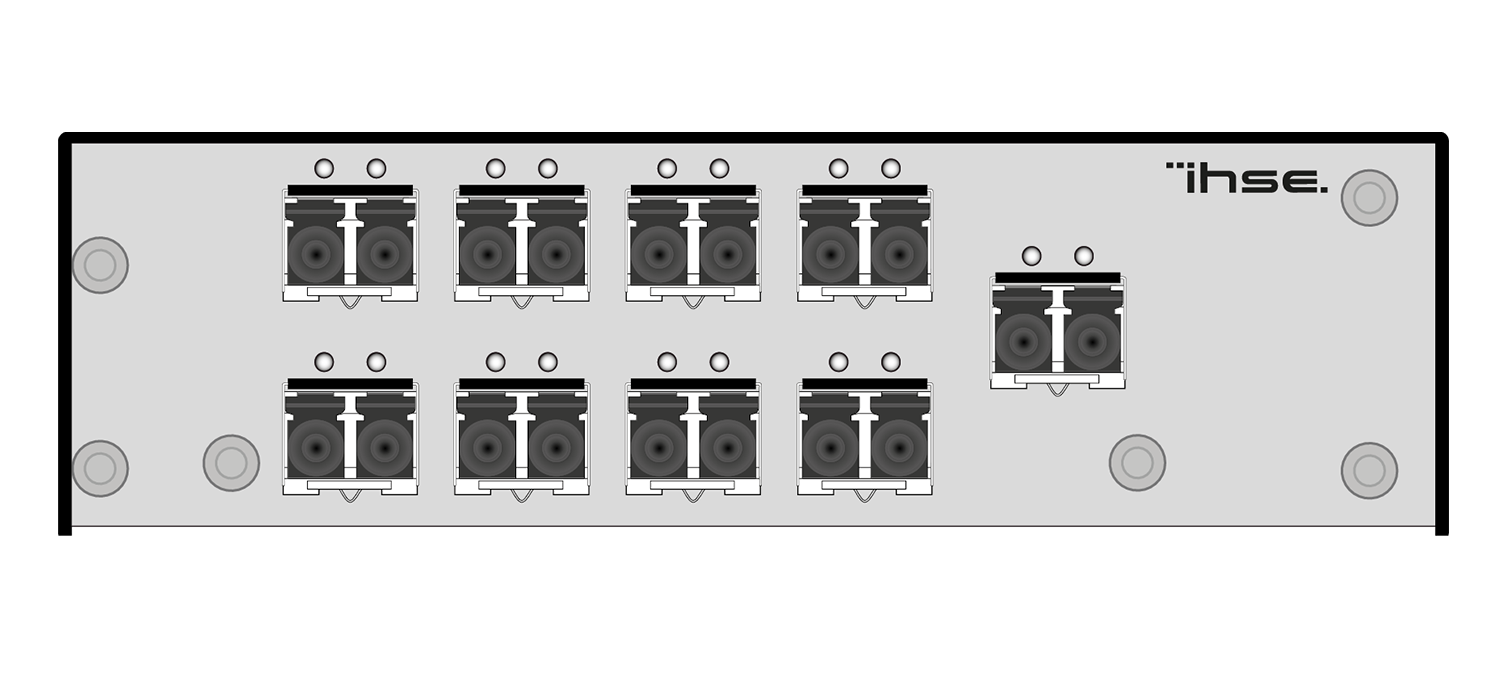

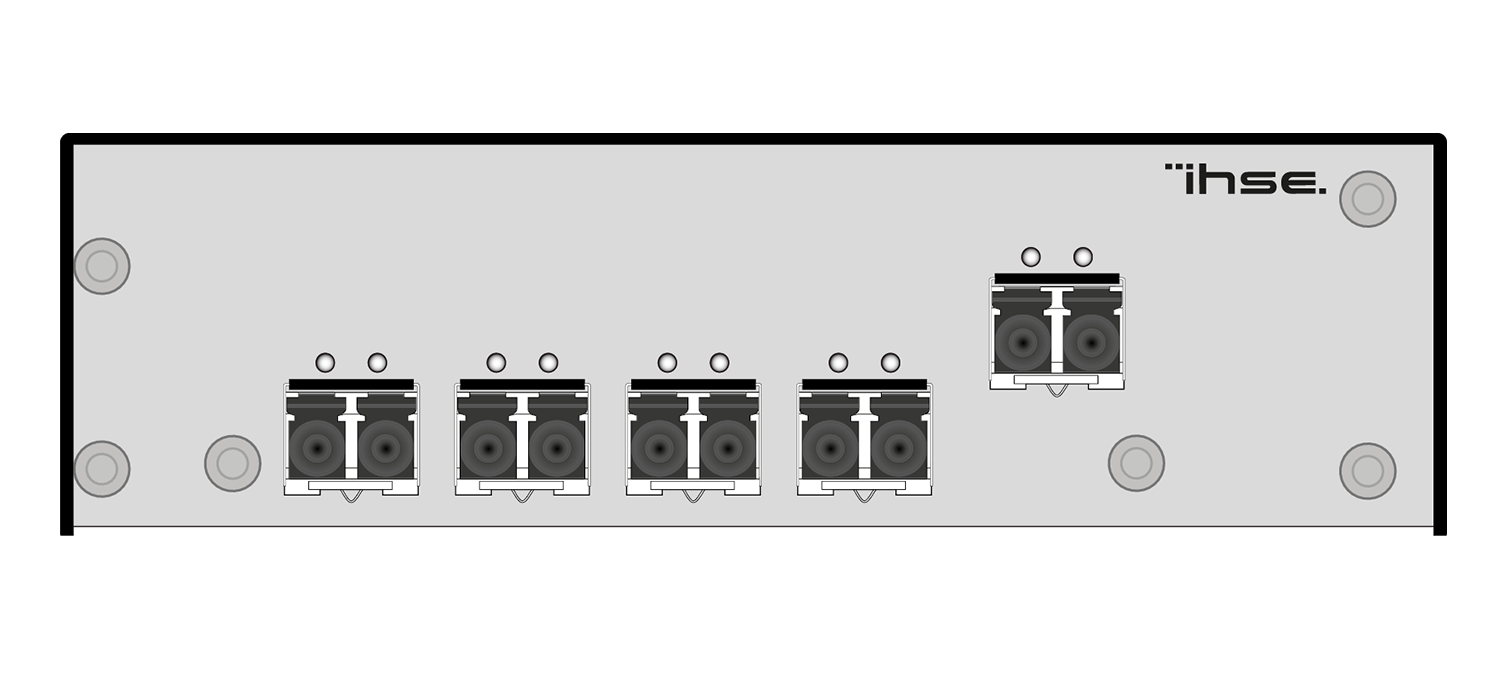

B470-4CW-xx4通道 Draco CWDM多路复用器/多路解复用器模块版本
B470-8CW-xx8通道 Draco CWDM多路复用器/多路解复用器模块版本

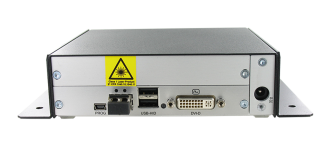

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

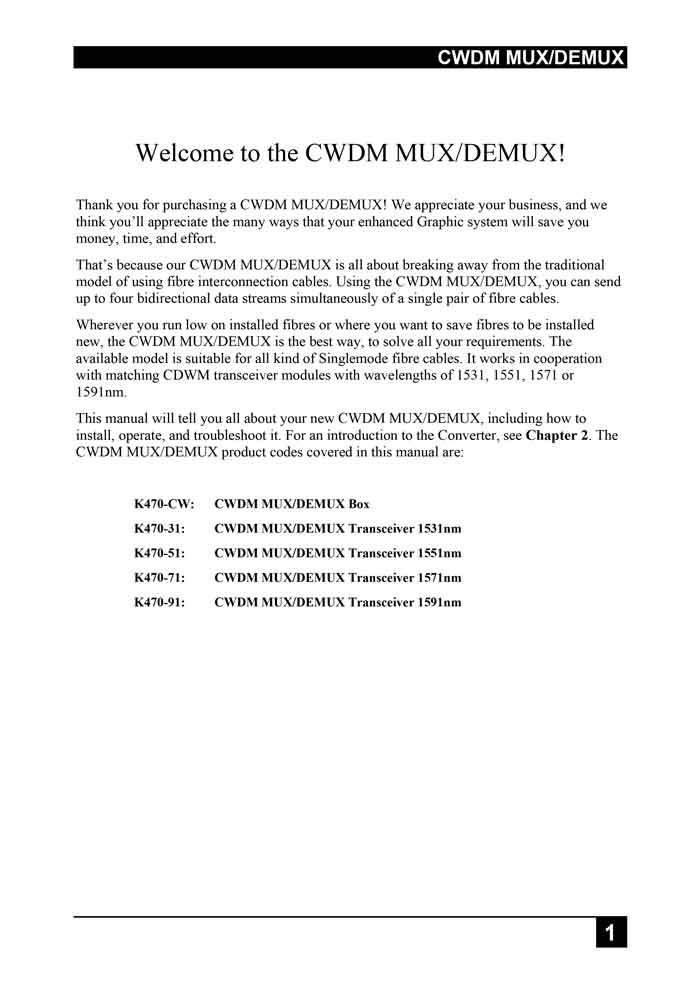

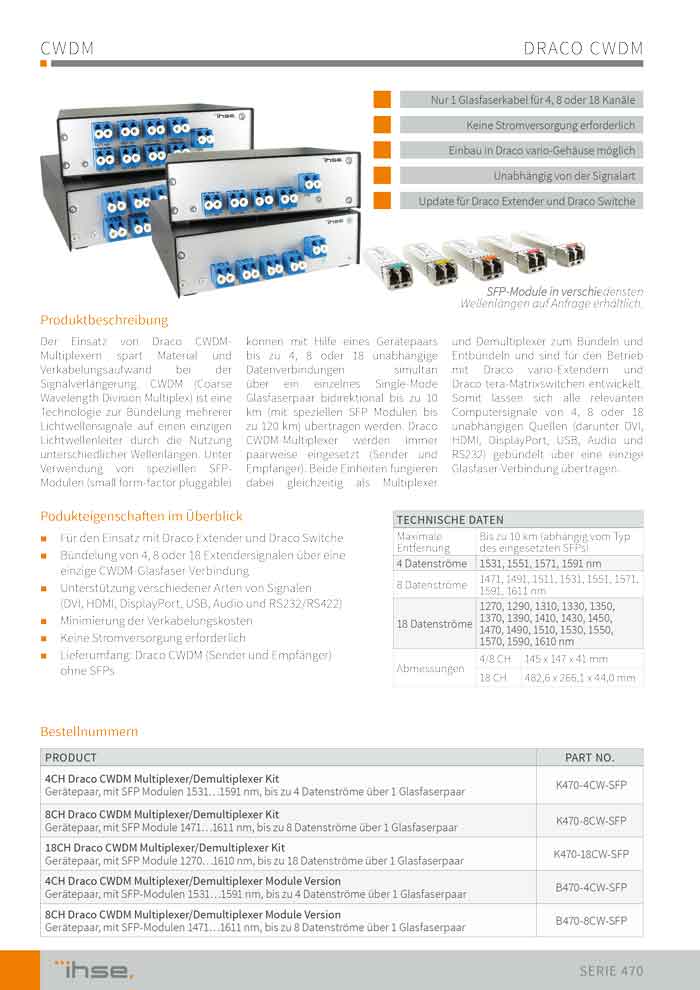

资料下载

Draco CWDM (470系列)

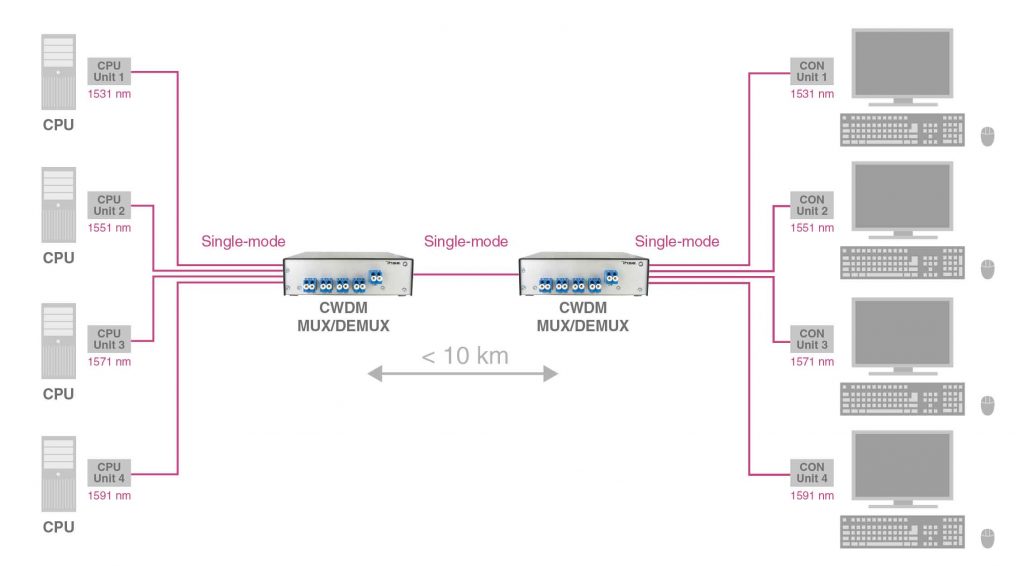

系统图
