DRACO CPU SWITCH

Draco CPU Switch允许您在8台VGA计算机之间切换,同时切换各自的音频和USB信号。它还支持将选定的数字化信号扩展到远程工作站。

8:1端口VGA KVM切换器

8:1端口VGA KVM切换器

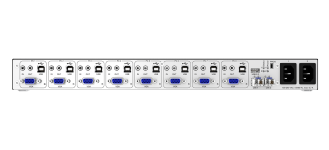

Draco CPU Switch ( 484系列)

Draco CPU Switch允许您在8台VGA计算机之间切换,同时切换各自的音频和USB信号。Draco CPU Switch替代了8个传统的KVM扩展器:8台计算机通过VGA电缆连接到CPU单元,而CPU单元又通过一根互连线缆连接到用户工作站。操作员可以从控制台访问8个连接的信号源中的任何一个。扩展器用作8进1出的KVM切换器,前面板LED指示灯可指示正在运行的计算机。模拟VGA信号在扩展器中转换为DVI-D,并使用Draco vario图像缩放比例缩放,这是现在高分辨率显示器的理想选择。

另外,Draco CPU Switch包括8个USB-HID / USB 2.0嵌入式(36 Mbit / s)端口以及8个双向模拟音频端口。扩展器上的另一个USB 2.0端口(480 Mbit / s)允许在本地连接存储设备。连接的USB设备登录到活动计算机,从而可以在工作站的控制下将数据(例如重要的系统更新)从单个USB设备传输到所有计算机。

产品特色

产品特色

Draco CPU Switch (系列 484)
  • 包括用于VGA,USB和音频的8个输入端口
  • 输出到DVI扩展器或矩阵切换器端口的连接
  • 集成缩放器
  • 冗余电源
  • 可安装在1 RU中的机架
  • 通过热键命令切换
  • 本地USB端口可选择任何输入源
  • 非常适合高效管理旧版VGA信号源
  • 集成到数字KVM矩阵系统的主机集中管理的理想选择

规格

Draco CPU Switch ( 484系列)
电源(内部)
90-240 VAC / 0.7 A / 50/60 Hz
输入
8个VGA,USB-HID,模拟音频,
8个嵌入式USB 2.0,本地USB 2.0(高速)
输出
Cat X,单模光纤
最大分辨率
1920 x 1200 @ 60 Hz
颜色
8位/真彩色
最大距离
Cat X: 140 m
单模9µ:10 km
尺寸
444 x 143 x 43 mm

零件号

零件号

Draco CPU Switch ( 484系列)

All Variations

ImageModell:Description

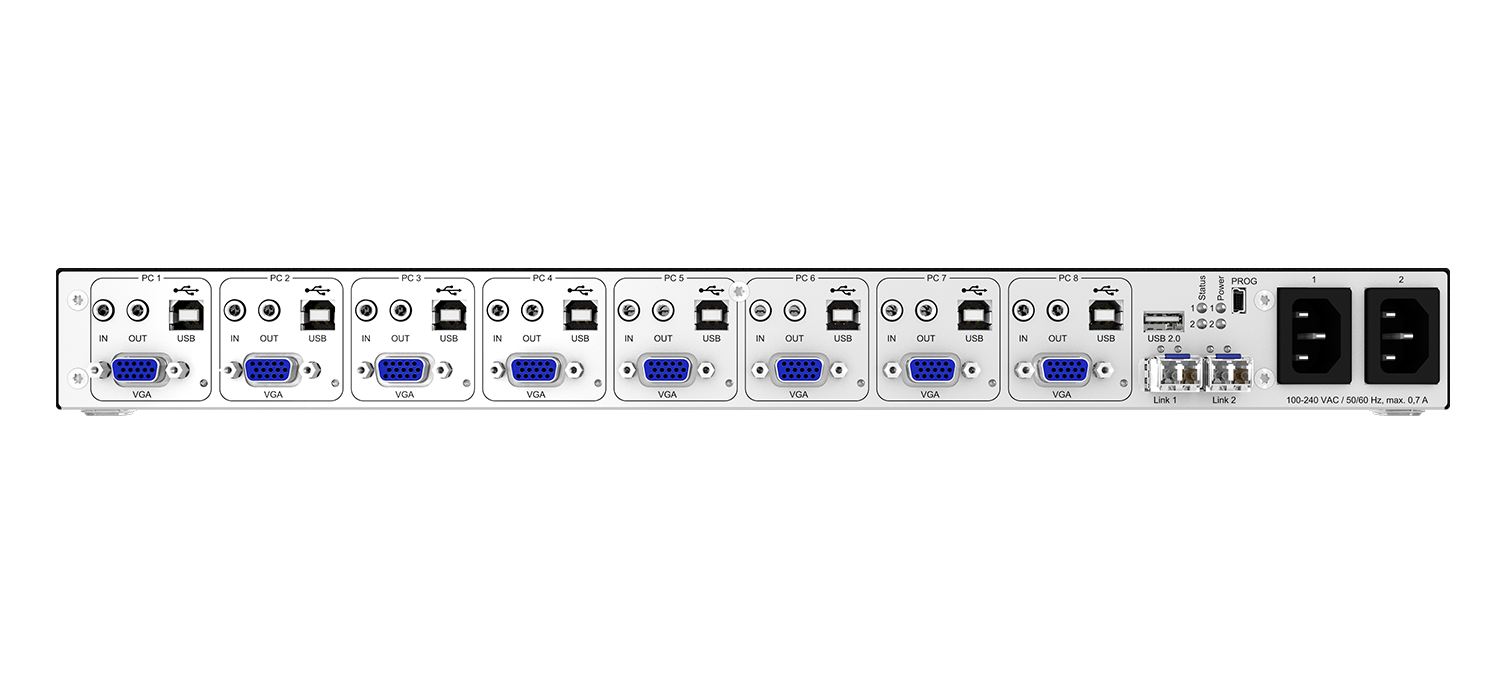

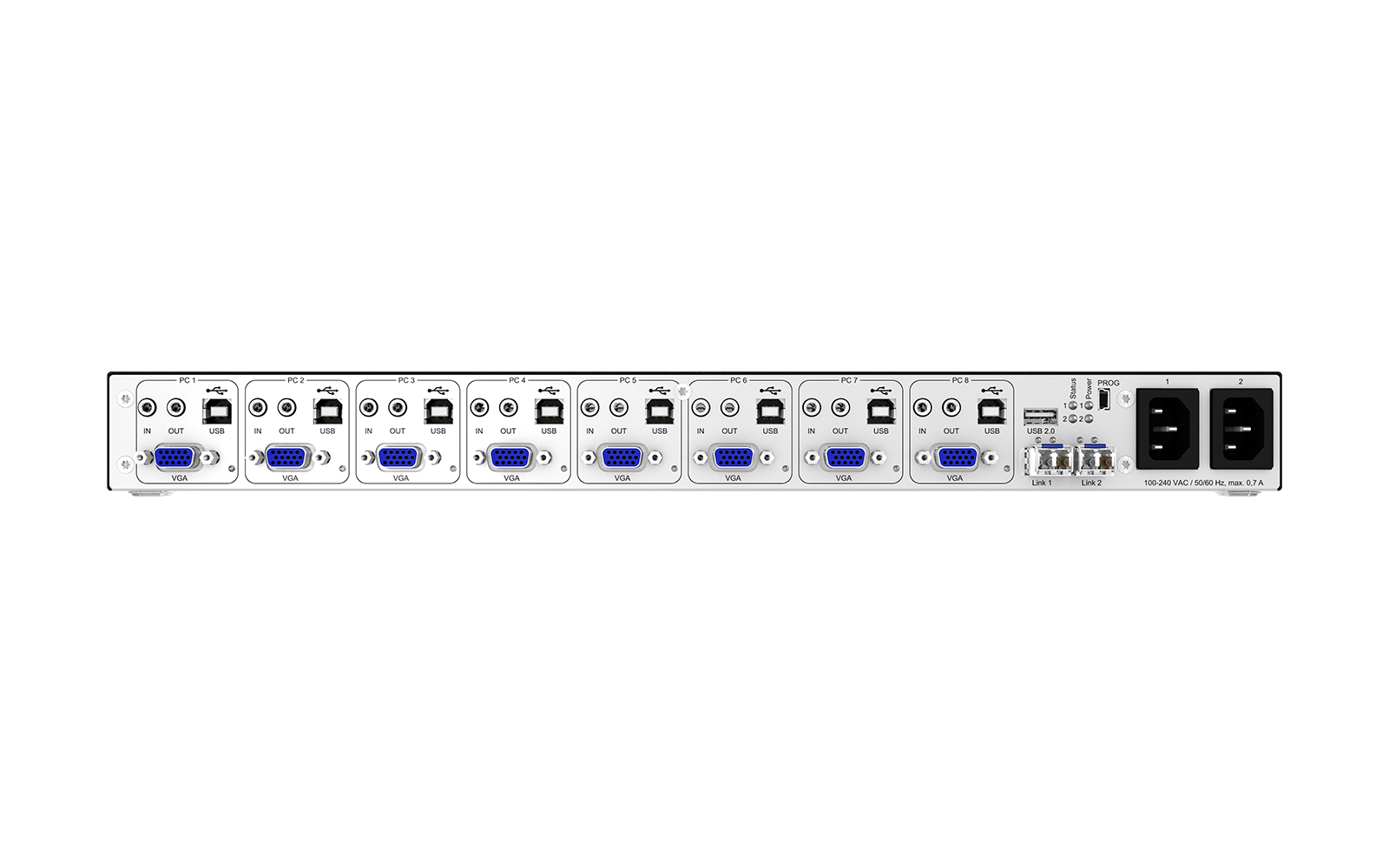

L484-8VESWRDraco CPU switch, 8个VGA,2个HID,双向模拟音频,2个嵌入式USB 2.0,光纤,冗余数据链路,冗余电源

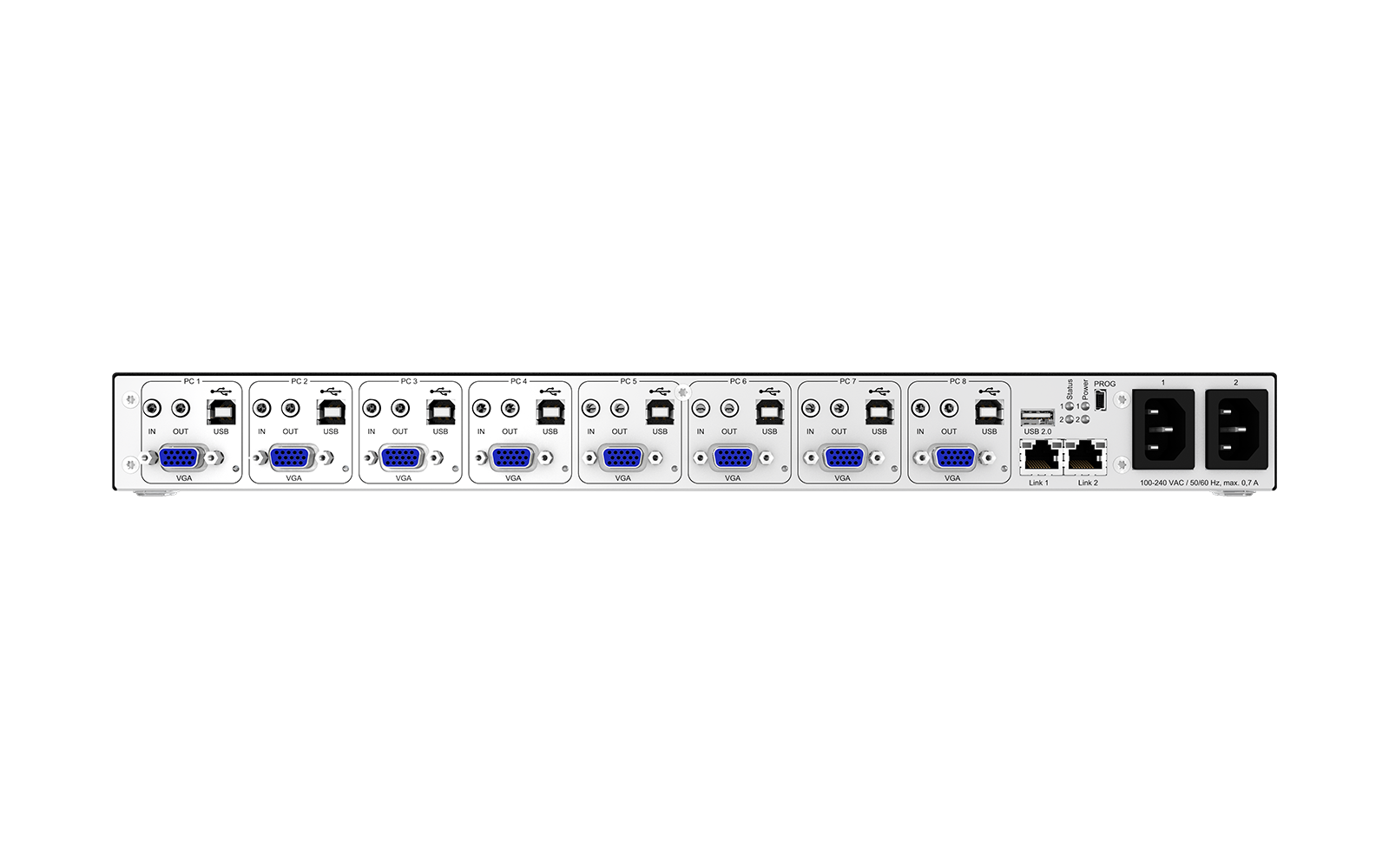

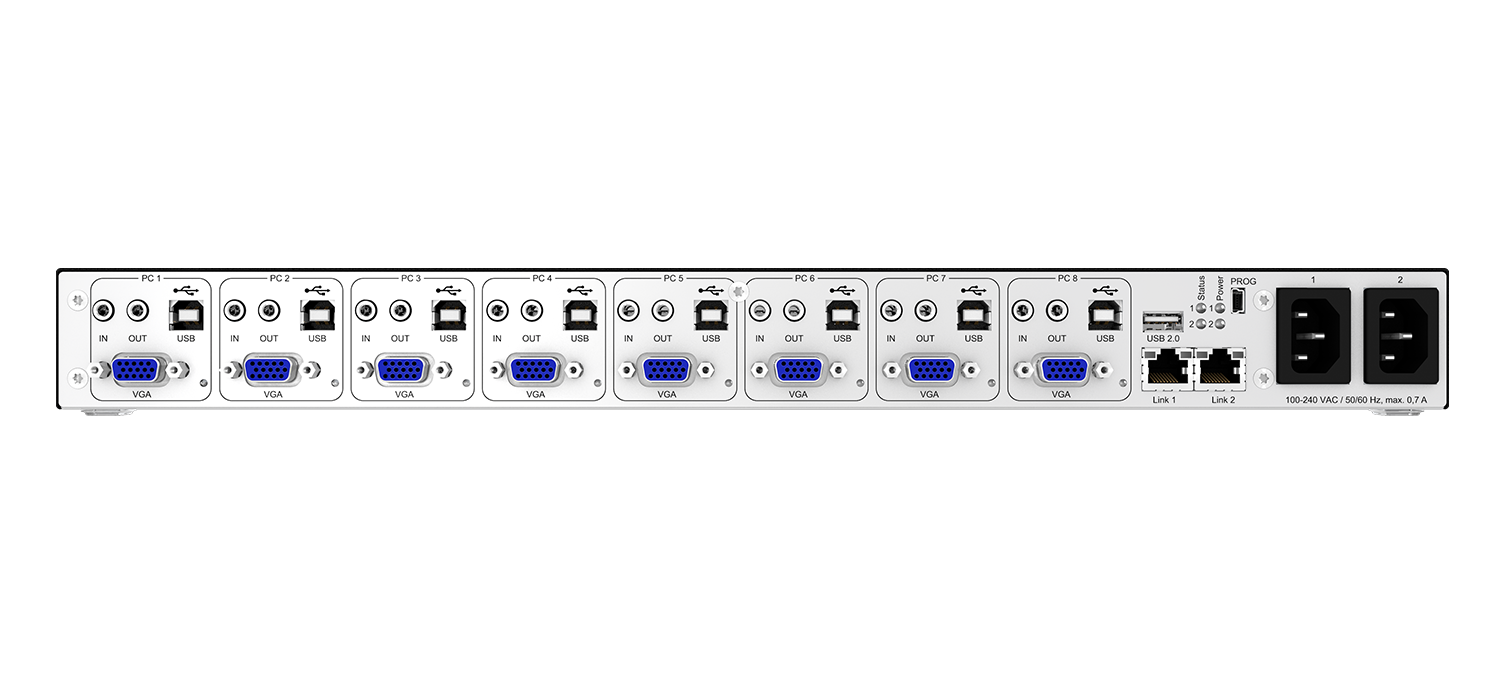

L484-8VECWRDraco CPU switch, 8个VGA,2个HID,双向模拟音频,2个嵌入式USB 2.0,Cat X,冗余数据链路,冗余电源
L484-8VEXWRDraco CPU switch, 8个VGA,2个HID,双向模拟音频,2个嵌入式USB 2.0,光纤XV,冗余数据链路,冗余电源

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

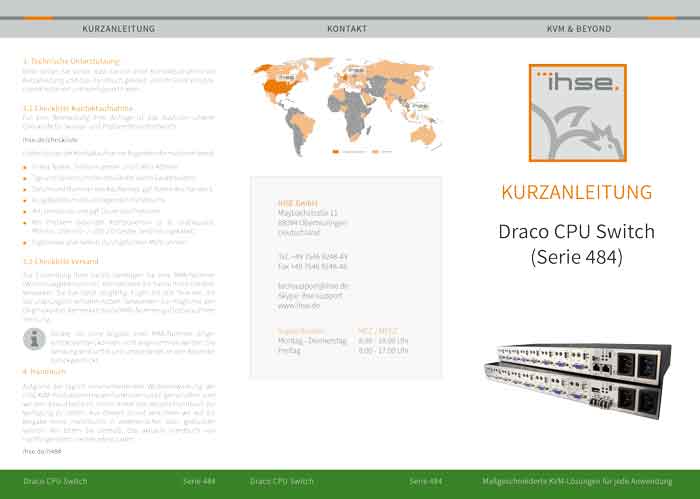

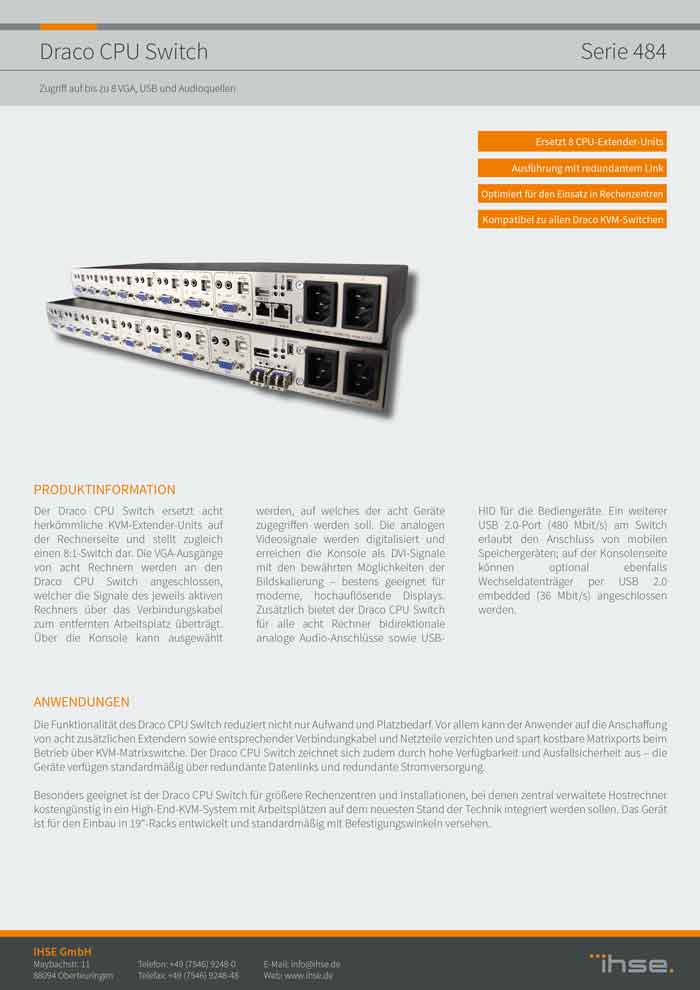

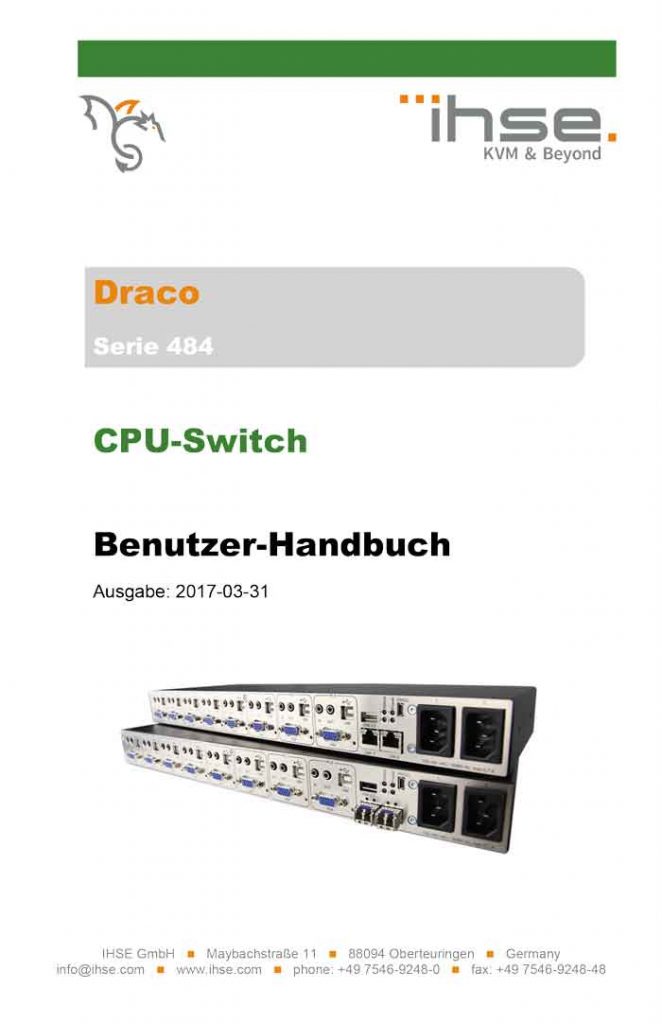

资料下载

Draco CPU Switch ( 484系列)

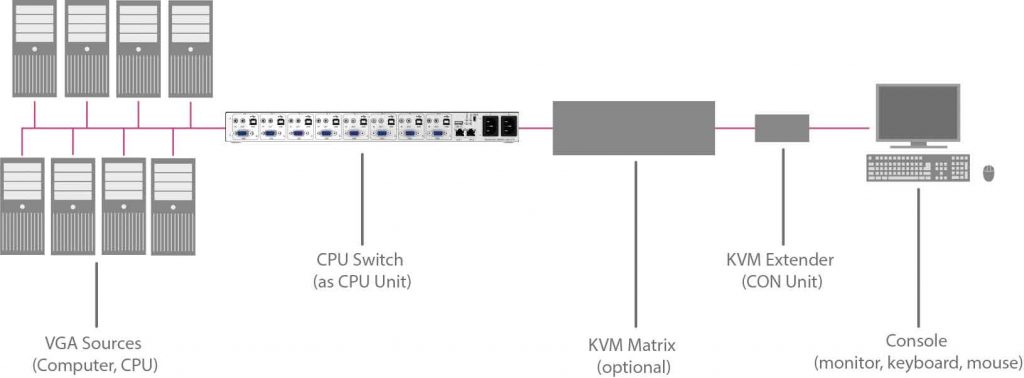

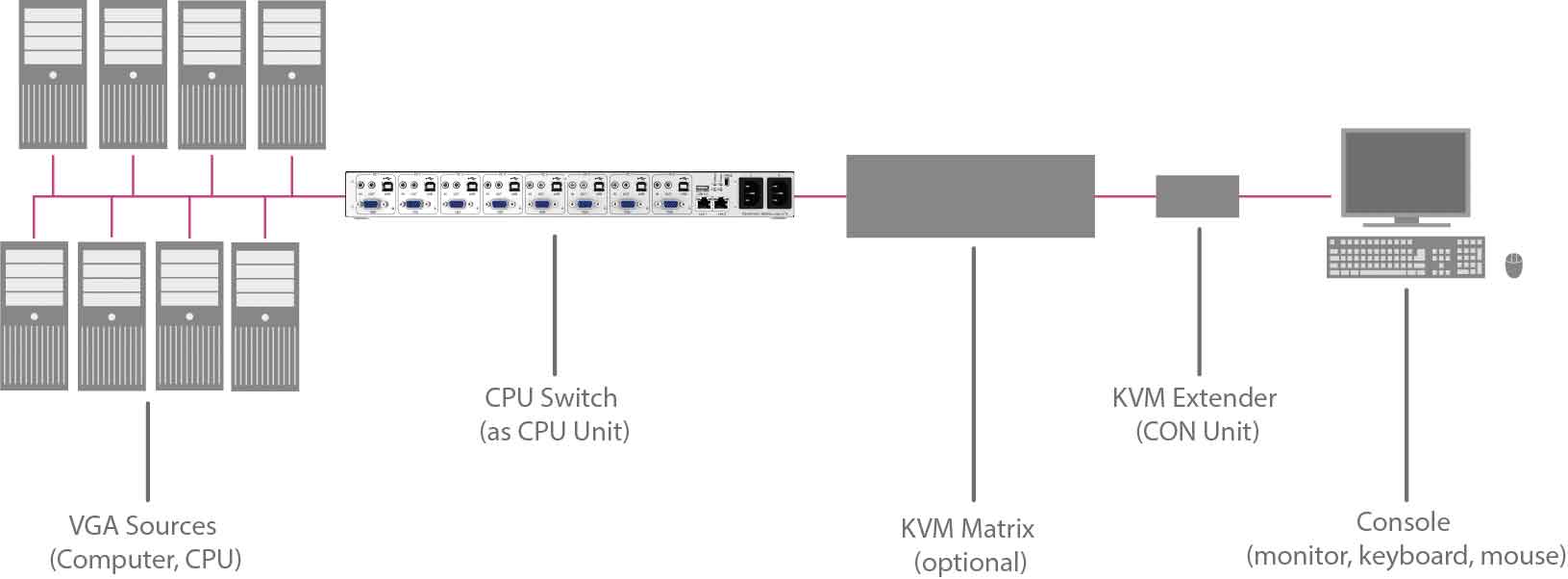

系统图

系统图

Draco CPU Switch ( 484系列)
