DRAco compact

Draco compact提供了一种经济高效的方法,可以无延迟地扩展和切换键盘、视频和鼠标信号,从而获得出色的图像质量。

节省空间的机箱

节省空间的机箱

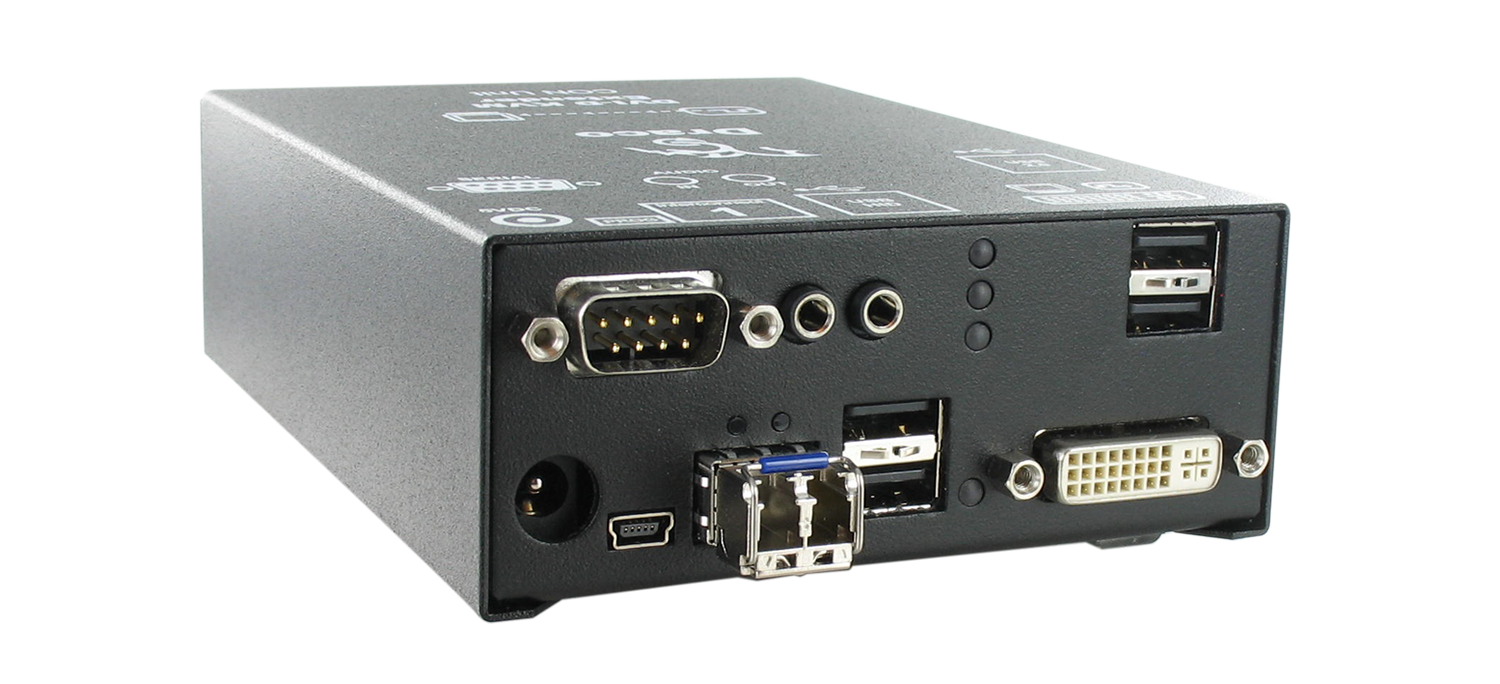

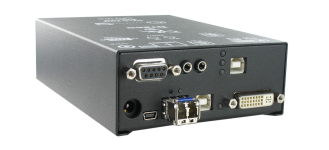

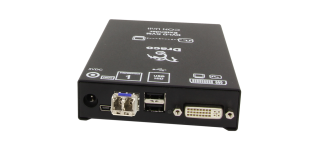

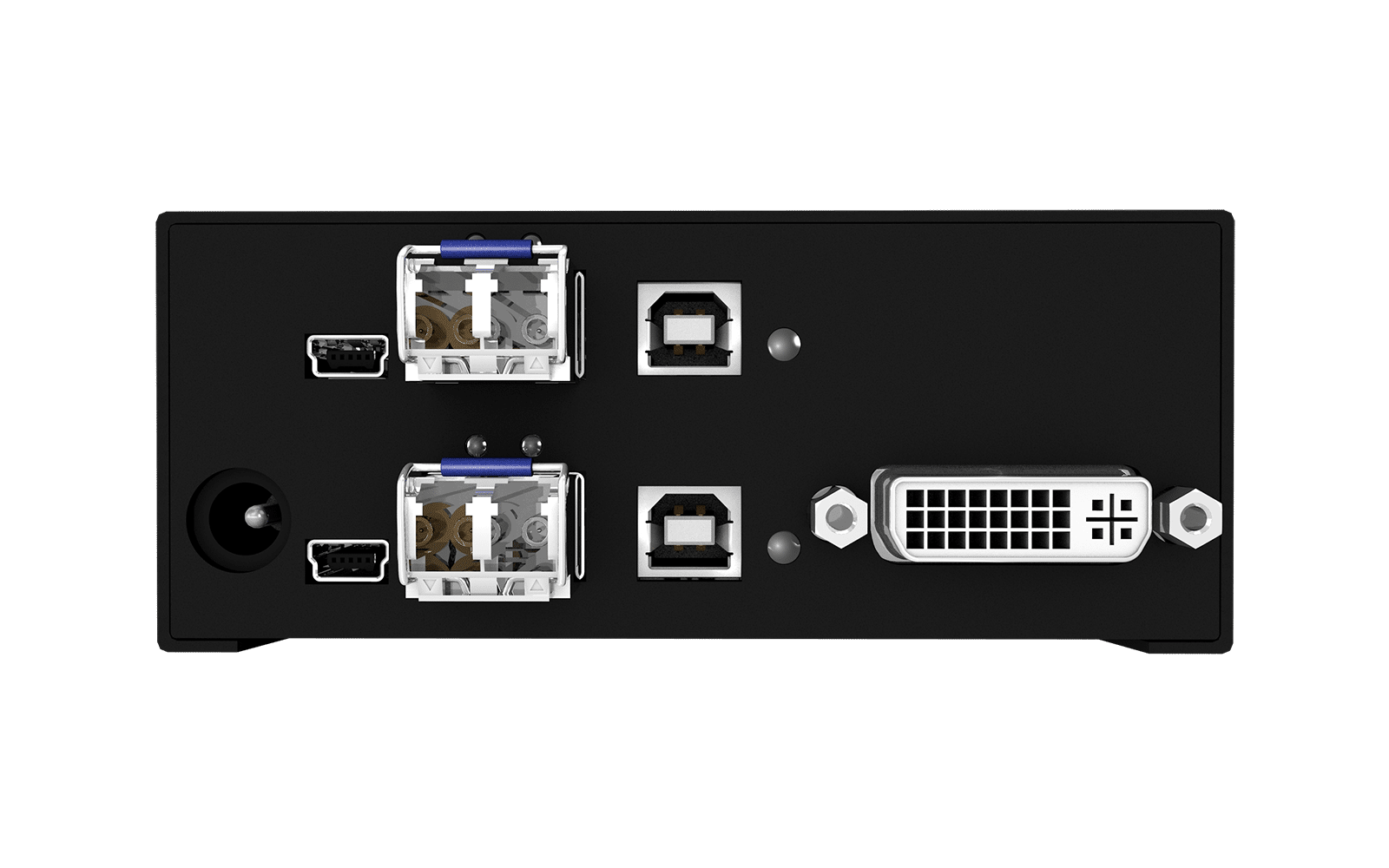

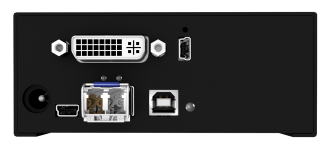

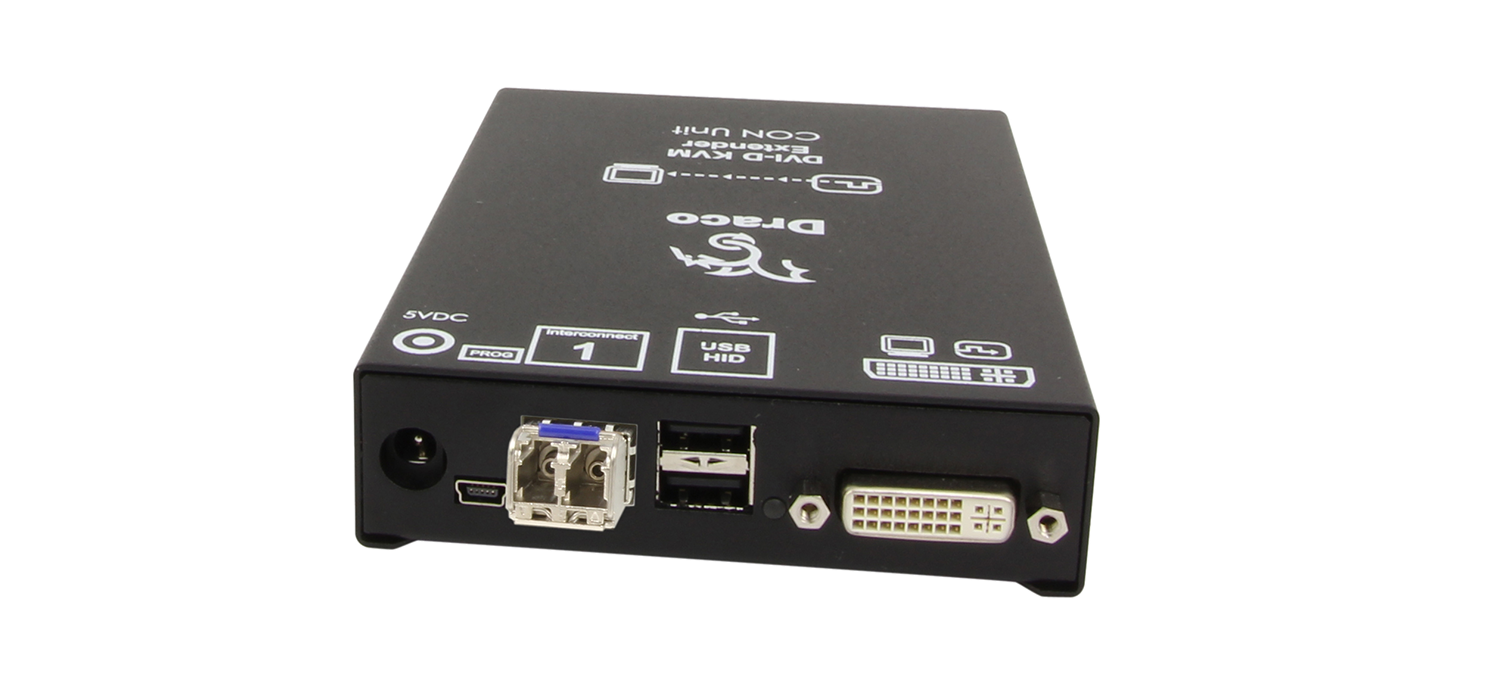

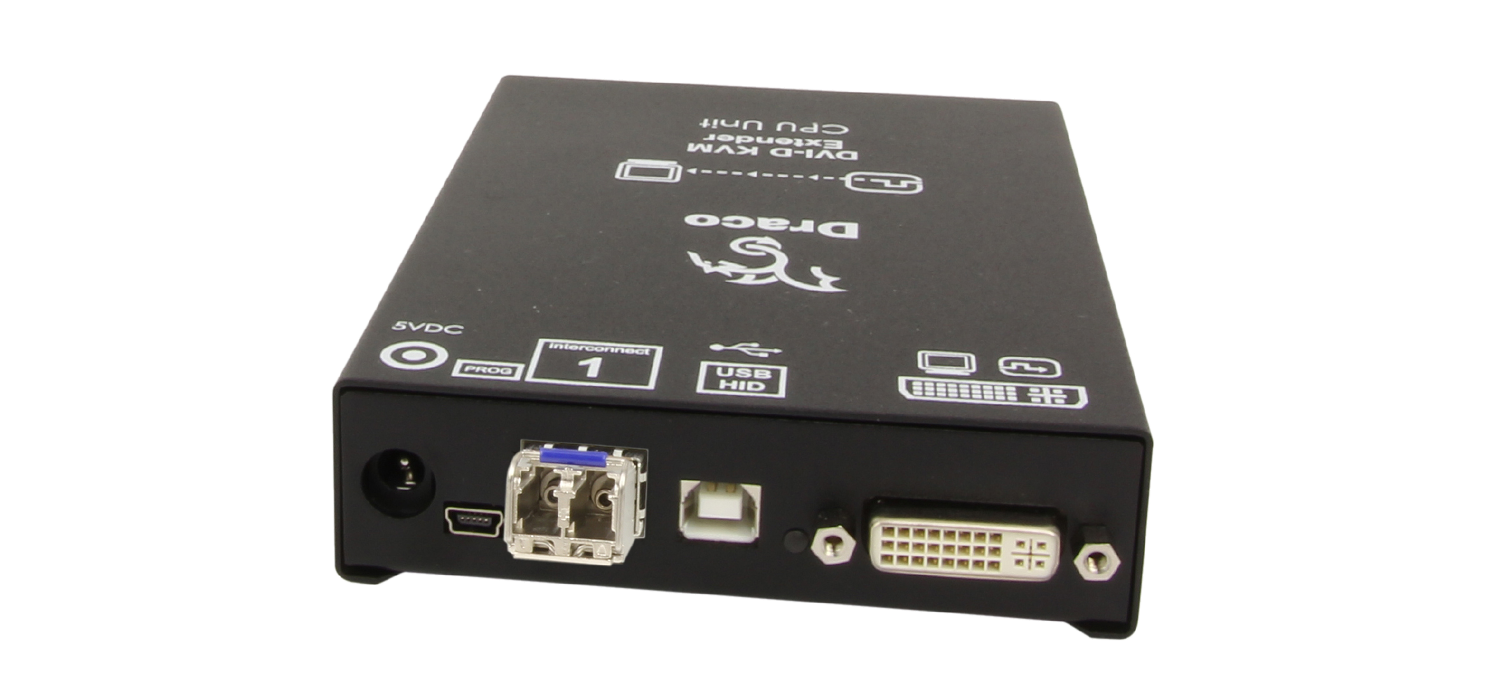

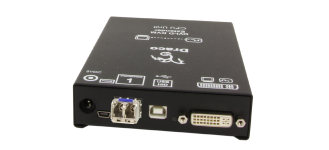

Draco compact (477系列)

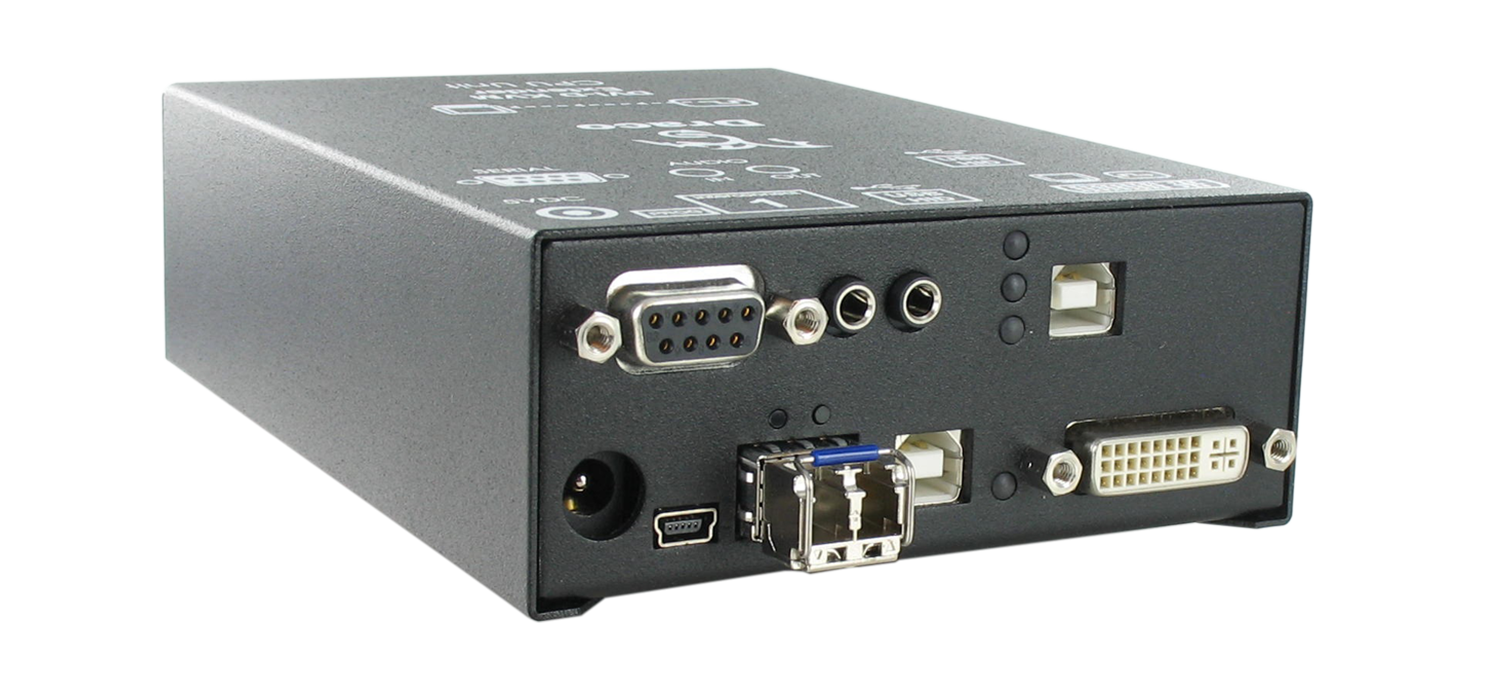

Draco compact扩展器通过紧凑型单元封装。Draco紧凑型机箱体积小且节省空间,有六个标准版本,可以扩展高分辨率DVI信号以及USB 2.0、USB-HID、VGA、模拟和数字音频。由于其紧凑的尺寸,Draco紧凑型可以放置在狭小的空间中。所有接口都在同一平面上,易于安装,因此非常适合许多要求苛刻的应用。

Draco compact非常适合小型应用,这类应用不需要Draco vario系列的完整灵活性和模块化设计。紧凑的尺寸允许设备安装在工作场所中不显眼的位置,例如安装在用户的桌子下面。多功能的Draco compact KVM扩展器系列非常适合工业、金融、教育、海事、空中交通管制等及其他需要最大可靠性和安全性的关键任务环境。

产品特色

产品特色

Draco compact (477系列)
  • 在所有分辨率下均具有出色的图像质量

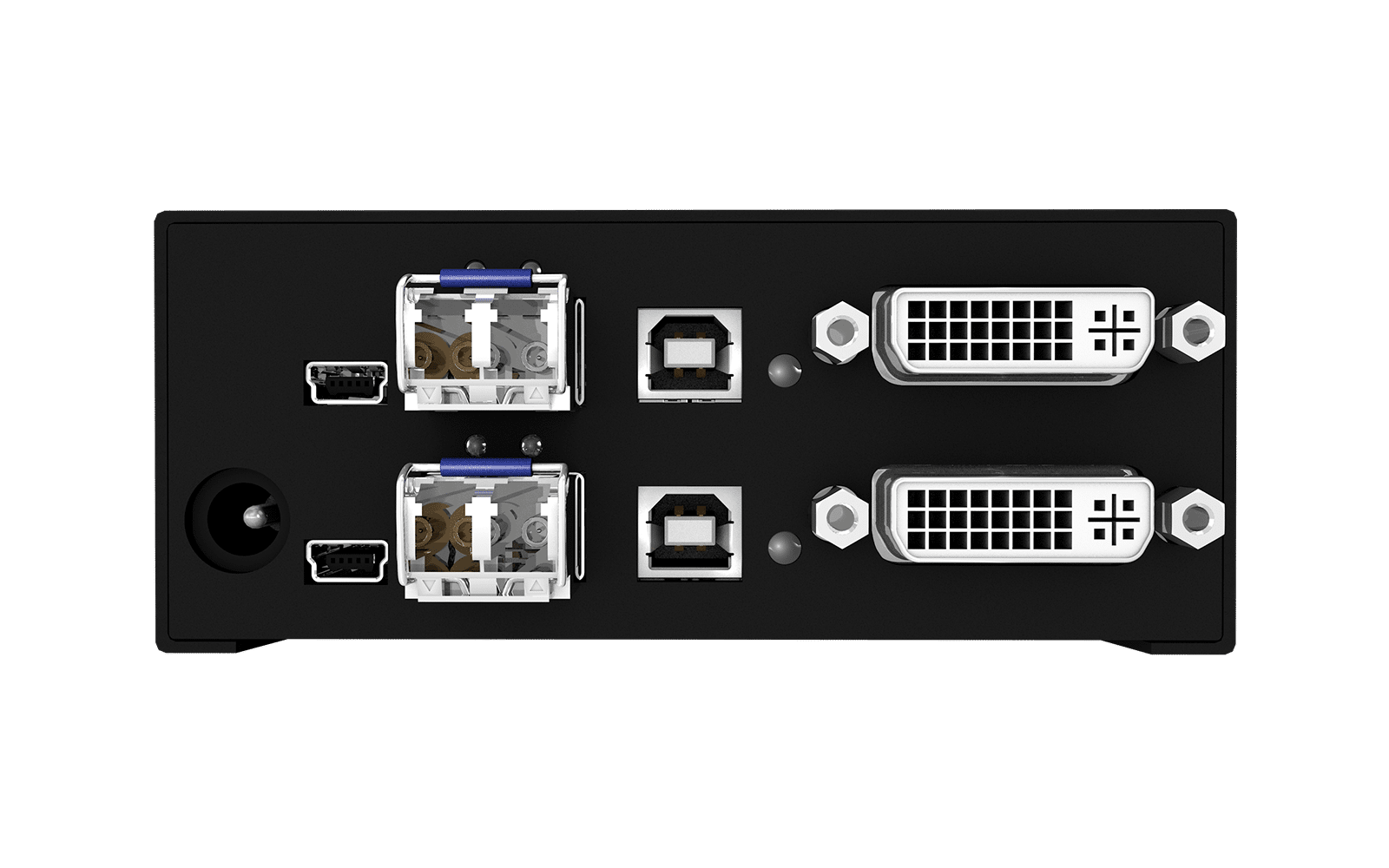

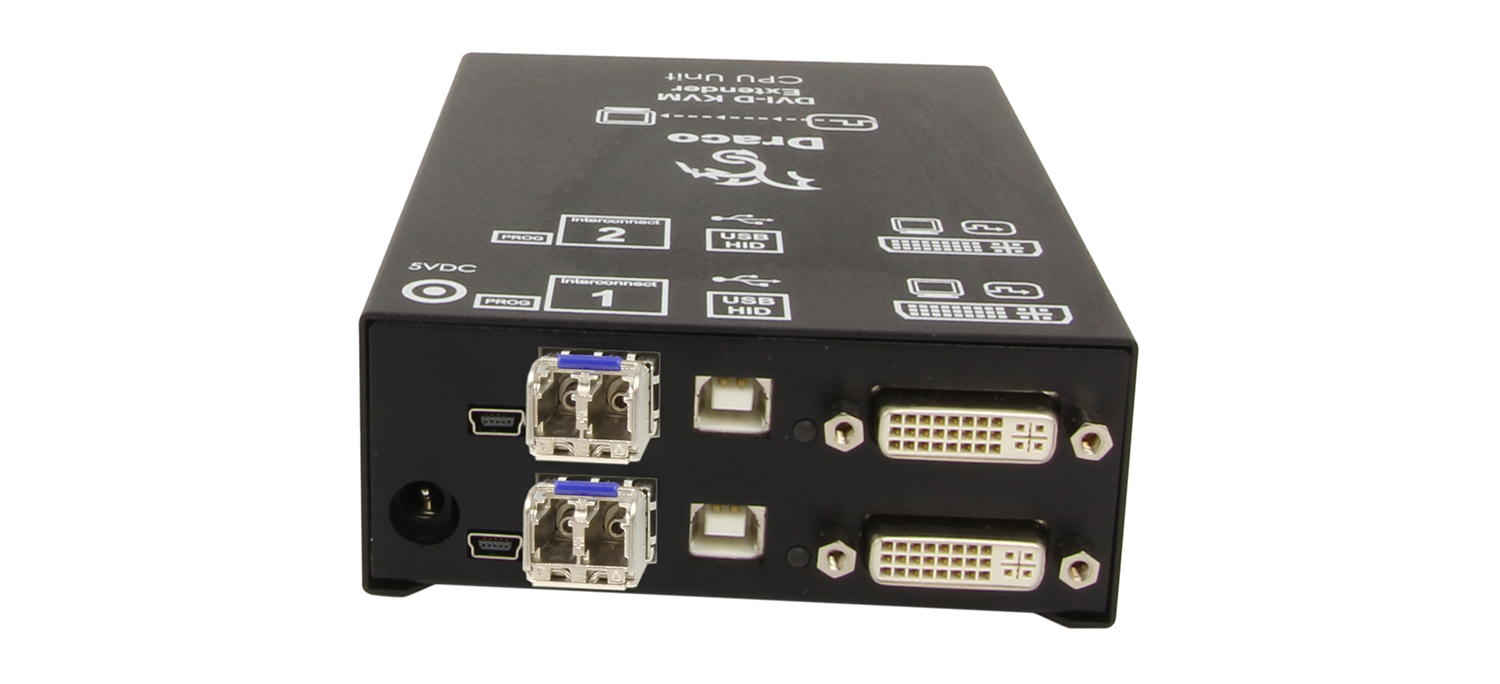

  • 提供单头和双头设备型号
  • 广泛的附加选项:
    –用于HID设备的两个USB端口
    –嵌入式USB 2.0
    –串行接口(RS232)
    –模拟音频
    –数字音频

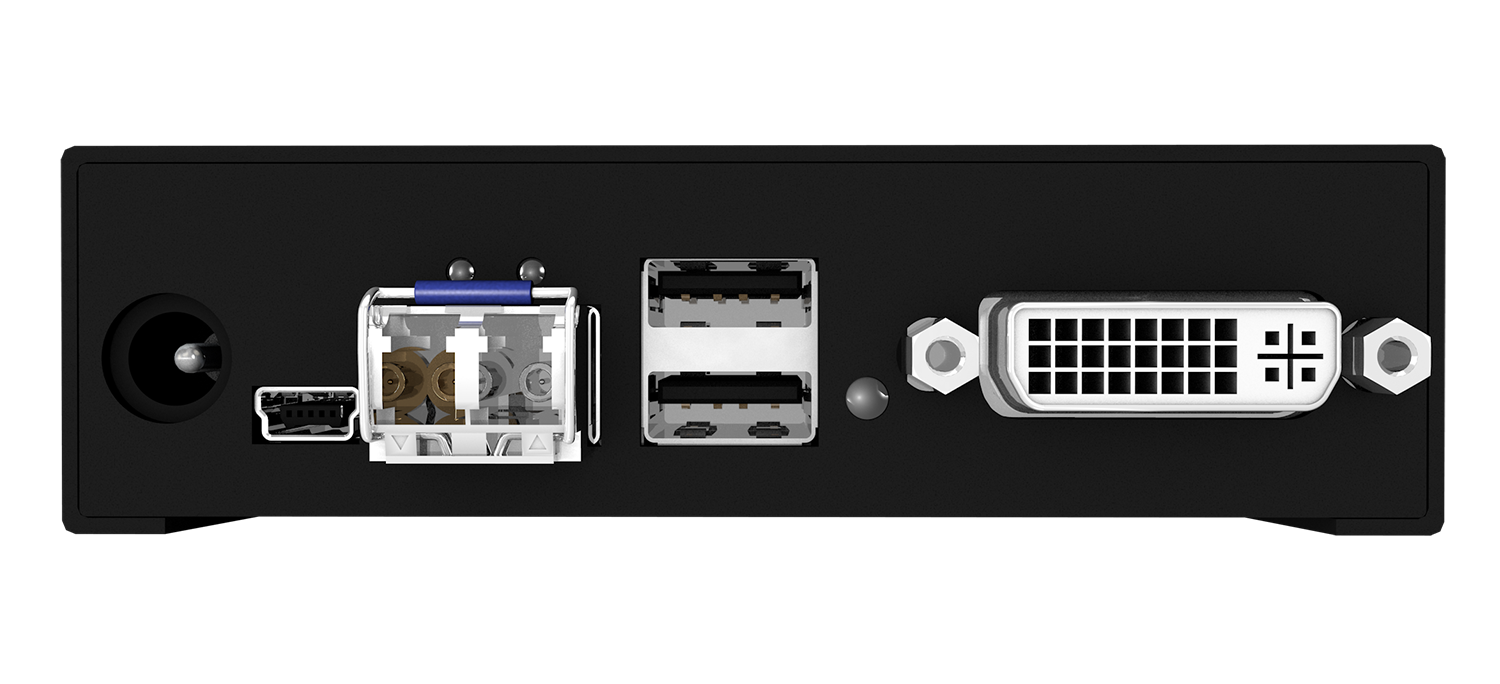

  • 所有连接都在一侧,易于安装
  • 简单的键盘命令(热键),用于传输连接在远端的显示器EDID信息。

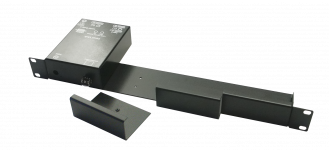

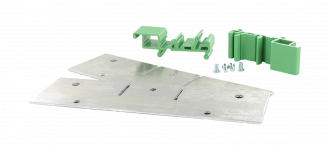

  • 提供19英寸机架安装套件——一个机架单元中最多可容纳4个单元

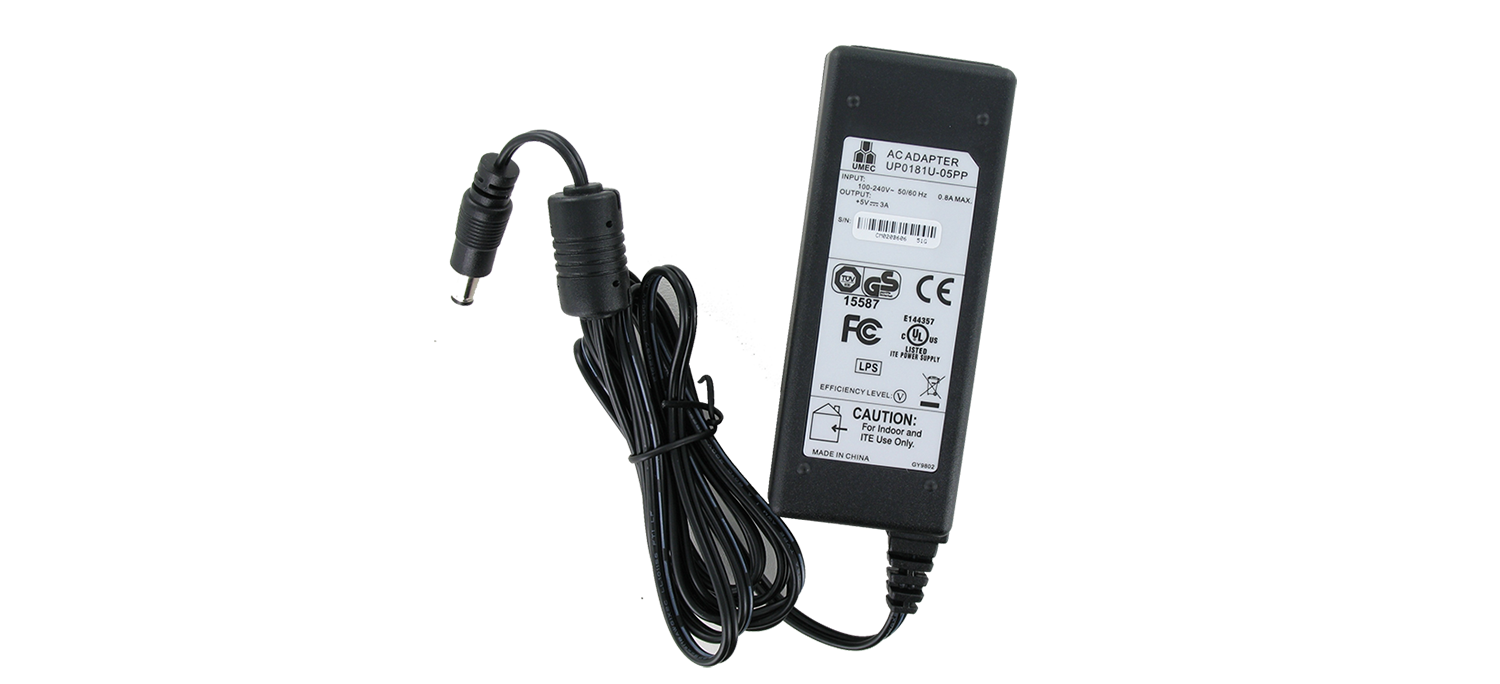

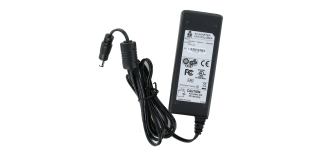

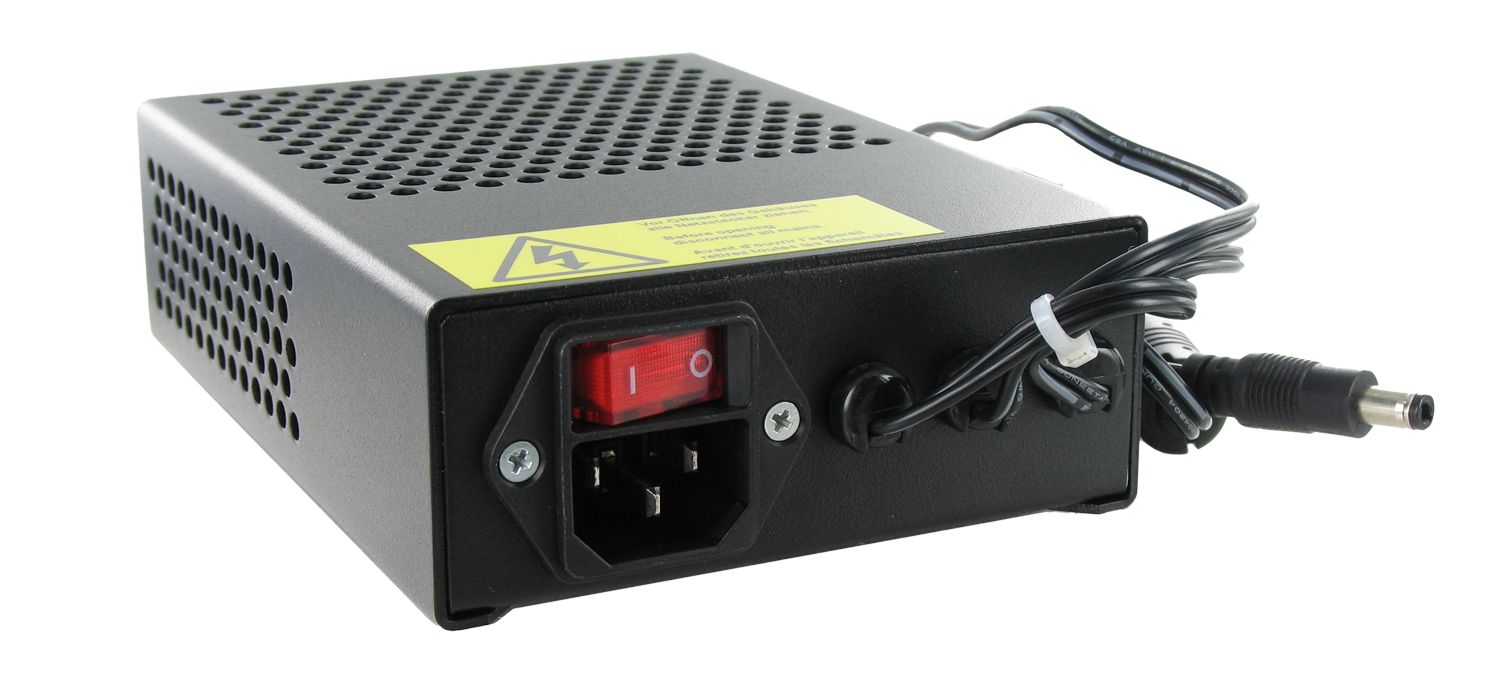

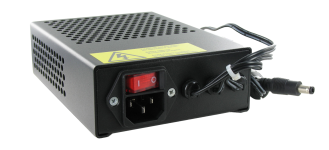

  • 用于一个机架单元的外部电源或可选的托盘安装电源

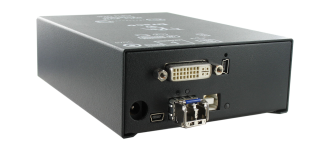

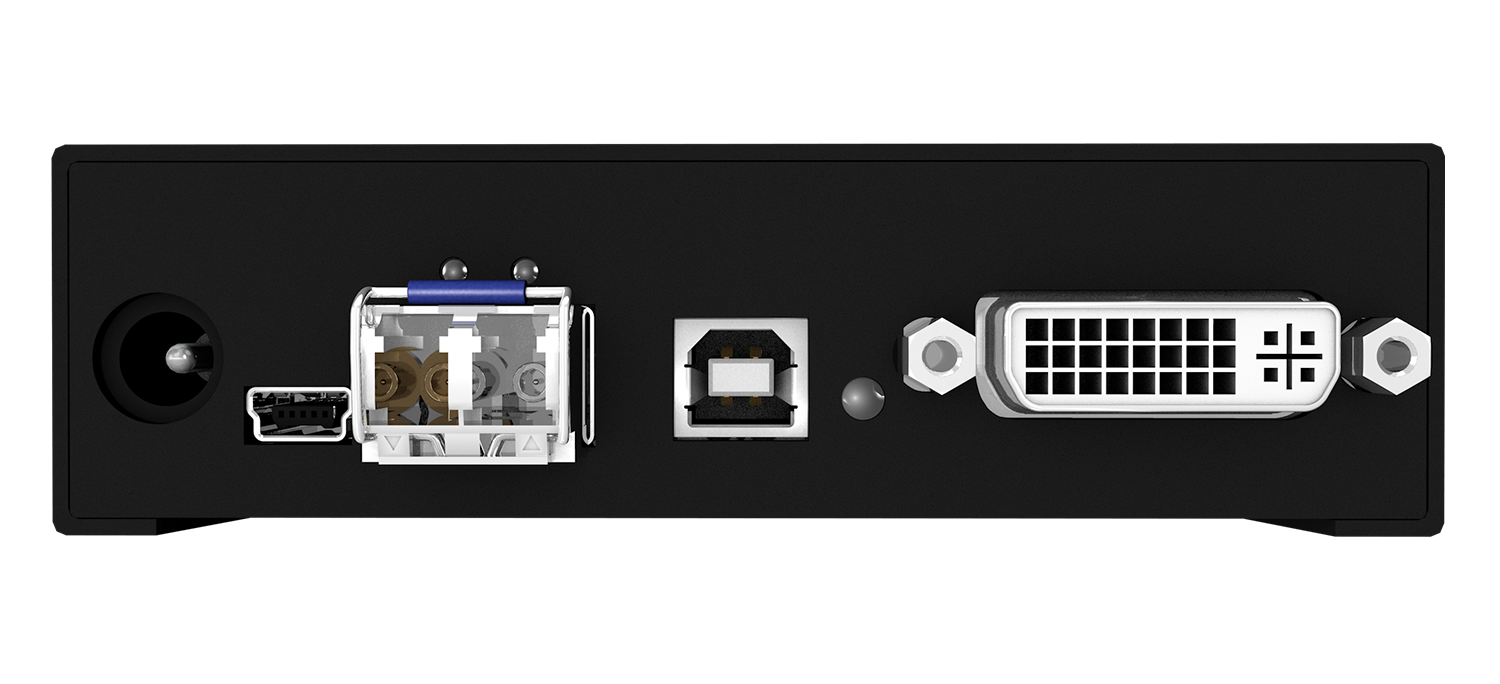

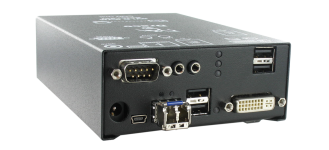

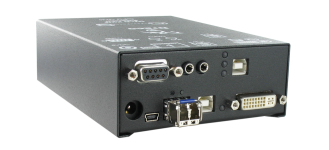

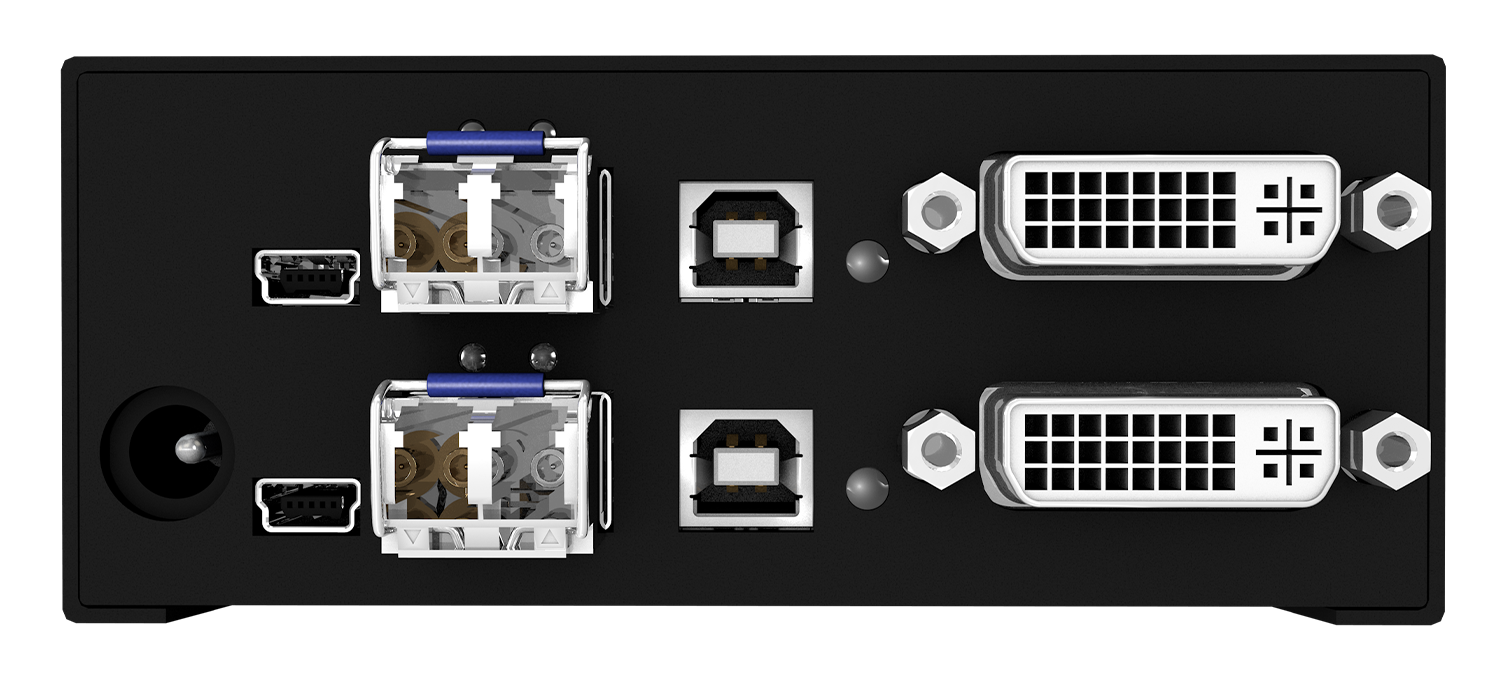

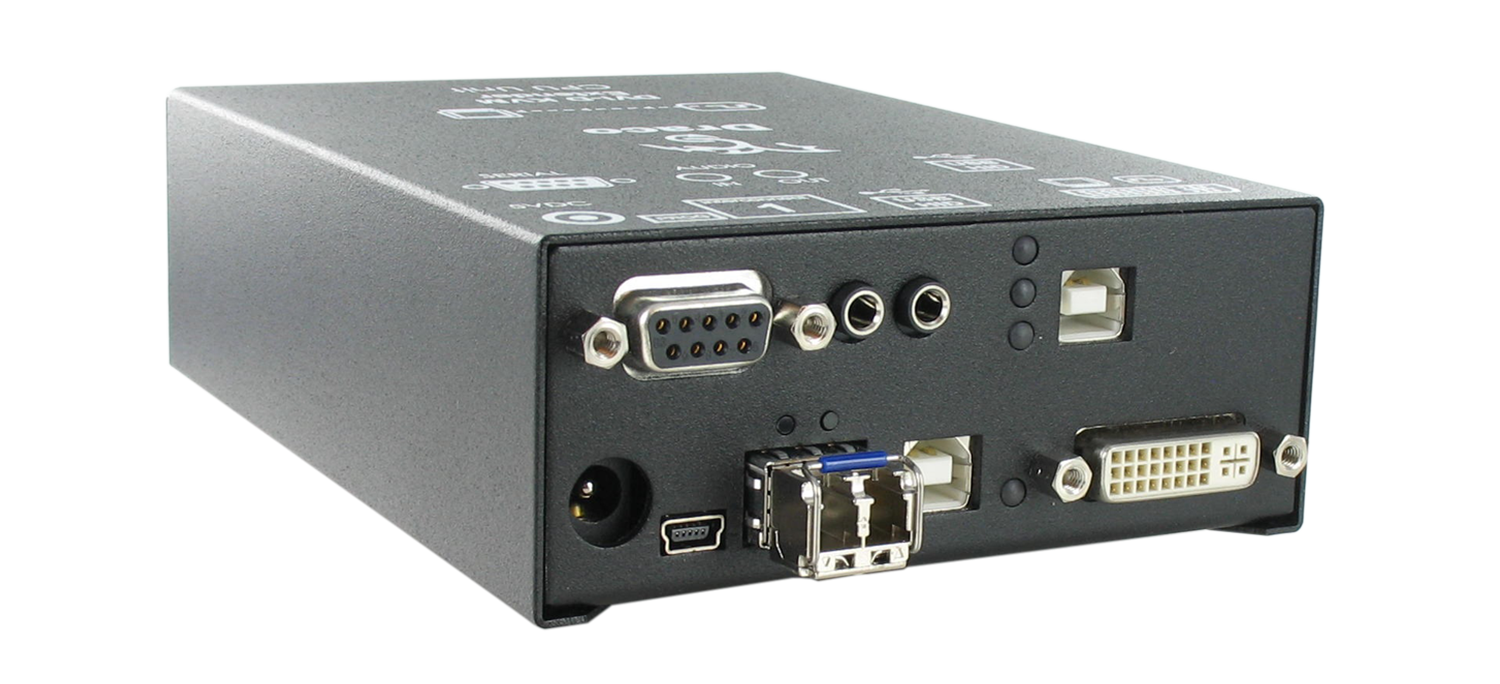

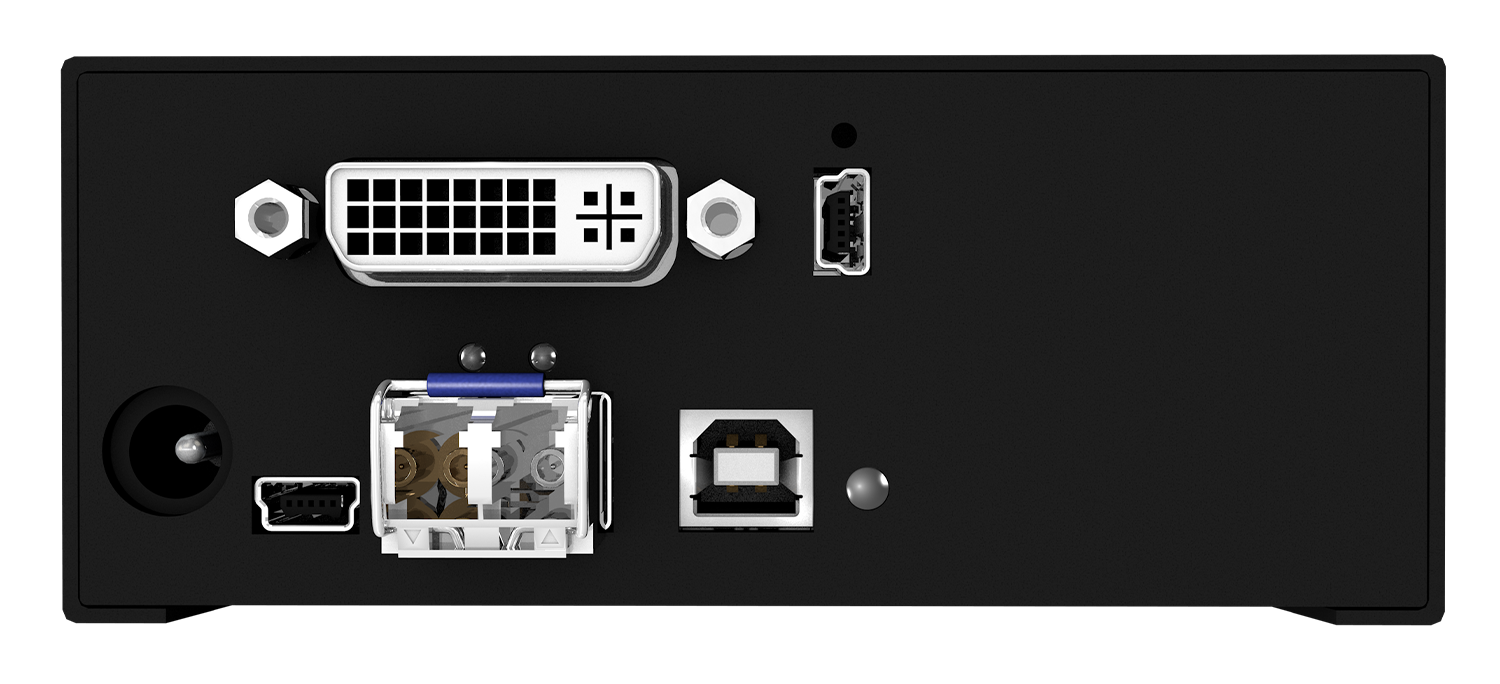

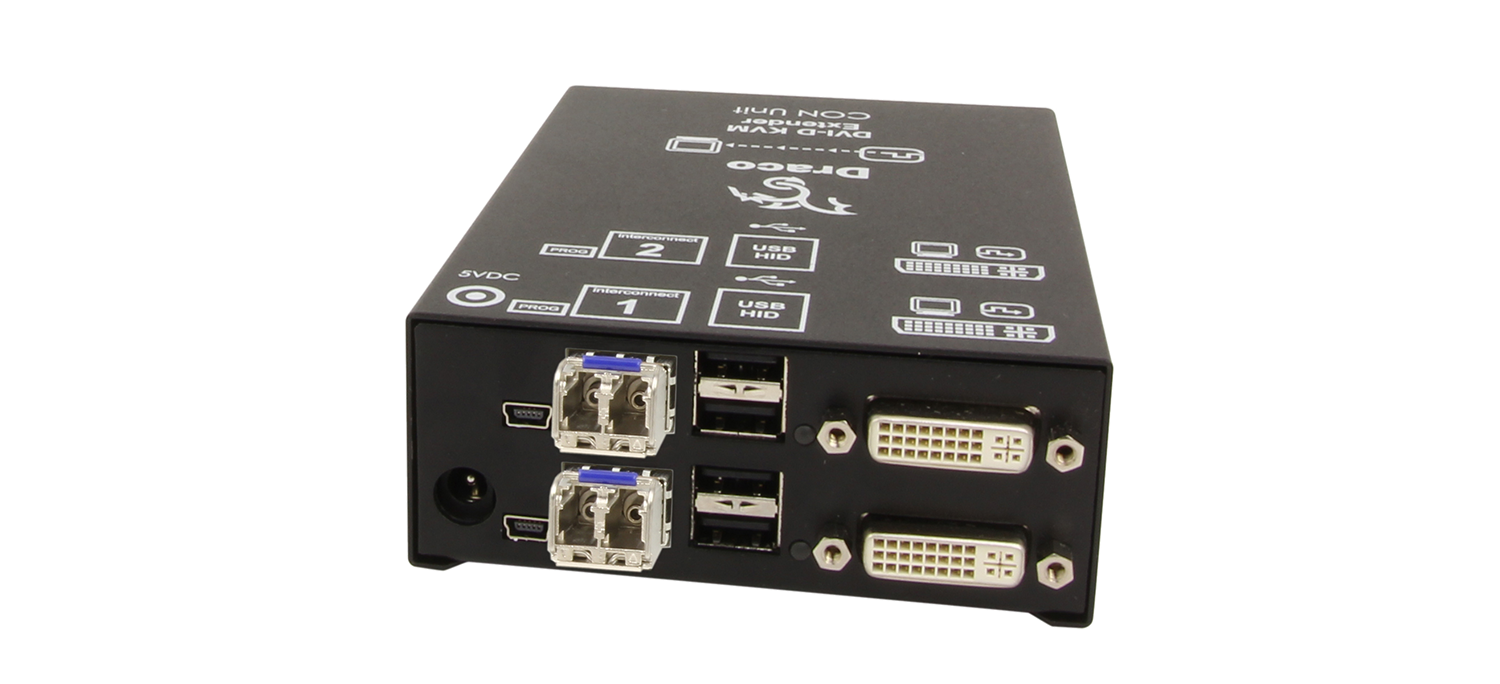

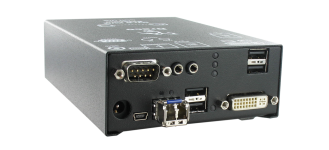

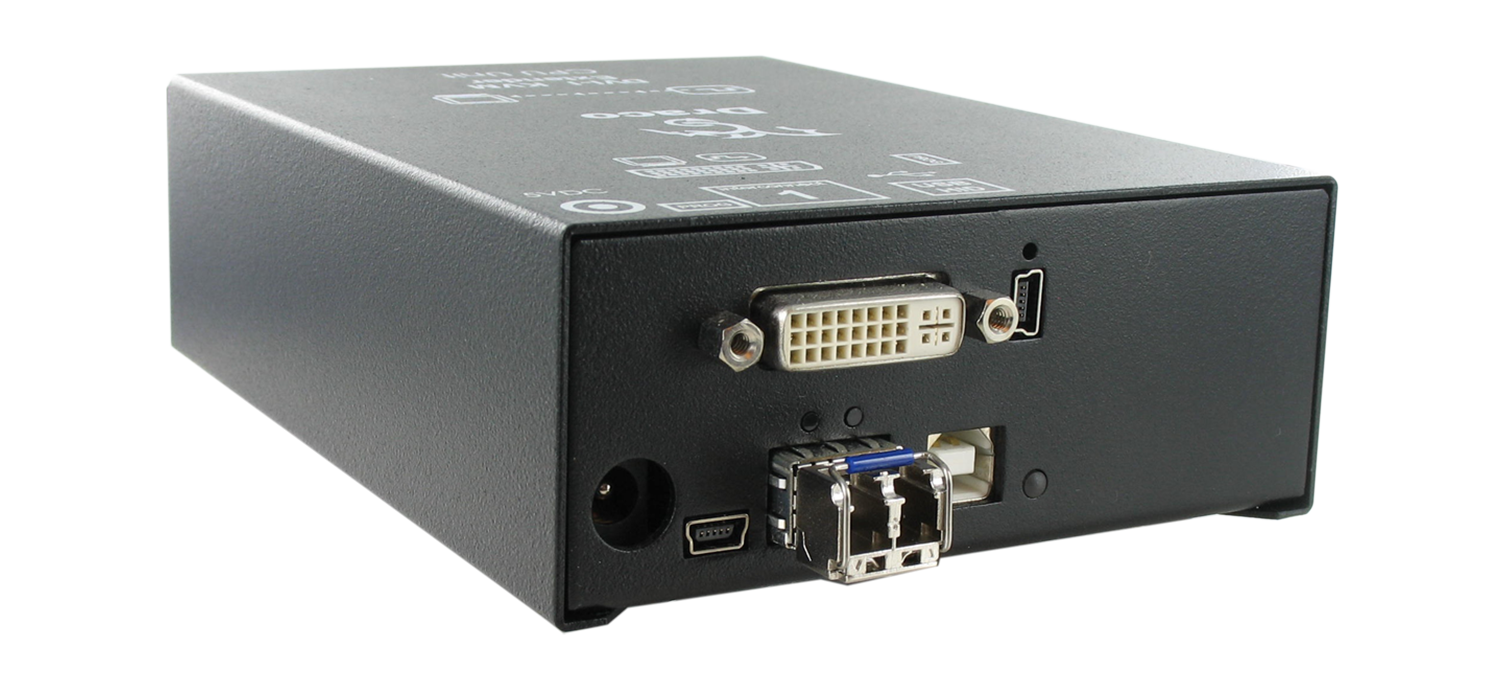

  • DVI-D光纤设备可用作XV型号,可在所有情况下提供优质的图像传输

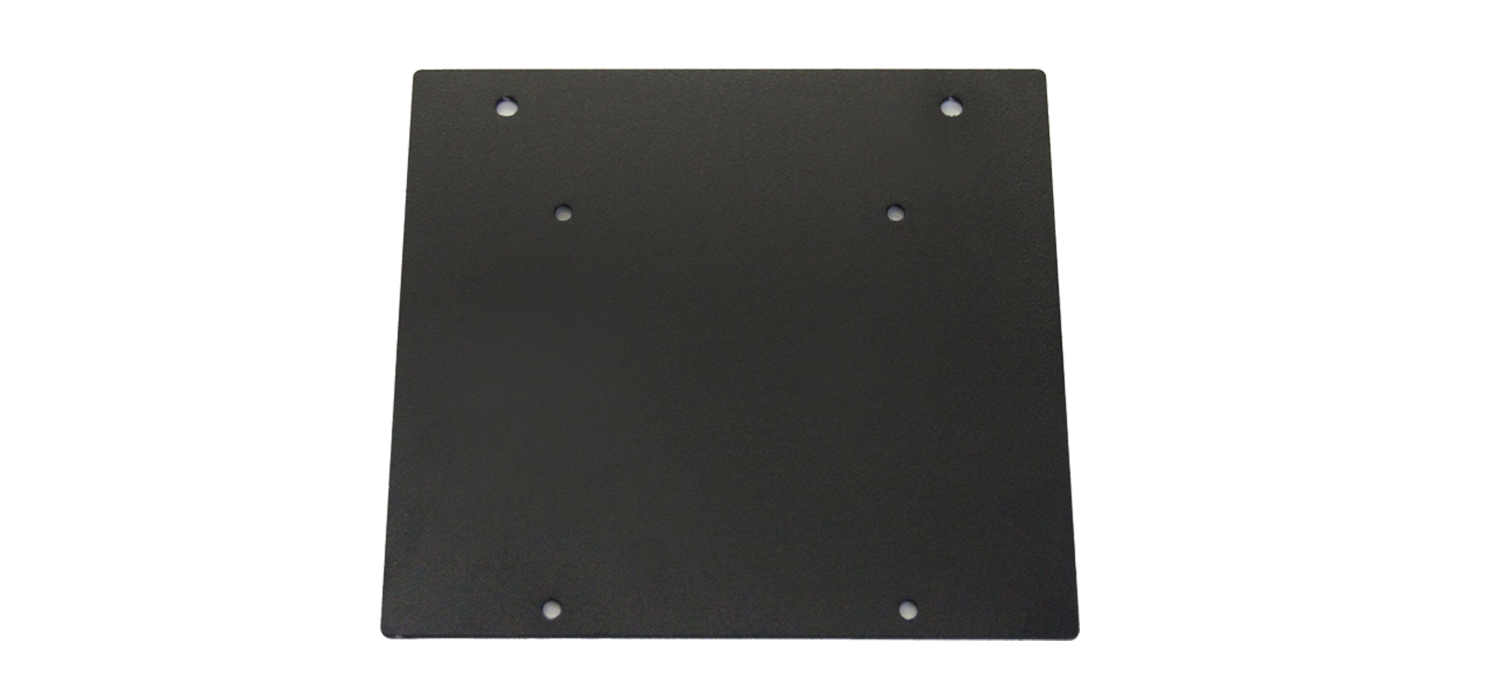

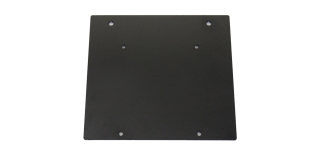

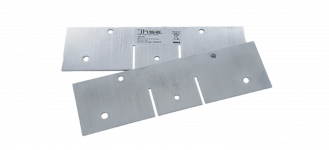

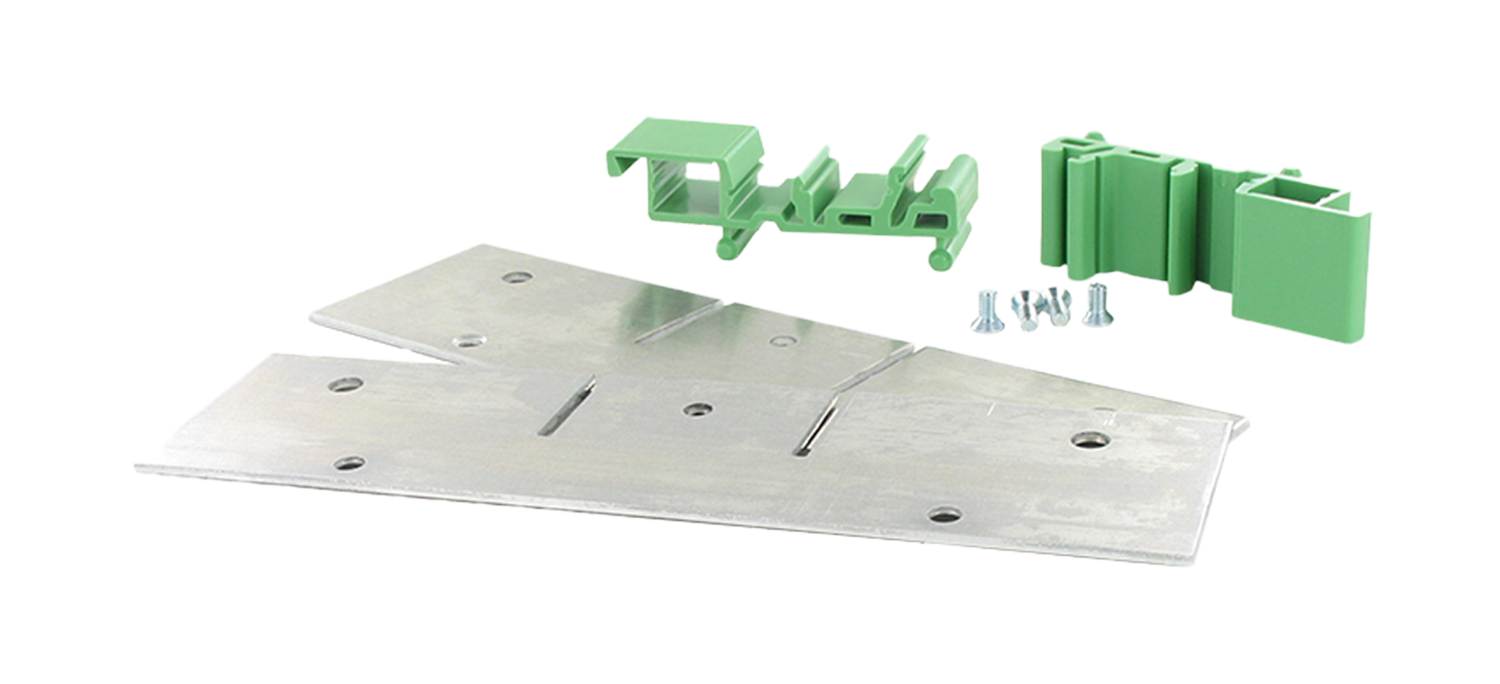

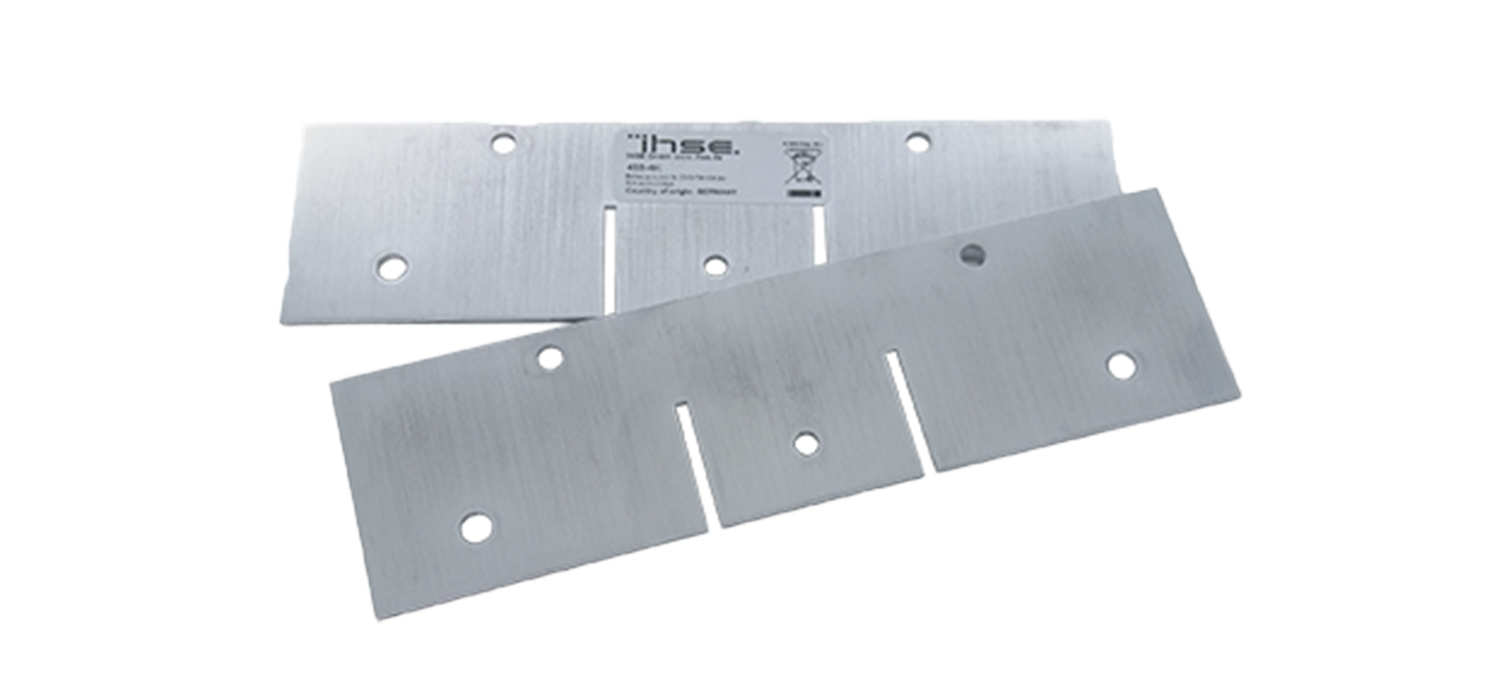

  • VESA安装板(可选)
  • 节省操作台安装空间的理想选择

规格

Draco compact (477系列)
电源(内部)
90-240VAC / 1 A / 50-60 Hz, 5VDC
串行RS232 / RS422
高达115,200波特
模拟音频
双向立体声音频连接,38.4 kHz
数字音频
兼容AES / EBU,S / PDIF,杜比数字,DTS,PCM,32-96 kHz
最高解析度
1920 x 1200 @ 60 Hz/ 24 bit
颜色深度
8位/真彩色
最大电缆距离
Cat X:140 m
多模光纤:1 km
单模光纤:10 km
尺寸– 单板卡
103 x 143 x 29 mm
尺寸– 双板卡
103 x 143 x 42 mm

零件号

零件号

Draco compact (477系列)

All Variations

ImageModell:Description

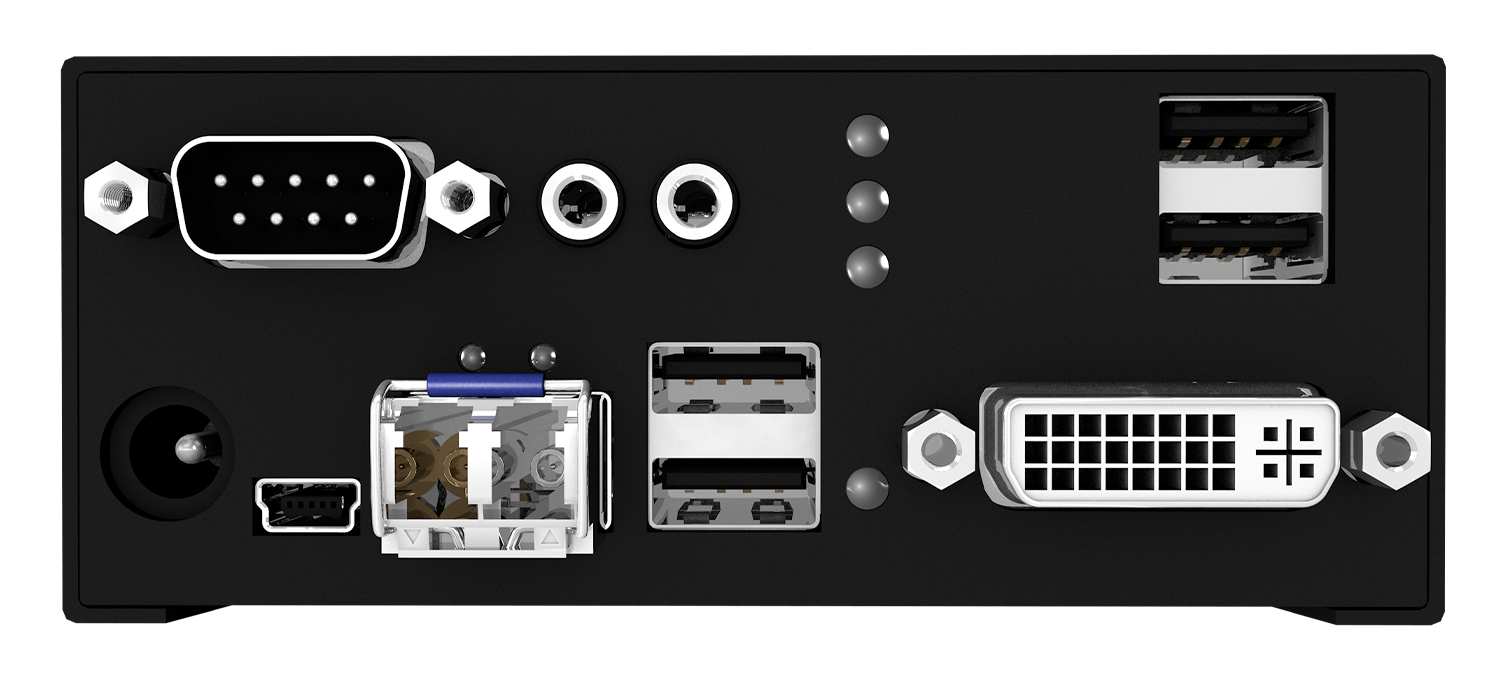

R477-1S4CACON模块,1x Cat X,1x DVI-D接口,单链路,4x USB-HID,模拟音频

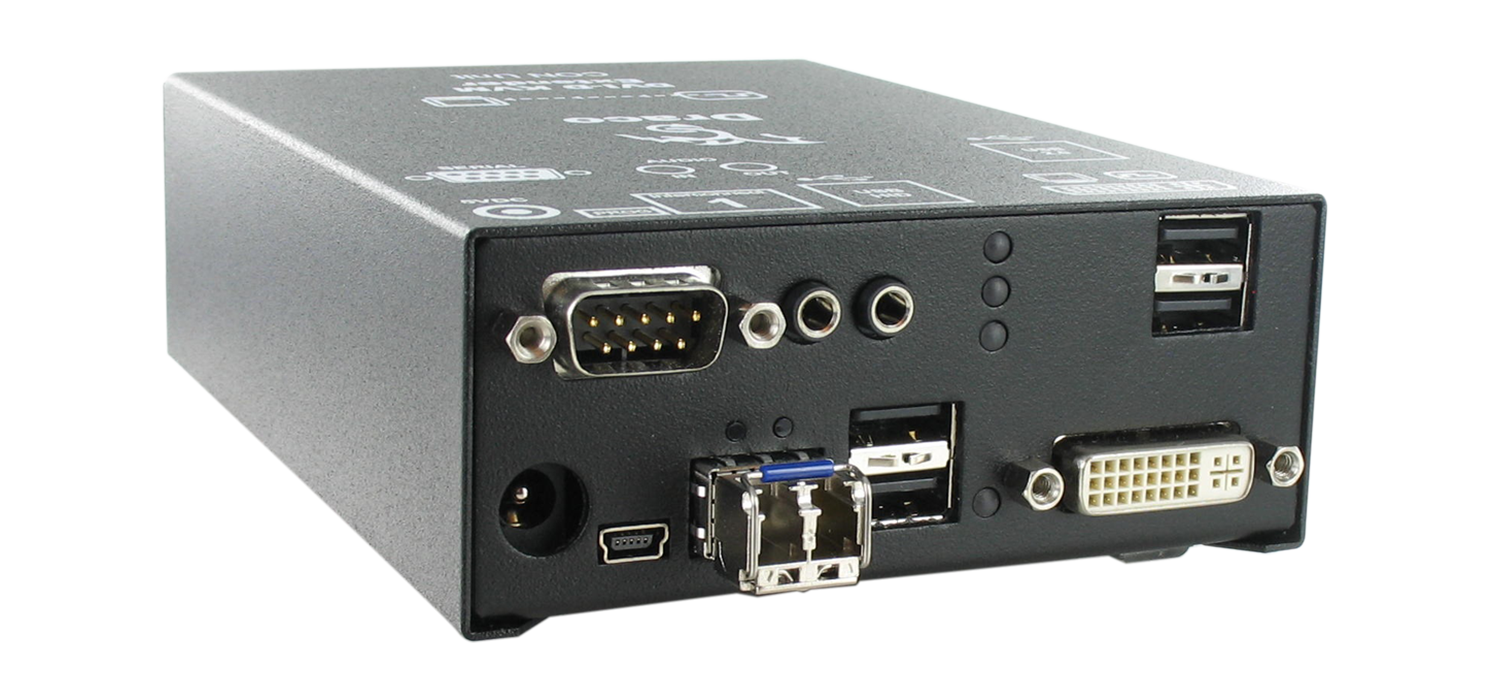

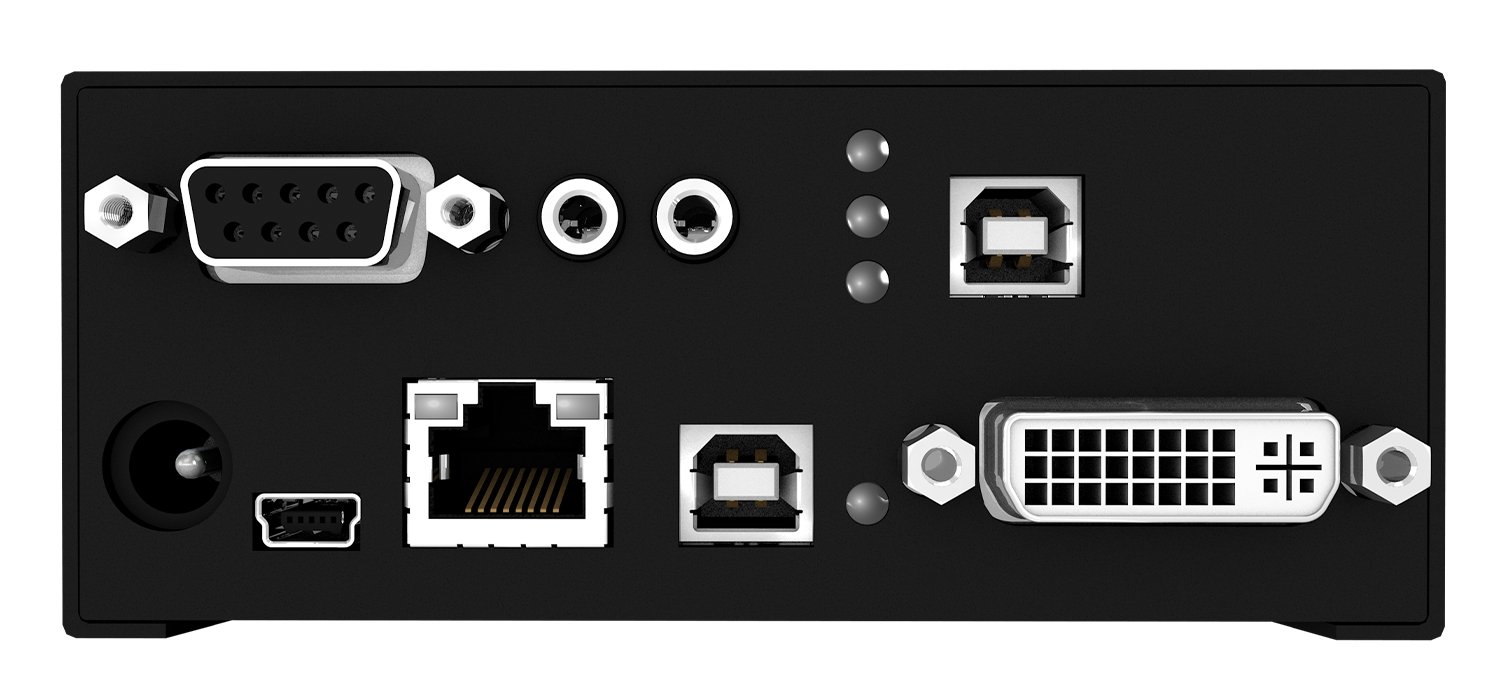

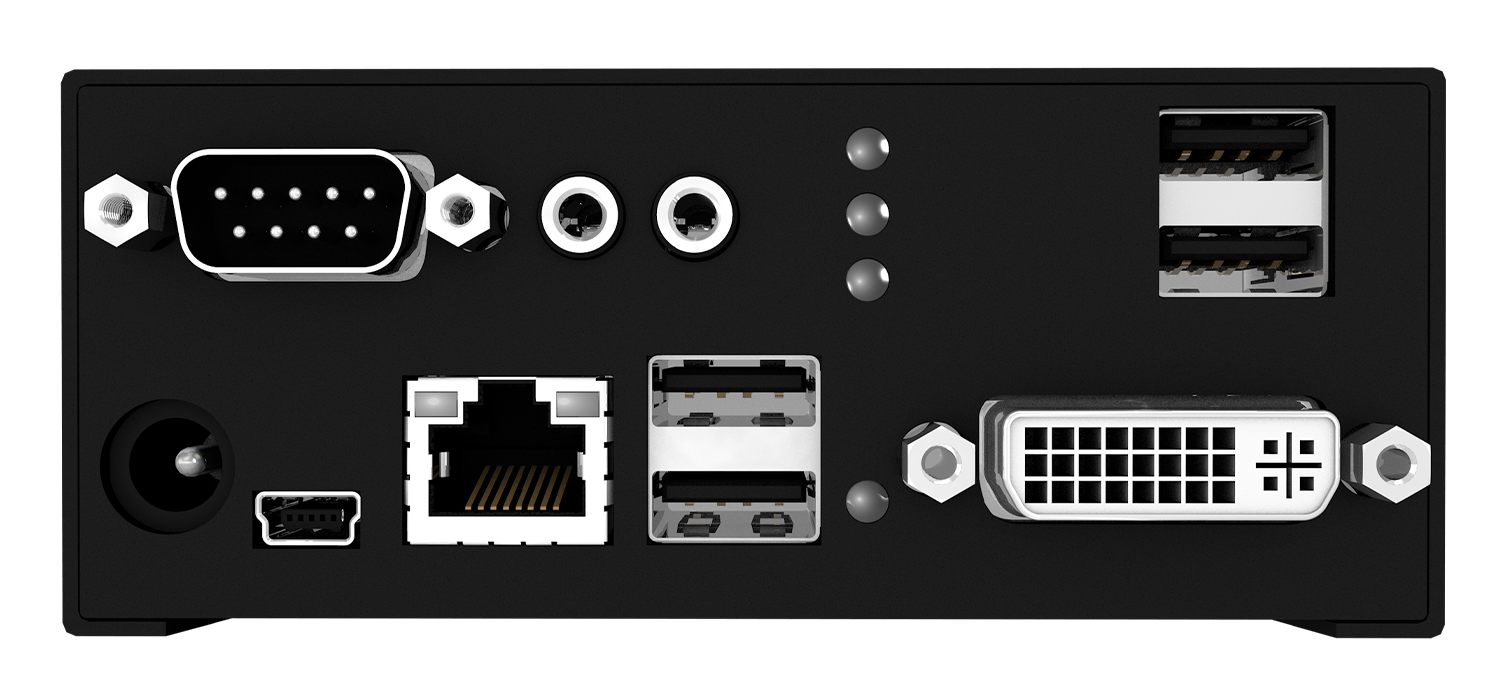

R477-1SECACON模块,1x Cat X,1x DVI-D接口,单链路,2x USB-HID,USB 2.0嵌入式,模拟音频

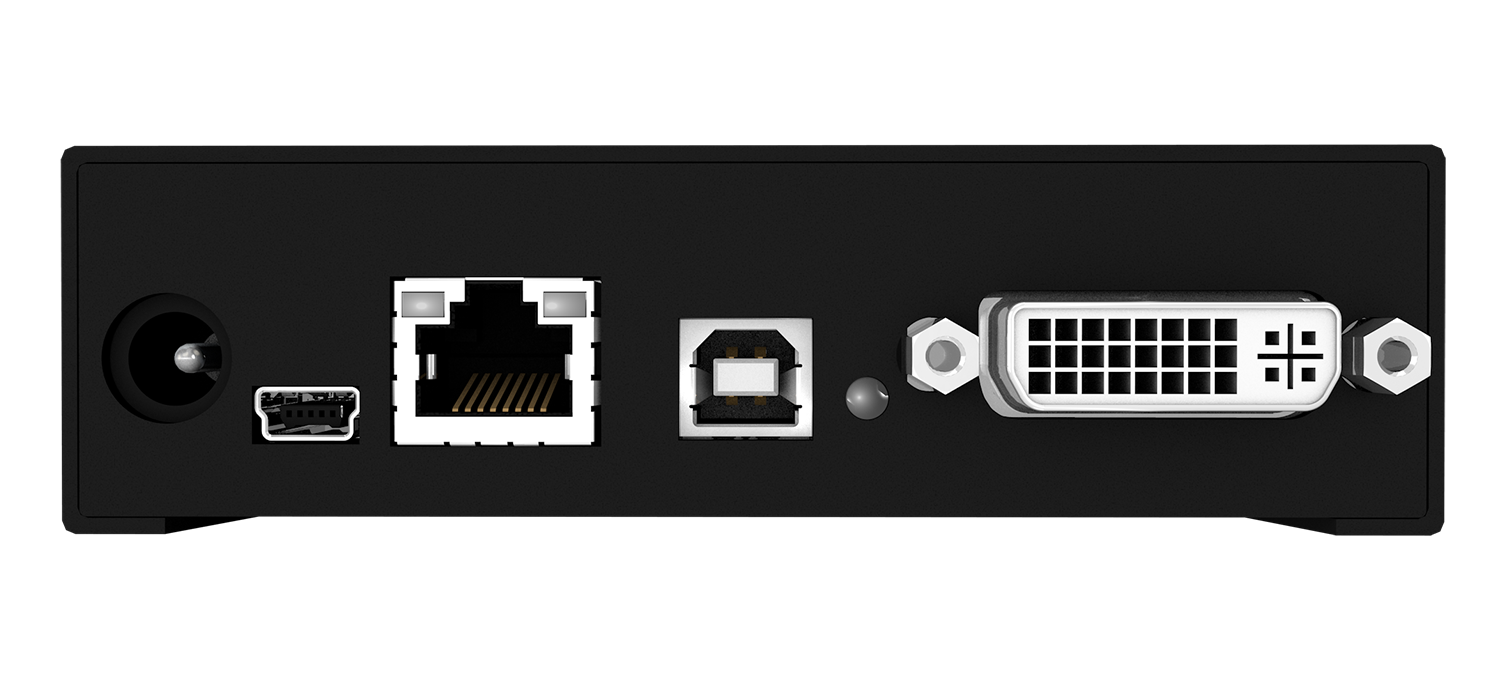

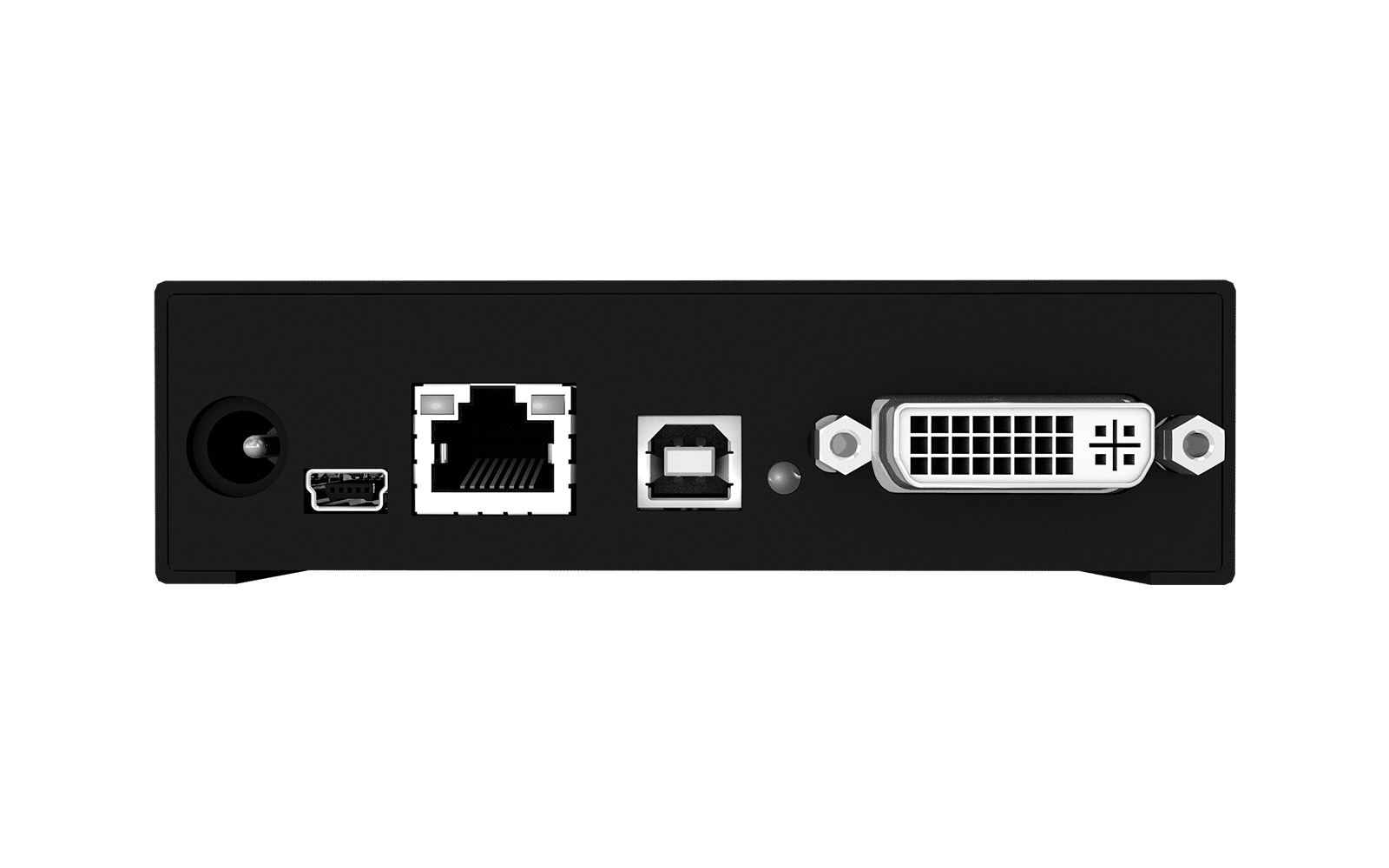

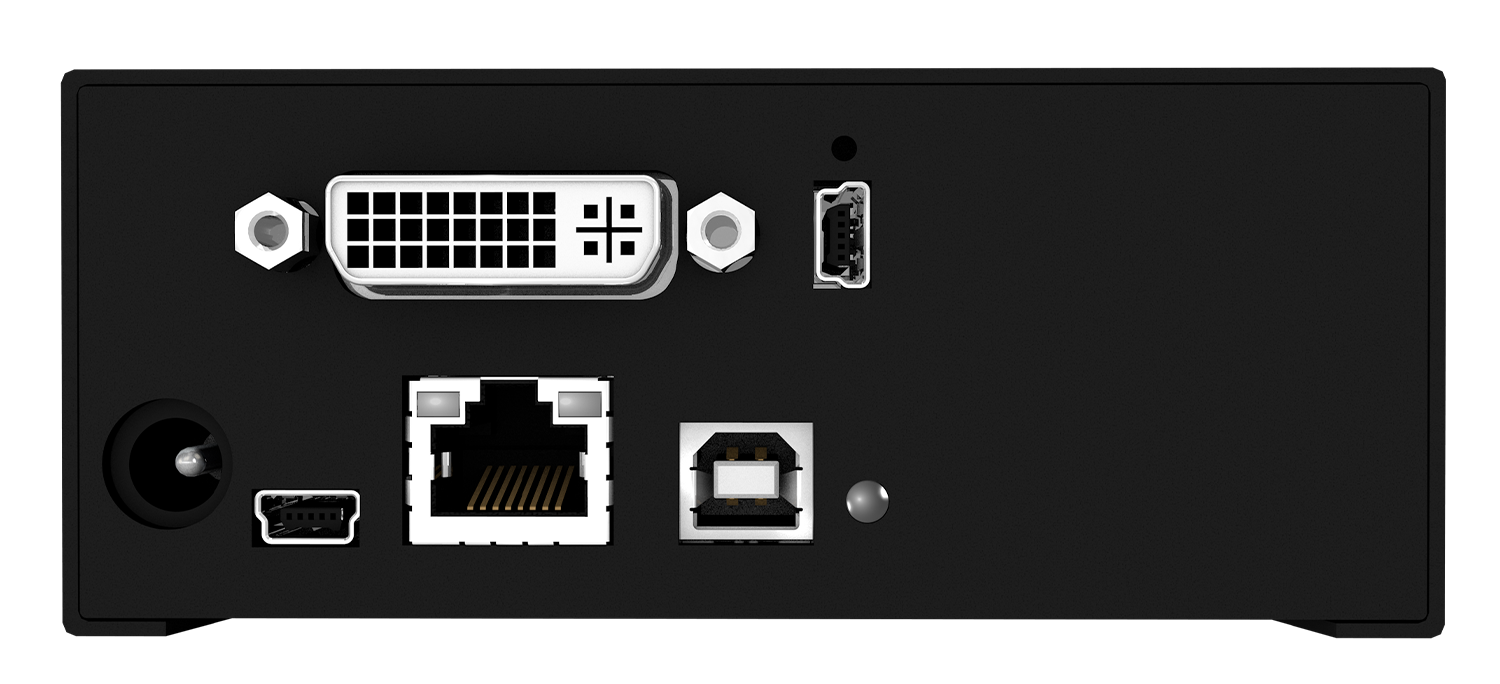

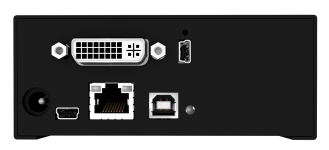

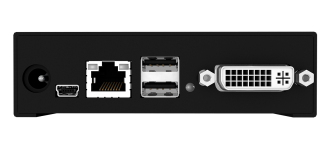

R477-1SHCCON模块,1x Cat X,1x DVI-D接口,单链路,2x USB-HID

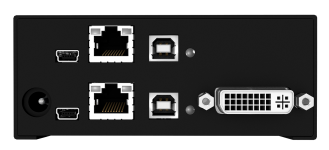

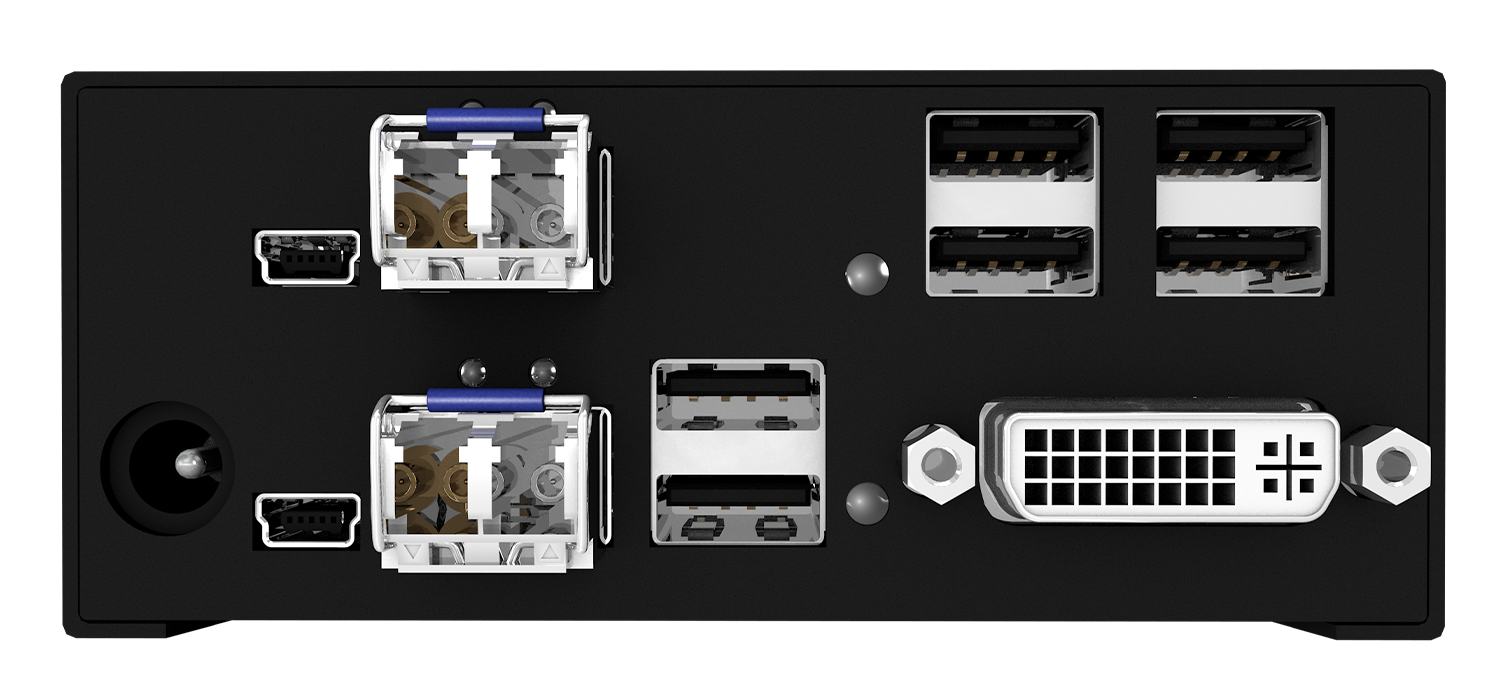

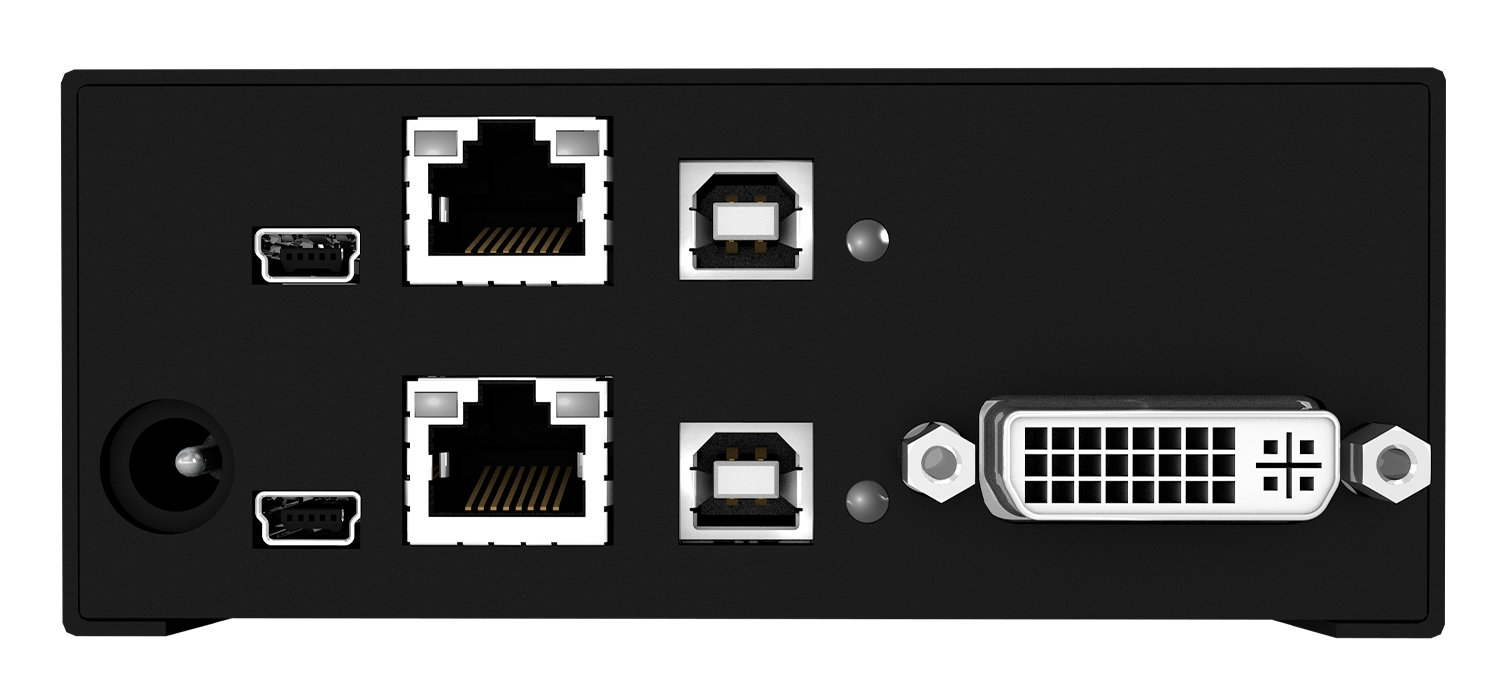

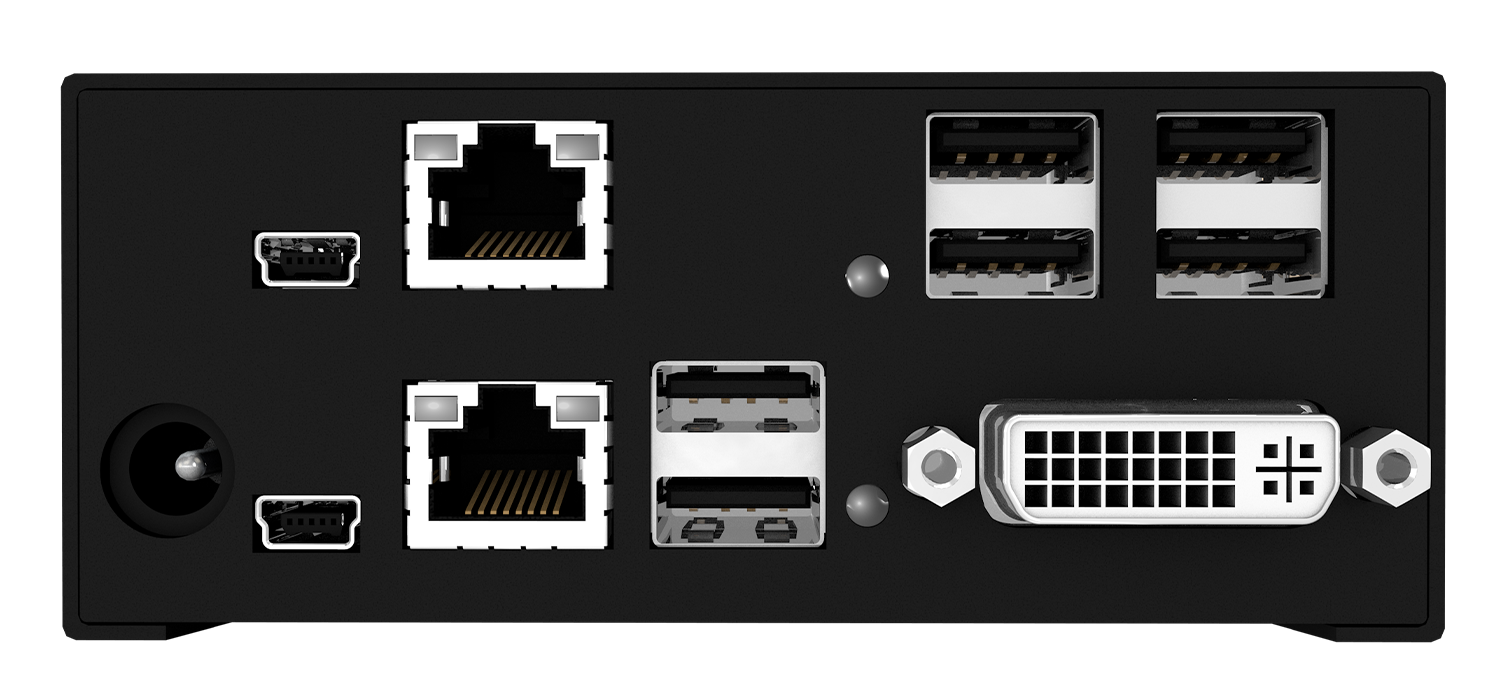

R477-1SUCCON模块,2x Cat X,1x DVI-D接口,单链路,2x USB-HID,4x USB 2.0

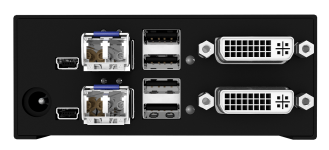

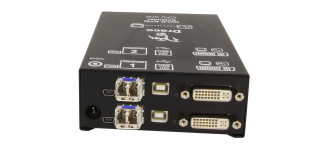

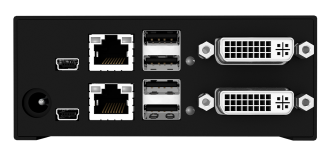

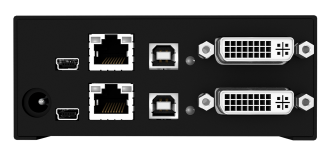

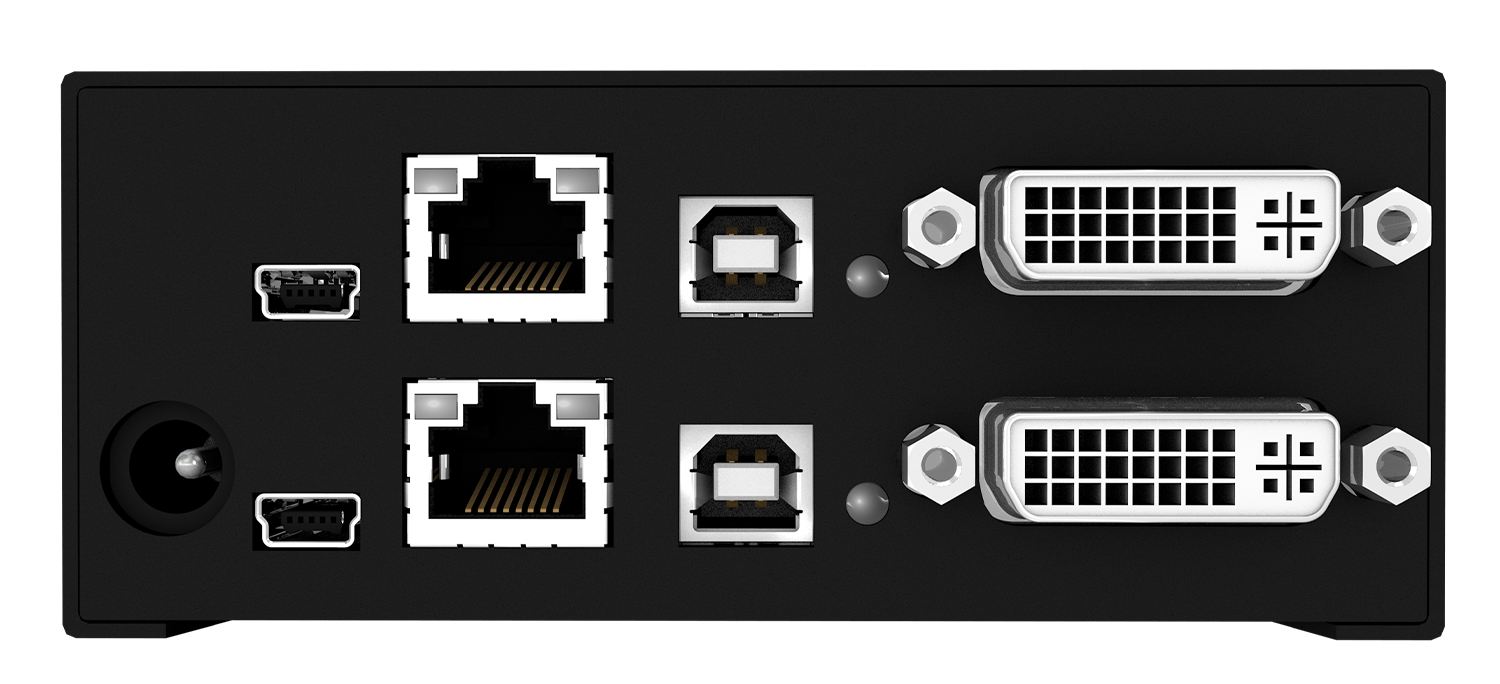

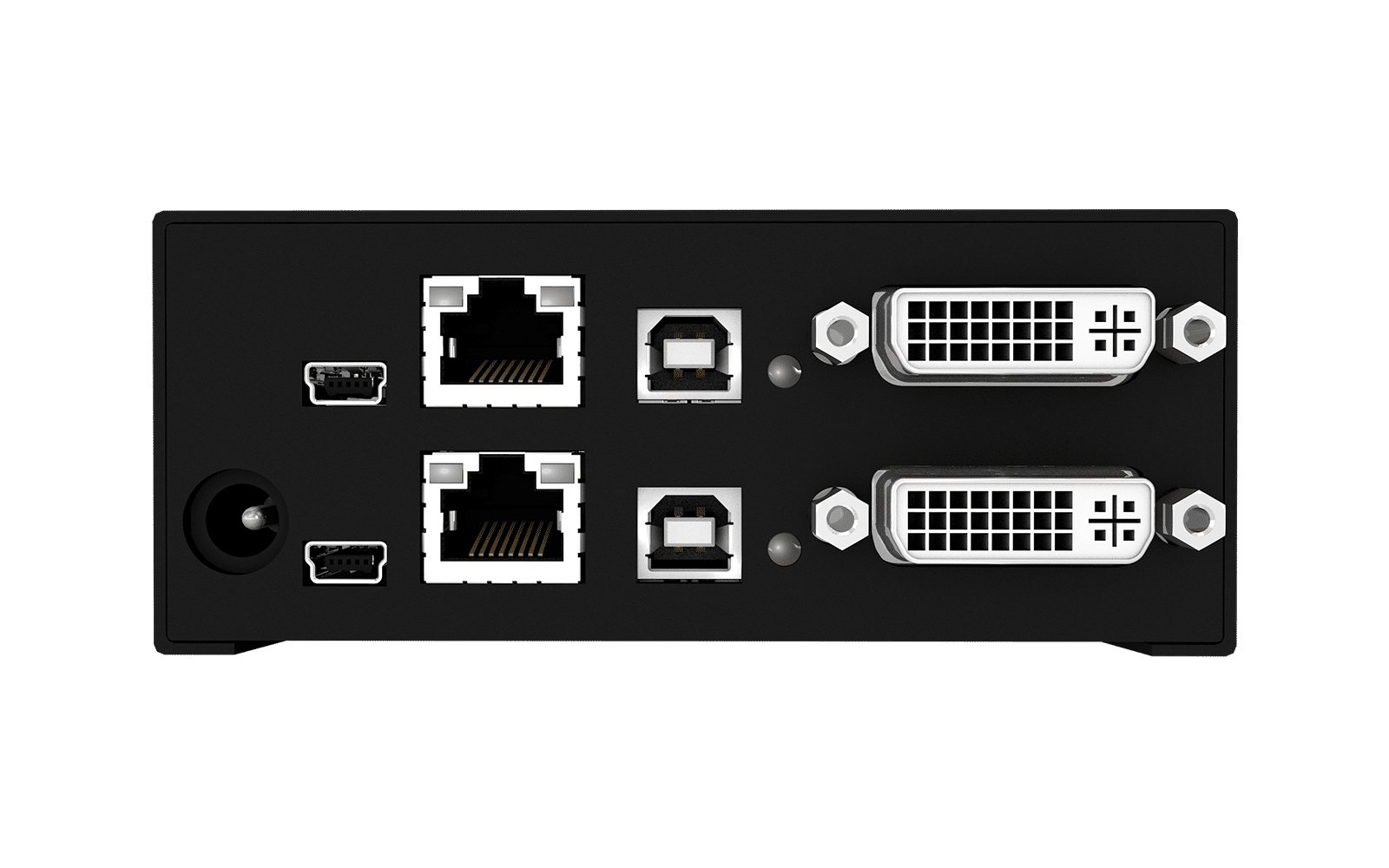

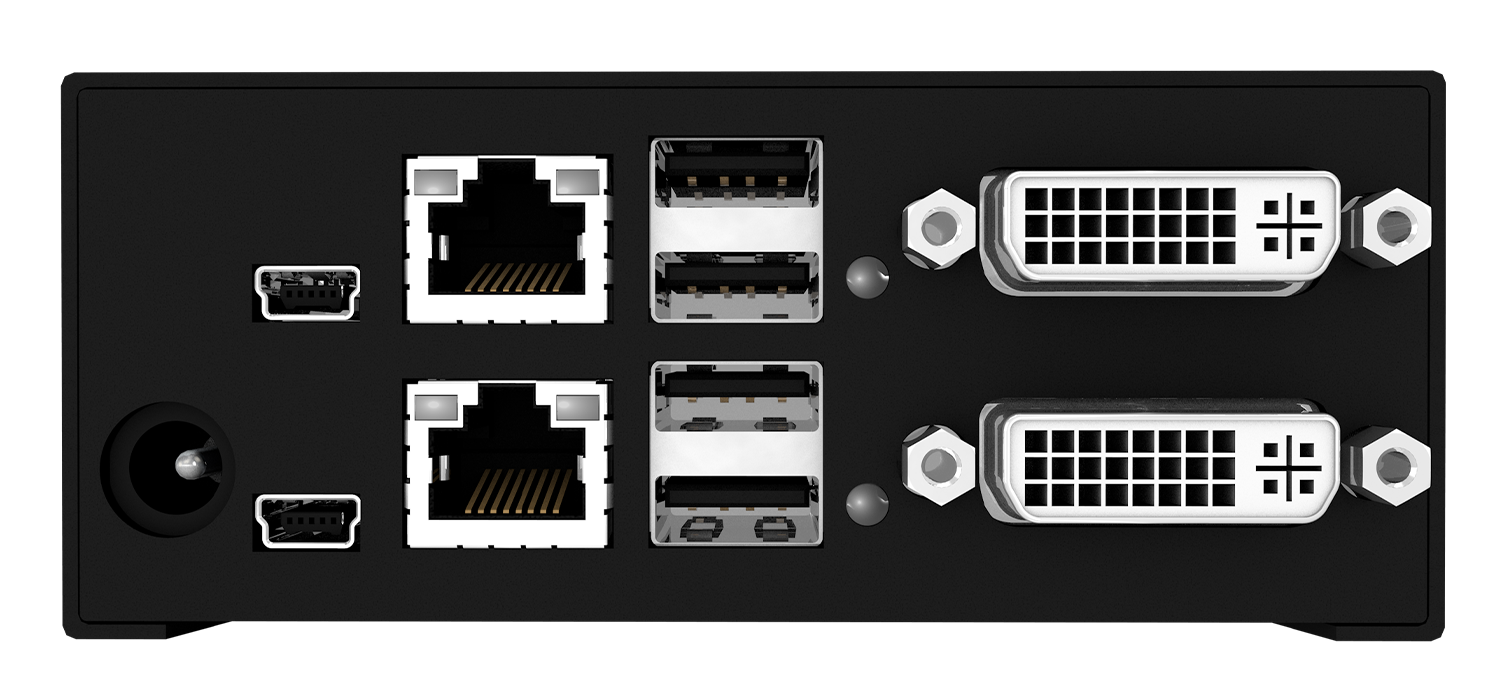

R477-2S4CCON模块,2x Cat X,2x DVI-D接口,单链路,4x USB-HID

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

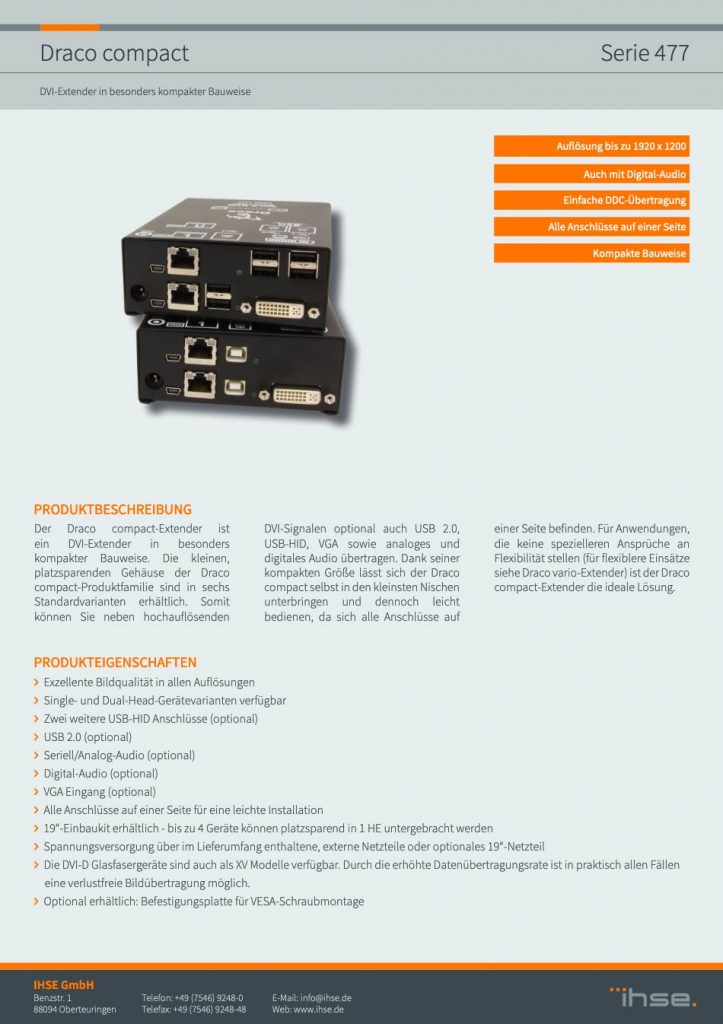

资料下载

Draco compact (477系列)

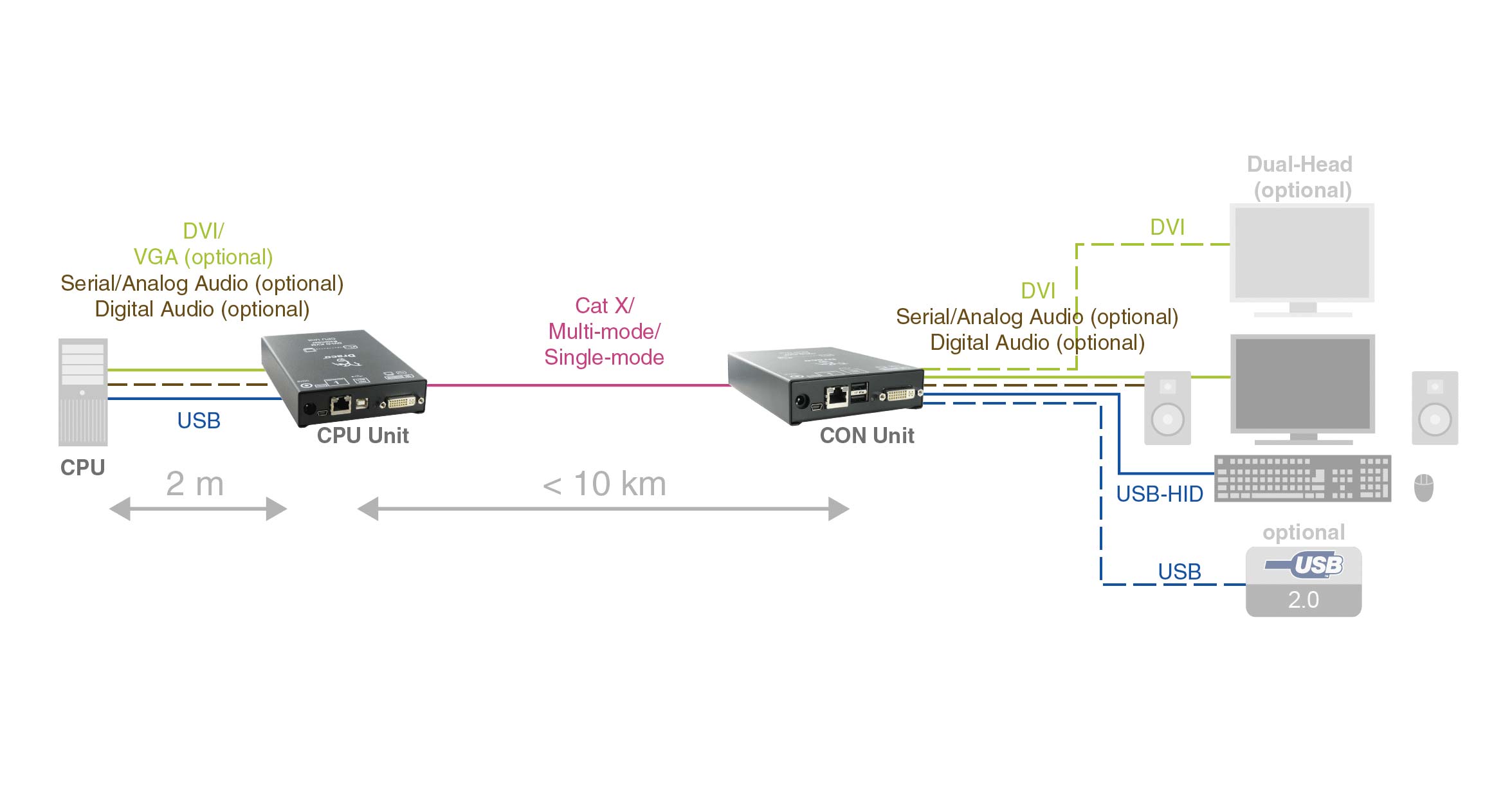

系统图

系统图

Draco compact (477系列)
