扩展器机箱与配件

独立配置的机箱版本

扩展器模块化概念

扩展器模块化概念​

机箱与配件

丰富的应用安装
Draco vario机箱允许将单个Draco vario系列扩展器组合为独立配置或机架安装配置。灵活的模块化系统允许定制的设备集成来满足特定的安装要求。机箱的尺寸可容纳2、4、6和21个单独的模块。

个性化和自由定制
Draco vario机箱与Draco vario和Draco Ultra系列(474、481、482、483、490、492、492和493系列)的所有扩展模块兼容,为每种安装配置选择扩展板卡提供了完全的自由选择。该机箱与所有可用的 vario 模块兼容,包括 CPU 和 CON 单元、CWDM 模块、中继器和 SNMP 模块。也可以安装 Draco tera compact 8 端口板卡。

运行的可靠性和可维护性
Draco vario机箱提供集成和外部电源选项,并可以配置冗余电源。6和21插槽机箱提供可选热插拔功能,以确保维护期间的连续运行。

在线配置
Draco vario Configurator可协助系统配置。

零件号

零件号

机箱与配件

All Variations

ImageModell:Description

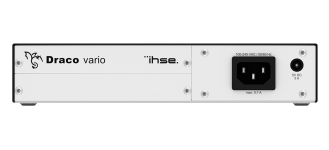

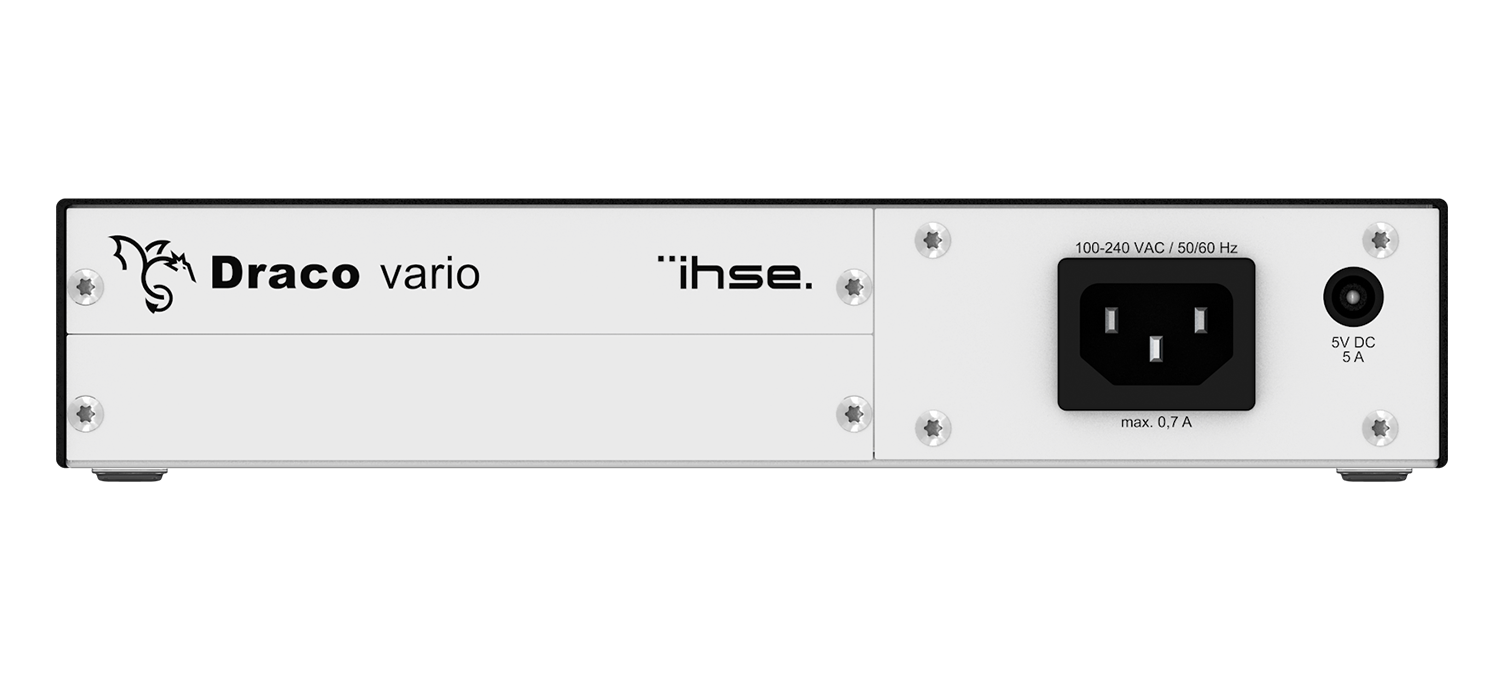

474-BODY2N2插槽机箱,集成电源,冗余电源设置

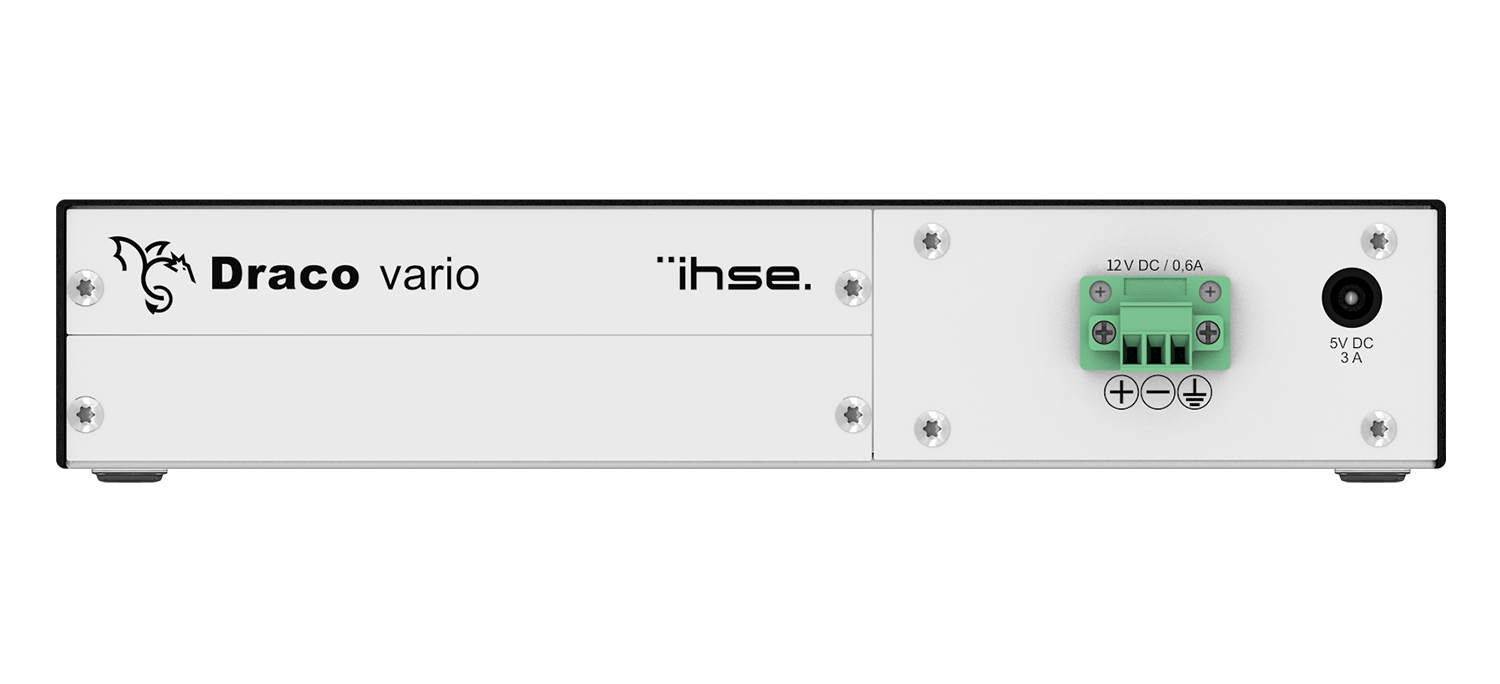

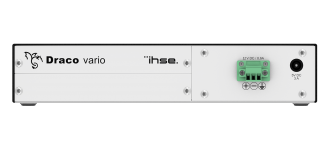

474-BODY2DC-12用于2插槽机箱,集成12V DC电源,冗余电源设置

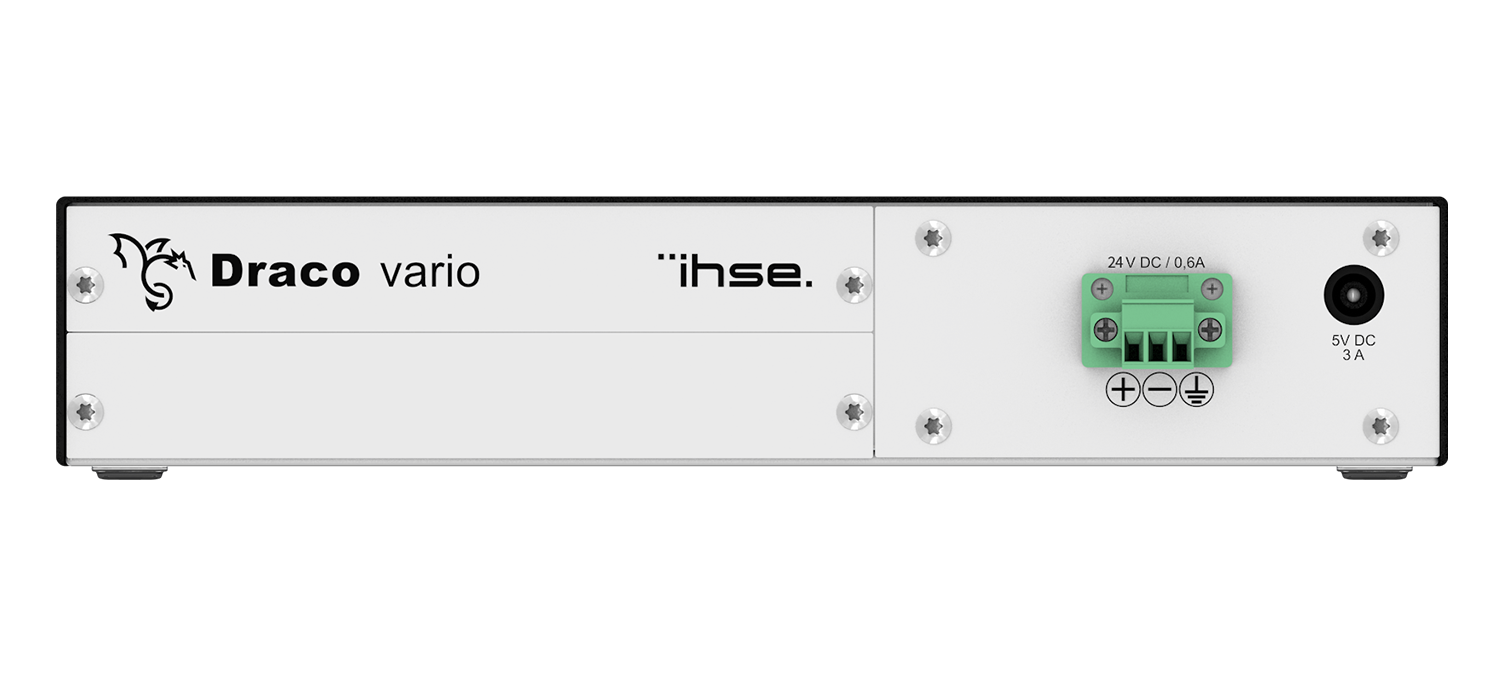

474-BODY2DC-242插槽机箱,集成24V DC电源,冗余电源设置

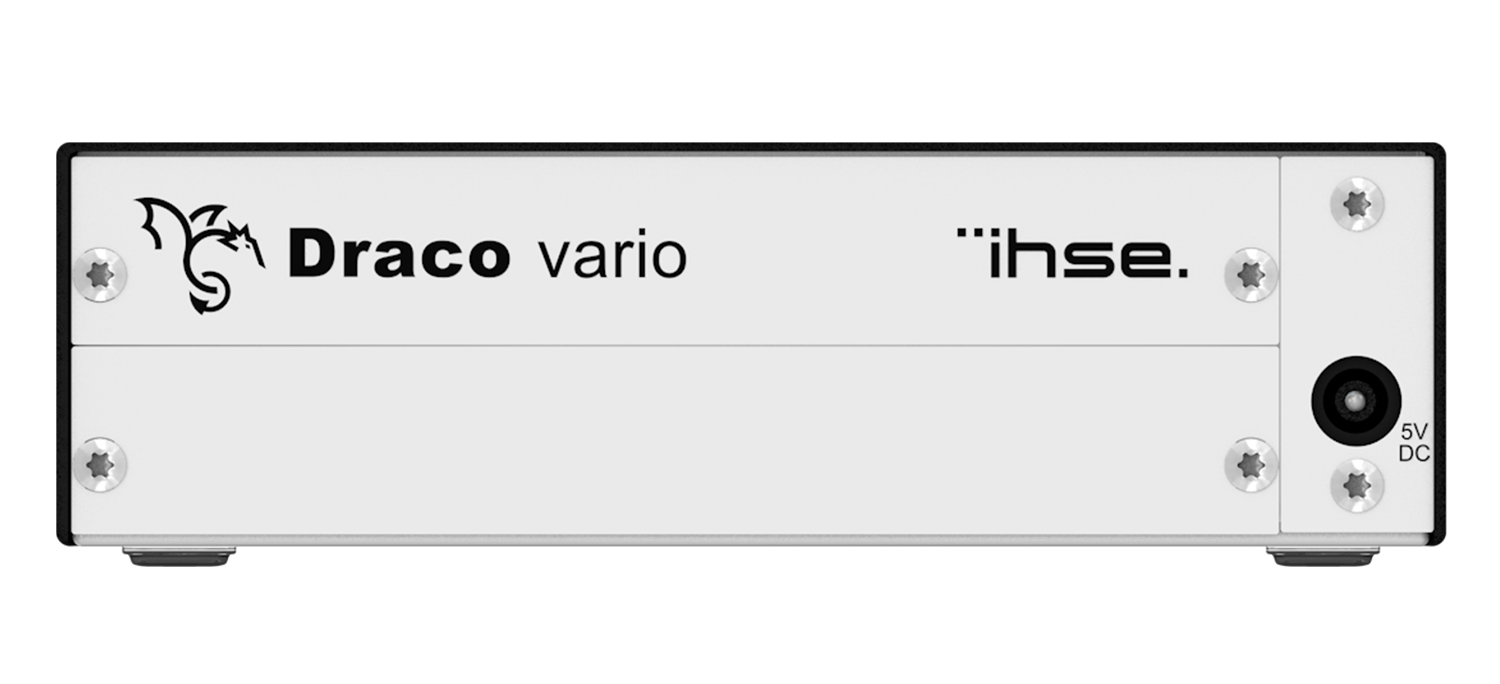

474-BODY22插槽机箱,外部电源

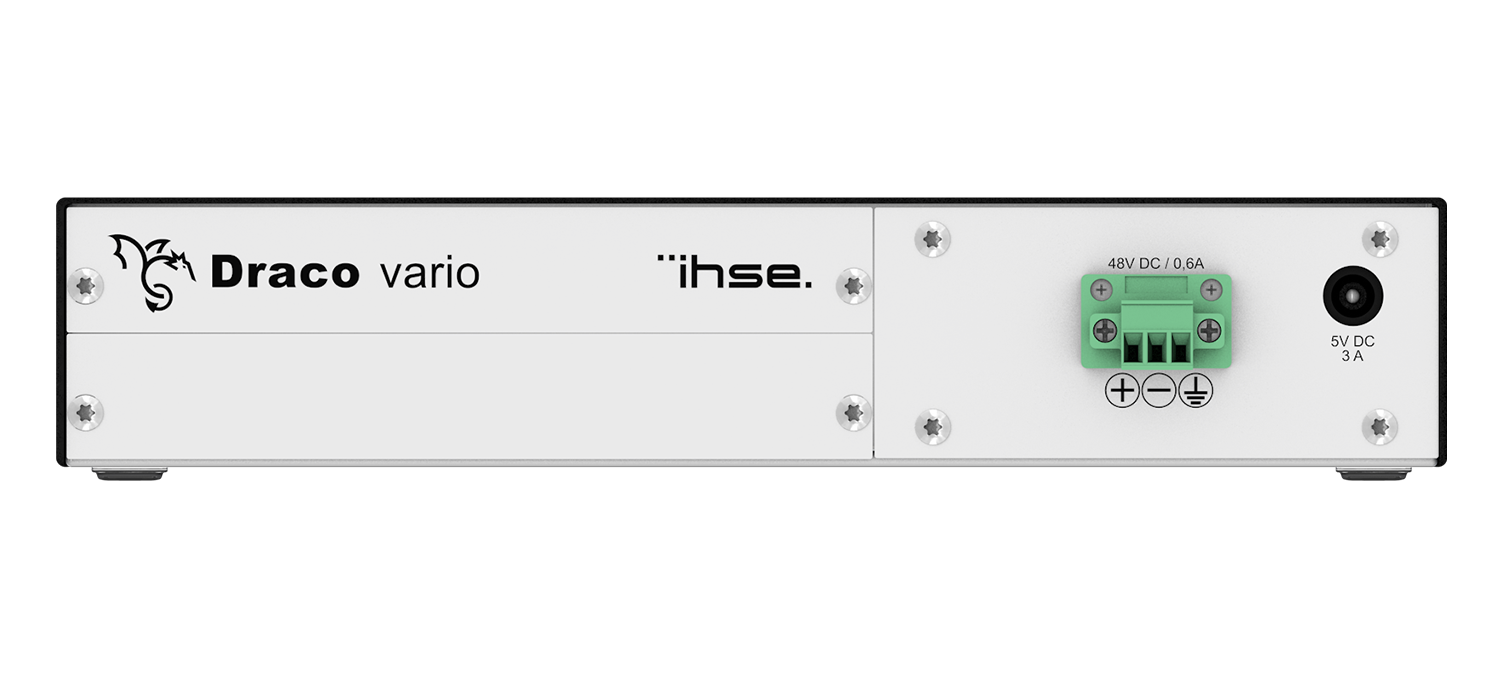

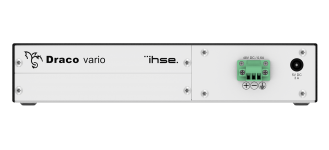

474-BODY2DC-482插槽机箱,集成48V DC电源,冗余电源设置

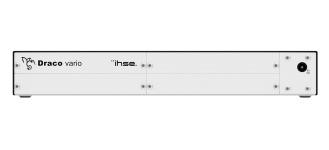

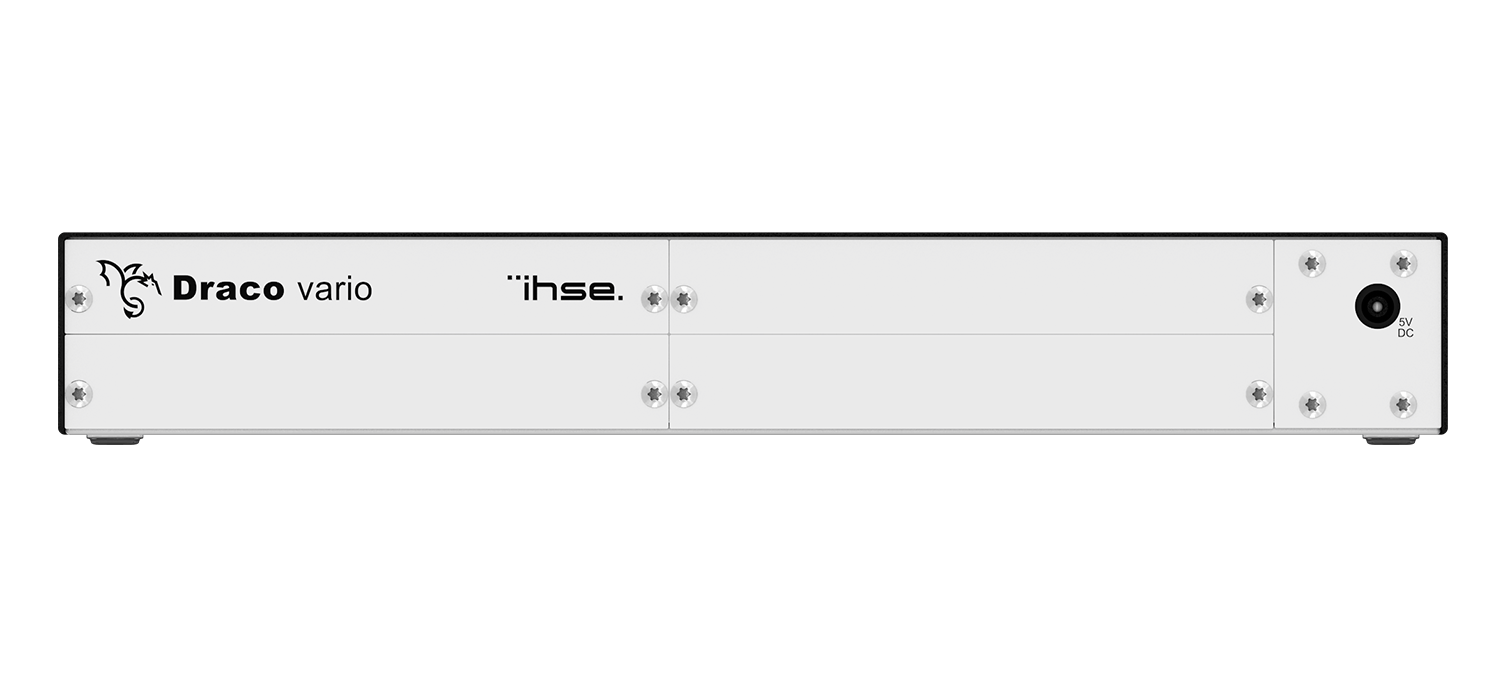

474-BODY44插槽机箱,可插入4个模块,外部电源

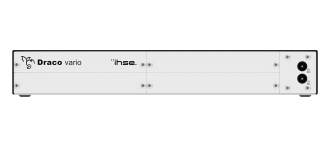

474-BODY4R4插槽机箱,外部电源,冗余电源设置

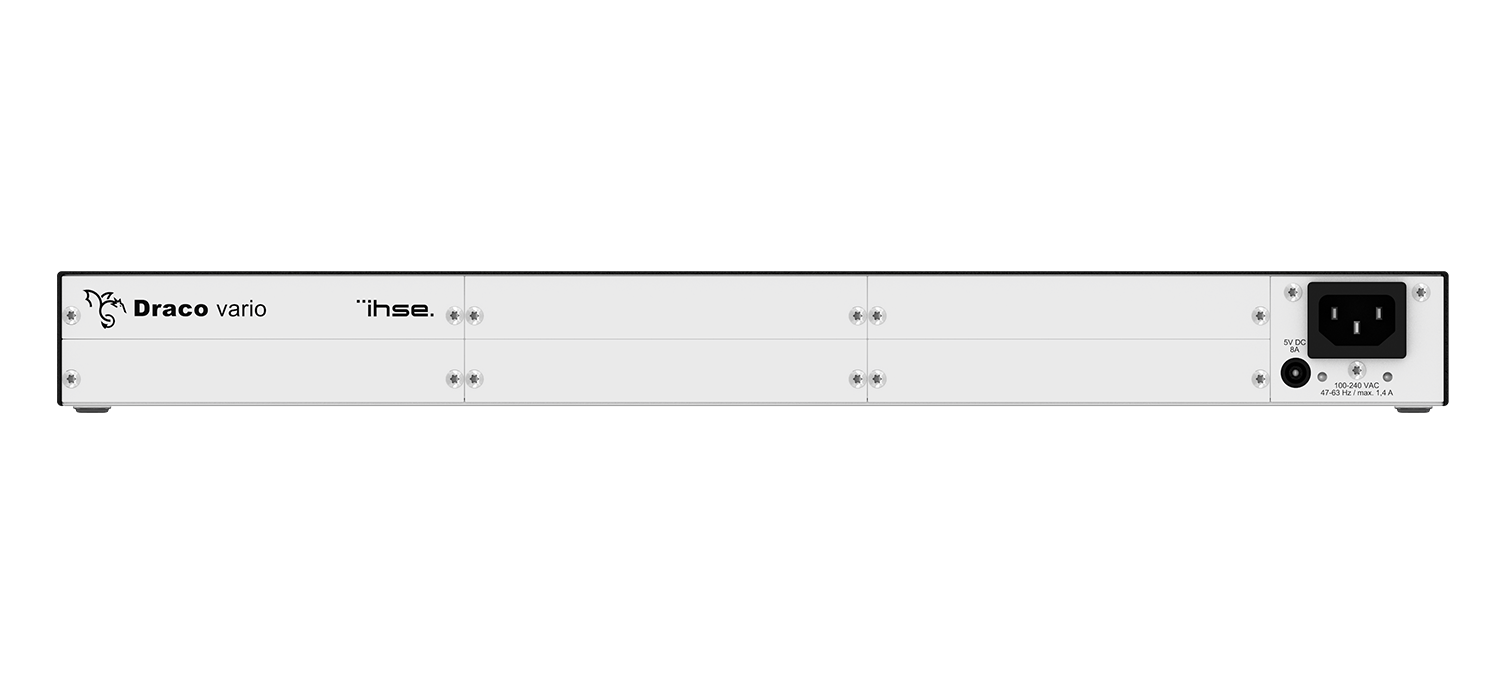

474-BODY6R-R16插槽机箱,集成电源,冗余电源设置

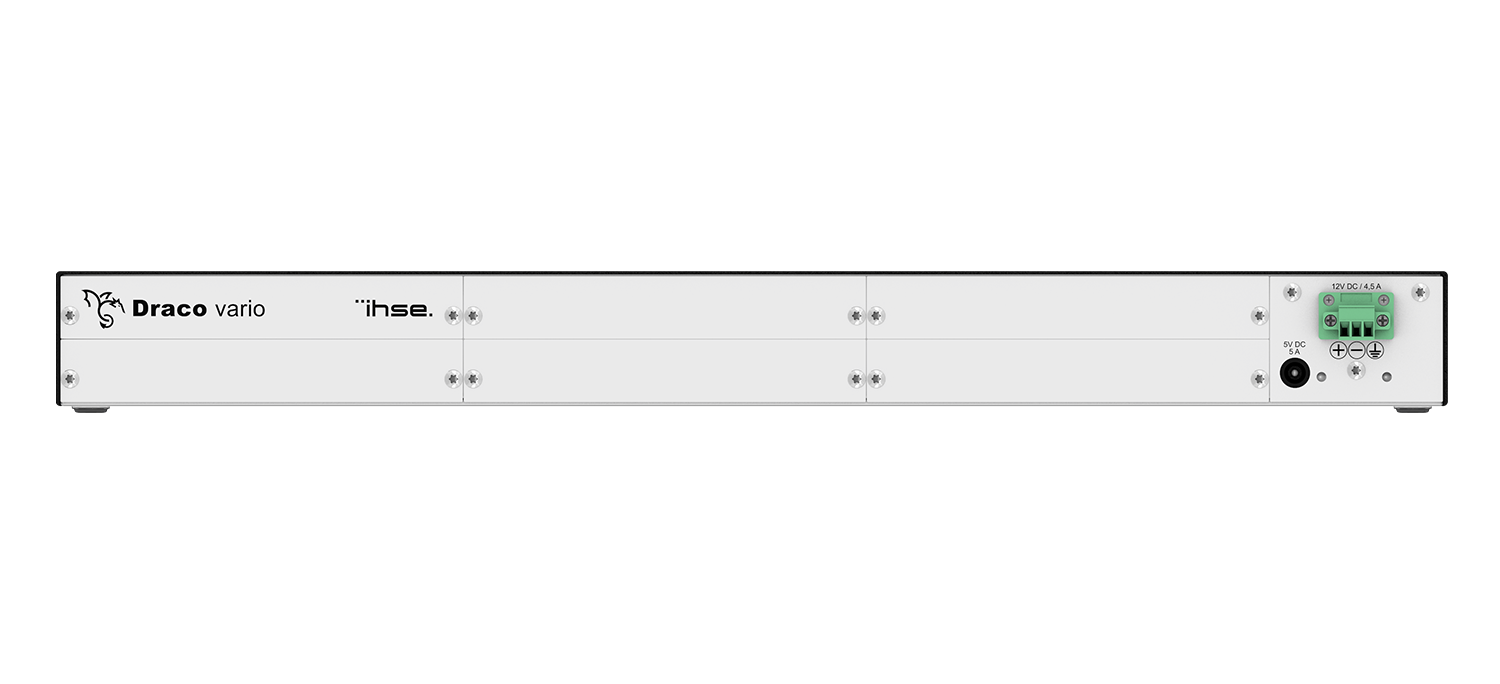

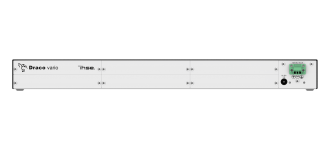

474-BODY6DC-126插槽机箱,集成12V DC电源,冗余电源设置
474-BODY6DC-246插槽机箱,集成24V DC电源,冗余电源设置

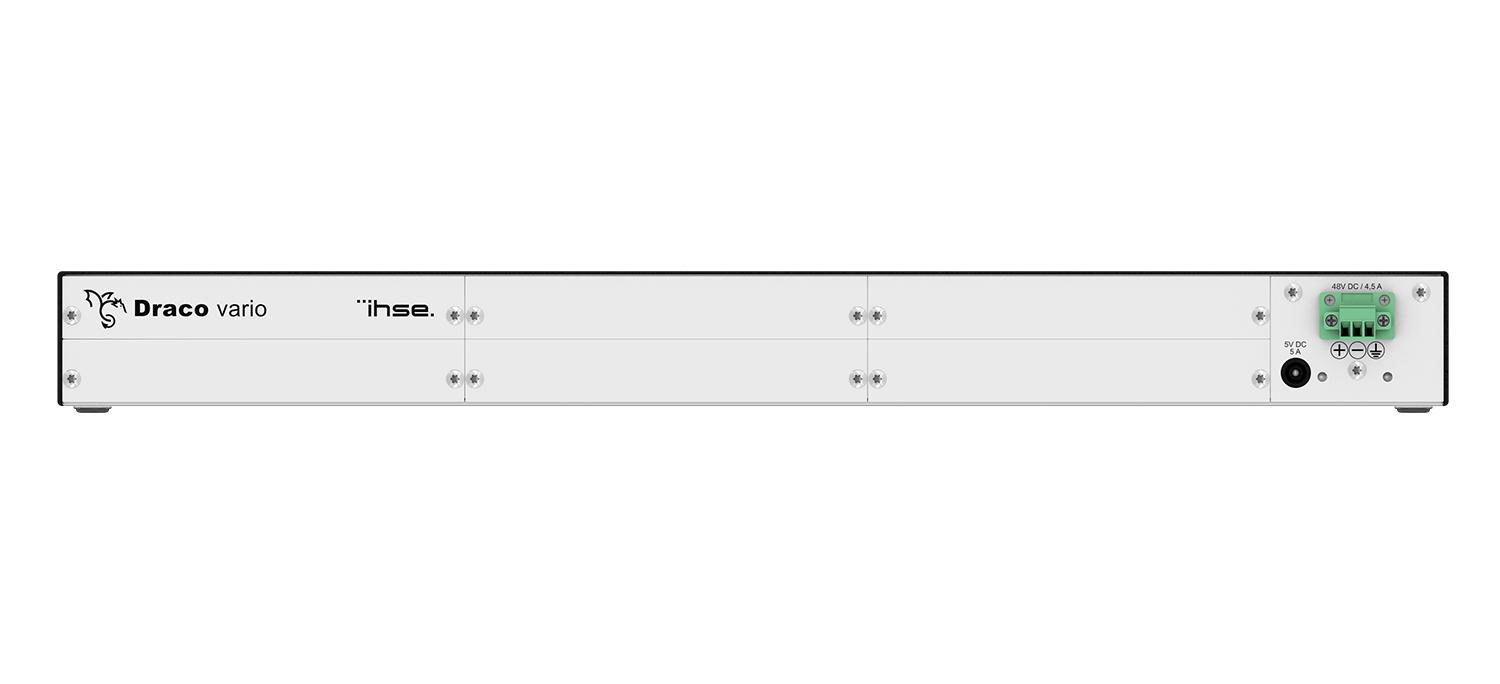

474-BODY6DC-486插槽机箱,集成48V DC电源,冗余电源设置

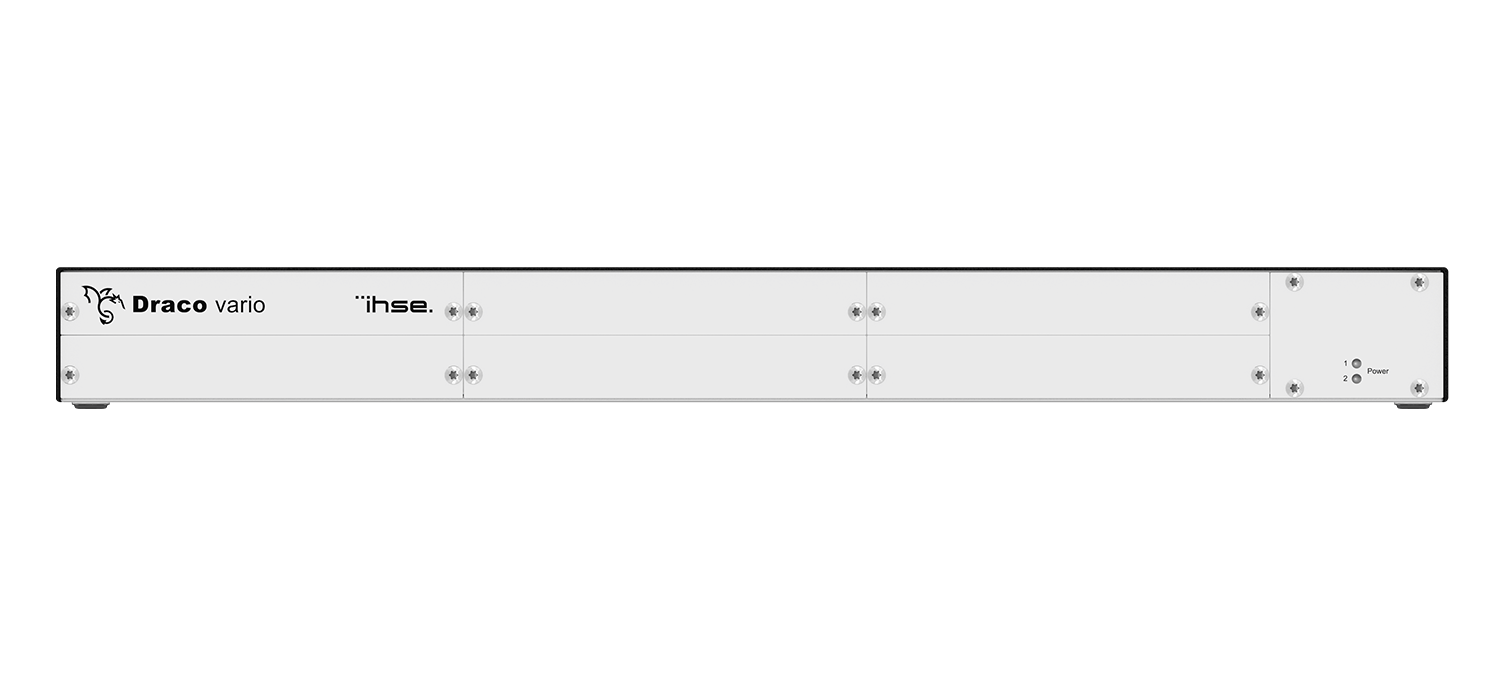

474-BODY6BP6插槽机箱,带背板,背板集成2个电源单元

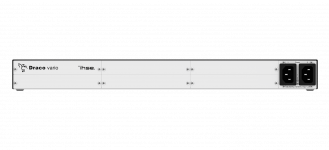

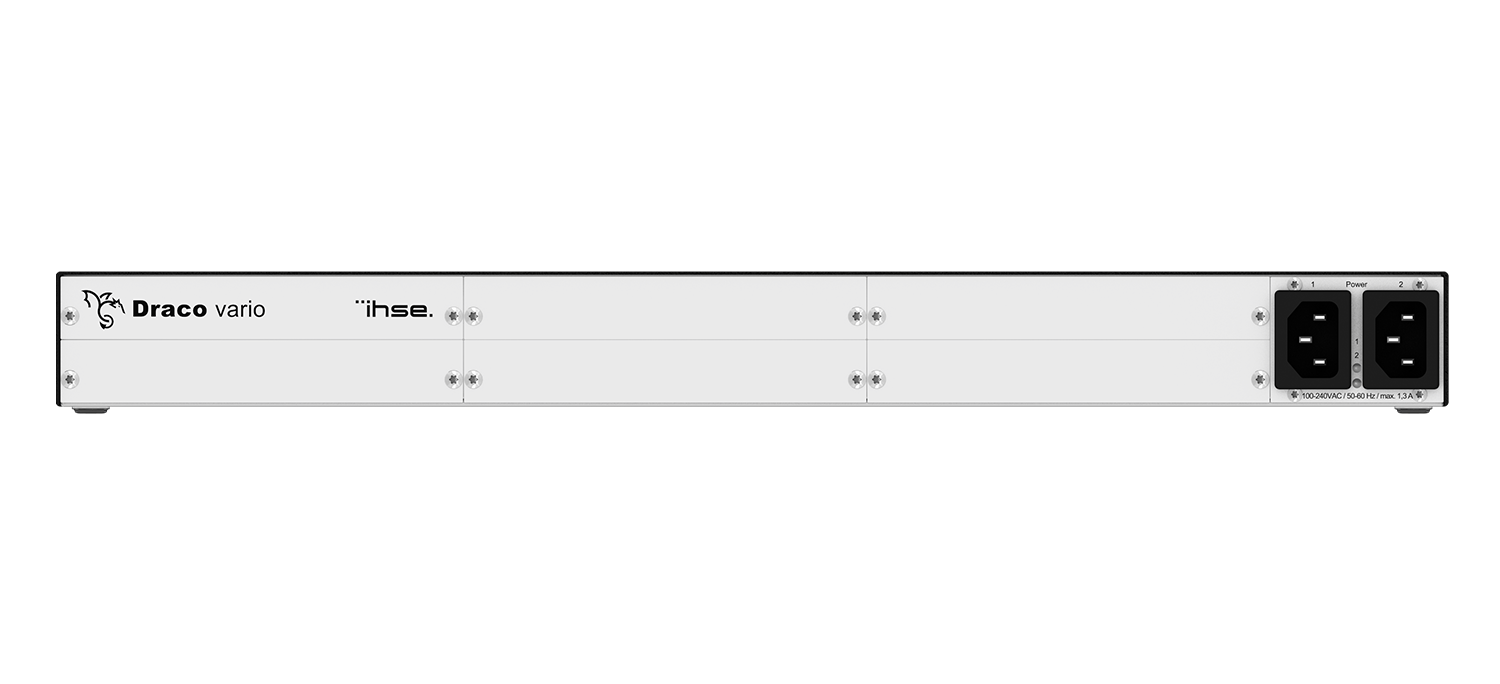

474-BODY6BPF6插槽机箱,带背板,正面集成2个电源单元

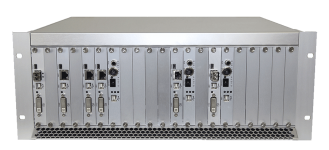

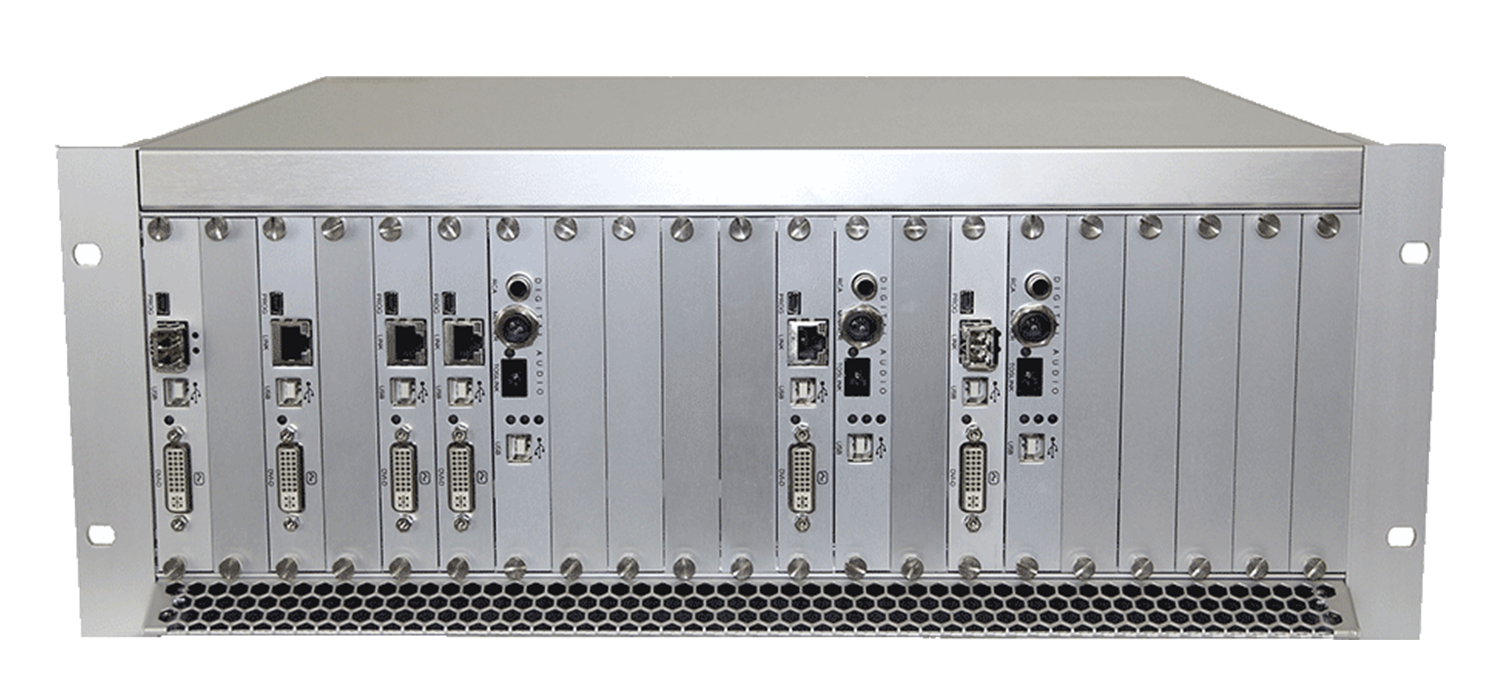

474-BODY21/4U4RU 19英寸机架式机箱,21个插槽,集成电源,冗余电源设置

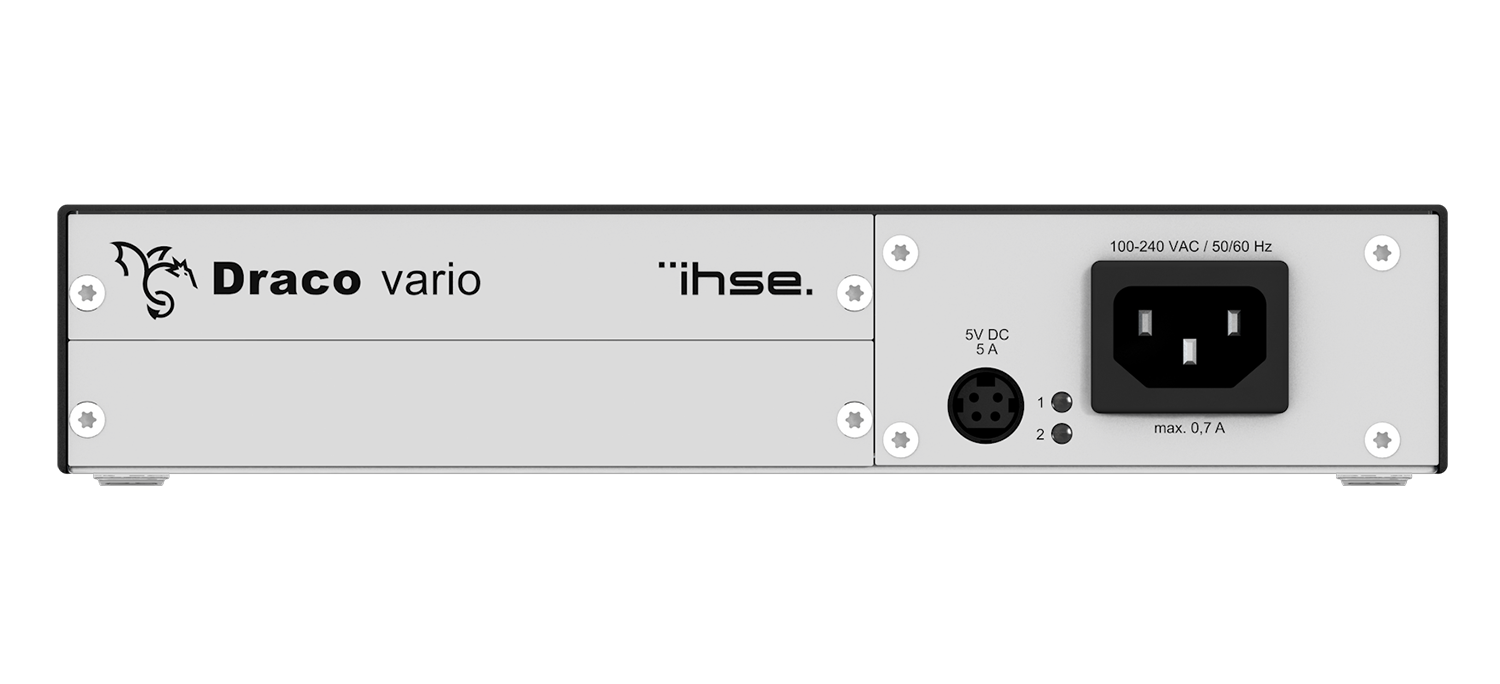

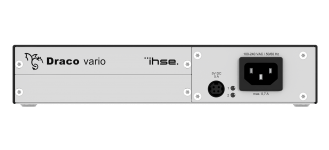

474-BODY2BPF2插槽机箱,带有集成背板和电源,冗余外部电源设置(可锁定)

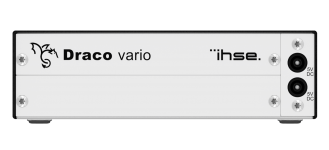

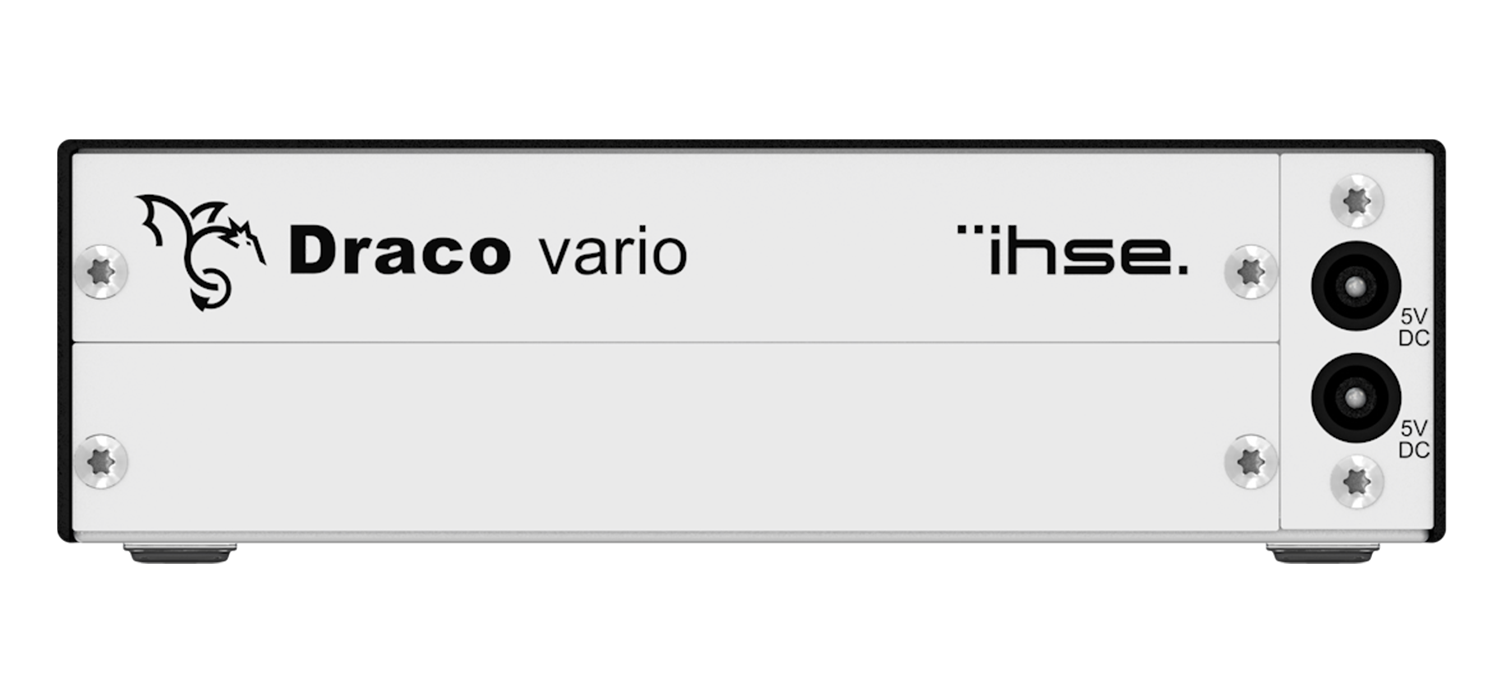

474-BODY2R2插槽机箱,外部电源,冗余电源设置
